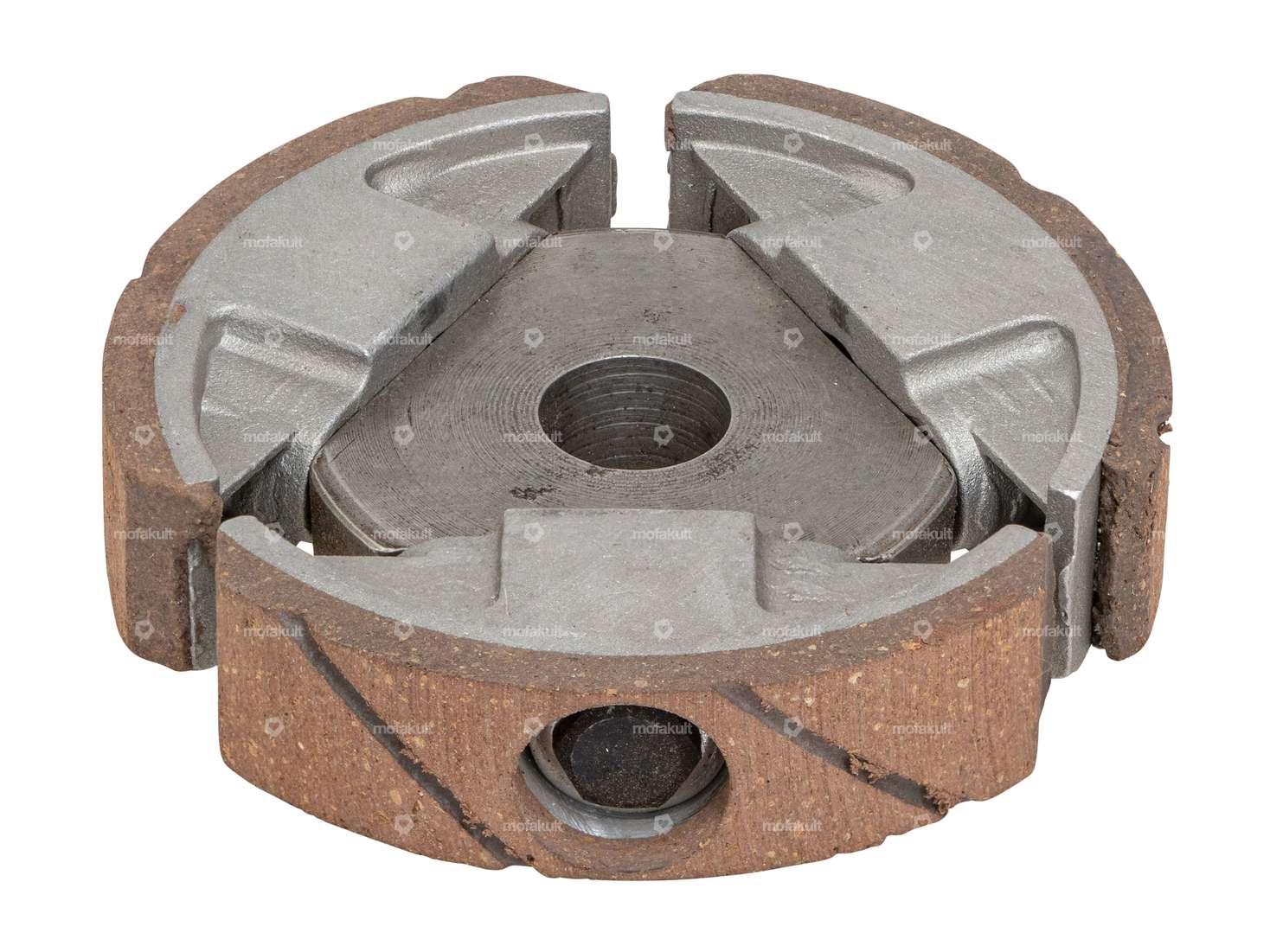

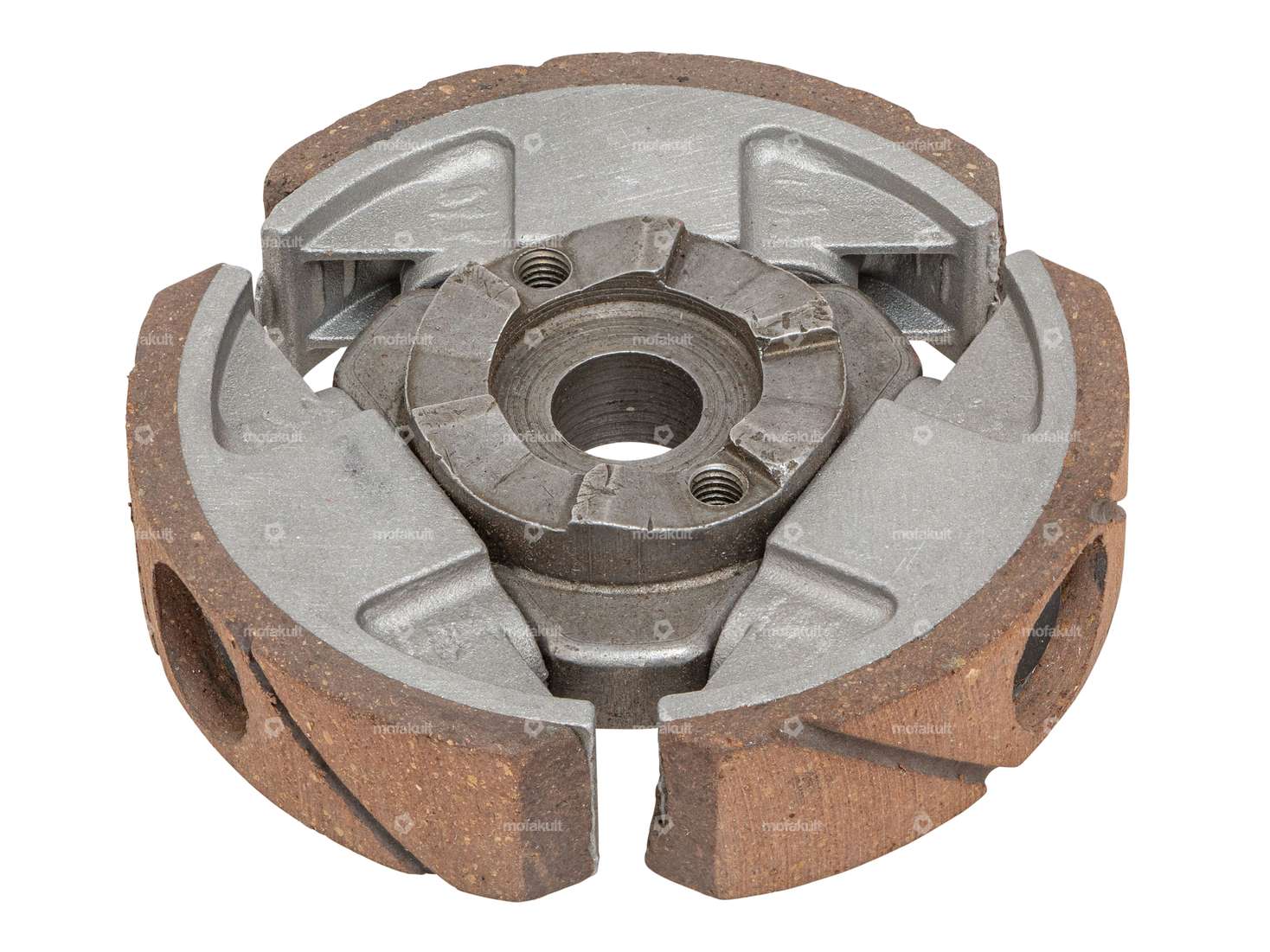

Copy of the KTM SX50 clutch suitable for all Puch Maxi mopeds / mopeds with E50 engine.
Attention: The clutch hub does not fit Puch Maxi crankshafts as the cone is not correct.
The cone can either be reworked or alternatively the high-quality matching MBR clutch star, which is listed under accessories, can be used.
Tightening torque on crankshaft: 35 - 40 Nm
Tightening torque screws for jaws: 10 Nm
The fastening nut is not included in the scope of delivery.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The clutch is a cheap replica, the clutch linings therefore last less than the original KTM linings. During tests in our racing team, the clutch usually lasted between 1 and 2 hours, after which the linings had to be replaced. The star, the springs and also the fastening screws are advantageously used from the original KTM clutch.
High-quality alternatives can be found in the accessories section.
| Number of jaws | 3 pcs |
| Recording type | Cone mounting |
| Area of application | Tuning |
| Puch | E50 |
Accessories & related products

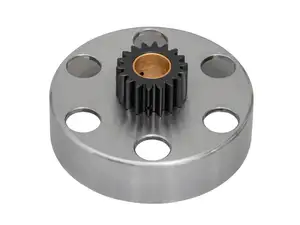

MBR Clutch KTM SX50 | Puch E50
