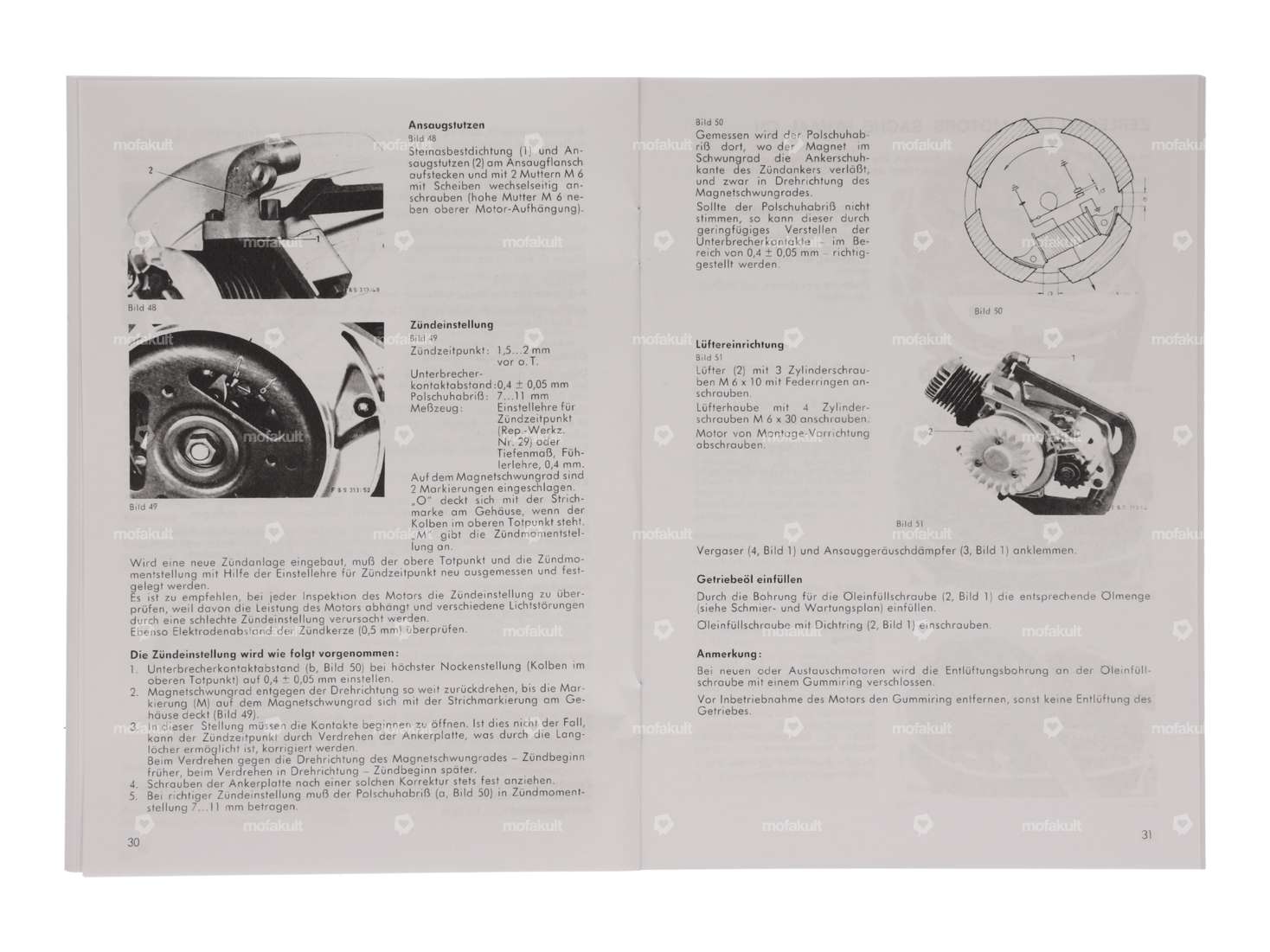

Nostalgic repair manual with complete exploded views and descriptions for the repair of your Sachs 503/2 AL, AAL CH moped / moped engine.
All aspects of the engine are described in detail and are illustrated by comprehensive revision instructions, numerous pictures and important facts.
In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.
| Material | Paper |
| DIN format | A5 |
| Number of pages | 56 pcs |
| Language | German |
| Sachs | 503 - AAL, 2AL / 2BL |
