Repair instructions for Sachs 50/2 models.
This super A5 catalog with 70 pages contains lots of interesting facts about the Sachs 50/2 engine (manual and automatic versions).

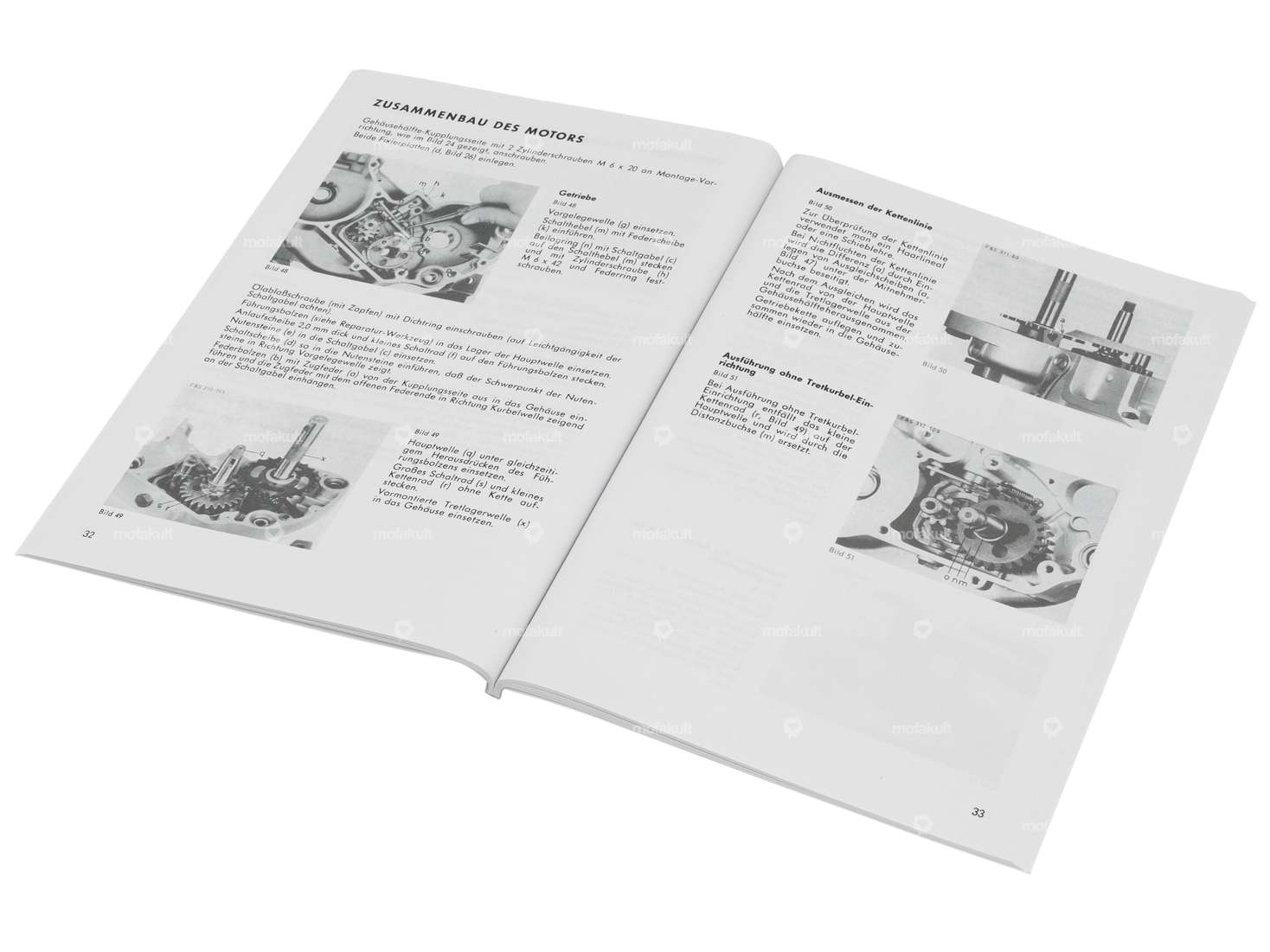

Everything about the engine is described in detail with revision instructions, lots of pictures and important facts.

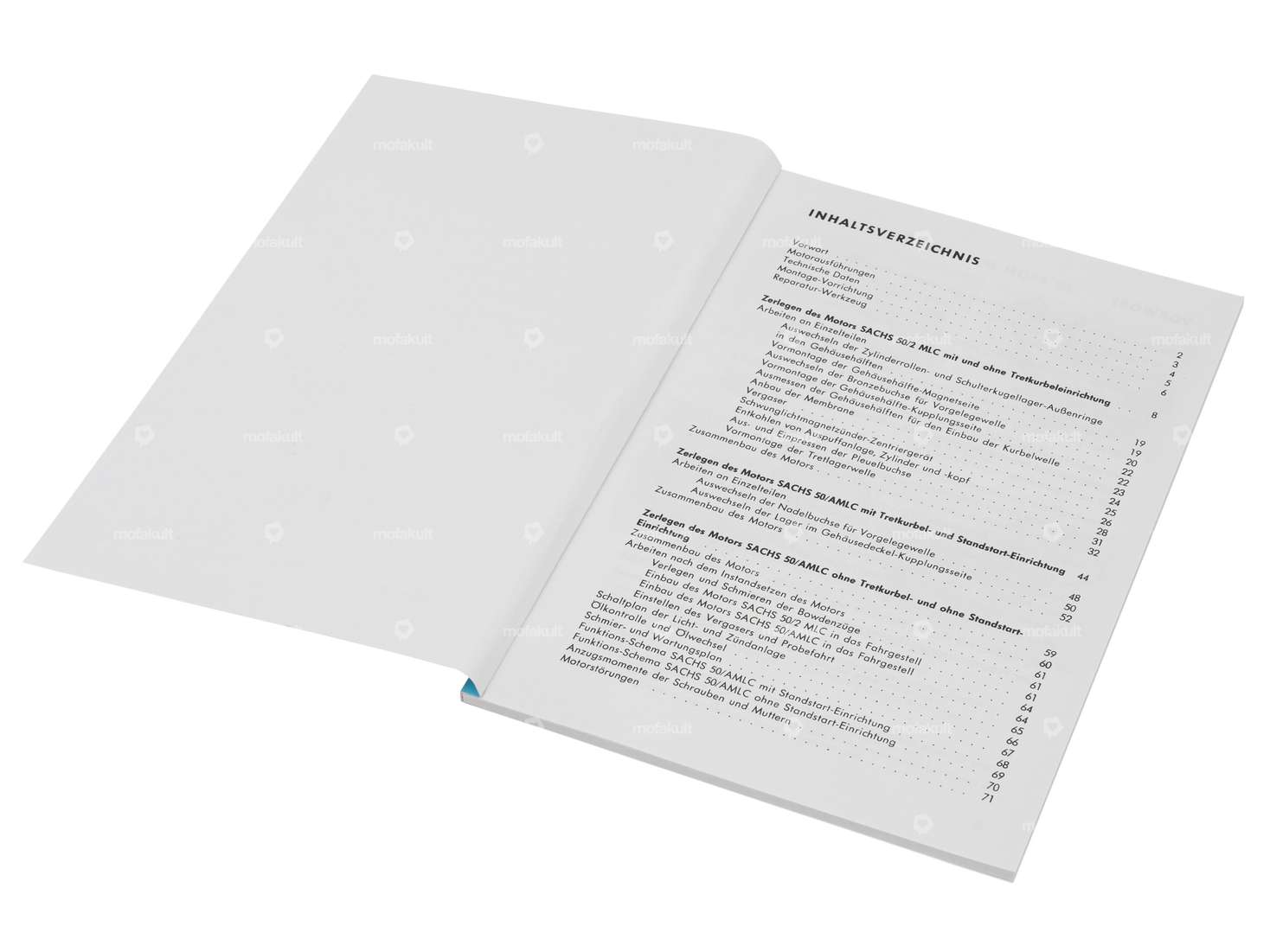

The following things are also explained in detail: technical data, special tools, engine, inspection work, carburetor and the electrical system.
I advise every Sachs fan or mechanic to read a book like this, you can always learn something new.
| Material | Paper |
| DIN format | A5 |
| Number of pages | 70 pcs |
| Language | German |
| Sachs | 502 (Saxonette) - AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) |
