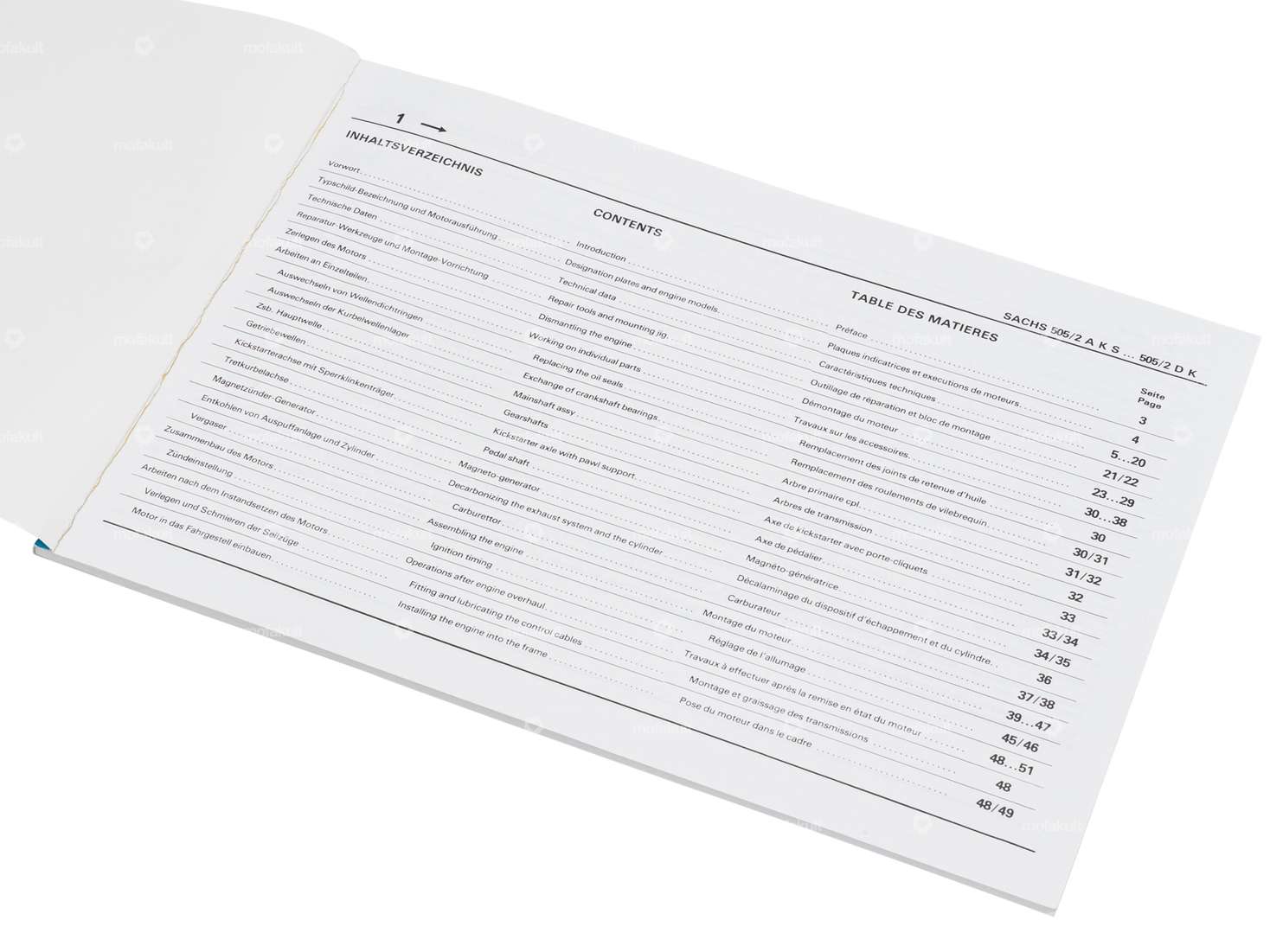

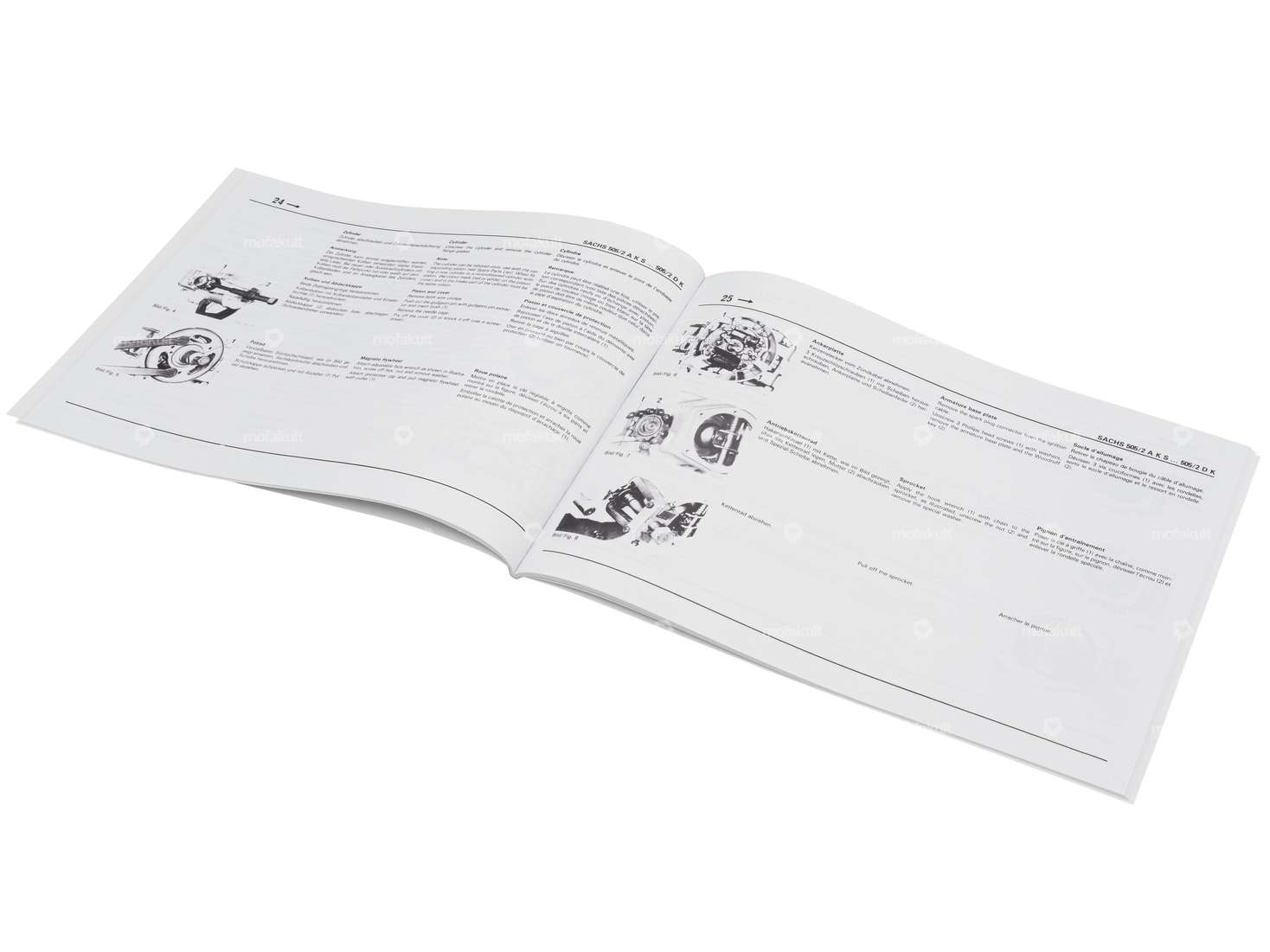

Repair instructions | Sachs 505/2

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Total length: 55 mm · Total length: 75 mm · Manufacturer: GPO · Clamping depth: 10 mm · Number of components: 1 pcs · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Strength class: 8.8 · Area of application: (Dis)assembly tool

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Ø piston pin (B): 12 mm · Weight piston kit: 79 g · Pony OEM number: A2772 · Pony OEM number: A4358 · Sachs OEM no.: 0286 377 010 · Sachs OEM no.: 0286 378 005

NGK B8ES spark plug long thread

Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

Repair instructions | Sachs 50 Zweigang (50/2)

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

swiing® ingenious 15 mm carburetor camouflaged | Puch

Total length: 66 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Nominal diameter: 15 mm · Carburetor type: SRE · Width: 50 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Height: 95 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Area of application: Tuning · Puch OEM number: 349.1.15.100.0 · Puch OEM number: 349.2.15.800.0 · Puch OEM number: 349.4.15.500.0 · Puch OEM number: 349.4.15.000.0 · Puch OEM number: 349.4.15.300.0 · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0 · Puch OEM number: 349.8.15.400.0 · Puch OEM number: 349.9.15.300.0

66HEROES Base plate, exchangeable number holder, aluminum

Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Color: black · Number of fixing points: 2 pcs · Mounting type: Nuts & bolts

Main stand black | Hercules Prima, Optima

Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 220 mm · Total width of stand base (B): 250 mm · Wide receptacle (C): 55 mm · Ø Receptacle (D): 8.3 mm · Spring nipple distance - center pivot axis (E): 80 mm · Wide upright foot (F): 25 mm · Total height: 230 mm · Hercules OEM number: 927 100 55 99
