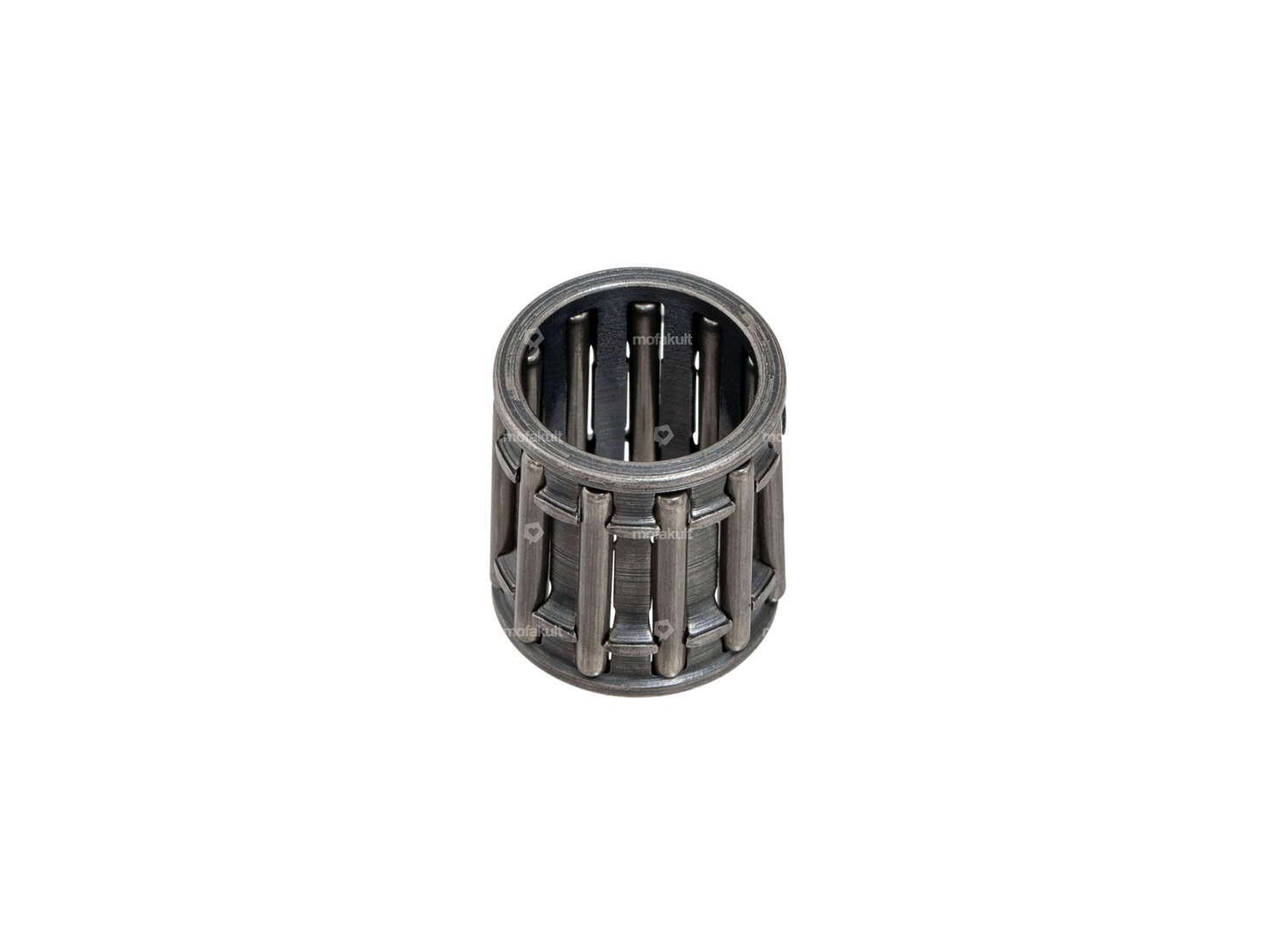

Polini needle bearing 10/13/14.5 piston pin

Meteor piston pin lock Ø 10 mm (double)

Material: Spring steel · Surface: blank · Manufacturer: Meteor · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Area of application: Standard · Color: green

Piston pin Ø 10 x 31 mm

Surface: Hardened · Material: Steel · Total length: 31 mm · Ø piston pin (B): 10 mm

Needle bearing 10/13/14.2 Piston pin

Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 10 mm · Ø outside: 13 mm · Dimension needle bearing: 10/13 x 14.2

Jasil crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.8 mm · Thread length: 13.5 mm · Ø Connecting rod eye: 13 mm · Area of application: Racing · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 716 g · Number of gears: 1 pcs

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Ø outside: 1 mm · Dimension needle bearing: 10/13 x 14.5 · Width: 14.5 mm

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 698 g · Number of gears: 1 pcs

Malossi piston pin lock Ø 10 mm

Manufacturer: Malossi · Material: Spring steel · Surface: blank · Ø outside: 10 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Domino brake lever set polygon black original | Piaggio Ciao PX, SI, Bravo

Manufacturer: Domino · Housing material: Aluminum · Material lever: Plastic · Color: black · Number of fixing points: 1 pcs · Mounting type: Screws

Side stand black | Piaggio Ciao PX, C24

Surface: powder-coated · Manufacturer: Made in Portugal · Material: Steel · Adjustable: No · Length pivot point - floor: 190 mm · Total length: 250 mm · Color: black · Number of fixing points: 2 pcs · Mounting type: Plug connection

Domino throttle grip set polygon original | Piaggio Ciao PX, SI, Bravo

Surface: varnished · Manufacturer: Domino · Material: Aluminum · Material lever: Plastic · Color: black

Lockable fuel filler cap | Piaggio Ciao

Material: Plastic · Fuel filler cap: Plug 33 mm · Lockable: Yes · Vented: Yes · Height: 105 mm · Ø External head: 54 mm · Color: black

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm · Color: black

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Surface: galvanized (blue) · Manufacturer: CIF · Material: Steel · Nominal diameter inside: 12 mm · Ø inside: 12 mm · Total length: 5 mm · Ø outside: 23 mm · Ø Bundle: 16.3 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Width: 3 mm · Total length: 12.5 mm · Height: 4.9 mm

Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Alternative version of the Piaggio OEM number: 103089 · Piaggio OEM number: 189525 · Piaggio OEM number: 257073

Polini cylinder head for 38.4 - 43 mm cylinder kit (version 2.0) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Ø cylinder: 38.4 - 43 mm · Total length: 118 mm · Width: 85 mm · Height: 58 mm · Candle thread: long · Area of application: Tuning · Decompressor: Yes
