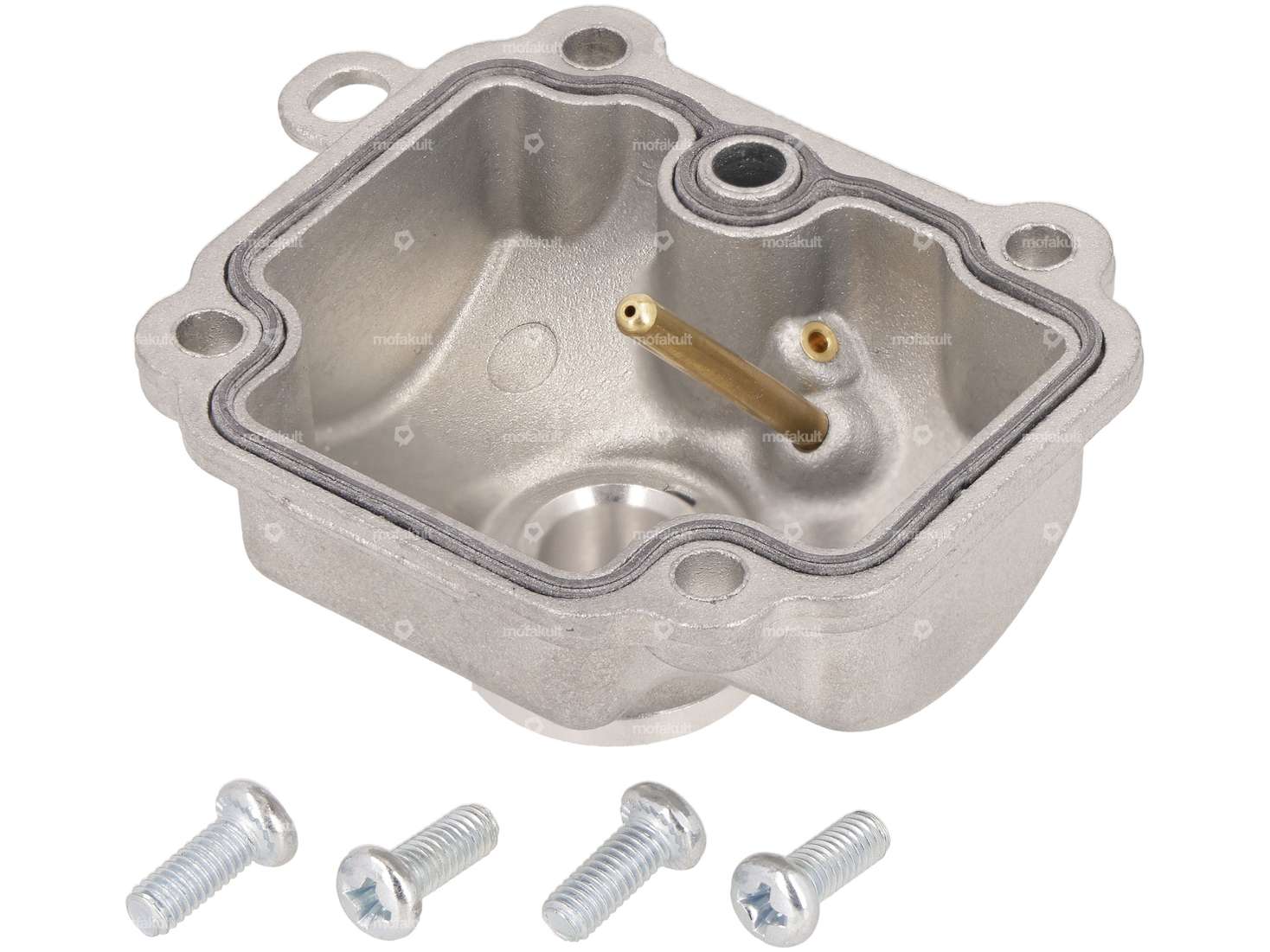

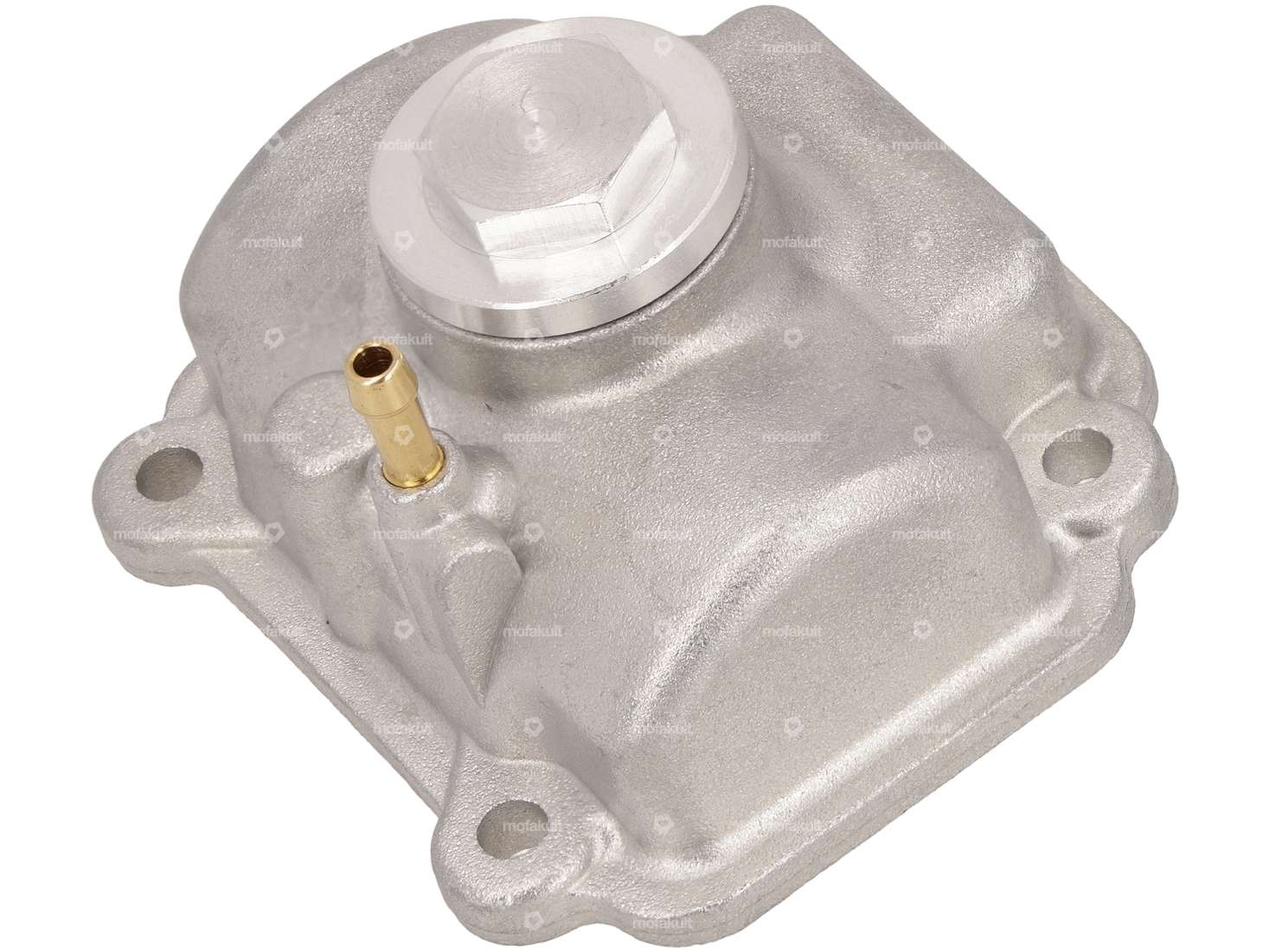

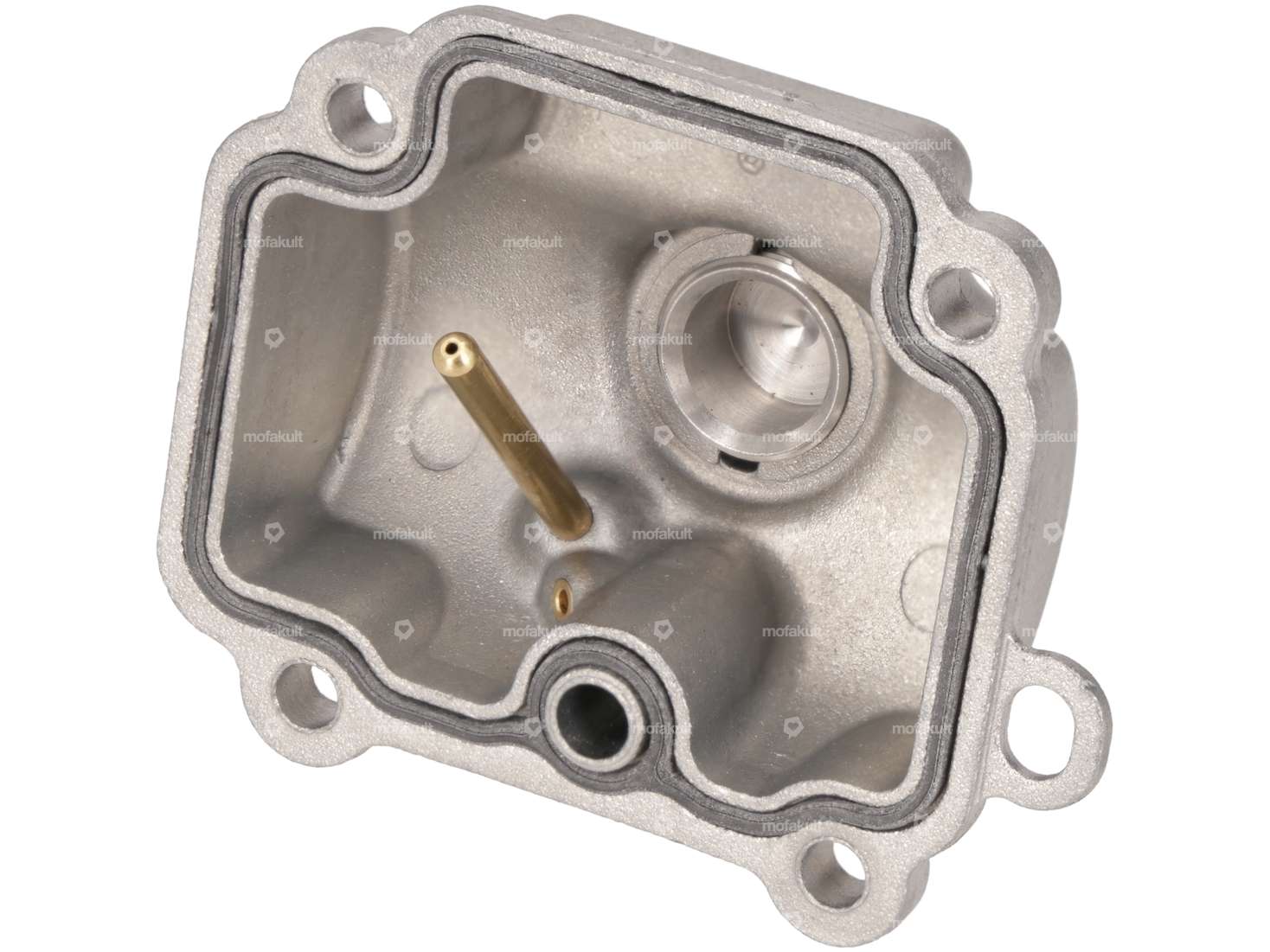

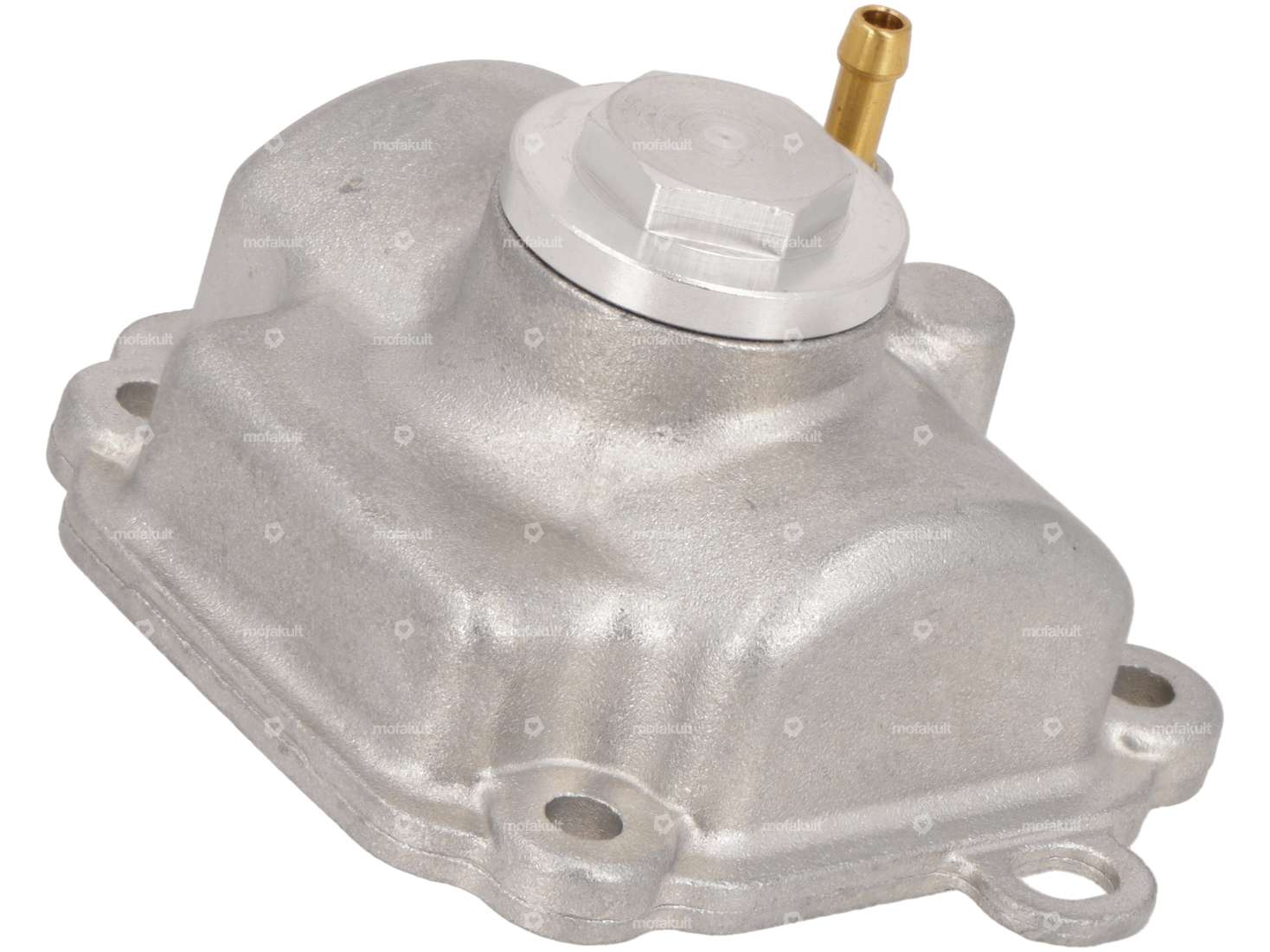

Polini float chamber CP carburetor

Polini CP 19 mm carburetor (hand choke)

Nominal diameter: 19 mm · Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: CP · Choke control: Hand choke · Height: 135 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 66 · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 46 mm · Ø Internal connection: 24 mm · Mixed oil connection: Yes · Width: 66 mm · Mounting type: Plug connection clamped · Vacuum connection: Yes · Total length: 73.5 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Nozzle block: 35-12 · Size of secondary nozzle: 42

Polini CP 21 mm carburetor (hand choke)

Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: CP · Nominal diameter: 21 mm · Total length: 73.5 mm · Width: 75 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 72 · Height: 135 mm · Ø Inside entrance: 21 mm · Ø Output inside: 21 mm · Ø Air filter connection: 46 mm · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Size of secondary nozzle: 42

Polini float chamber CP carburetor transparent

Manufacturer: Polini · Component group Carburetor: Adjusting screws, float, etc. · Thread type: M4x0.7 (standard thread) · Material: Plastic · Carburetor type: CP · Number of fixing points: 4 pcs

Polini gasket float chamber CP carburetor

Manufacturer: Polini · Component group Carburetor: Sealing, revising · Material: Rubber · Carburetor type: CP

Screw M4x10 pan-head cross galvanized

Material: Steel · Surface: galvanized (blue) · Total length: 13.3 mm · Drive: Cross recess · Screw head: Lens head · Screw head: Panhead · Nominal diameter (thread): 4 mm · Ø External head: 8 mm · Thread type: M4x0.7 (standard thread) · Shank: No · Width across flats: 4.3 mm · Strength class: 4.8 · Thread length: 10 mm

swiing® revival snap ring low control bearing set

Nominal diameter: 20 mm · Nominal diameter: 28 mm · Manufacturer: swiing® revival parts · Thickness: 0.6 mm · Height: 7 mm · Material: Spring steel · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

45 mm gasket cylinder head 0.4 mm | Puch

Place of use: Cylinder head · Material: Aluminum · Ø cylinder: 45 mm · Thickness: 0.4 mm

Cylindrical roller Ø 3.5 x 7.5 Gearbox | Puch Z50

Manufacturer: Puch · Surface: Hardened · Diameter: 3.5 mm · Material: Steel · Width: 7.4 mm · Area of application: Standard

swiing® ingenious 0.5 mm lift plate aluminum tuning | Puch

Thickness: 0.5 mm · Manufacturer: swiing® ingenious parts · Place of use: Cylinder base · Material: Aluminum · Ø cylinder: 45 mm · Surface: anodized · Area of application: Racing

swiing® revival spacer set crankshaft L17 | Puch Z50

Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 17 mm · Ø inside: 17.1 mm · Ø outside: 23.8 mm

swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch X30 NS / NL (Z50)

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Material: Aluminum · Material: Steel · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 942 g · Ø Bearing seat (ignition side): 17 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 27 mm

Polini main jet (74 - 115 of your choice) CP / Keihin / PWK carburetor

Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Carburetor type: CP · Carburetor type: CP Evolution · Carburetor type: Keihin · Carburetor type: PWK · Carburetor type: RT-PWK · Drive: External hexagon · Nozzle type: Main nozzle · Total length: 16.5 mm · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 95 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 105 · Nozzle size: 108 · Nozzle size: 110 · Nozzle size: 112 · Nozzle size: 115 · Width across flats: 6 mm · Thread length: 3 mm · Nozzle thread: M5x0.8 (standard thread)

GPO 21 mm intake manifold Dell'Orto PHBG | Puch E50 / Z50 / ZA50 (wind cooled) / ZA50 (Cat.)

Manufacturer: GPO · Material: Aluminum · Ø External connection: 26 mm · Hole spacing inlet: 38 mm · Ø inside: 21 mm · Mounting type: Stud bolts & nuts · Total height: 68.6 mm · Number of fixing points: 2 pcs · Area of application: Racing · Area of application: Tuning · Total length: 85.5 mm
