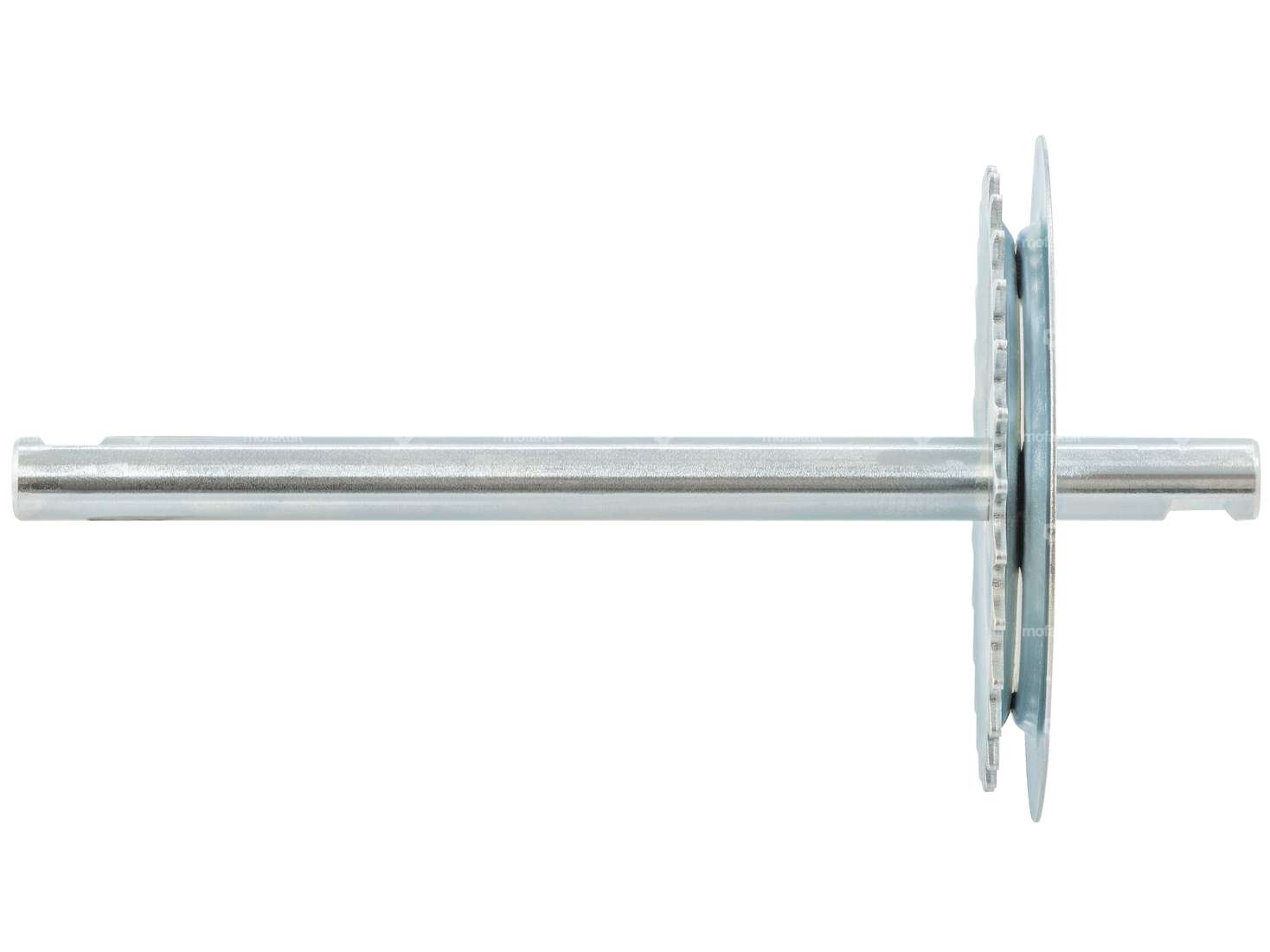

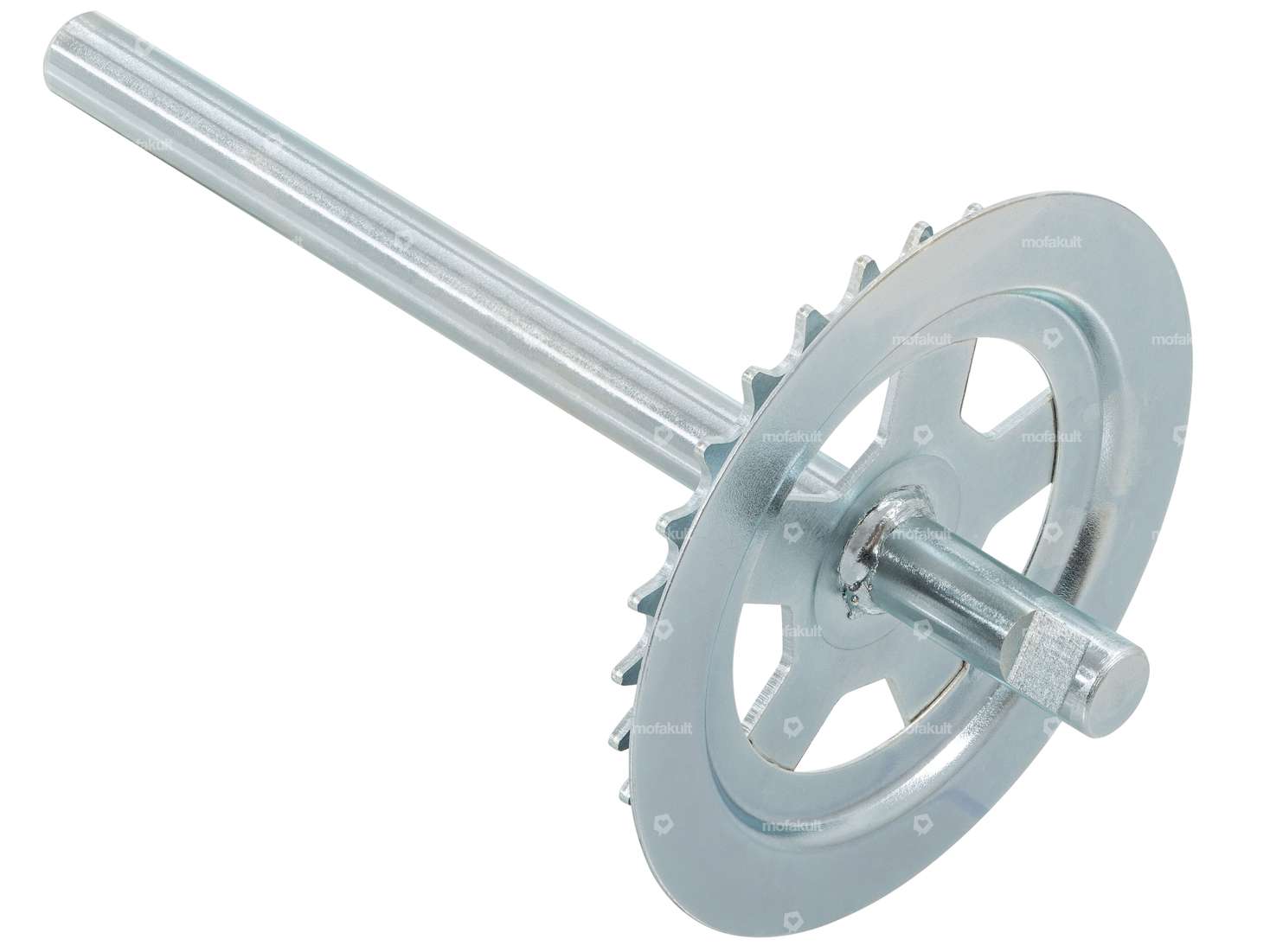

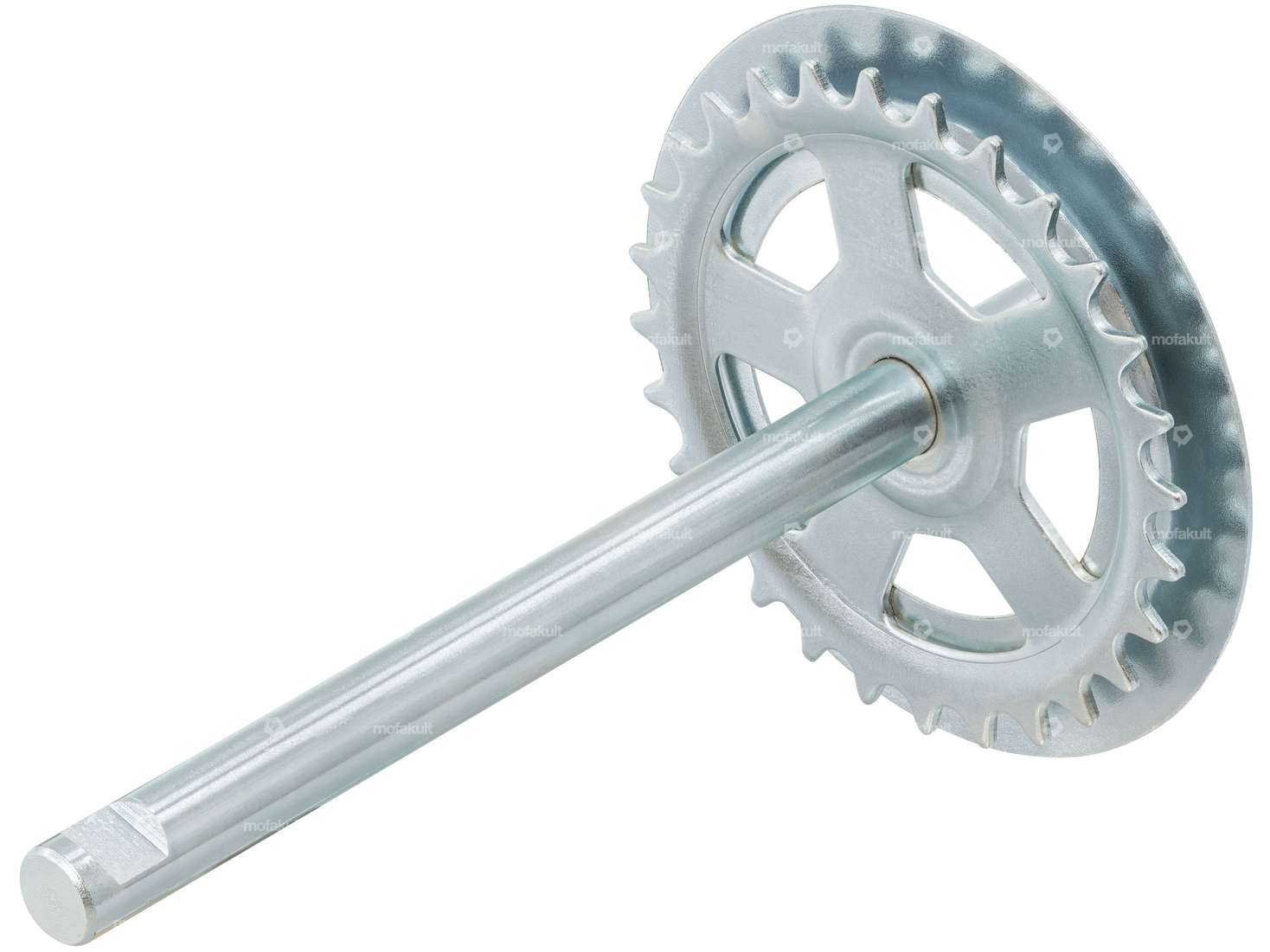

Zinc-plated bottom bracket axle with keyway suitable for Piaggio Ciao mopeds / mopeds.
The pedal shaft is designed for mounting the pedal arms using a key.
The pedal axle is firmly welded to the sprocket.
Total length: 234 mm
Ø Sprocket: 118 mm
Ø Chain guard: 130 mm
Ø Axle: 16 mm
Number of teeth: 28 pieces
Chain pitch: 1/2" x 1/8"
Long heel: 183 mm
Short heel: 48 mm
Note: This is B-quality goods. The sprocket may be unbalanced and may need to be straightened to prevent the chain from jumping out when pedaling. The galvanization, however, is flawless.
The complete set, the high-quality alternative and other attachments can be found in the accessories section.
Original Piaggio spare part number: 813424
| Chain pitch | 1/2" x 1/8" |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø outside | 130 mm |
| Color | silver |
| Number of teeth | 28 pcs |
| Total length | 234 mm |
| Wavelength from wreath | 48 mm |
| Ø Outer sprocket | 116 mm |
| Ø Pedal arm holder | 16 mm |
| Crank (wreath) | 2.3 mm |
| Piaggio OEM number | 813424 |
| Piaggio | Ciao - P, SC, PX, C24 |
