Description

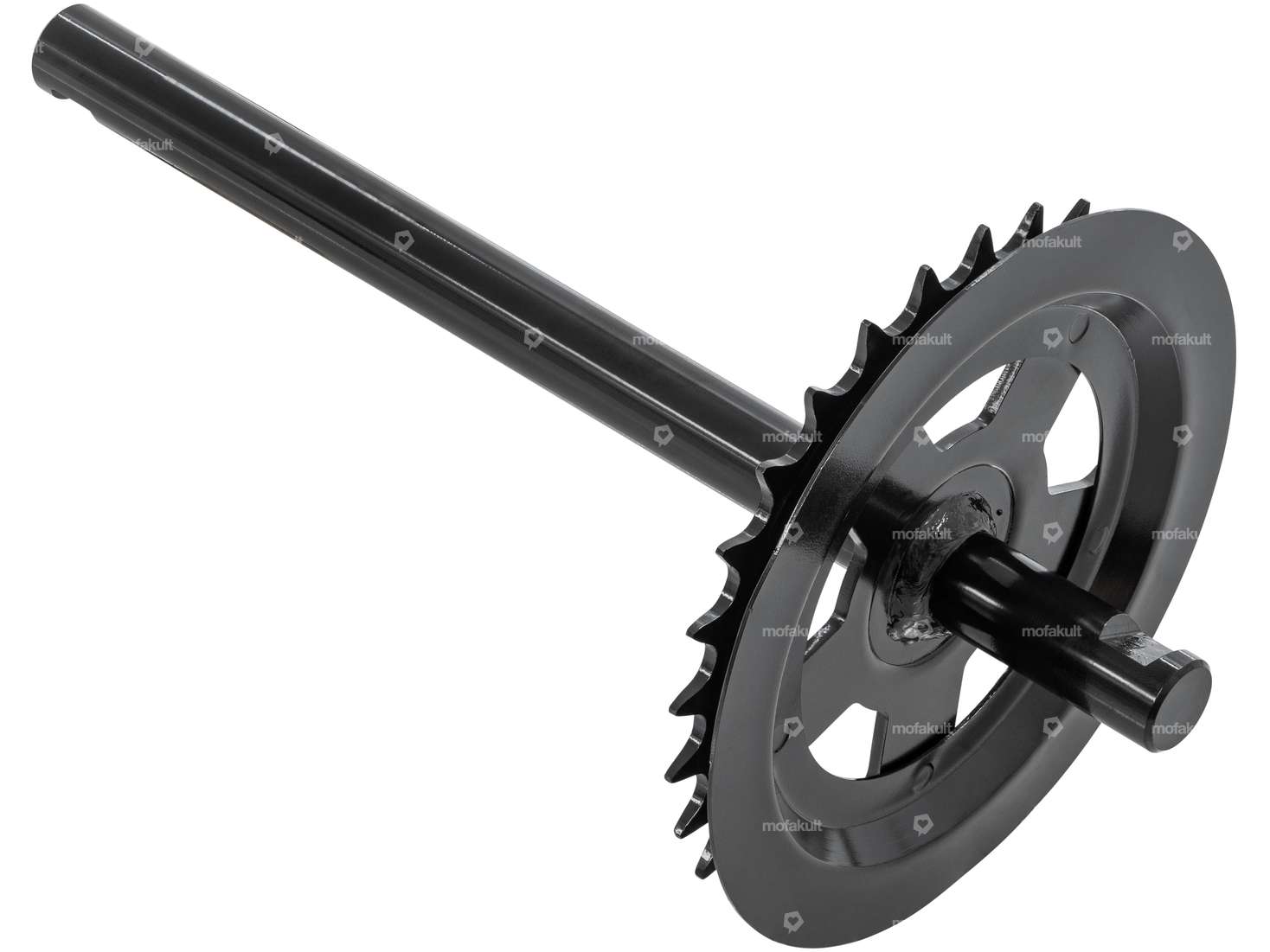

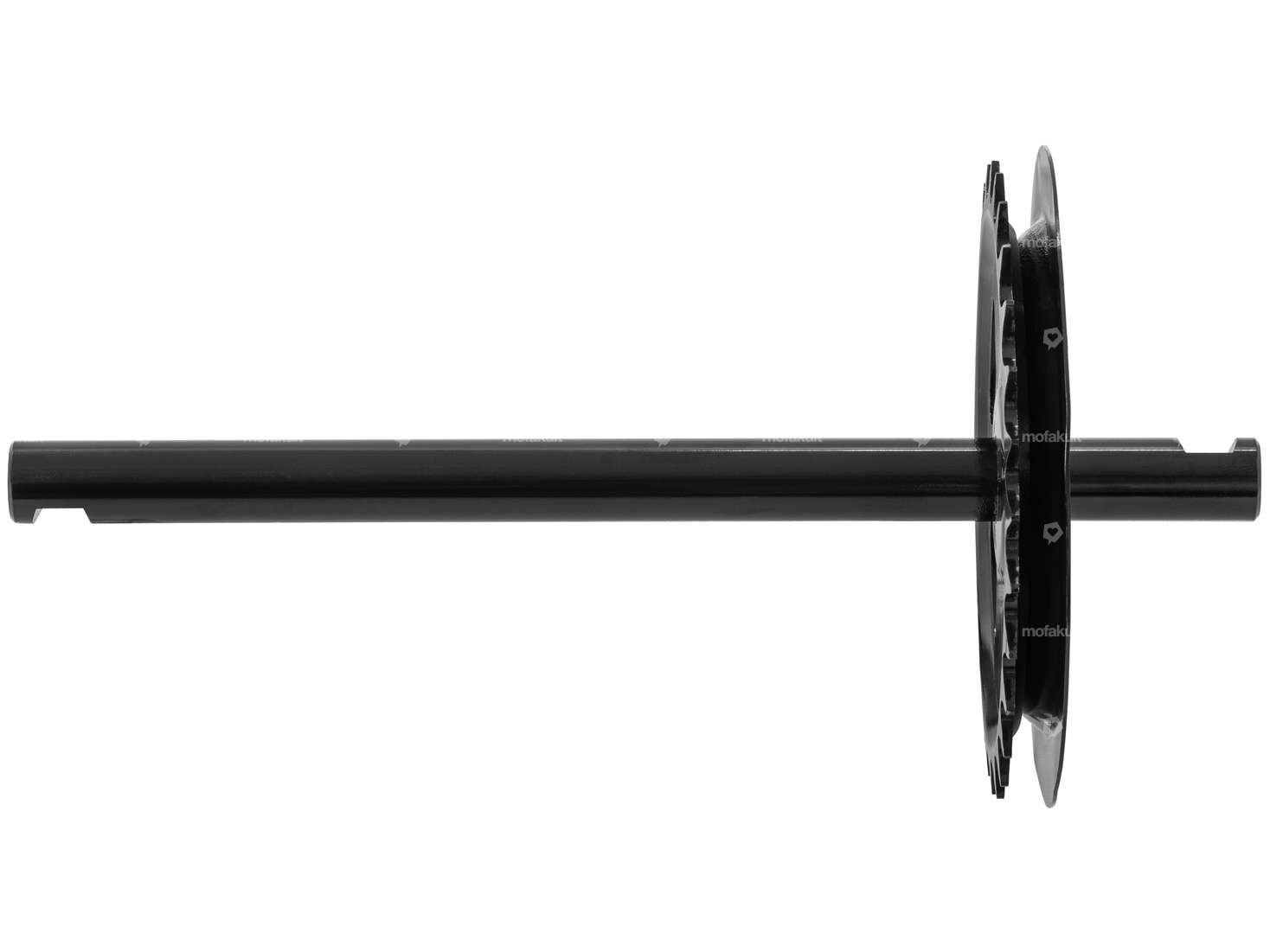

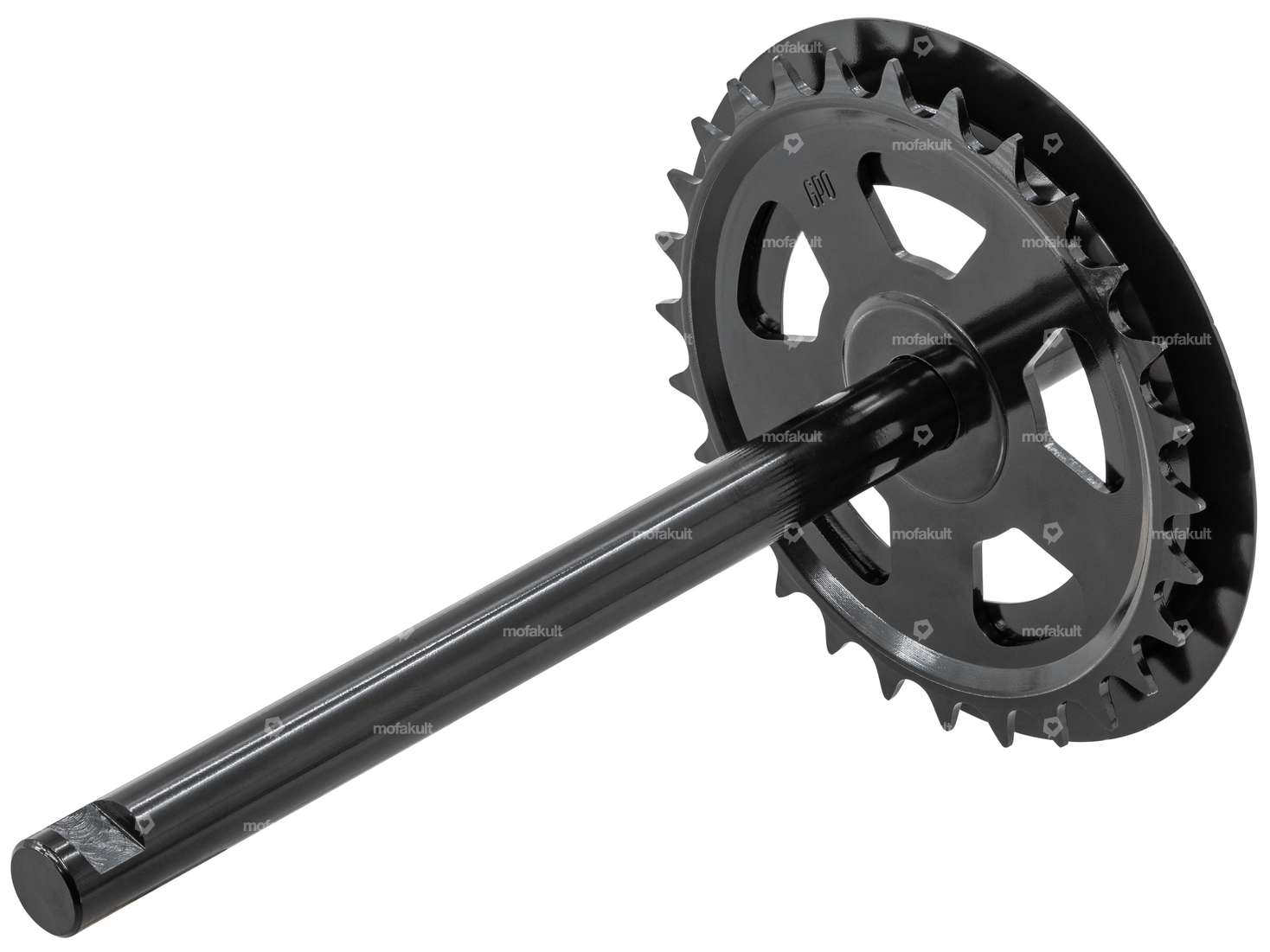

Black painted bottom bracket axle with keyway suitable for Piaggio Ciao mopeds/mopeds.
The pedal axle is firmly welded to the sprocket. The pedal arms are mounted by means of a wedge.
The concentricity of the sprocket is almost perfect and thus ensures that the chain does not jump out or jam.

Total length: 234 mm
Ø sprocket: 120 mm
Ø chain guard: 125 mm
Ø axle: 16 mm
Number of teeth: 28 pieces

Chain pitch: 1/2" x 1/8"
long heel: 186 mm
short heel: 46 mm

Matching attachments such as a pedal chain or bottom bracket bushings can be found in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Original Piaggio spare part number: 813424

Details

Manufacturer	GPO
Material	Steel
Surface	varnished
Color	black
Chain pitch	1/2" x 1/8"
Number of teeth	28 pcs
Ø outside	125 mm
Wavelength from wreath	186 mm, 46 mm
Ø Outer sprocket	120 mm
Ø Pedal arm holder	16 mm

Total length	234 mm
Crank (wreath)	3 mm
Piaggio OEM number	813424

Suitable for the following models

Piaggio

Ciao - P, SC, PX, C24
