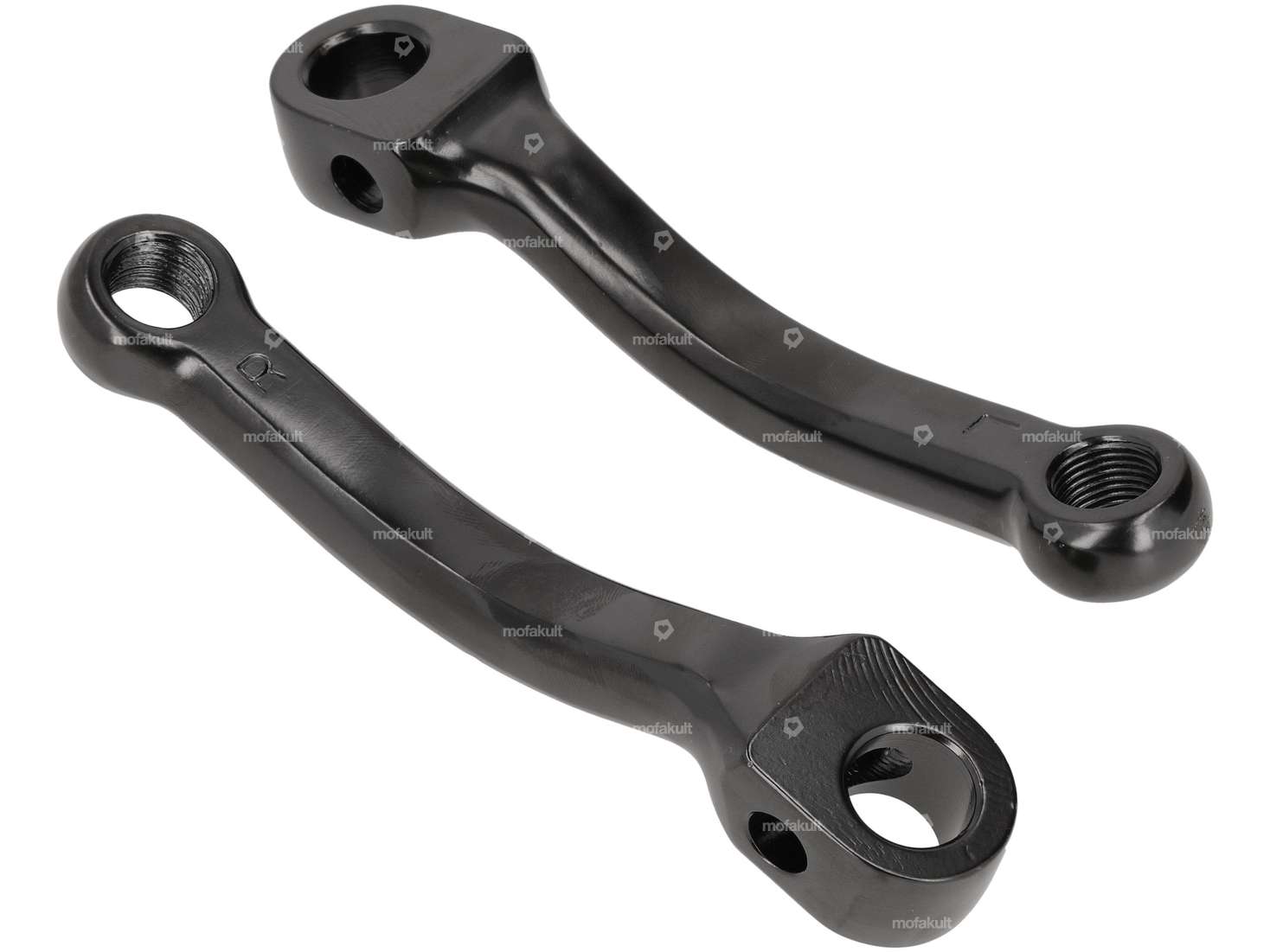

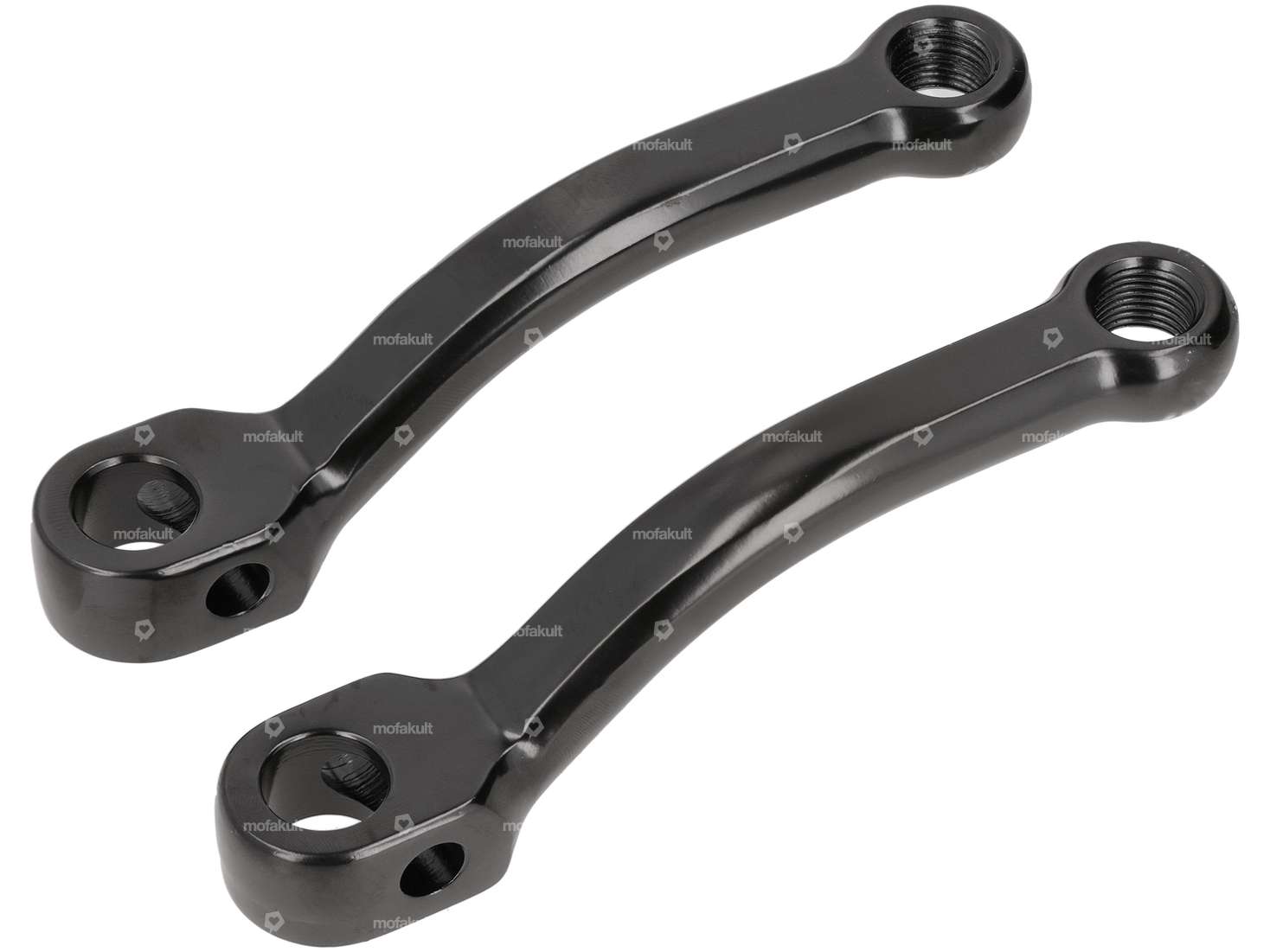

A pair of black painted pedal arms for your moped / moped.

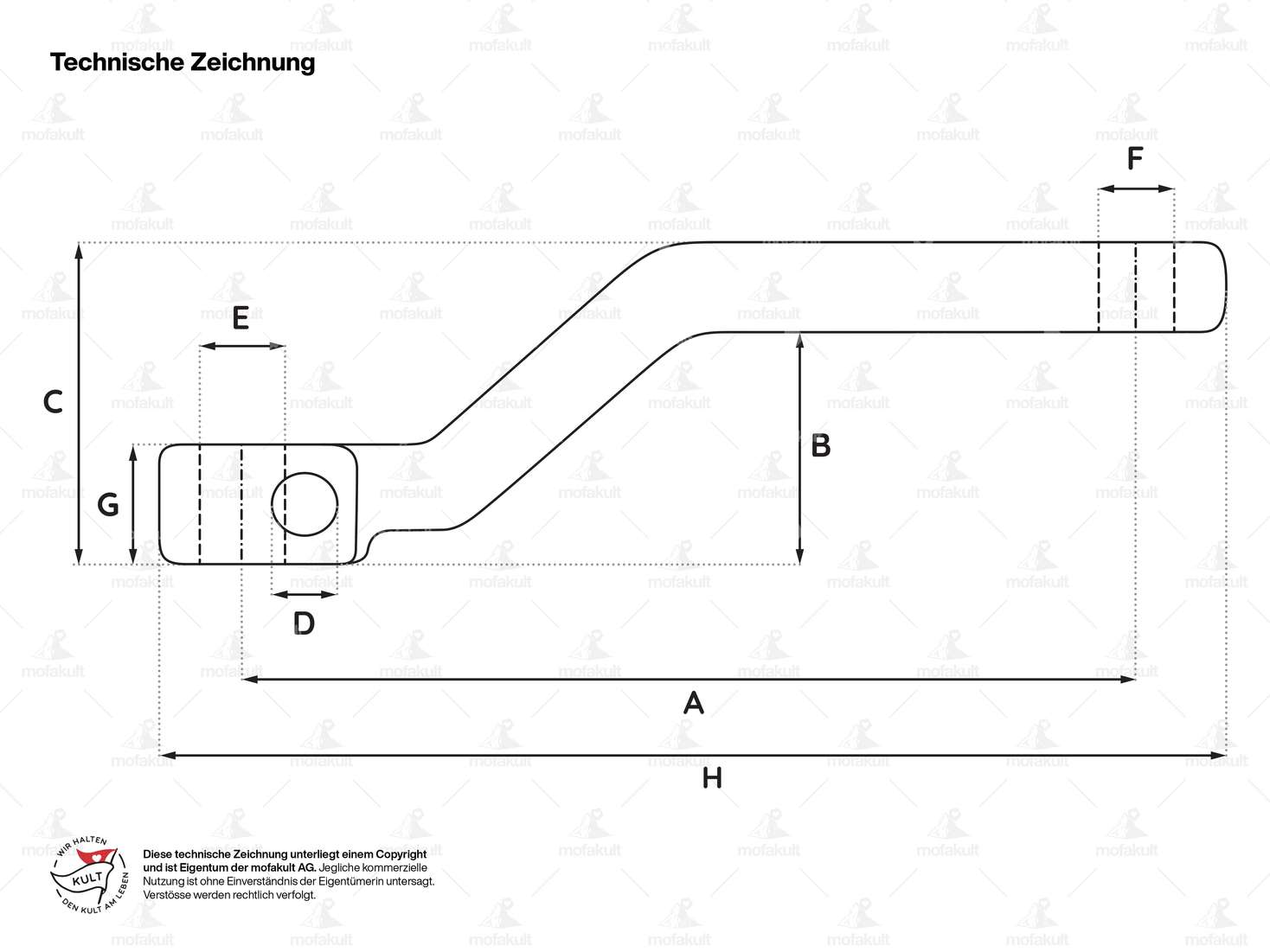

Crank length A (center axle - center thread): 120 mm
Internal crank B: 30 mm
Width C: 42 mm
Crank key Ø D: 9 mm
Crank Ø E: 16 mm
Thread F: FG14.3 (9/16" 20G)
Thickness G: 17.5 mm
Total length H: 148 mm
You can find crank keys, alternative pedal arms and pedals in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Material | Steel |
| Color | black |
| Surface | varnished |
| Total length | 148 mm |
| Width | 42 mm |
| Crank length (center-center) | 120 mm |
| Wide intake | 17.5 mm |
| Ø Pedal wedge | 9 mm |
| Ø Pedal axle | 16 mm |
| Cranking (offset) | 30 mm |
| Thread type | FG14.3 (9/16" 20G) |
| Universal | |
| Piaggio | Ciao - P , SC , PX , C24 |
