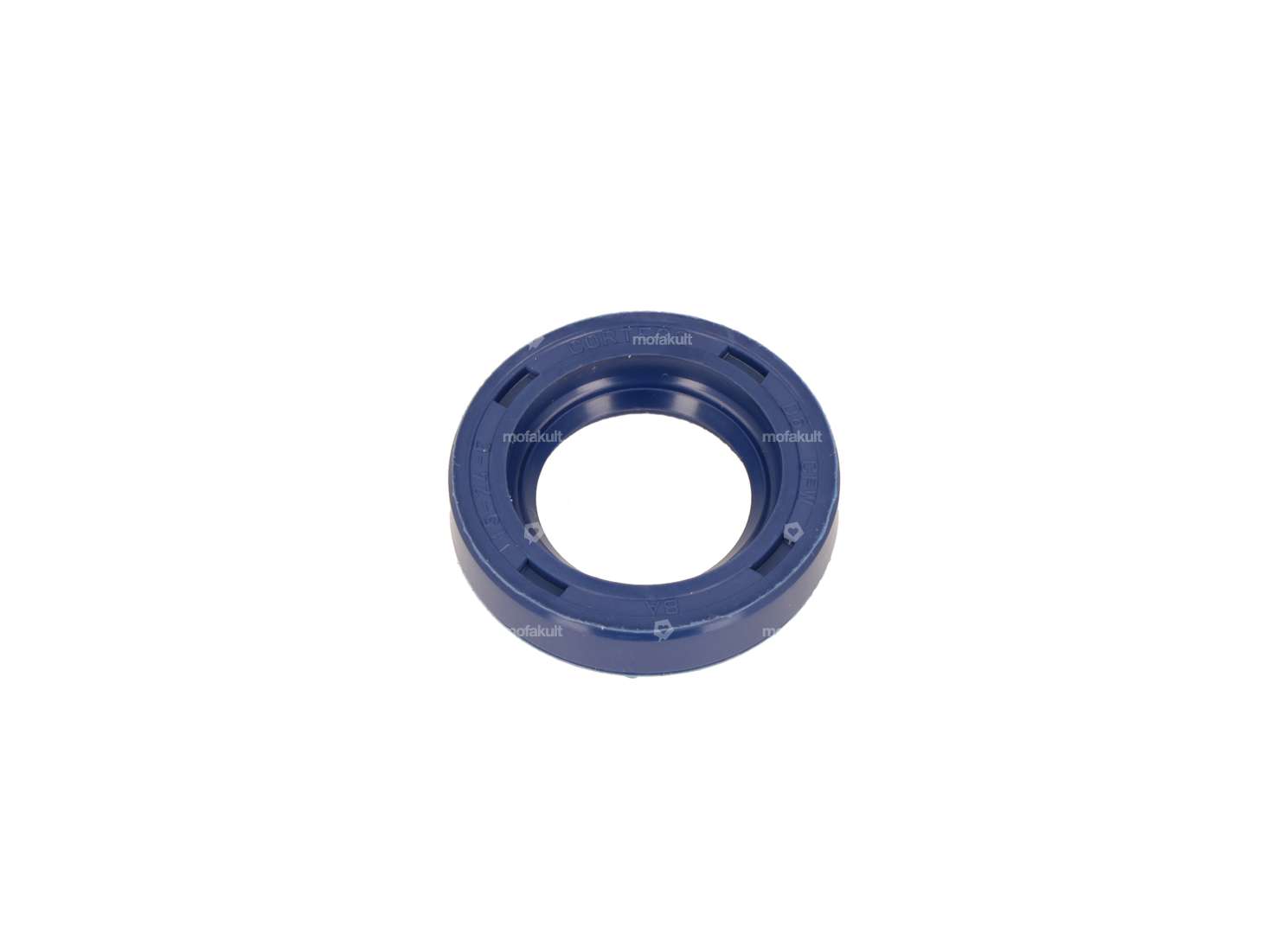

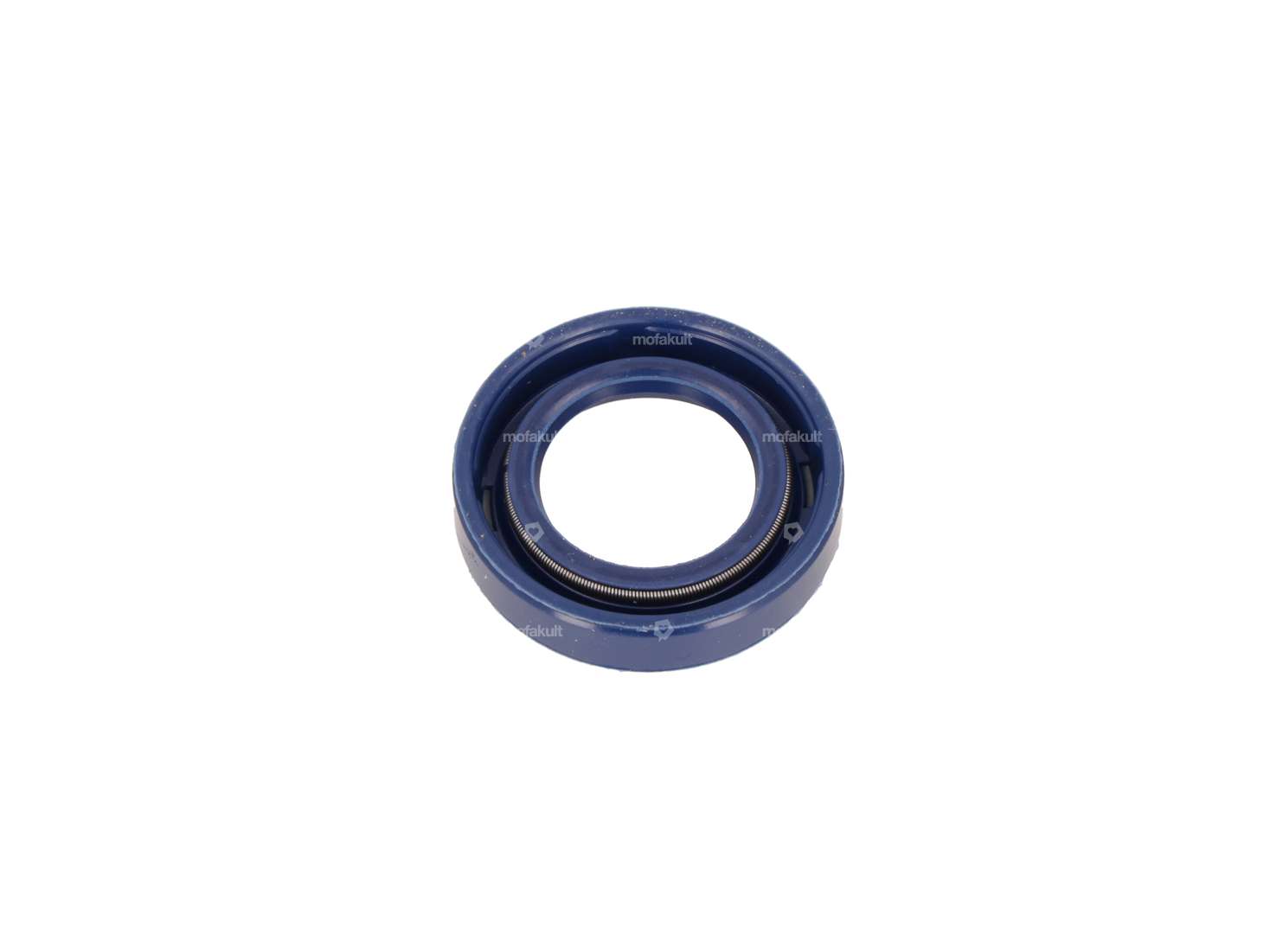

Oil seal NBR 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Thread length: 16 mm · Bearing seat right: 15 mm · Weight: 698 g · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Area of application: Original · Area of application: Standard

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Thread length: 16 mm · Bearing seat right: 15 mm · Weight: 695 g · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Area of application: Original · Area of application: Standard

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 100 °C · Width: 5 mm

Oil seal 15/24/5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Place of use: Crankshaft · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm

Athena crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.6 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing

Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Malossi · Place of use: Crankshaft · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 200 °C · Width: 5 mm

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Piaggio · Material: FPM - Fluororubber · Surface: rubberized

Polini oil seal FPM / PTFE 15/24/5

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Polini · Material: FPM / FKM (known as VITON®) · Place of use: Universal · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 200 °C · Width: 5 mm · Area of application: Racing

GPO license plate holder Inox (CH version)

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Thread type: M5x0.8 (standard thread) · Color: silver · Total length: 145 mm · Height: 5.3 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Ø mounting hole: 5 mm · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Width: 105 mm

Shim 15/21/0.5

Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled · Ø inside: 15 mm · Ø outside: 21 mm · Nominal diameter inside: 15 mm

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24. Bravo, SUPERbravo

Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Color: black · Nominal diameter: 13 mm · Total length: 46 mm · Height: 96 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Area of application: Tuning · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66 · Width: 60 mm

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Plastic · Ø outside: 53.2 mm · Filter type: Foam · Color: black · Total length: 31.2 mm · Height: 88.7 mm · Mounting type: Plug connection clamped · Ø Internal connection: 51 mm · Area of application: Tuning · Camouflaged: No · Width: 95 mm

Mirror mount M8 aluminum

Material: Aluminum · Total length: 28 mm · Clamping diameter: 22 mm · Thread size: M8 · Width: 24 mm · Height: 62 mm

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Ø inside: 15 mm · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

Large flywheel rubber (from 1975) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Color: black · Total length: 42 mm · Total length: 47 mm · Width: 24 mm · Width: 27 mm · Piaggio OEM number: 166554

swiing® revival screw set engine mounting Inox | Piaggio Ciao, SI, Bravo, Boxer

Storage method: Sack · Manufacturer: swiing® revival parts · Dimension storage box: 120 x 110 x 10 · Material: Chrome steel (known as Nirosta®) · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm · Color: silver · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Thread length: 19 mm · Thread length: 25 mm · Area of application: Standard · Number of components: 10 pcs · Piaggio OEM number: 006176 · Piaggio OEM number: 008977 · Piaggio OEM number: 020106 · Piaggio OEM number: 031092

Oil seal FPM 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 200 °C · Width: 5 mm

swiing® revival gasket engine | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Piaggio OEM number: 112967
