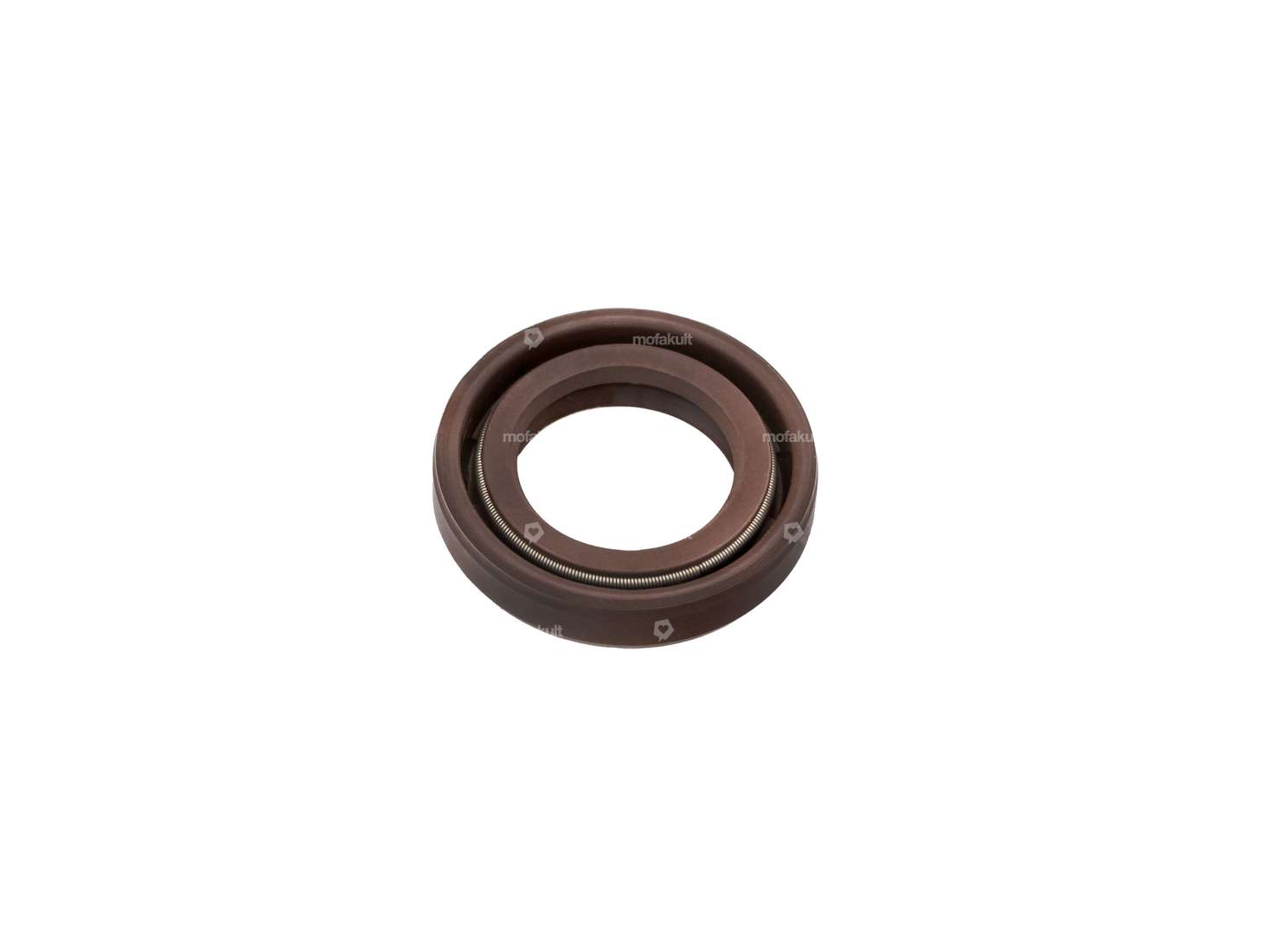

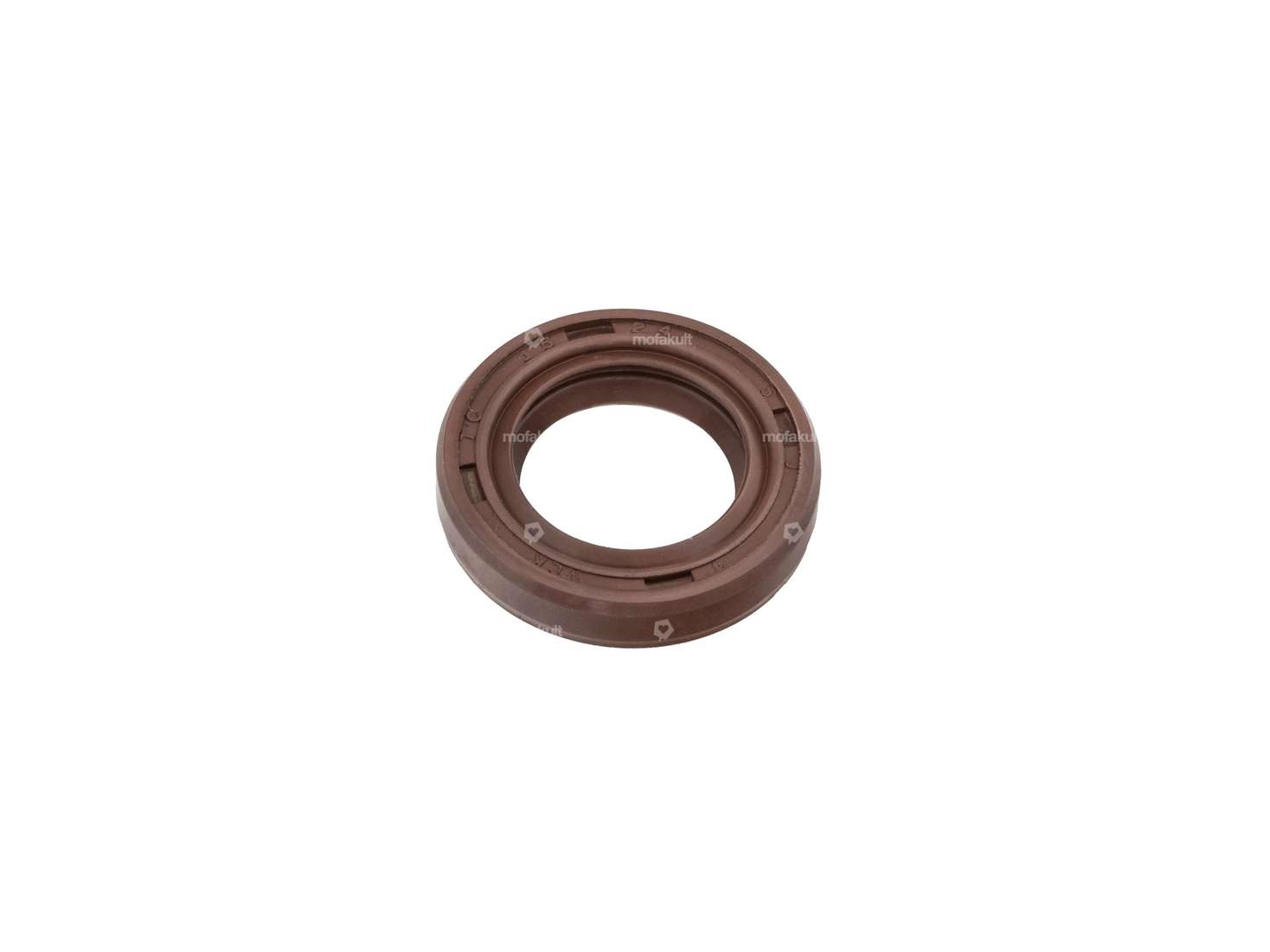

Shaft seal ring (colloquially known as oil seal) with the dimensions 15x24x5 mm for universal use on various mopeds, mopeds and small motorcycles.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200 °C.
Manufactured NBR shaft seals are temperature-resistant up to 100 °C.
FPM or FKM shaft seals (colloquially known as Viton) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Ø inner: 15 mm
Ø outer: 24 mm
Width: 5 mm
Material: Fluorocarbon rubber FPM / FKM
Temperature resistant: approx. -30 to +200 °C, briefly up to 220 °C
Type: AS - With rubberized outer jacket, one sealing lip and one dust lip.
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Material | FPM / FKM (colloquially known as Viton) |
| Surface | rubberized |
| Width | 5 mm |
| Ø outside | 24 mm |
| Ø inside | 15 mm |
| Temperature resistance (min.) | -30 - 200 °C |
