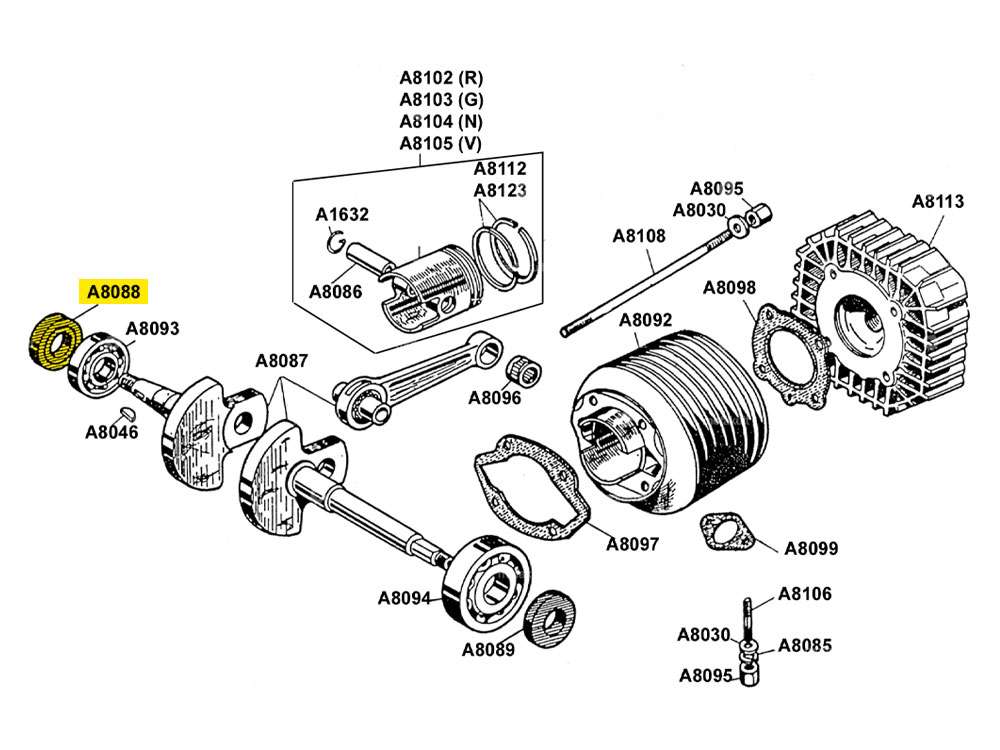

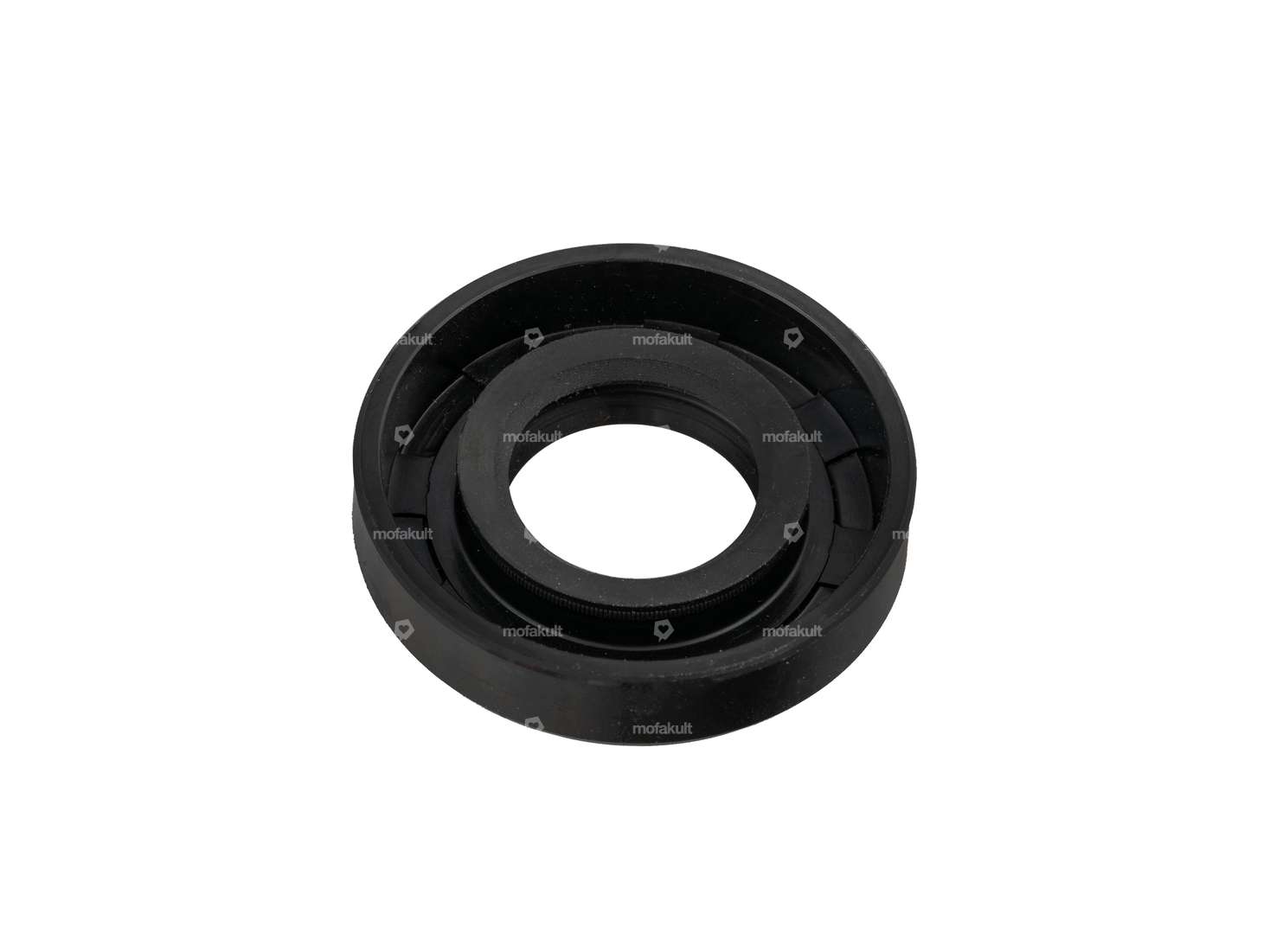

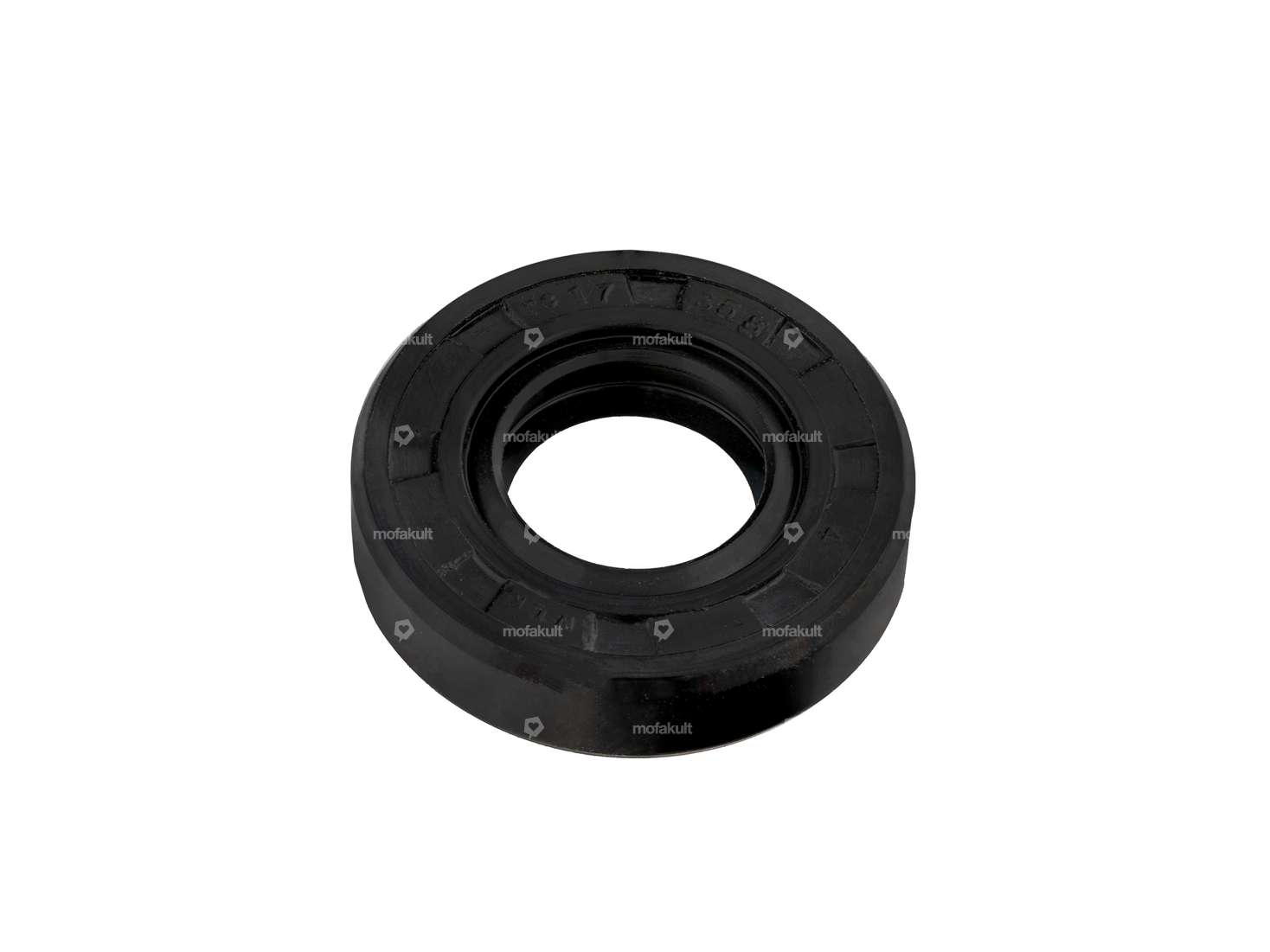

Oil seal NBR 17/35/8 AS crankshaft | Beta 521, 512 (A8088)

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Area of application: Chemistry · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Crankshaft original engine Beta 521 & 512 (A8087)

Manufacturer: Pony · Cheek type: standard · Total length of crankpin on clutch side: 95.7 mm · Total length crankpin ignition side: 69.8 mm · Ø piston pin (B): 12 mm · Area of application: Original · Wide crank webs: 34.2 mm

Crankshaft bearing set | Beta 521

Manufacturer: NTN · Number of components: 4 pcs

swiing® revival engine revision set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Number of components: 27 pcs · Area of application: Standard

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 10 pcs · Ø outlet inside: 21.6 mm · Hole spacing inlet: 35 mm · Hole pattern [mm]: 48 x 48 · Hole spacing outlet: 38 mm · Area of application: Standard · Decompressor: Yes

Engine gasket engine | Beta 521 (A8021)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 17 pcs

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 7 pcs

NTN 6304 C3 ball bearing 20/52/15 motor | Beta 521 & 512 (A8094)

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6304 · Inner ring width: 15 mm · Manufacturer: NTN · Bearing clearance: C3 · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Ø inside: 20 mm · Width: 15 mm · Ø outside: 52 mm · Ball bearing closed: No · Area of application: Standard

NTN 6303 C3 Ball bearing 17/47/14 Motor | Beta 521 & 512 (A8093)

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6303 · Inner ring width: 14 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Width: 14 mm · Ø outside: 47 mm

Oil seal NBR 20/30/7 A

Simmering type: A - With rubberized outer part / one sealing lip. · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

Crankshaft bearing set | Beta 521

Manufacturer: NTN · Number of components: 4 pcs

Oil seal 20/30/7 engine | Beta 521, 512 (A8089)

Manufacturer: Pony · Place of use: Crankshaft · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm

Shaft seal 15/24/5 Pinion shaft | Beta 521, 521 (A8041)

Manufacturer: Pony · Ø outside: 24 mm · Ø inside: 15 mm · Width: 5 mm · Place of use: Pinion shaft

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Number of components: 10 pcs · Ø outlet inside: 21.6 mm · Hole spacing inlet: 35 mm · Hole pattern [mm]: 48 x 48 · Hole spacing outlet: 38 mm · Area of application: Standard · Decompressor: Yes
