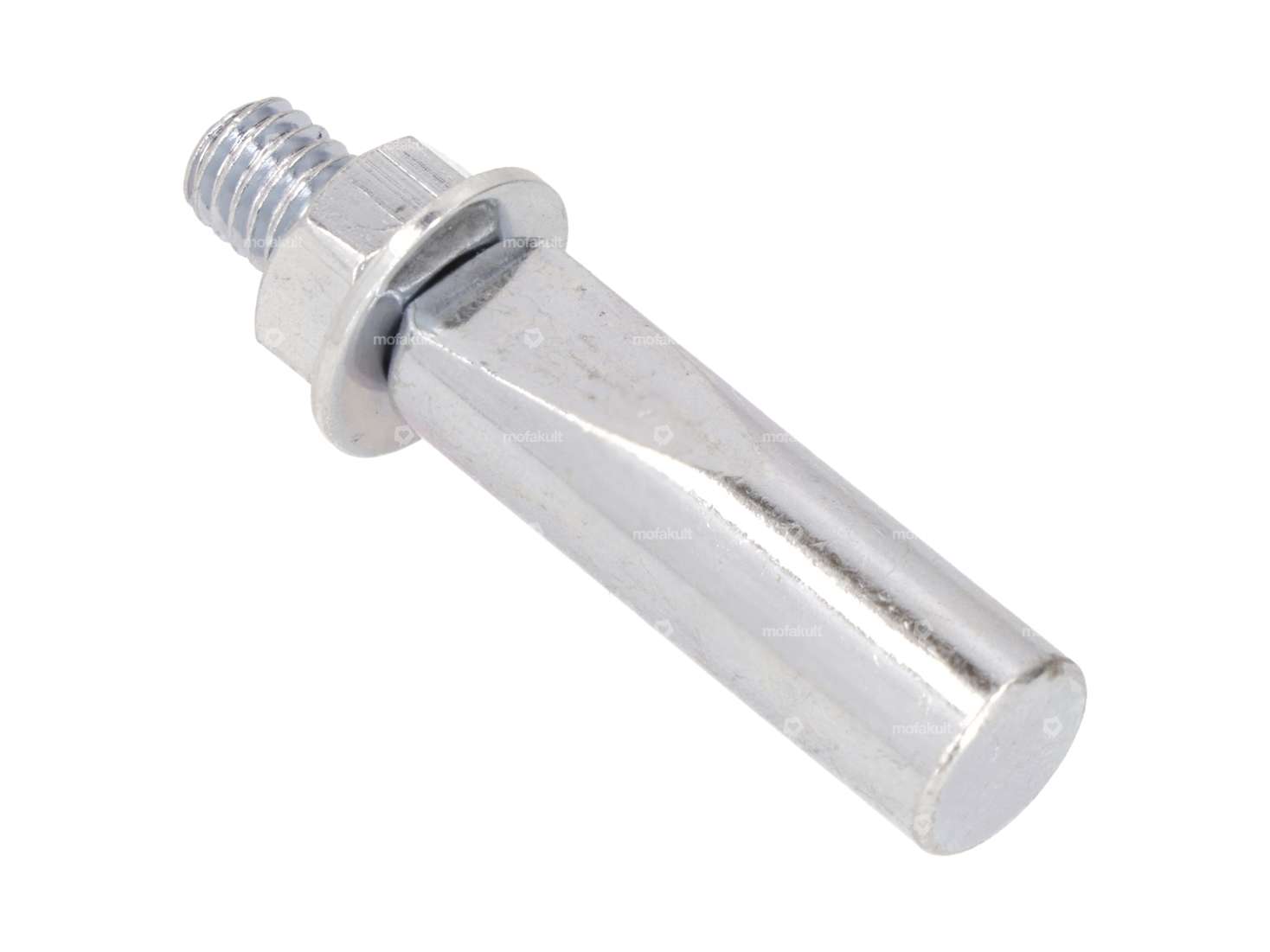

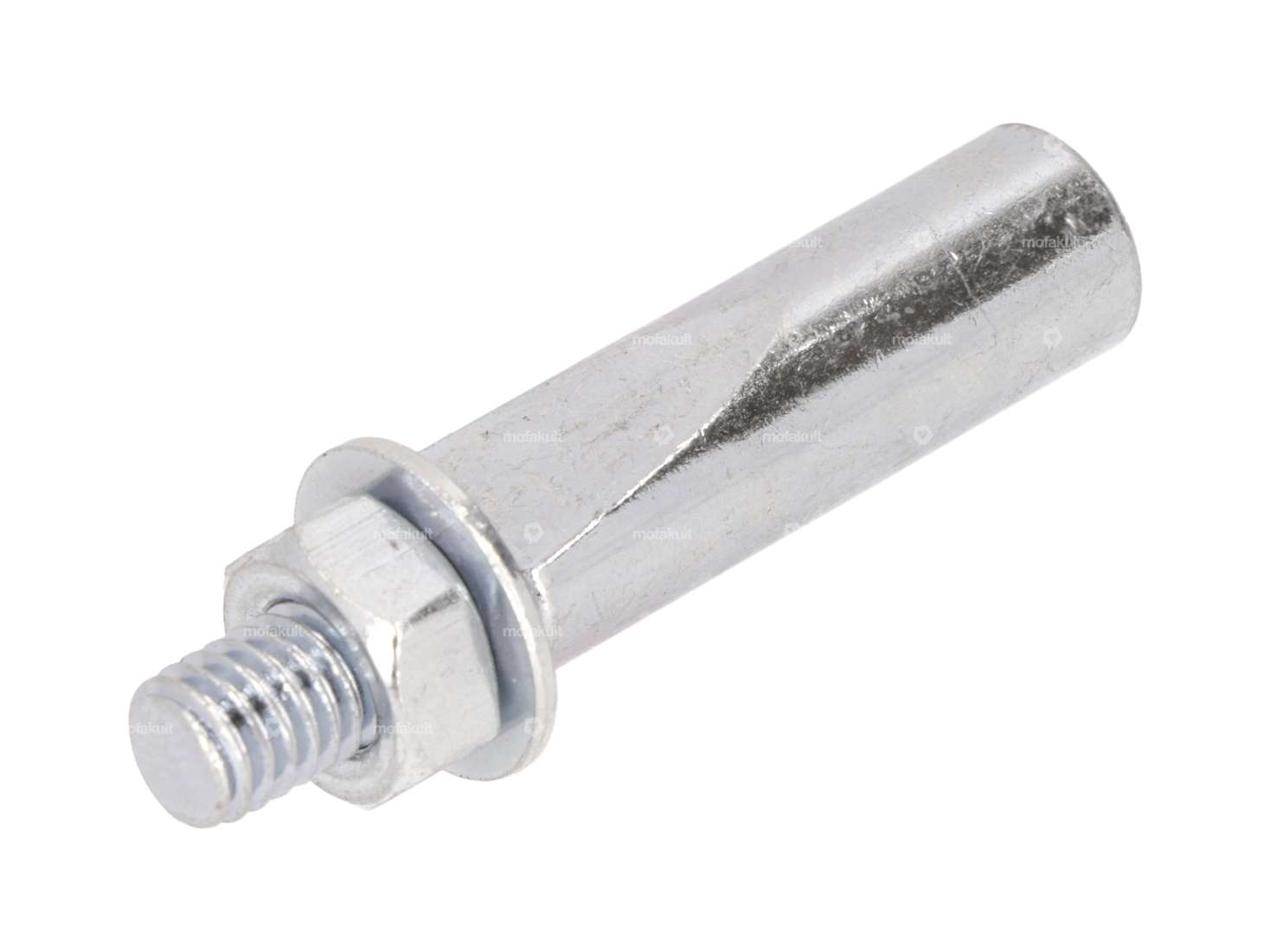

Pedal crank wedge, also known colloquially as pedal wedge, for attaching the pedal arm for your moped, moped and small motorcycle.

The pedal wedge is not of particularly high quality, but serves its purpose.

Alternative pedal bolts / pedal wedges and matching pedal cranks can be found in the accessories section.

Details

Material	Steel
Surface	galvanized (blue)
Thread type	M7x1 (standard thread)
Total length	42 mm
Angle crank wedge	4.5°
Ø outside	9 mm

Suitable for the following models

Universal

Piaggio

Ciao - P, SC, PX, C24

Bravo / Super Bravo

Boxer

Grillo
