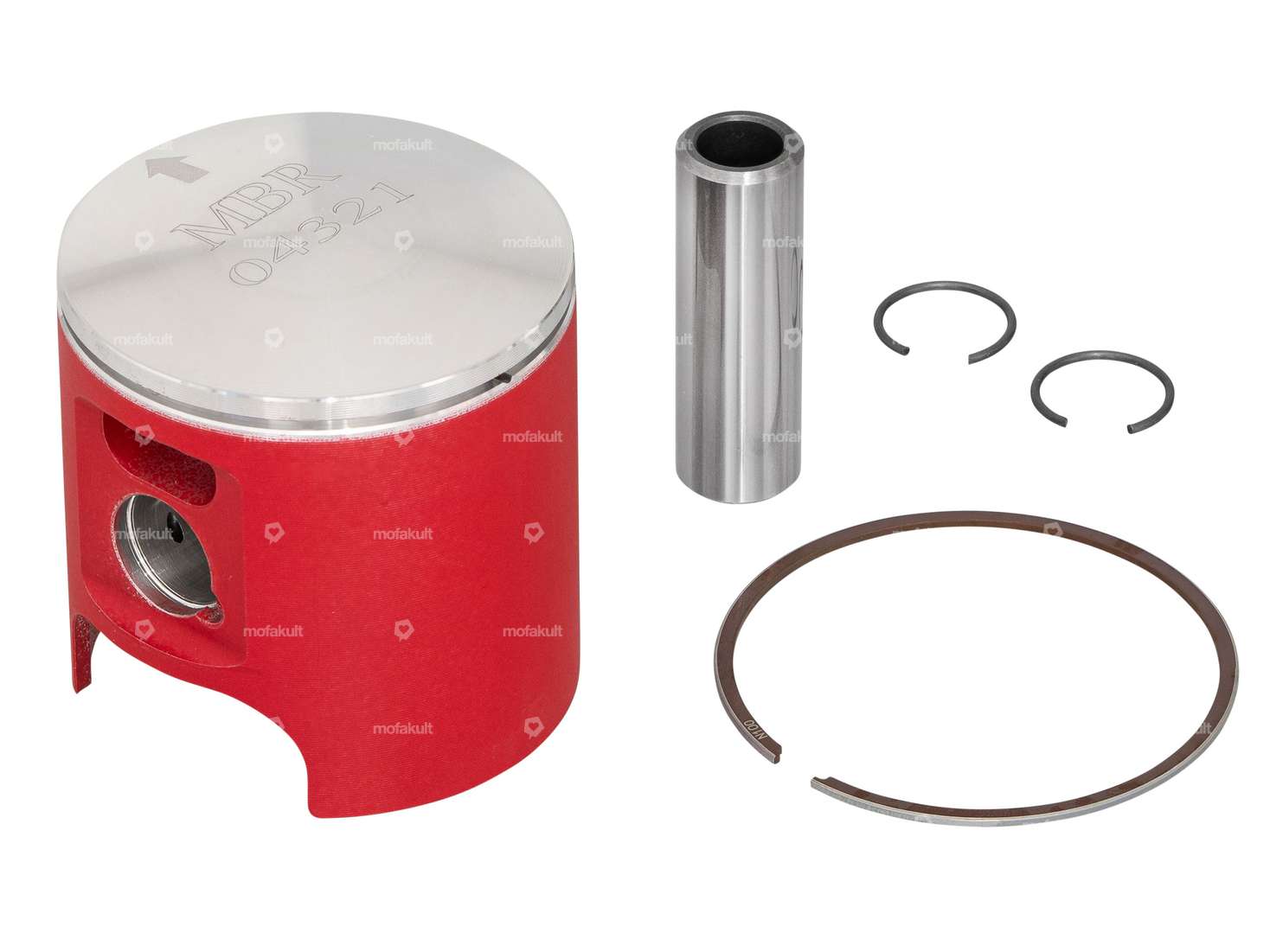

Forged Wössner high-performance piston for the 47 mm Gilardoni italkit Puch cylinder kit when operated with a housing-membrane inlet (GME).
Attention, the piston cannot be used for conventional Gilardoni italkit cylinders which are operated with cylinder diaphragm inlet (ZME).
GME forged piston developed by MBR with a 1 mm rectangular piston ring with internal locking (IS), which is very often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large lubrication pockets above the piston pin characterize this high-quality racing piston.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the images.
The molybdenum coating in combination with oil provides technologically advanced wear protection with outstanding sliding properties.
Recommended piston size (coating corresponds to +0.01 mm to +0.02 mm):
Gilardoni italkit Cylinder A (47.00 mm): 46.94 mm piston (in exceptional cases, e.g. when using ASP®).e.g. when using ASPEN: 46.93 mm piston)
Gilardoni italkit cylinder B (47.01 mm): 46.95 mm piston
Gilardoni italkit cylinder C (47.02 mm): 46.96 mm piston
Gilardoni italkit cylinder D (47.03 mm): 46.97 mm piston
Piston ring, piston pin and piston pin retainers are included in the scope of delivery.
Matching add-on parts such as cylinder kits, needle bearings, stroke plates, carburettors, air filters etc. can be found under accessories.
| Manufacturer | Wössner, MBR |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 46.95 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 2.63 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
HOMOET exhaust P8 | Puch (slanted exhaust)
Manufacturer: HOMOET · Material: Steel · Surface: varnished · Color: black · Mounting type: Welded lug · Ø outside: 88 mm · Number of fixing points: 1 pcs · Ø Silencer: 50 mm · Ø Internal connection: 25 mm · Total length: 915 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Flame tube attachment: Flange
EUR 355.40
swiing® ingenious intake manifold Gilardoni italkit Inox
Ø inside: 21 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø External connection: 24 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Hole pattern [mm]: 60 x 35 · Total length: 80 mm · Total height: 55 mm · Height flange center hole: 42.5 mm · Area of application: Tuning · Camouflaged: No
EUR 83.20
Not in stock

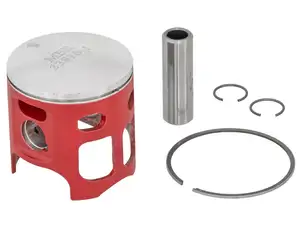

MBR piston 46.95 mm Gilardoni italkit | Puch
Manufacturer: MBR · Manufacturer: Wössner · Surface: molybdenum-coated · Ø outside piston (A): 46.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22 mm · Curvature (D): 2.65 mm · Total piston height (E): 48.15 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 47 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Piston weight: 94 g
EUR 145.80
Not in stock
Moped fans like you also bought:
Airsal 46 mm cylinder kit straight exhaust | Puch
Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Nominal diameter: 46 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Tuning
EUR 245.10
Fortune / Merrick 2.00-2.50 x 16/17" inner tube
Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "
EUR 12.10
Airsal gasket set 44 - 45 mm
Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning
EUR 12.10
NGK CR6 Racing ignition cable & plug High End red
Manufacturer: NGK · Material: Rubber · Color: red · Ø cable: 7 mm · Cable available: Yes · Cable length: 1000 mm · Suppressed: Yes · Resistance: 5000 Ω · Component group Carburetor: Ignition cable · Component group Carburetor: Spark plug connector
EUR 48.90
swiing® revival stud bolt set M6 x 106 mm | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Width across flats SW: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.05
Continental 2.00 - 2.50 x 16" tube
Manufacturer: Continental · Valve type: TR6 car valve · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Wheel size [inch]: 16 "
EUR 17.80

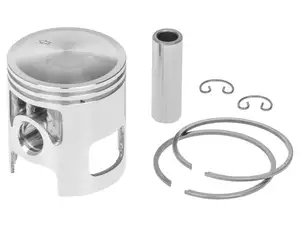

Athena piston AJH 45 mm #A | Puch
