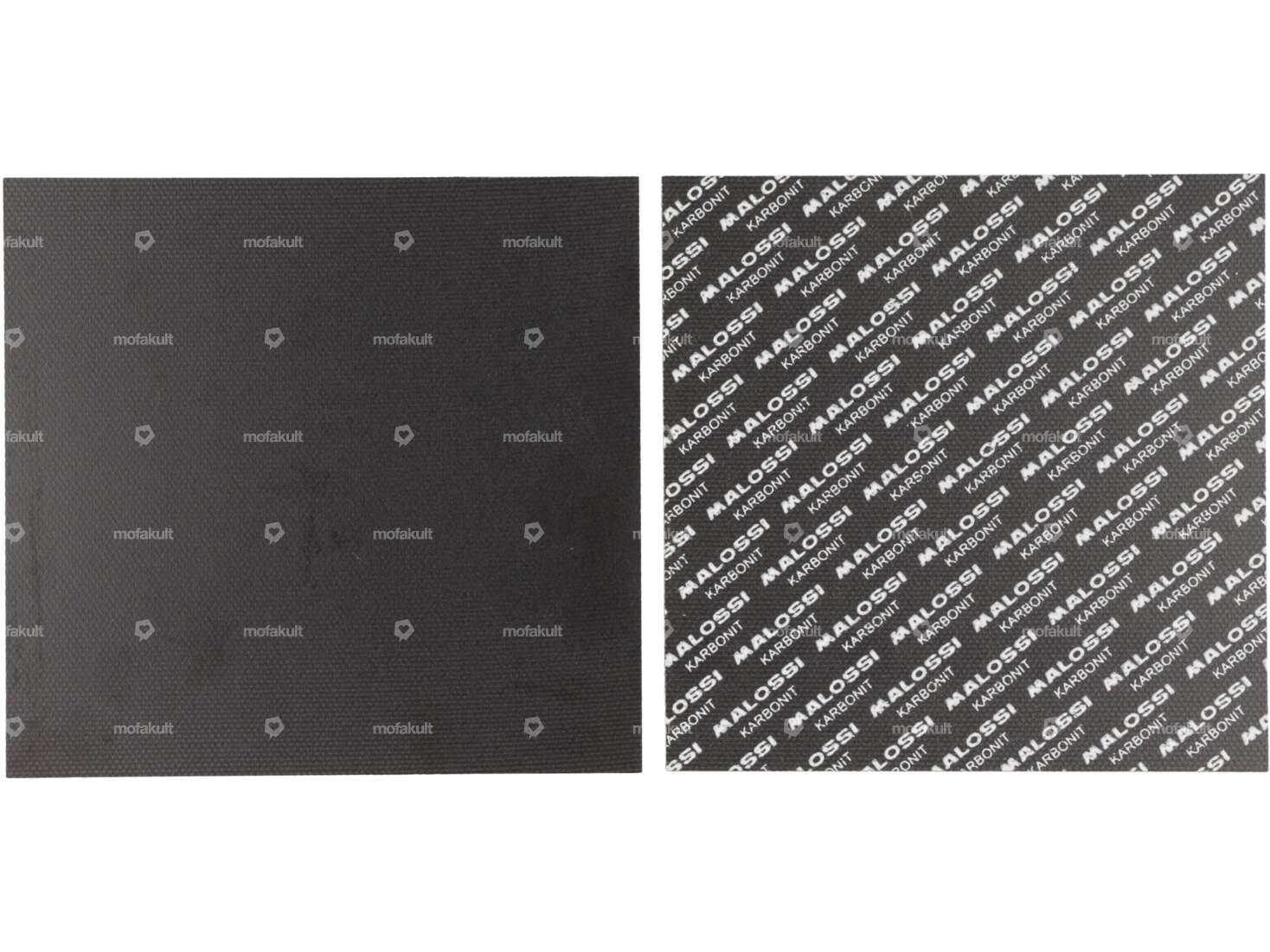

Malossi diaphragm plate carbonite 0.3 mm

GPO 45 mm cylinder head tuning new version | Puch (AT)

Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Ø cylinder: 45 mm · Total length: 135 mm · Width: 140 mm · Height: 55 mm · Number of fixing points: 4 pcs · Decompressor: No

Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch

Nominal diameter: 44 mm · Manufacturer: Airsal · Area of application: Tuning · Material: Aluminum · Displacement: 65 ccm · Surface: sandblasted · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Inlet window: 24 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: Yes

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Athena 45 mm cylinder kit incl. diaphragm | Puch

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24 mm · Ø Inlet inside: 20.5 mm · Number of fixing points: 4 pcs · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Number of components: 5 pcs · Ø cylinder: 45 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm

Gasket cylinder base 1 mm | Puch

Nominal diameter: 50 mm · Place of use: Cylinder base · Area of application: Standard · Material: Sealing carton · Thickness: 1 mm · Ø inside: 50 mm · Hole pattern [mm]: 44 x 44

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Number of fixing points: 4 pcs · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No

Athena piston 45 mm AJH #C | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.91 mm · Compression height (C): 25 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 95 g

Circlip 15 mm Inox

Nominal diameter: 15 mm · Fuse type: Outside · Place of use: Universal · Material: Chrome steel (known as Nirosta®)
