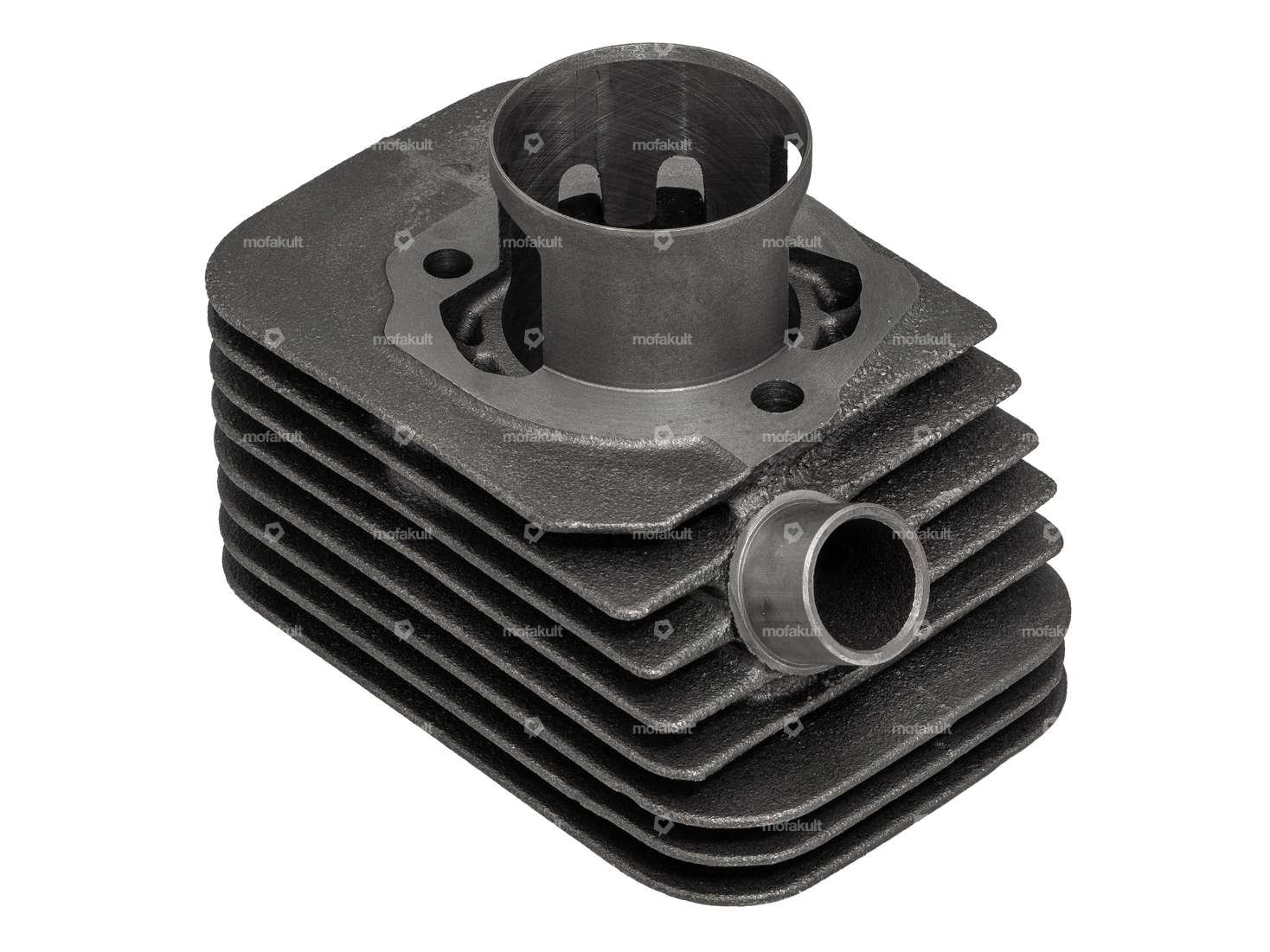

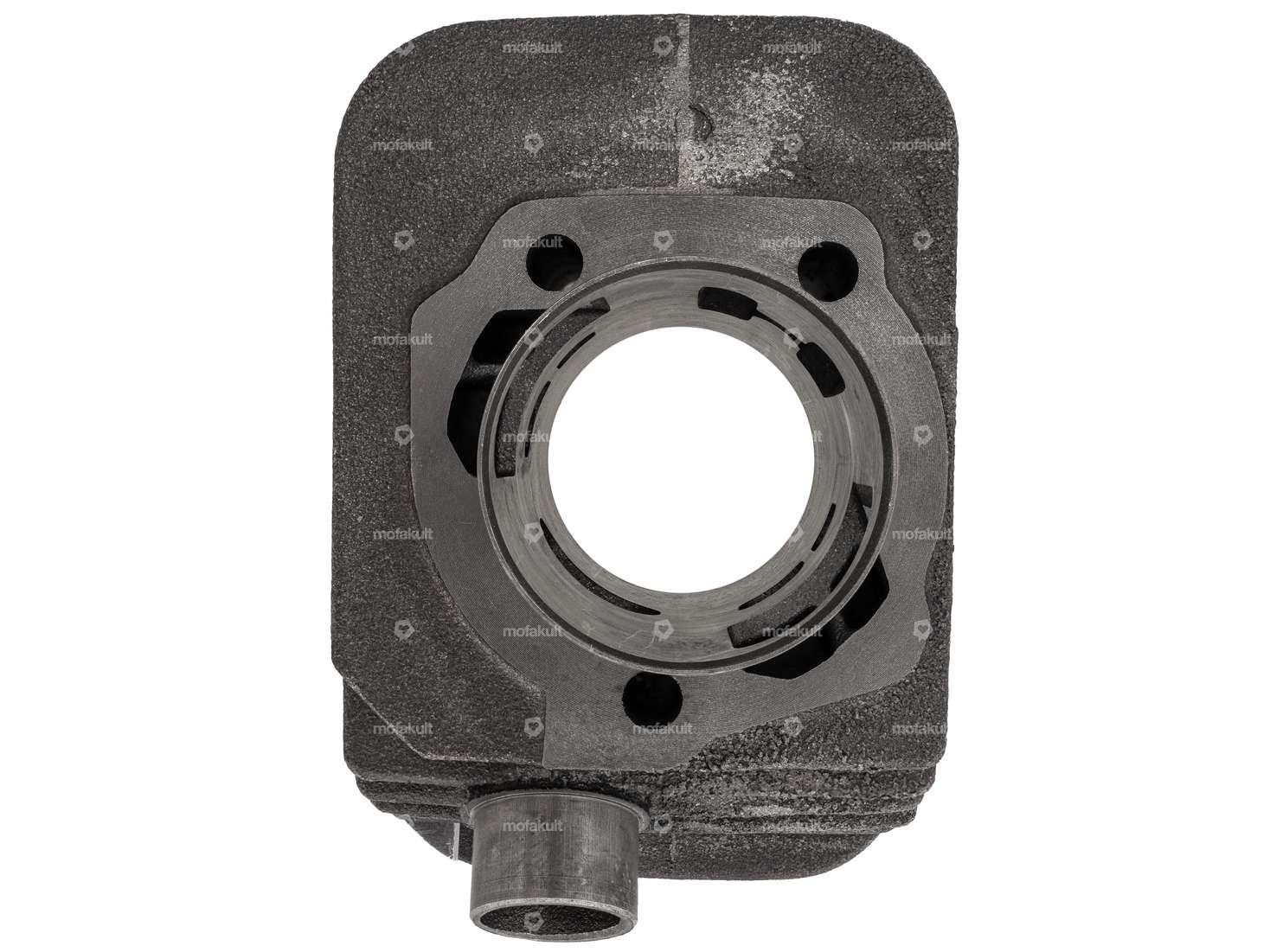

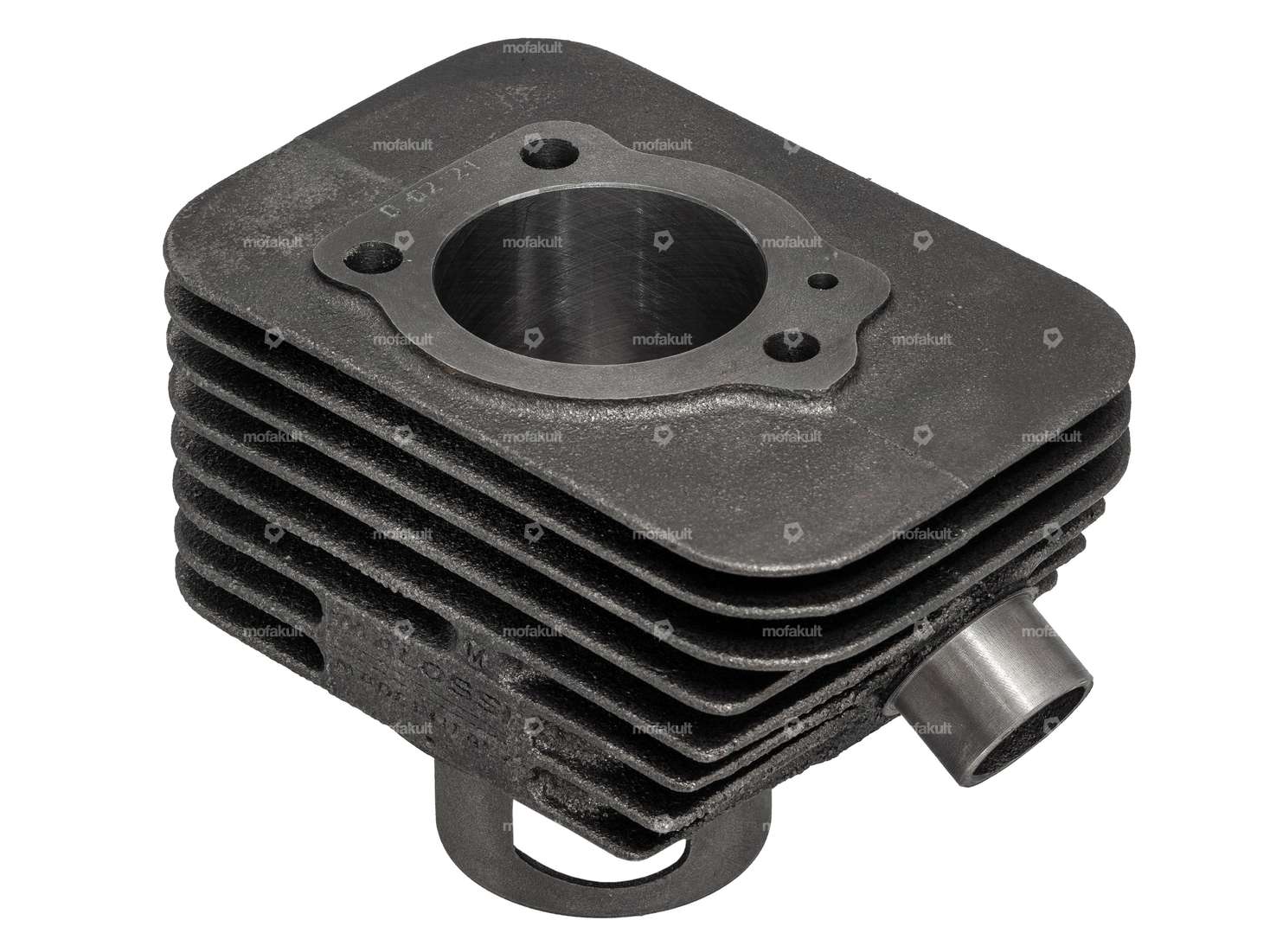

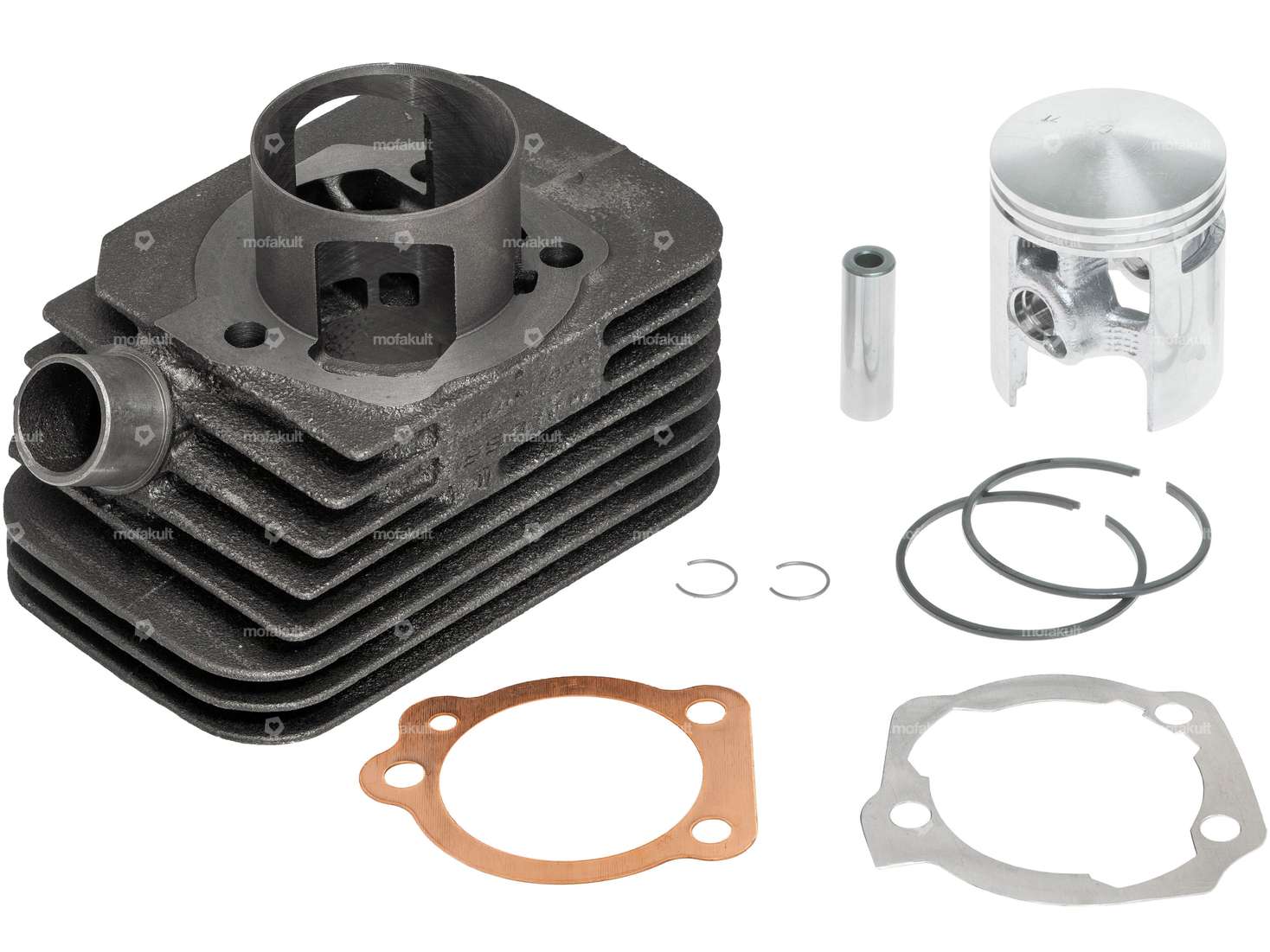

Revised 2021 version of one of the best available cylinder kits for Piaggio mopeds / mopeds.
This is the version with 10 mm piston pin.
This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 63 cc racing cylinders for Piaggio.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is also very good. The webs in the area of the cylinder skirt significantly reduce the risk of piston jamming and make the cylinder extremely durable.
With the reworking, the triangular shape of the transfer ports was adapted to a longitudinal shape. As a result, the cylinder fits much better on racing gear such as the Polini Speed Engine, but less well on the original gear. Fortunately, there is enough sealing surface available so that you can also bring the channels back into a triangular shape on the cylinder if necessary.
In addition to installing a larger cylinder, we always recommend adapting the carburetor and exhaust accordingly. Ideally, you should also modify the intake and the overflow ducts or use a racing case.
Because the combustion chamber is optimally matched to the cylinder, we recommend using the Malossi cylinder head. Alternatively, the cylinder can also be operated with the original head.
Further add-on parts and other versions of the cylinder can be found under accessories.
Quality product from the Italian manufacturer Malossi.
| Nominal diameter | 43 mm |
| Manufacturer | Malossi |
| Area of application | Tuning |
| Material | Gray cast iron |
| Displacement | 63 ccm |
| Surface | sandblasted |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.6 mm |
| Ø Outlet outside | 22.5 mm |
| Number of fixing points | 3 pcs |
| Ø outlet inside | 18.3 mm |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø outside: 14 mm · Ø Silencer: 70 mm · Total length: 690 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Ø Internal connection: 22 mm · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs
EUR 91.80
Not in stock
SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø outside: 14 mm · Ø Silencer: 70 mm · Total length: 720 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Ø Internal connection: 22.3 mm · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs
EUR 98.00
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Width: 87 mm · Total length: 122 mm · Height: 60 mm · Number of fixing points: 3 pcs · Candle thread: long · Area of application: Racing · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
EUR 89.40
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Ignition type: Breaker · Stock number: 6202 · Color: silver · Width: 175 mm · Height: 104 mm · Total length: 215 mm
EUR 257.30
Not in stock
Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 65 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Displacement: 65 ccm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Camouflaged: No · Area of application: Tuning
EUR 435.10
Not in stock
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo
Manufacturer: Malossi · Material: Aluminum · Area of application: Racing · Ø cylinder: 41 - 43 mm · Number of fixing points: 3 pcs · Total length: 134 mm · Candle thread: short · Hole pattern [mm]: 35 x 55 · Width: 94 mm · Height: 52 mm · Decompressor: Yes · Camouflaged: No
EUR 85.70
Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Weight: 698 g · Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs
EUR 183.80
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Nominal diameter: 44 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 459.60
Not in stock
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Ø fuel hose connection: 6 mm · Total length: 46 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Width: 60 mm · Ø Output inside: 13 mm · Height: 96 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Mounting type: Plug connection clamped · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Area of application: Tuning
EUR 82.00
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Strength class: 10.9 · Total length: 120 mm · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm
EUR 6.00

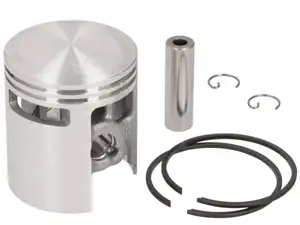

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer
