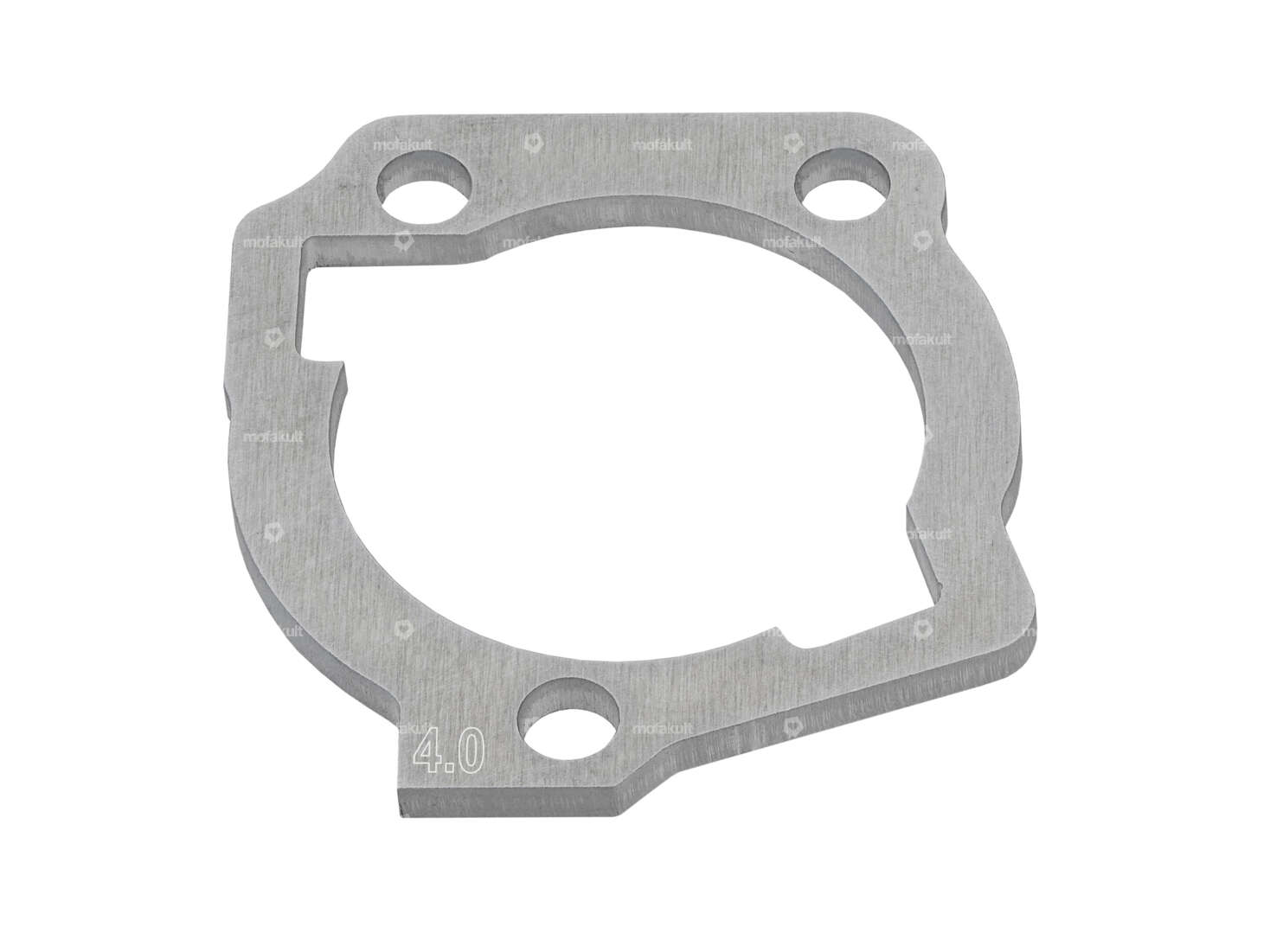

Aluminum stroke plate for your Piaggio Ciao, Si, Bravo, Boxer, Boss, Grillo and Gilera moped / moped.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer should be turned down at the top of the cylinder
so that the original crushing edge dimension and compression are maintained.
Material thickness: 4 mm
Material: aluminum
We recommend using Dirko silicone sealant for sealing. You can find this in the accessories
.
| Material | Aluminum |
| Thickness | 4 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Gray cast iron · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18.3 mm · Hole pattern [mm]: 55 x 34 · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No
EUR 178.30
Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo
Nominal diameter: 43 mm · Manufacturer: Malossi · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes
EUR 178.30
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Color: gray · Contents: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm
EUR 24.50
EUR 350.00/l
