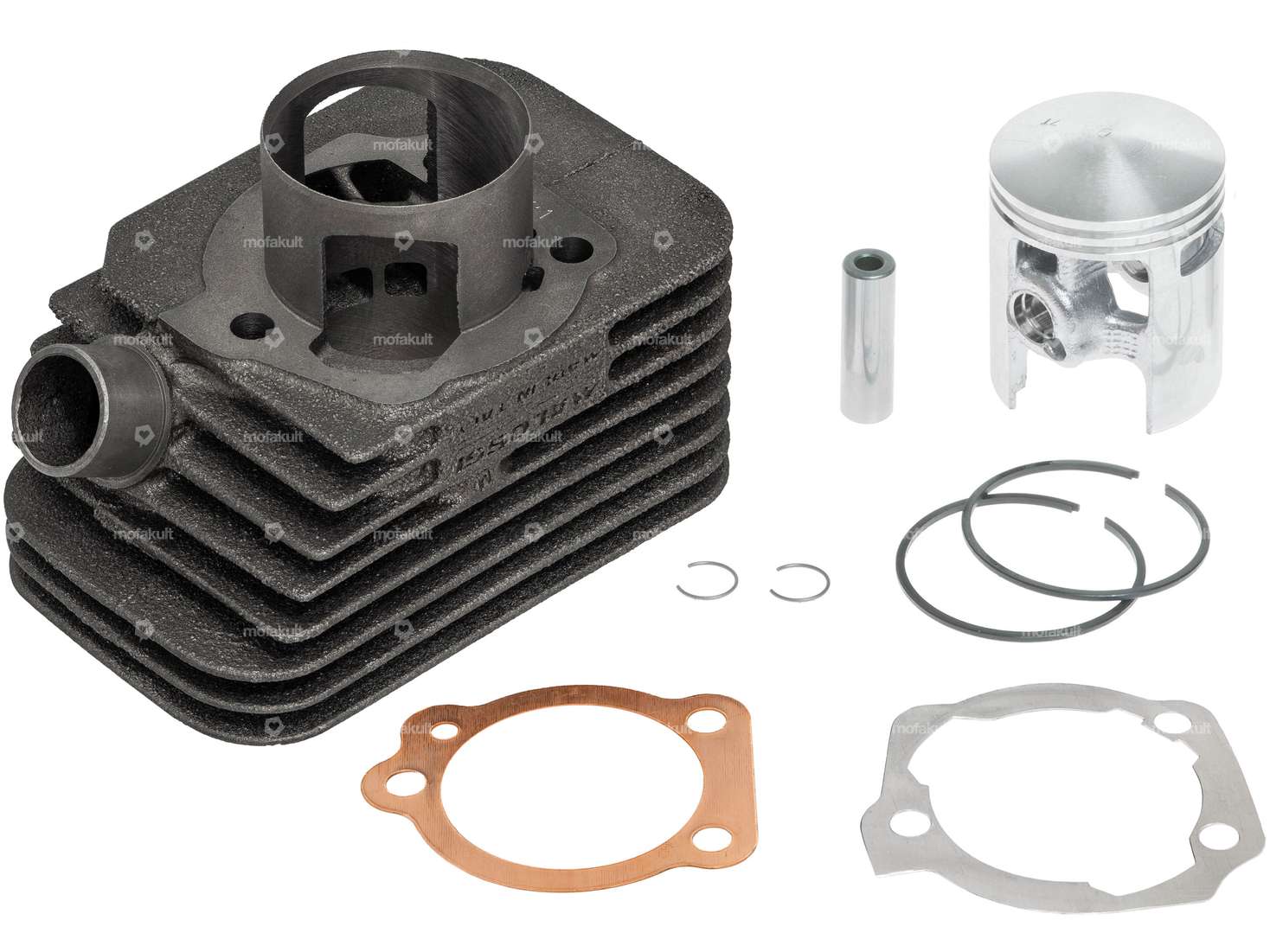

Revised 2021 version of one of the best cylinder kits available for Piaggio mopeds / mopeds.
This is the version with 12 mm piston pin.

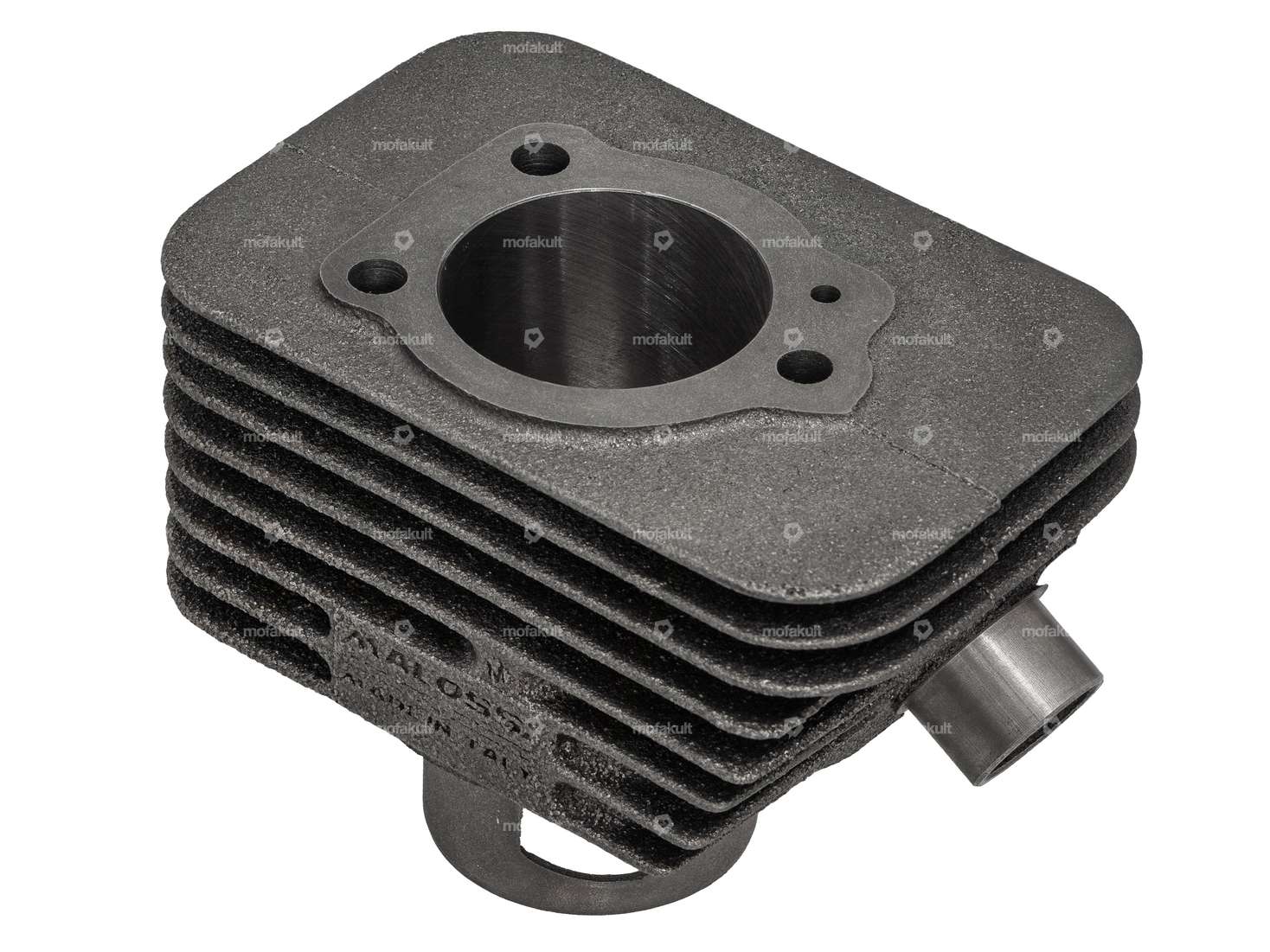

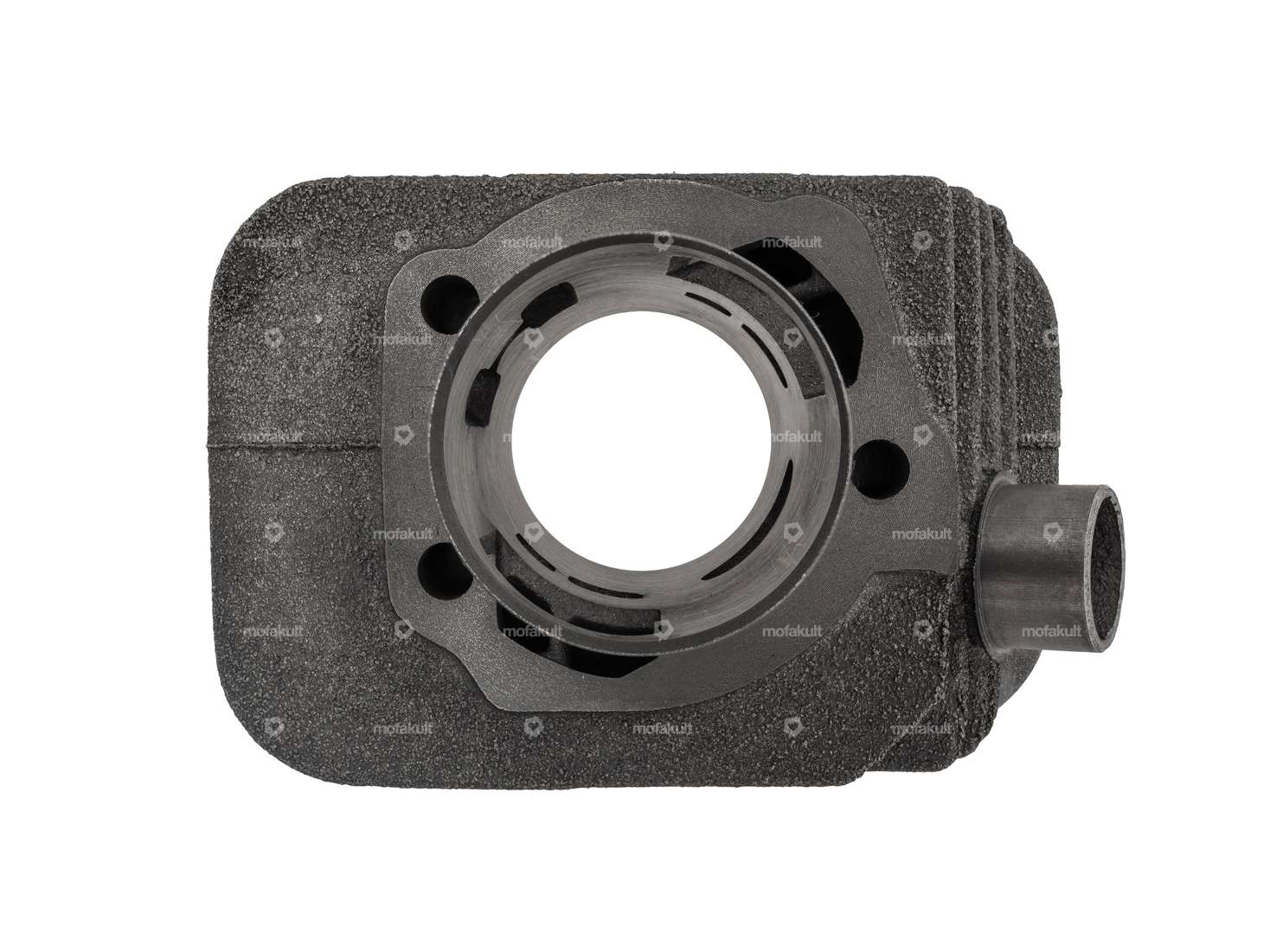

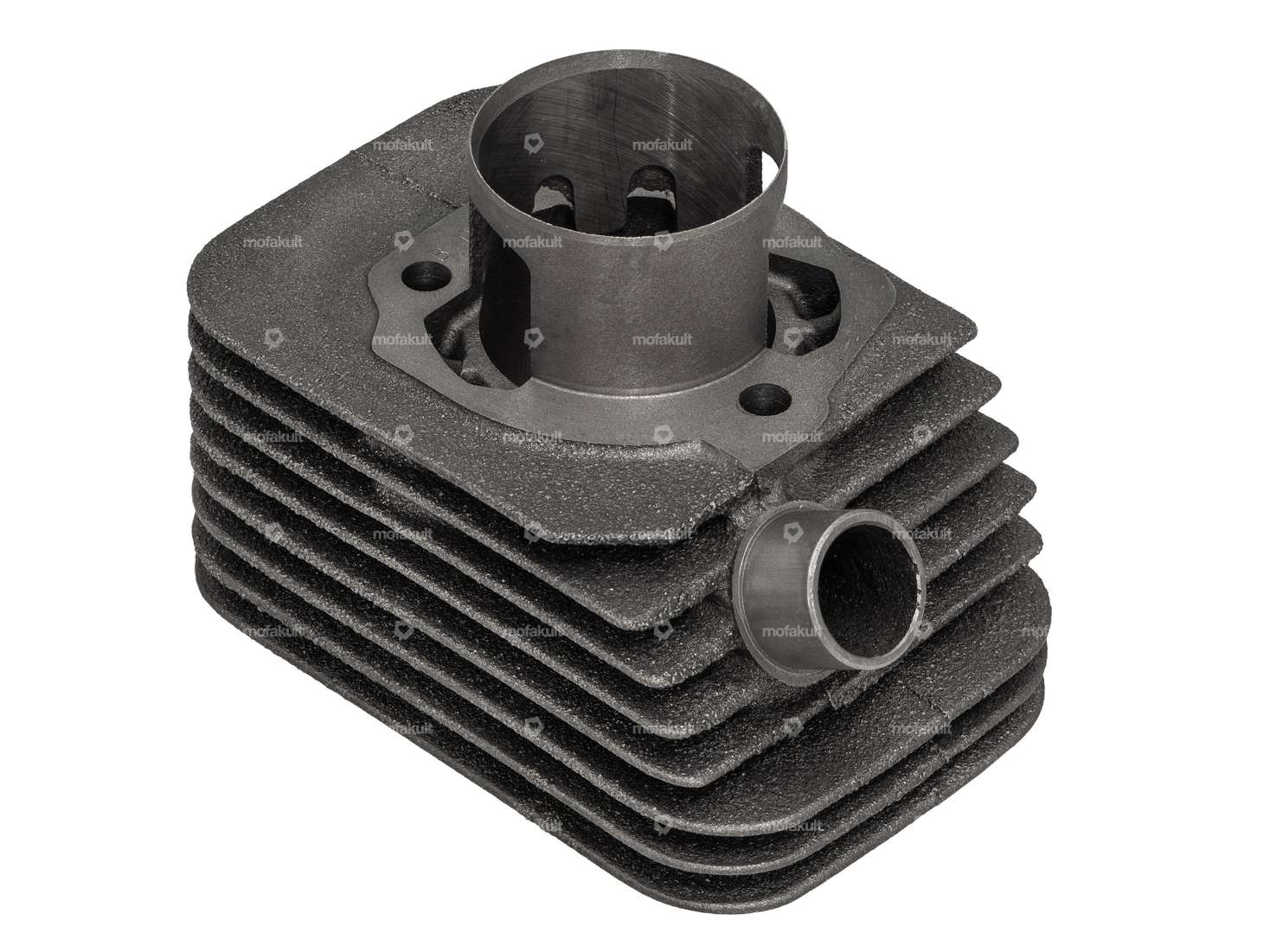

This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 63 cc racing cylinders for Piaggio.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is also very good. The webs in the area of the cylinder skirt significantly reduce the risk of piston jamming and make the cylinder extremely durable.
With the reworking, the triangular shape of the top land was adapted to a longitudinal shape. As a result, the cylinder fits much better on racing gear such as the Polini Speed Engine, but less well on the original gear. Fortunately, there is enough sealing surface available so that you can bring the channels back into a triangular shape on the cylinder if necessary.
In addition to installing a larger cylinder, we recommend that you always adjust the carburetor and exhaust accordingly. Ideally, you should also modify the intake and the overflow ducts or use a racing case.
Because the combustion chamber is optimally matched to the cylinder, we recommend using the Malossi cylinder head. Alternatively, the cylinder can also be operated with the original head.
| Nominal diameter | 43 mm |
| Manufacturer | Malossi |
| Material | Gray cast iron |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Surface | sandblasted |
| Ø cylinder neck | 45.6 mm |
| Ø Outlet outside | 22.4 mm |
| Ø outlet inside | 18.3 mm |
| Area of application | Tuning |
| Ø piston pin (B) | 12 mm |
| Decompressor | Yes |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 55 x 34 |
| Camouflaged | No |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 70 mm · Ø Internal connection: 22 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Ø outside: 14 mm · Mounting type: Welded lug · Total length: 690 mm · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs
EUR 89.60
SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Color: black · Surface: varnished · Ø outside: 14 mm · Total length: 720 mm · Ø Silencer: 70 mm · Ø Internal connection: 22.3 mm · Mounting type: Welded lug · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Number of fixing points: 1 pcs · Flame tube attachment: Plug connection clamped
EUR 95.50
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool
EUR 23.80
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Height: 60 mm · Width: 78 mm · Candle thread: short · Total length: 120 mm · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning
EUR 31.00
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Height: 60 mm · Width: 87 mm · Candle thread: long · Total length: 122 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing
EUR 87.20
Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: Malossi · Ø outside piston (A): 42.92 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 90 g
EUR 89.60
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Stock number: 6202 · Crankshaft stroke: 43 mm · Width: 175 mm · Height: 104 mm · Ignition type: Breaker · Total length: 215 mm
EUR 251.00
Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Ø inside: 24 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Color: silver · Ignition type: Electronic · Width: 104 mm · Height: 174 mm · Ø outside: 140 mm · Total length: 220 mm
EUR 274.90
Not in stock
Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 65 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing® revival parts · Displacement: 65 ccm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Camouflaged: No · Area of application: Tuning
EUR 424.40
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo
Manufacturer: Malossi · Material: Aluminum · Ø cylinder: 41 - 43 mm · Total length: 134 mm · Width: 94 mm · Height: 52 mm · Candle thread: short · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing
EUR 83.60
Not in stock

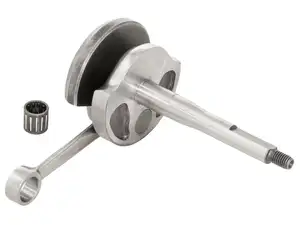

Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
