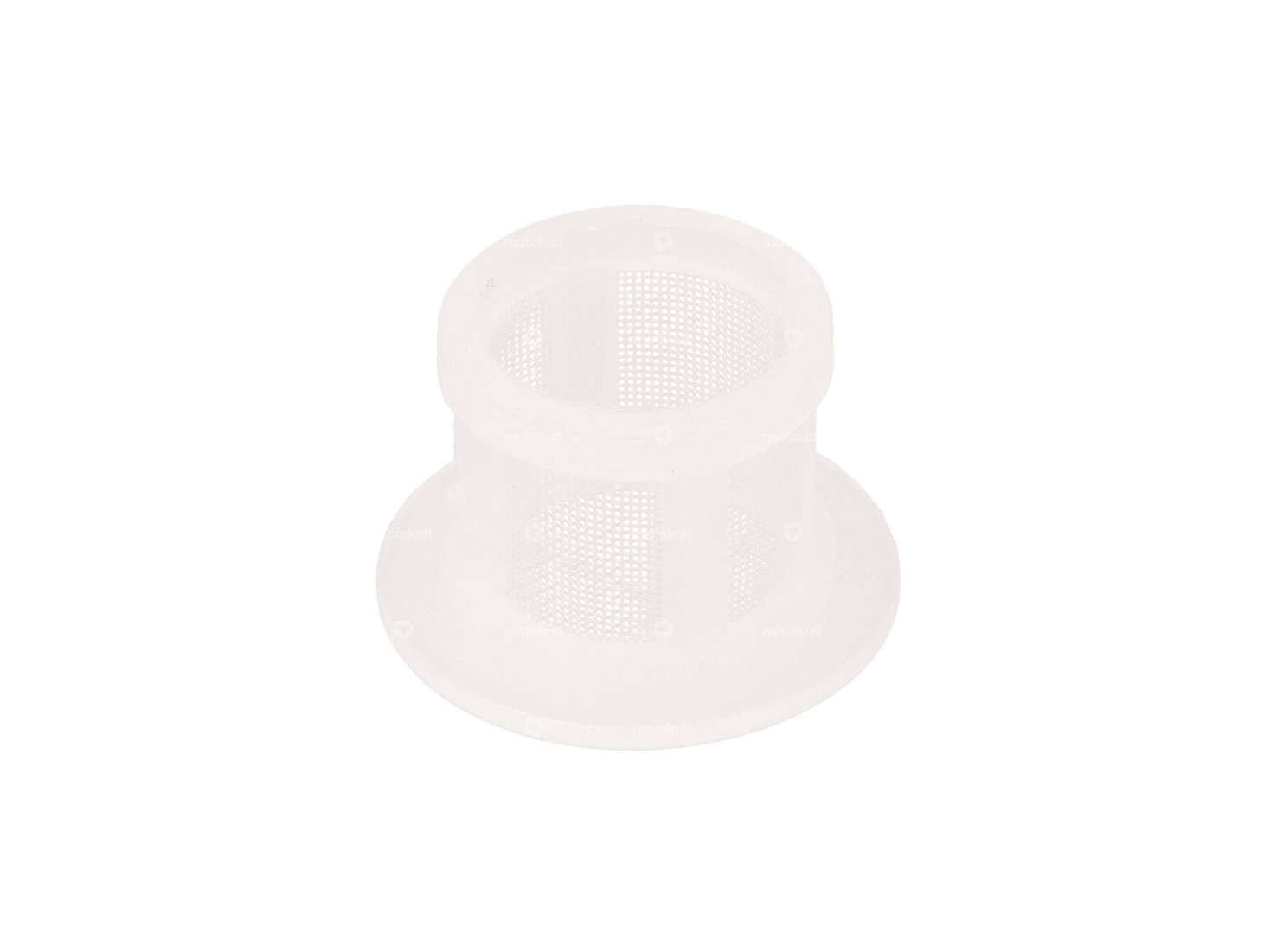

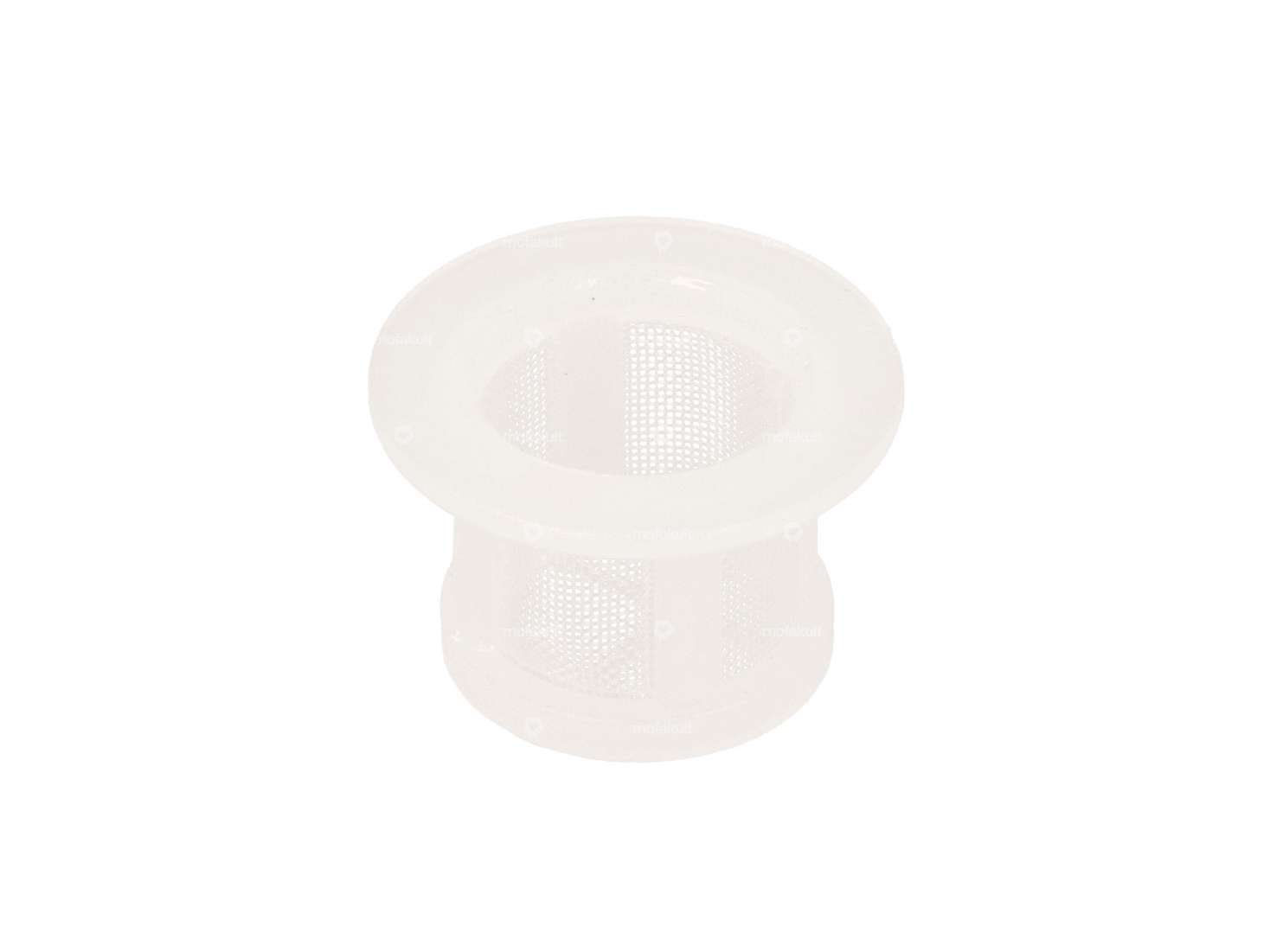

Gurtner fuel filter carburetor AR1 | MBK, Motobécane 51

Gurtner carburetor AR 1/13 with air filter original | MBK / Motobécane 51 (AV10)

Nominal diameter: 13 mm · Manufacturer: Gurtner · Material: Aluminum · Material: Plastic · Component group Carburetor: Carburetor complete · Choke control: Cable choke · Ø fuel hose connection: 6 mm · Nozzle size: 58 · Ø Inside entrance: 13 mm · Width: 101 mm · Ø Output inside: 13 mm · Height: 118 mm · Ø Air filter connection: 50 mm · Mounting type: Plug connection clamped · Ø Internal connection: 19 mm · Total length: 75 mm · Area of application: Original · Area of application: Standard

Gurtner carburetor float AR | MBK, Motobécane (AV10, AV7)

Manufacturer: Gurtner · Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: Gurtner AR · Ø outside: 23.7 mm · Height: 19.8 mm · Height: 41.1 mm

Gurtner nozzle #56 AR1 | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Gurtner AR · Quantity: 1 pcs · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: MF6x0.75 (fine pitch thread) · Nozzle size: 56 · Thread length: 4.6 mm · Total length: 8.5 mm

Gurtner spring throttle slide carburetor AR | MBK, Motobécane (AV7, AV10)

Spring design: Pressure spring · Ø wire: 0.8 mm · Manufacturer: Gurtner · Material: Spring steel · Carburetor type: Gurtner AR · Ø inside: 8 mm · Ø outside: 9.5 mm · Total length: 33.5 mm · Number of components: 1 pcs · Area of application: Original · Area of application: Standard

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: powder-coated · Color: black · Chain pitch: 1/2" x 3/16" · Number of teeth: 45 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm · Thickness: 4.5 mm · Hole spacing 2: 68 mm · Number of fixing points: 6 pcs · Ø mounting hole: 6.7 mm · Hole spacing: 36.5 mm · Cranking (offset): 8 mm

swiing® revival shock absorber axle galvanized | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Total length: 200 mm

swiing® revival rear wheel spacer tube L=70 mm | Puch Maxi

Manufacturer: swiing® revival parts · Nominal diameter inside: 12 mm · Ø outside: 16 mm · Ø inside: 12.5 mm · Total length: 70 mm · Puch OEM number: 349.5.41.826.1

swiing® revival wheel axle LELEU & Grimeca wheel hub cast wheel rear | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Ø shaft: 11.9 mm · Ø outside: 11.8 mm · Total length: 185 mm · Thread length: 26 mm · Thread length: 52.5 mm · Shank length: 100 mm · Width across flats: 19 mm

SKF 6001 2RSH Ball bearing 12/28/8

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 8 mm · Manufacturer: SKF · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Stock number: 6001 · Bearing type: Deep groove ball bearing · Ø outside: 28 mm · Ø inside: 12 mm · Width: 8 mm · Ball bearing closed: Yes

Gurtner gasket carburetor float chamber AR | MBK, Motobécane

Manufacturer: Gurtner · Material: Sealing paper · Component group Carburetor: Sealing, revising · Thickness: 0.4 mm

Gurtner gasket fuel connection carburetor AR1 sealing paper | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Material: Sealing paper · Component group Carburetor: Sealing, revising · Carburetor type: Gurtner AR · Ø inside: 24.5 mm · Thickness: 0.4 mm · Width: 28.5 mm · Total length: 38 mm

Gurtner O-ring fuel connection carburetor AR1 | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Place of use: Carburetor · Material: Rubber · Color: black · Ø inside: 24 mm · Ø outside: 26 mm · Cord thickness: 1 mm · Number of components: 1 pcs · Area of application: Original · Area of application: Standard
