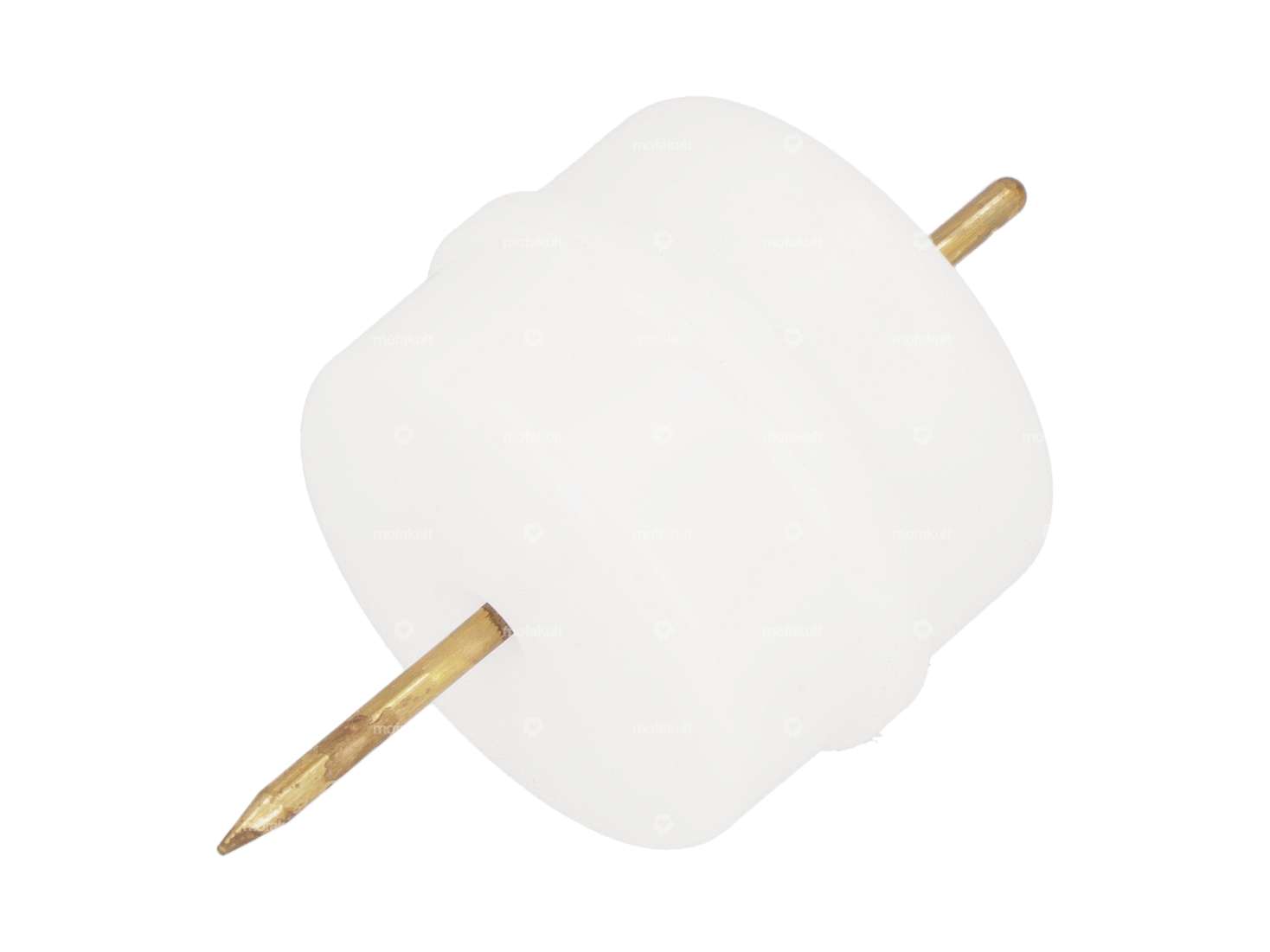

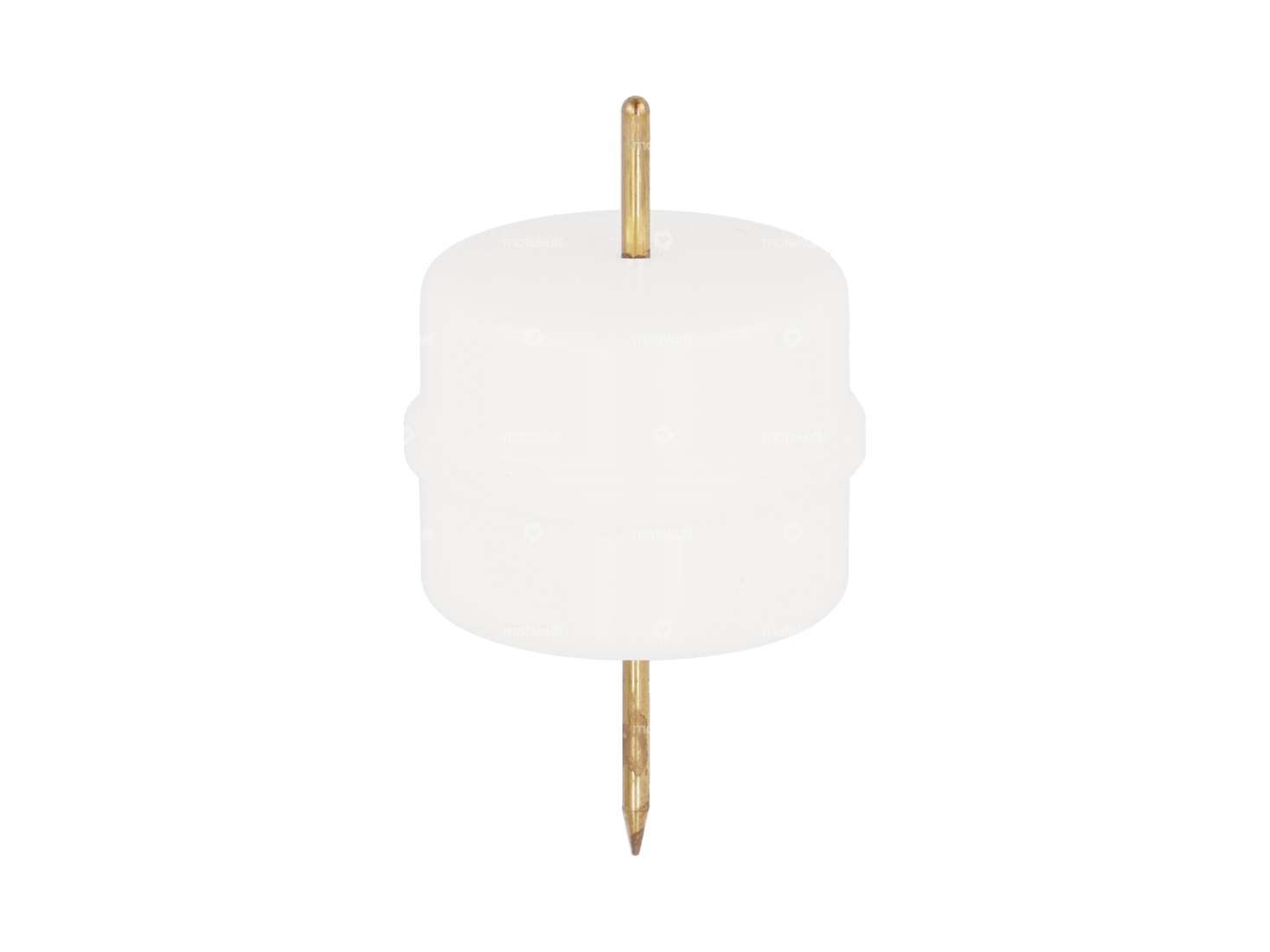

Gurtner carburetor float AR | MBK, Motobécane (AV10, AV7)

Gurtner carburetor AR 1/13 with air filter original | MBK / Motobécane 51 (AV10)

Manufacturer: Gurtner · Component group Carburetor: Carburetor complete · Material: Aluminum · Material: Plastic · Area of application: Original · Area of application: Standard · Nominal diameter: 13 mm · Width: 101 mm · Choke control: Cable choke · Height: 118 mm · Total length: 75 mm · Ø fuel hose connection: 6 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 19 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Ø Air filter connection: 50 mm · Nozzle size: 58

Gurtner carburetor AR 2/10 original | MBK / Motobécane 4/85 (AV71)

Manufacturer: Gurtner · Component group Carburetor: Carburetor complete · Material: Aluminum · Area of application: Original · Area of application: Standard · Nominal diameter: 10 mm · Width: 80 mm · Choke control: Cable choke · Height: 101 mm · Total length: 50 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Mounting type: Plug connection clamped · Ø Output inside: 10 mm · Nozzle size: 52

Gurtner carburetor idle screw D12G

Component group Carburetor: Adjusting screws, float, etc. · Material: Steel · Surface: galvanized (blue) · Carburetor type: Gurtner DG · Thread type: M5x0.8 (standard thread) · Total length: 21 mm

Gurtner gasket carburetor float chamber AR | MBK, Motobécane

Manufacturer: Gurtner · Component group Carburetor: Sealing, revising · Material: Sealing paper · Thickness: 0.4 mm

Gurtner fuel filter carburetor AR1 | MBK, Motobécane 51

Manufacturer: Gurtner · Material: Plastic · Color: white · Ø outside: 14 mm · Ø outside: 18.7 mm · Filter type: Plastic net · Ø inside: 11.3 mm · Total length: 12.4 mm

Gurtner fuel filter carburetor AR2 / DG | Peugeot 102, 103, MBK, Motobécane

Manufacturer: Gurtner · Component group Carburetor: Adjusting screws, float, etc. · Material: Plastic · Carburetor type: Gurtner AR · Carburetor type: Gurtner DG · Color: white · Ø outside: 8 mm · Total length: 29 mm

Gurtner spring throttle slide carburetor AR | MBK, Motobécane (AV7, AV10)

Spring design: Pressure spring · Ø wire: 0.8 mm · Number of components: 1 pcs · Manufacturer: Gurtner · Material: Spring steel · Area of application: Original · Area of application: Standard · Carburetor type: Gurtner AR · Ø outside: 9.5 mm · Ø inside: 8 mm · Total length: 33.5 mm

Gurtner gasket fuel connection carburetor AR1 sealing paper | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Component group Carburetor: Sealing, revising · Material: Sealing paper · Carburetor type: Gurtner AR · Width: 28.5 mm · Ø inside: 24.5 mm · Total length: 38 mm · Thickness: 0.4 mm

Gurtner nozzle #50 AR2 | MBK, Motobécane (AV7)

Manufacturer: Gurtner · Component group Carburetor: Spraying · Material: Brass · Drive: External hexagon · Carburetor type: Gurtner AR · Drive: Slot · Quantity: 1 pcs · Nozzle type: Main nozzle · Total length: 22 mm · Nozzle thread: M7x1 (standard thread) · Thread length: 5 mm · Width across flats SW: 8 mm · Nozzle size: 50
