For: Piaggio

24489

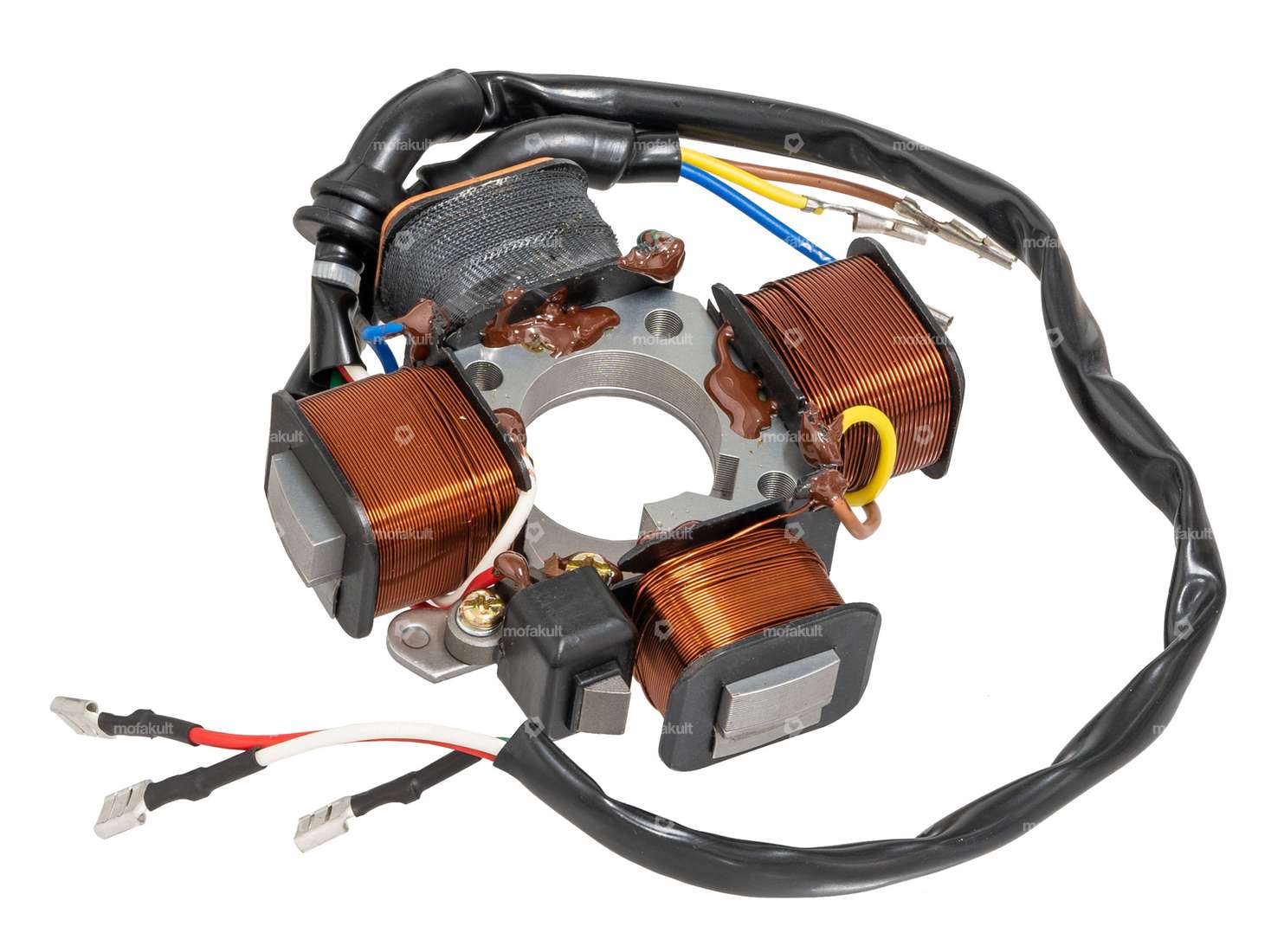

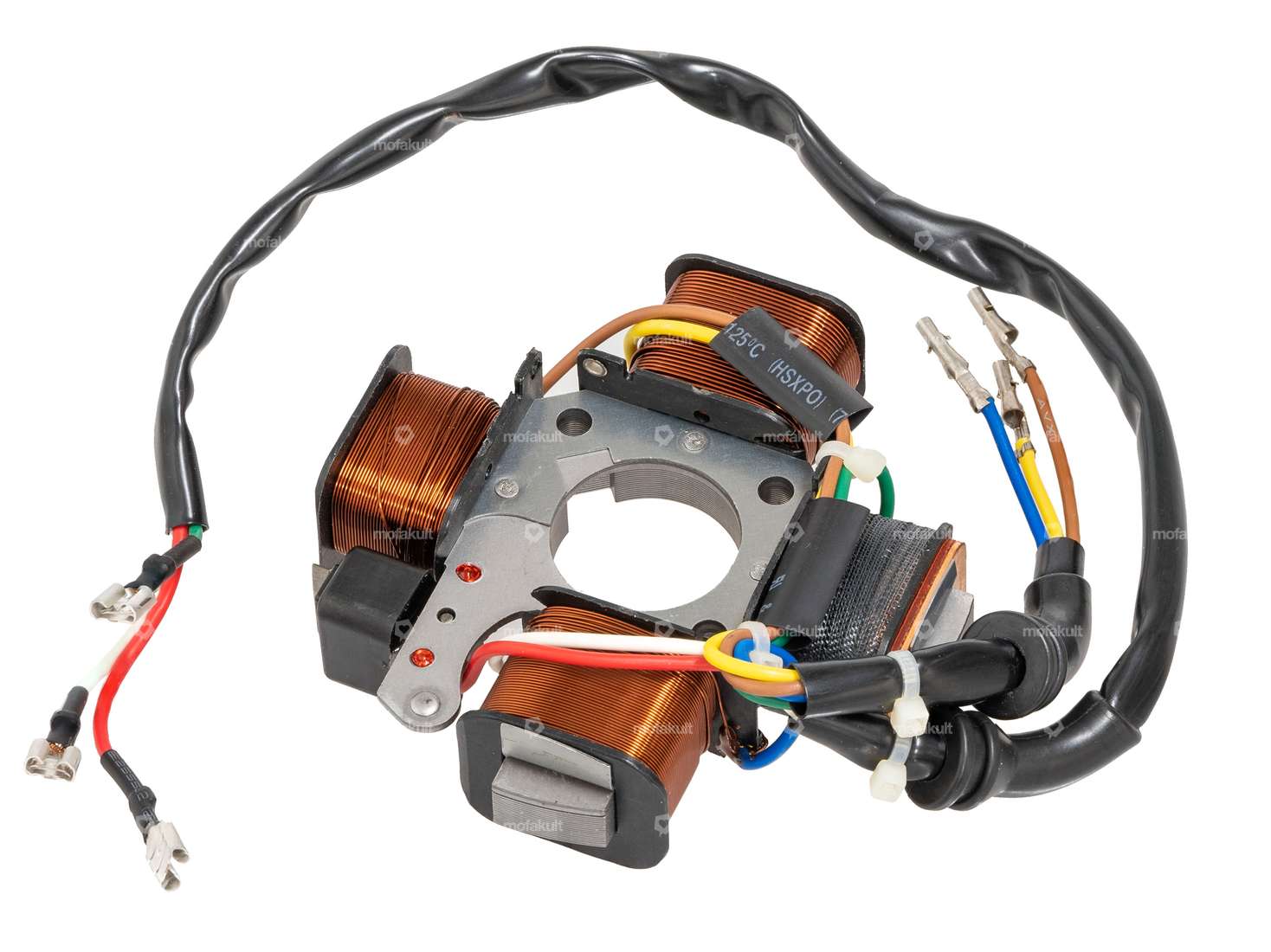

GPO stator electronic ignition with light (three outputs) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 147.40

Incl. 25.5% VAT.

Description

Complete anchor plate for electronic ignition, suitable for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds.
This contactless ignition impresses with its high quality and has been extensively tested.
The cable lengths are identical to the factory-fitted ELO ignition from Piaggio.

Technical data:

  • Voltage: 12 volts
  • Wattage: 90 watts
  • Yellow output: light
  • Brown output: Brake light (if present)
  • Blue output: indicators (if present)

Advantages of the CDI ignition:

  • optimal ignition timing at any speed
  • always a strong, constant ignition spark
  • No more false ignitions
  • Possibility to connect several consumers
  • no need to adjust the ignition
  • Little to no wear and tear

Note: This ignition only fits on the housing, which already had an electronic ignition fitted as standard. Also on racing housings such as the Polini Speed Engine or the Malossi housing for electronic ignitions. When converting your engine with 6V breaker ignition to this 12V ignition, you must also convert the glow plug to 12V and also install a voltage regulator.

You can find a voltage regulator, the right flywheel and other parts for your electric ignition in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Original Piaggio spare part number: 219965

ManufacturerGPO
Number of cables6 pcs
Tension12 V
Performance90 W
Cable length400 mm, 100 mm
Ø inside29.5 mm
Ø outside105 mm
Number of fixing points3 pcs
Hole spacing34.5 mm
Piaggio OEM number219965
Piaggio

Ciao - P, SC, PX, C24

Si

Bravo / Super Bravo

Boxer

Grillo
