Blade-cooled 43 mm (61 cc) racing kit suitable for your moped / moped with Sachs 50, 502, 50/2, 50/3 or 50/4 engine.
The timing of this racing cylinder is deliberately kept low, which ensures high torque in the lower speed range. This effect is further enhanced by the two-piece exhaust. So that you can enjoy every ride in everyday life without worrying, a «30 km» test disguises the actual performance of your power unit.

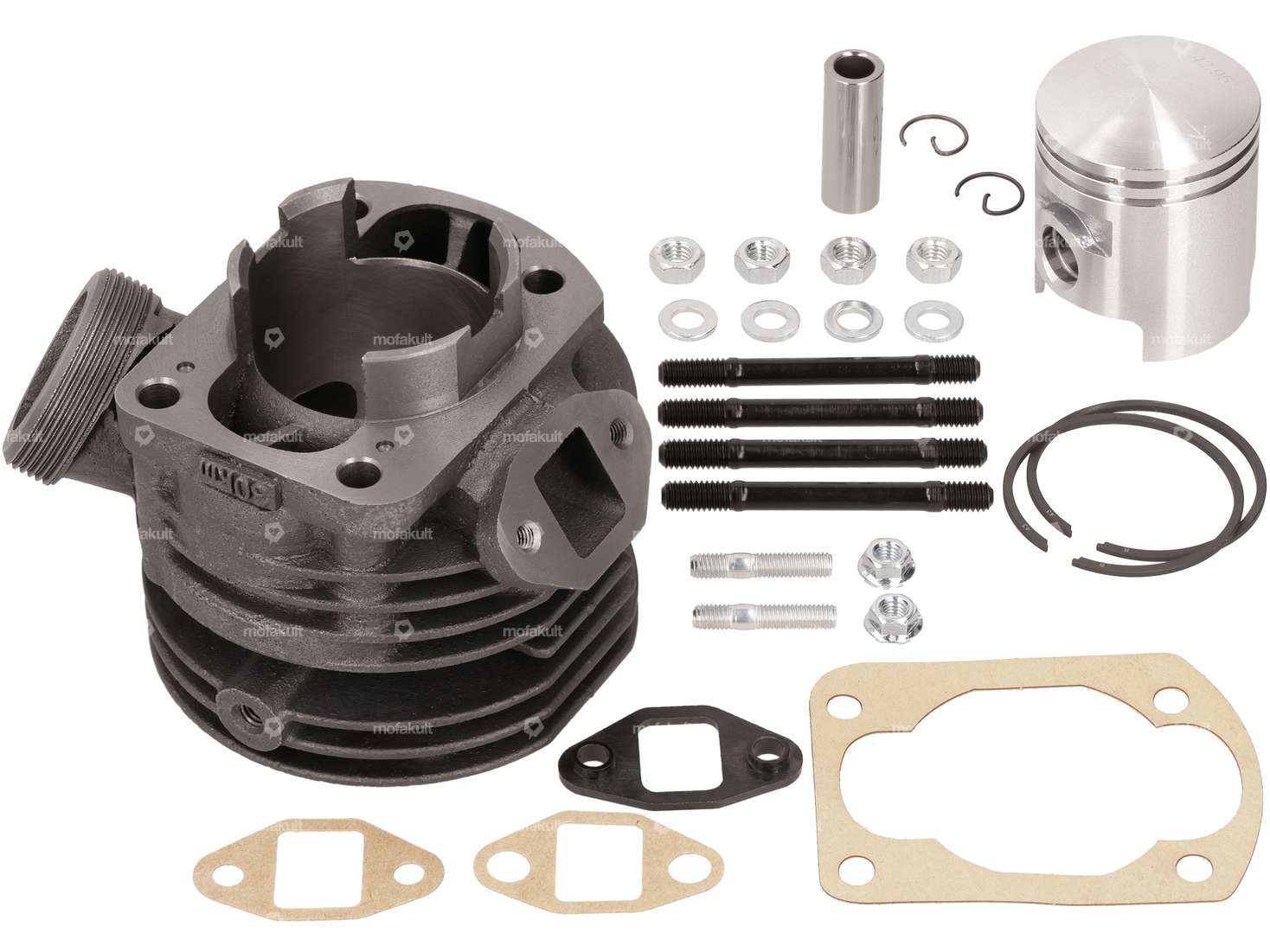

The racing cylinder set includes cylinder, complete piston kit, cylinder studs and a cylinder base gasket.
Differences to the original BADASS Diablo cylinder:

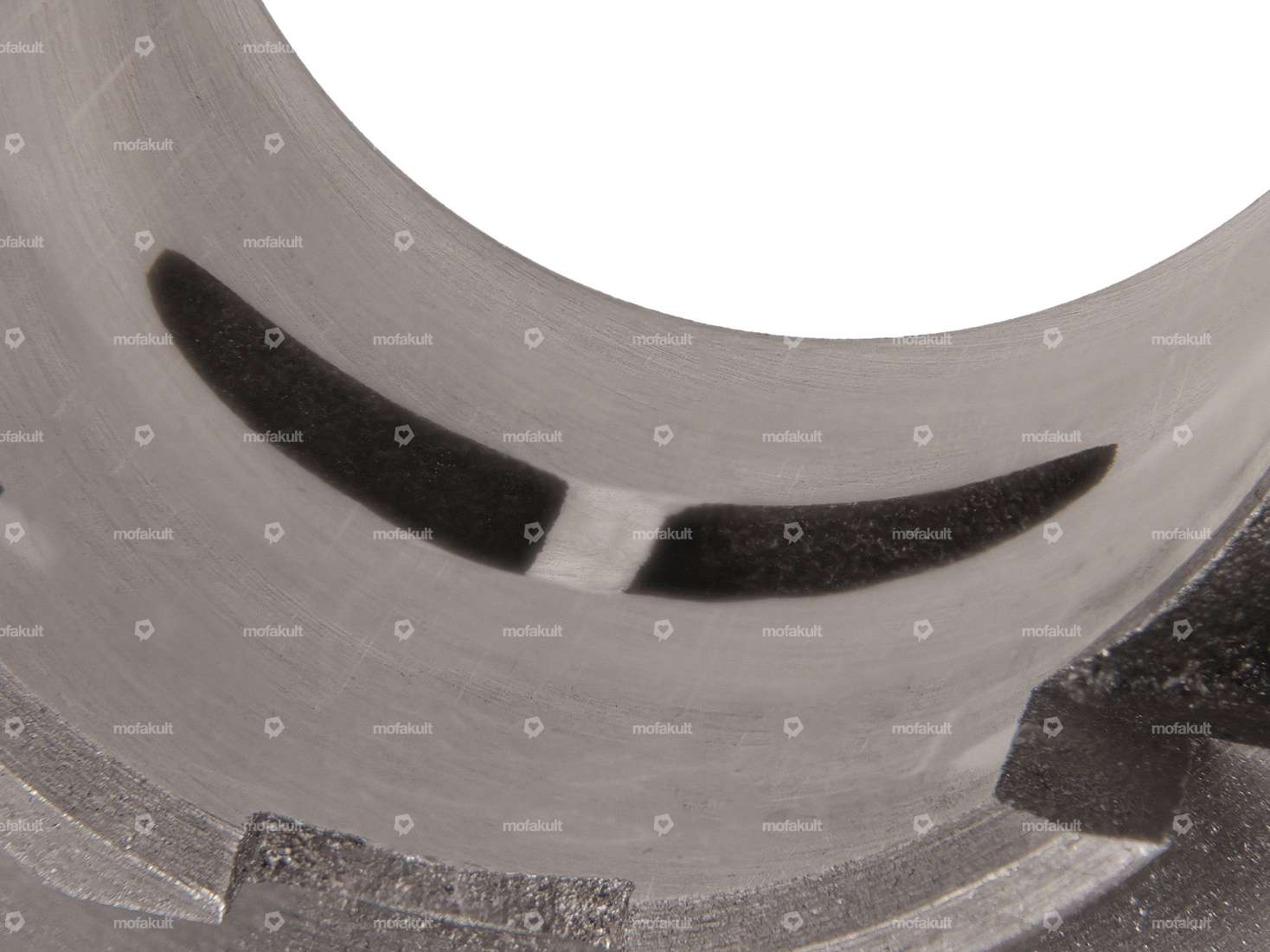

- On the GPO cylinder, the bridge of the split exhaust is ground behind to minimize the risk of heat jamming on the exhaust side

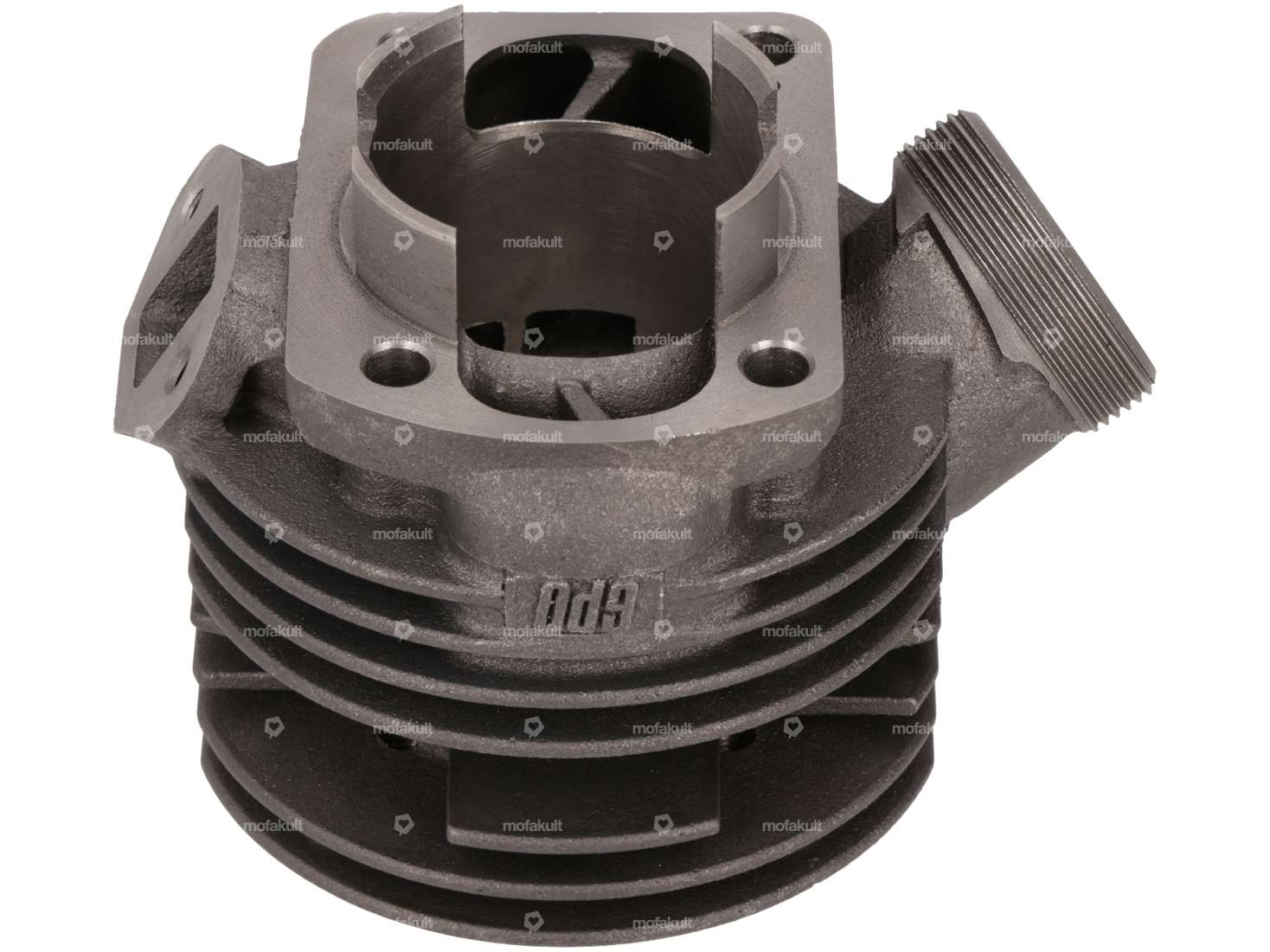

- The edges of the overflow ports on the GPO tuning cylinder have been chamfered in the area of the cylinder neck to make it easier to fit the piston rings.
- The original BADASS cylinder is supplied with a GOL piston, while the GPO Divertimento is equipped with a GPO piston matched to the cylinder. Differences can be seen, among other things, in the crown and in the cut-outs on the piston skirt for opening the overflow ports.
- In the GPO Divertimento, more space has been created for the nuts to tighten the cylinder base.</li
- The required M6x62 mm stud bolts for mounting the cylinder base as well as nuts, washers and stud bolts for the intake are included as standard with the GPO.

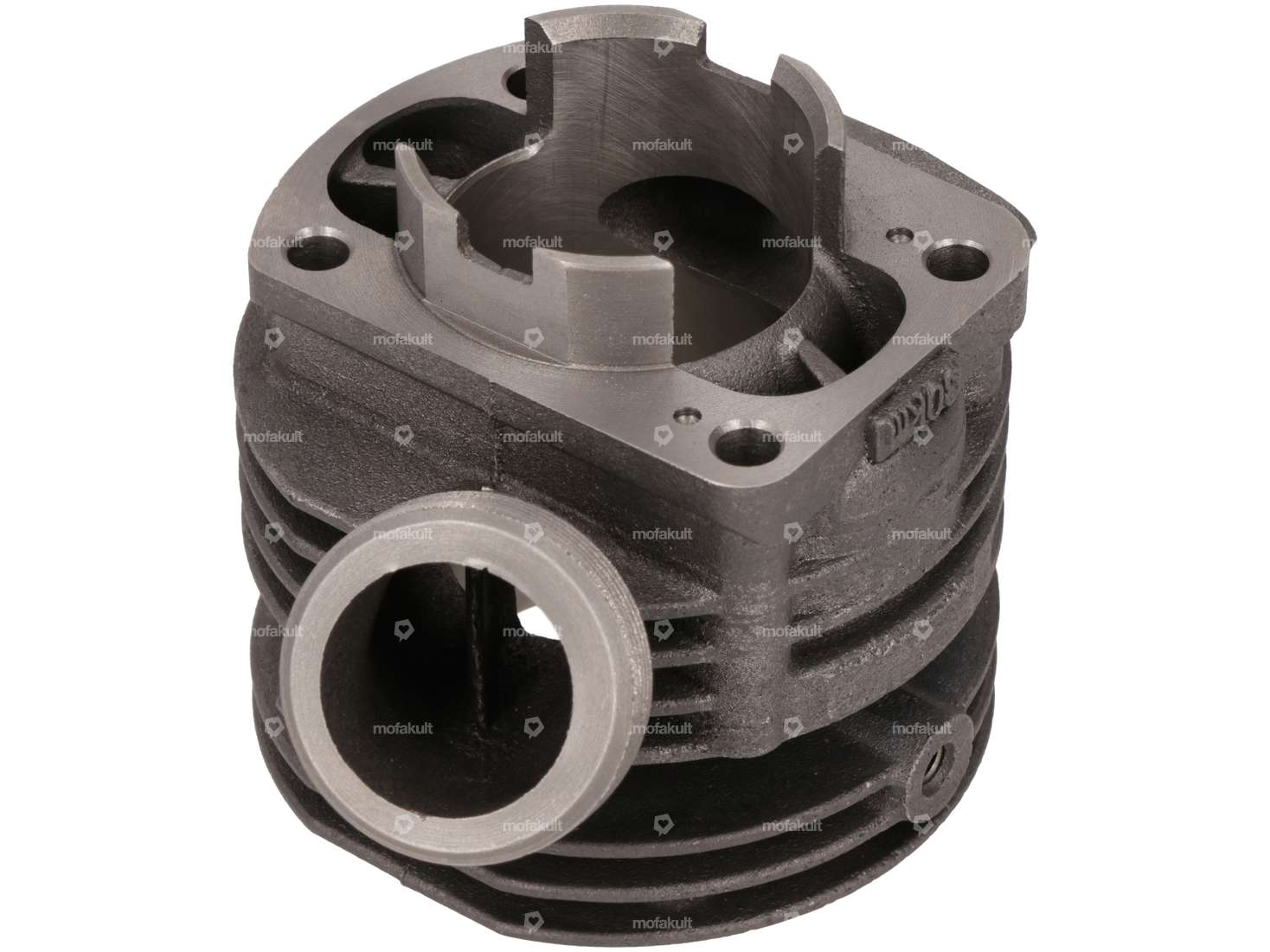

- The angle of the intake tract has been adjusted so that the carburettor and air filter are now aligned horizontally and no longer point diagonally upwards.

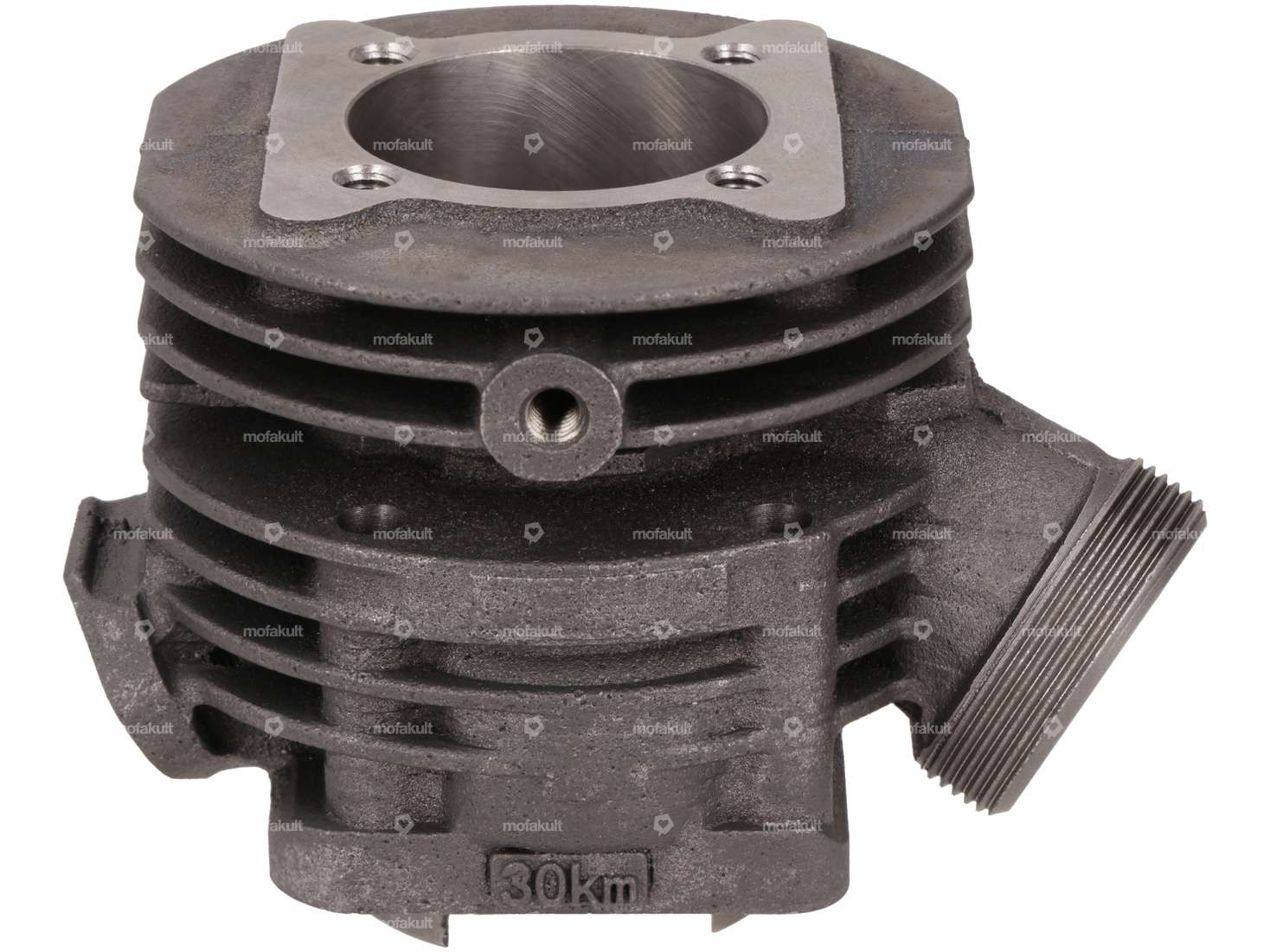

- On the BADASS Diablo, the embossed «30 km» logo is positioned off-center, whereas on the GPO Divertimento it is positioned in the middle, as it is on the original Swiss cylinder.
Notes:

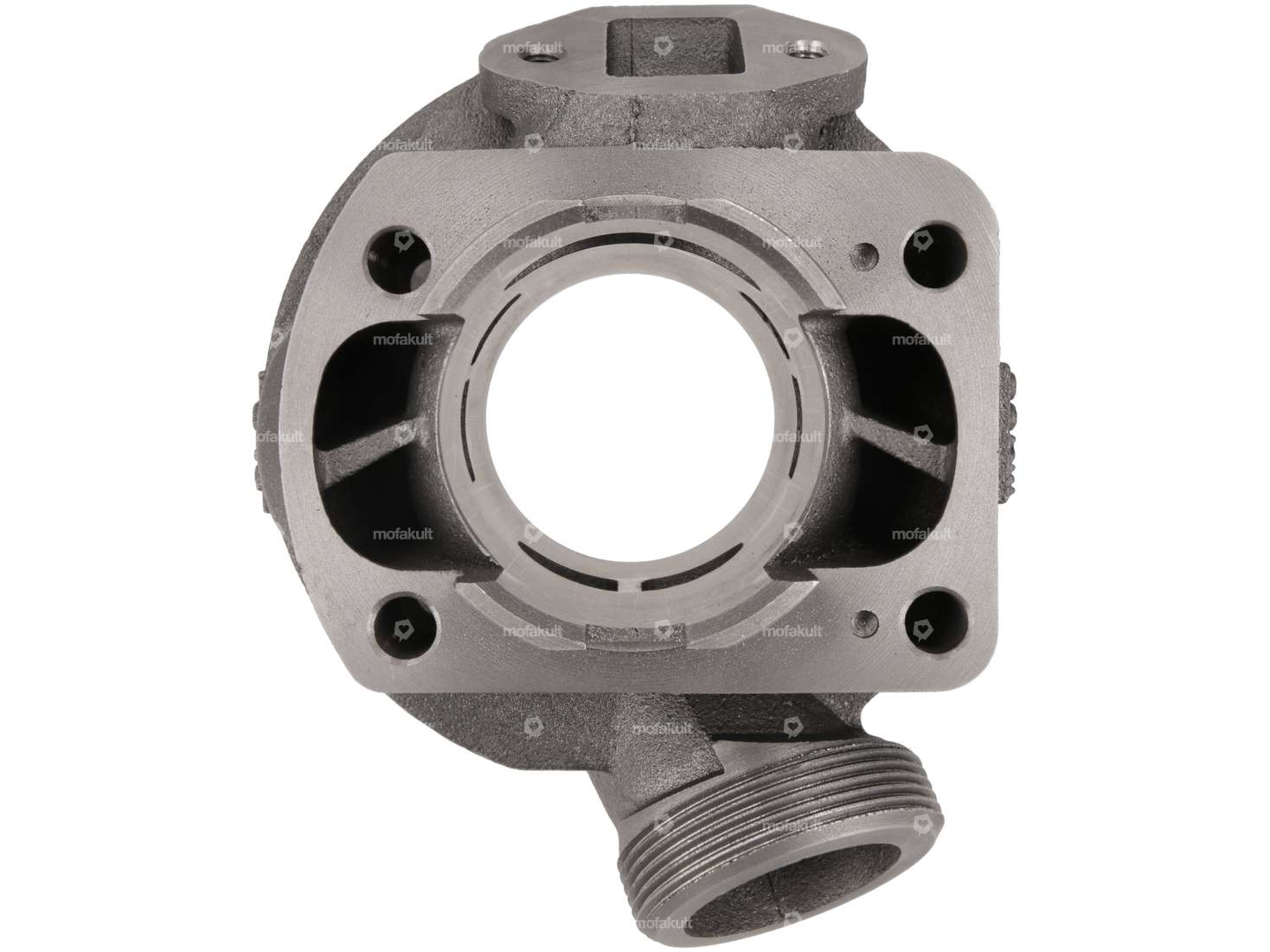

The cylinder base is designed ex works for Swiss 50/2 (502) engines. However, the holes for the German 50/2 engine housing are indicated. This allows you to drill them out if necessary and use the cylinder as usual for your moped with German engine housing.
The large inlet allows the use of a 17 mm swiing® tuning carburettor, provided it is fitted with a short air filter cap, suitable clamp (short) and corresponding closing plate (long / deep).
The smaller 41 mm version of the racing kit, the matching 17 mm carburetor and the air filter parts described above can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Manufacturer: GPO · Material: Gray cast iron · Displacement: 61 ccm · Nominal diameter: 43 mm
Manufacturer: GPO · Nominal diameter: 43 mm · Material: Aluminum · Ø outside piston (A): 42.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm
Manufacturer: GPO · Material: Sealing carton · Number of components: 4 pcs
Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Total length: 62 mm · Thread length: 11.8 mm, 7.8 mm · Width across flats: 10 mm · Strength class: 10.9 · Drive: External hexagon
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 14 mm, 7 mm · Width across flats: 8 mm · Strength class: 8, 10.9 · Drive: External hexagon
| Nominal diameter | 43 mm |
| Manufacturer | GPO |
| Material | Gray cast iron |
| Surface | blank / oiled |
| Displacement | 61 ccm |
| Crankshaft stroke | 42 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 40 mm |
| Ø outlet inside | 28 mm |
| Inlet window | 17 x 15 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 31 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 60 x 40 / 51 x 40 / 37 x 37 |
| Decompressor | No |
| Camouflaged | Yes |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
Accessories & related products
swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of components: 12 pcs · Thread type: M6x1 (standard thread) · Total length: 34 mm · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Ø shaft: 5.85 mm · Shank length: 8 mm · Area of application: Standard · Width across flats: 10 mm · Thread length: 22 mm
EUR 8.85
Cigar exhaust system (Ø 32 / 70 mm) black / chrome | Sachs 50/2
Ø outside: 70 mm · Total length: 700 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø Flame tube outside: 32 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Ø Internal connection: 32 mm · Flame tube attachment: Union nut
EUR 125.40
swiing® revival carburetor 17 mm Bing SSB 1/17/69
Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SSB · Nominal diameter: 17 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke · Nozzle size: 76 · Mounting type: Flange · Hole spacing inlet: 31 mm · Total length: 132 mm · Width: 85 mm · Height: 100 mm · Area of application: Standard · Area of application: Tuning
EUR 151.70
swiing® ingenious hook wrench M40 exhaust nut | Sachs 50/2
Total length: 280 mm · Width: 67 mm · Height: 5 mm · Manufacturer: swiing® ingenious parts · Ø inside: 33 mm · Ø outside: 46 mm · Weight: 300 g · Area of application: Workshop accessories · Material: Rubber · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs
EUR 29.80
BAD ASS cylinder head L Ø 41-43 mm | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: BAD ASS · Material: Aluminum · Ø cylinder: 41 - 43 mm · Ø outside: 108 mm · Number of fixing points: 1 pcs · Number of fixing points: 4 pcs · Ø screw holder: 19.3 mm · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5 · Area of application: Tuning
EUR 179.30

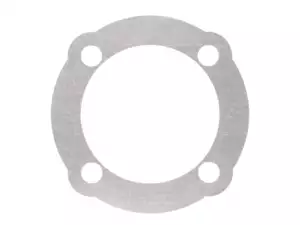

swiing® ingenious 43 mm cylinder head gasket | Sachs 503, 502, 50/2, 50/3, 50/4
