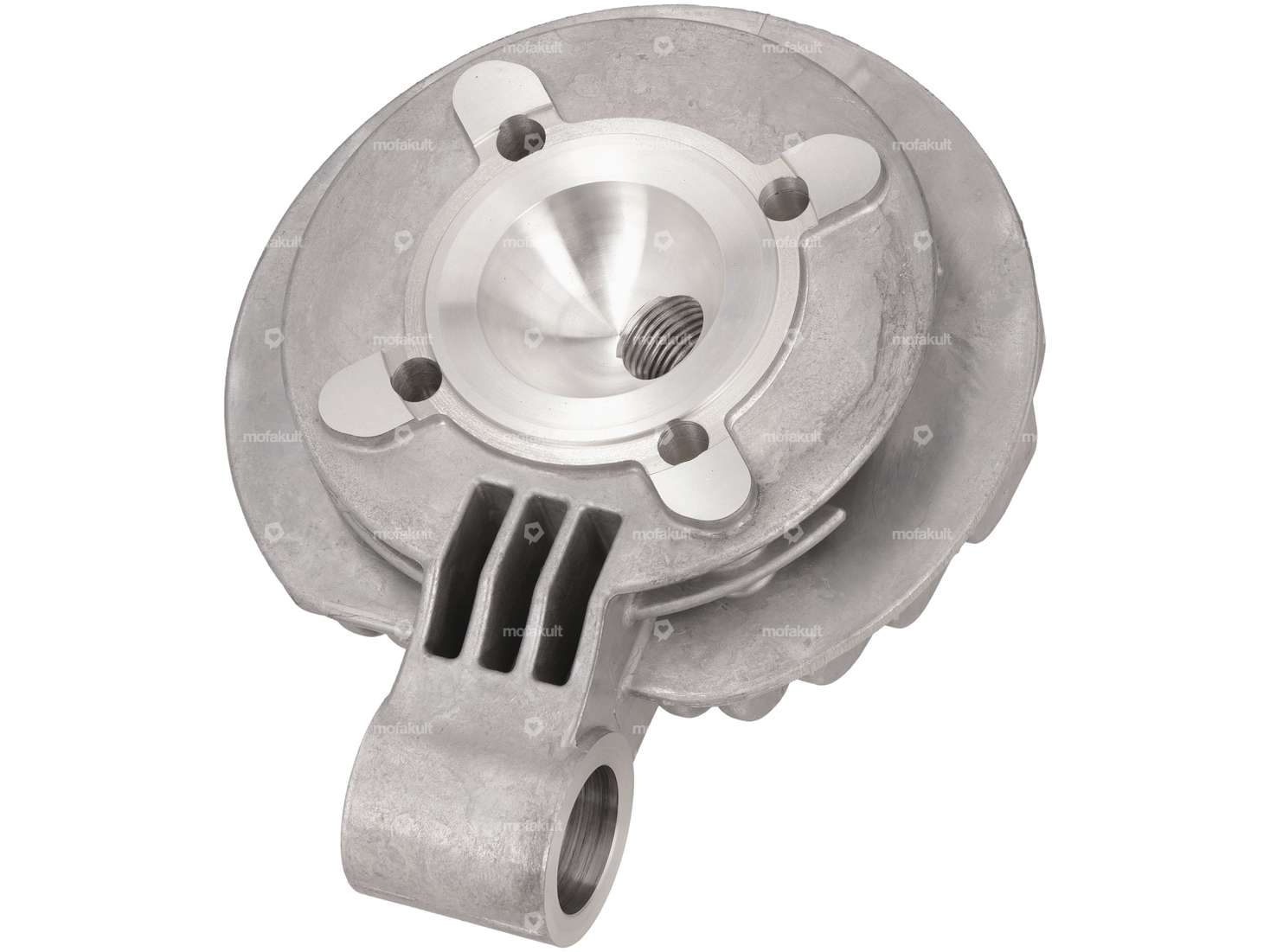

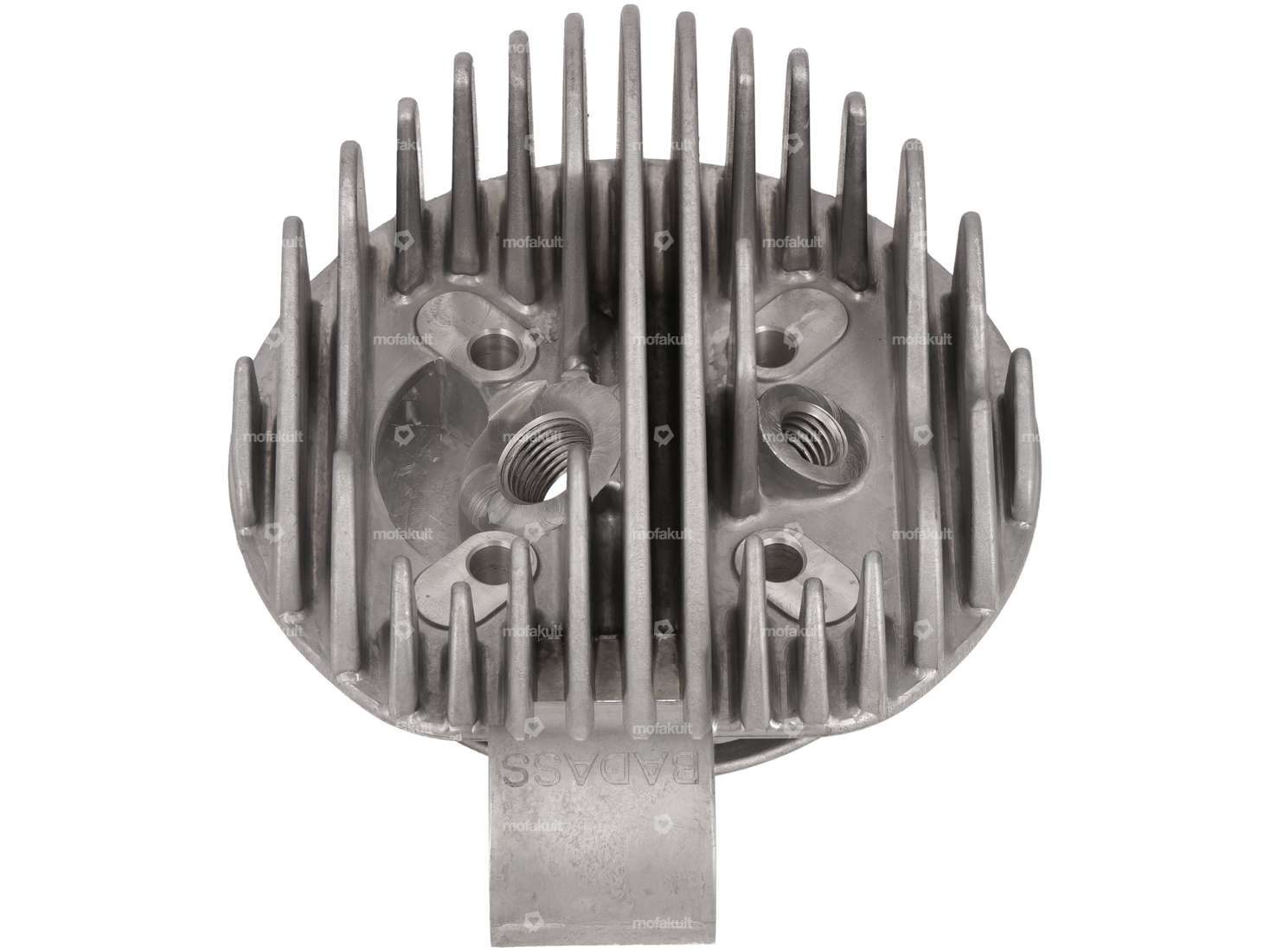

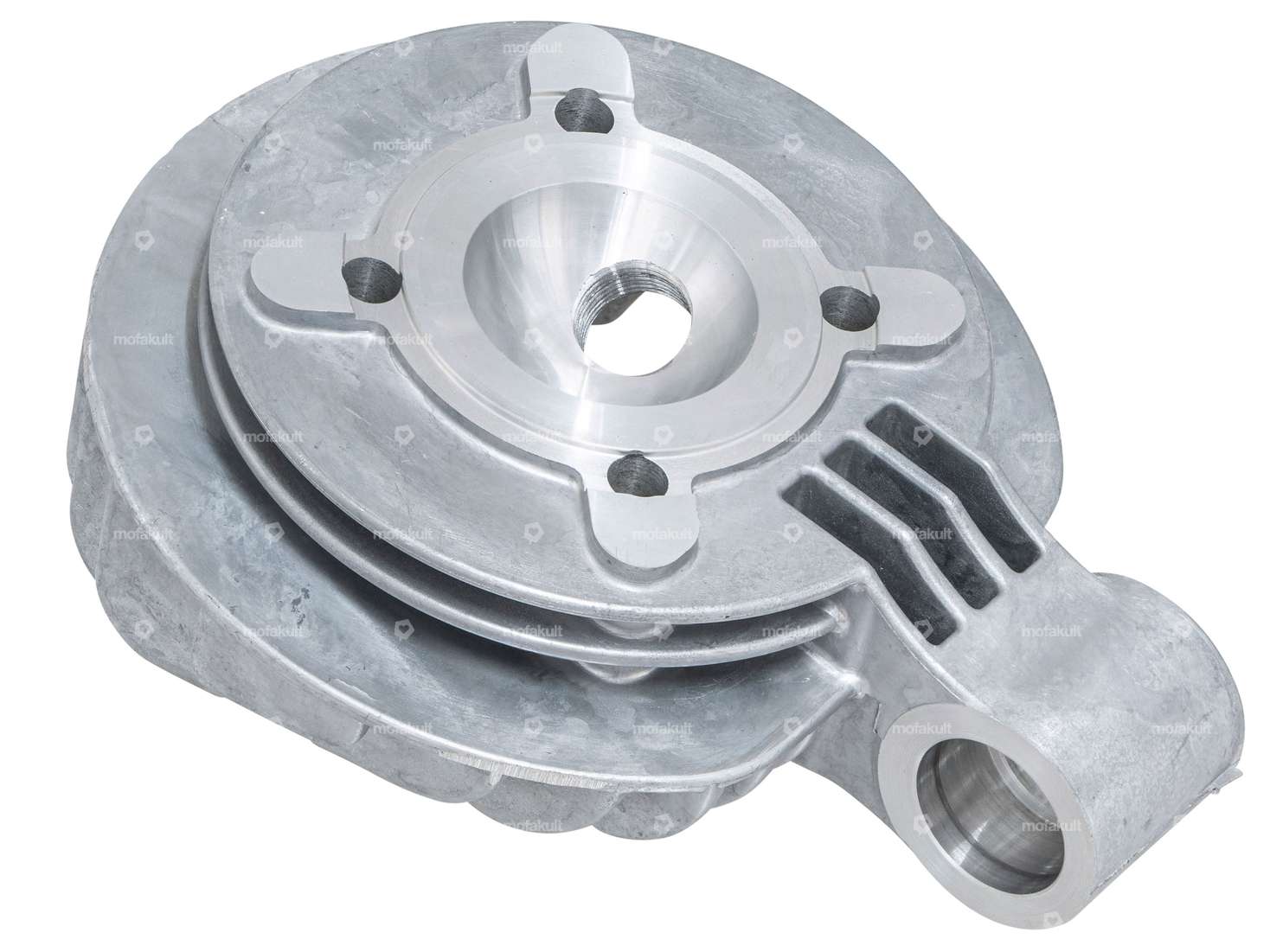

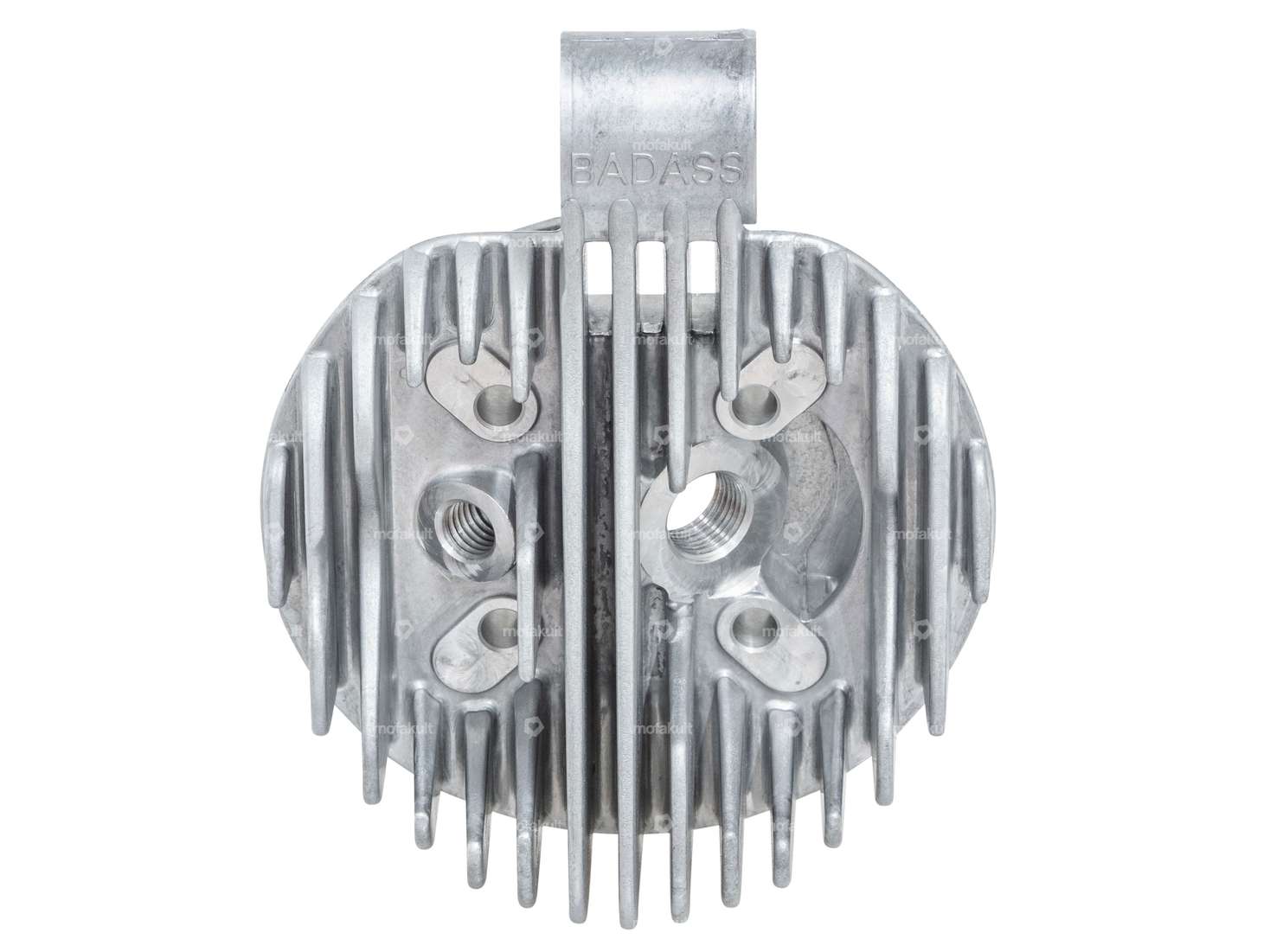

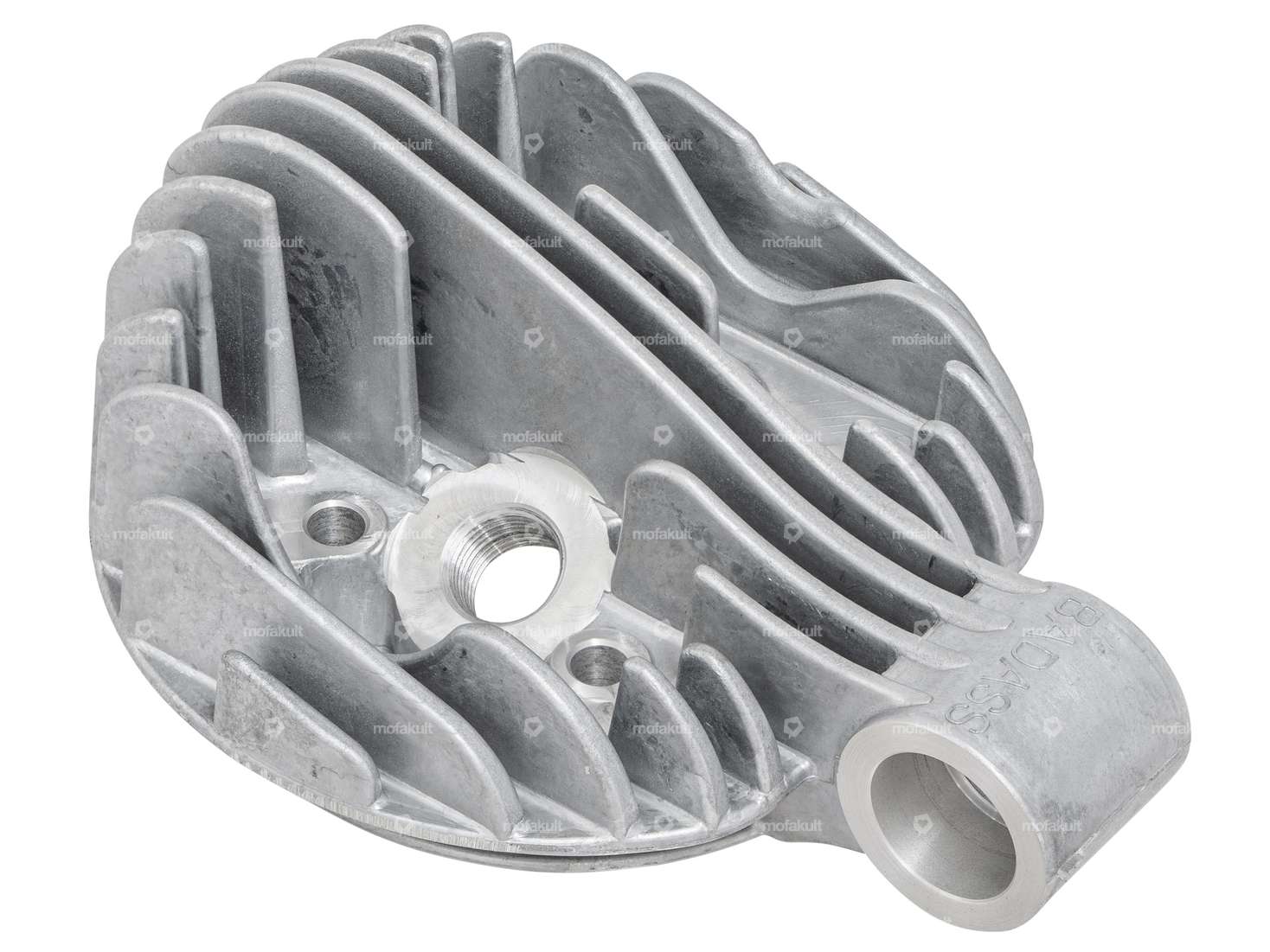

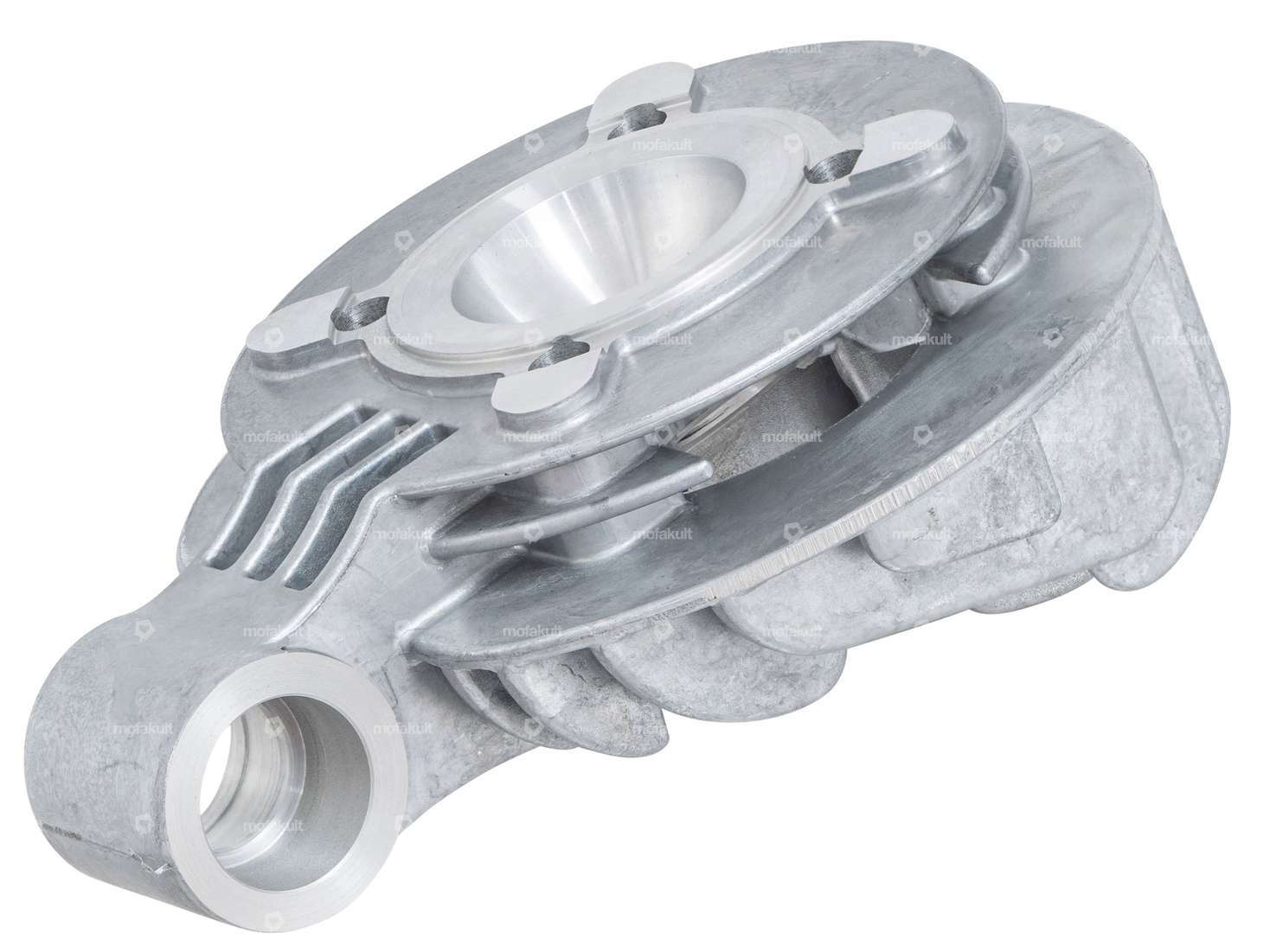

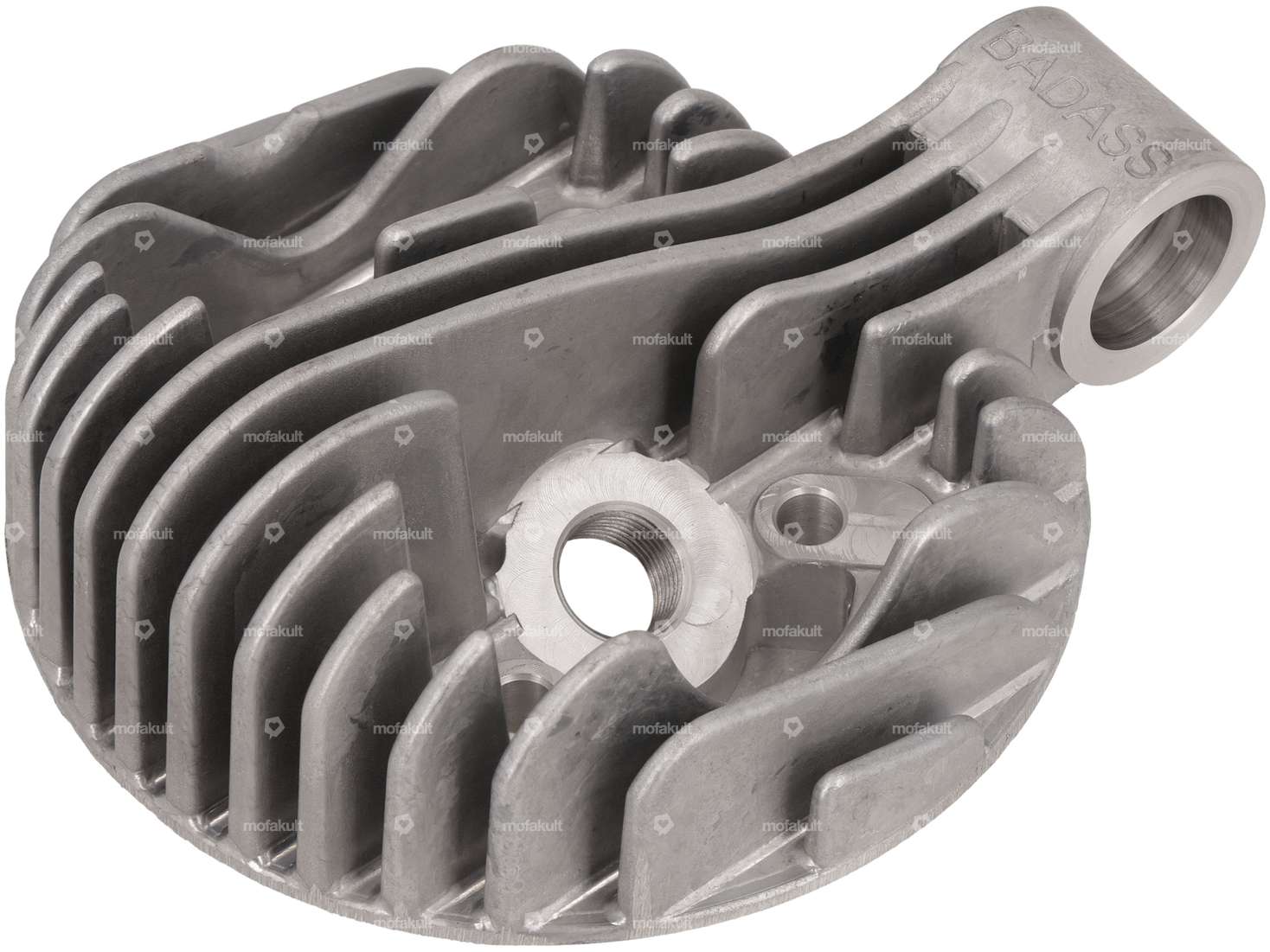

First 41 - 43 mm cylinder head in original look with enlarged fins, suitable for Sachs 502, 50/2, 50/3, 50/4 engines.
Thanks to the larger fin design, the cylinder head can optimally dissipate heat even at high temperatures and slow uphill rides.
The hole for the decompressor is prepared and threaded (M10 x 1.5 mm). If a decompressor is installed, it only needs to be drilled through with a 3 mm drill bit.
Ø Cylinder: 41.0 - 43.0 mm (type L)
Perforation pattern for cylinder head screws: 37 x 37 mm
Decompressor thread: M10 x 1.5 mm
Ø Silentblower mount: 19.3 mm
Ø outside: 108 mm
Ø outside under casing: 86 mm
The cylinder head is installed without gasket, the tightening torque of the cylinder head bolts (strength 10.9) is 11 - 13 Nm.
Matching add-on parts such as spark plugs, decompressors, silentblowers etc. can be found in the accessories section.
Made by the BADASS brand.
| Manufacturer | BAD ASS |
| Area of application | Tuning |
| Material | Aluminum |
| Ø outside | 108 mm |
| Ø cylinder | 41 - 43 mm |
| Ø screw holder | 19.3 mm |
| Number of fixing points | 4 pcs, 1 pcs |
| Hole pattern [mm] | 37 x 37 |
| Decompressor | M10x1.5 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
Accessories & related products
swiing® revival nozzle set M3.5 (58 - 68) Bing SRE, SRA, SRC, SRF
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Drive: Slot · Total length: 6 mm · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68
EUR 19.50
swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Color: silver · Material: Steel · Ø shaft: 5.85 mm · Drive: External hexagon · Total length: 34 mm · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Thread length: 22 mm · Shank: Yes · Shank length: 8 mm · Number of components: 12 pcs · Width across flats SW: 10 mm · Area of application: Standard · Strength class: 10.9
EUR 6.00
swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 98 mm · Number of fixing points: 4 pcs · Height: 50 mm · Ø screw holder: 19 mm · Total length: 127 mm · Hole pattern [mm]: 37 x 37 · Width: 95 mm · Candle thread: long · Decompressor: M10x1.5 · Area of application: Standard
EUR 84.00
Cylinder head 41 mm Tuning | Sachs 50/3, 50/4 LKH
Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 128 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Candle thread: long · Decompressor: No · Area of application: Tuning
EUR 118.80
Not in stock
Hot

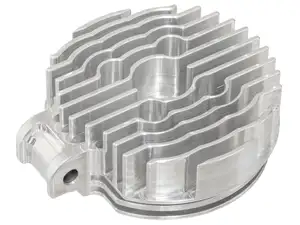

Cylinder head CNC 41 mm Tuning | Sachs 50/3, 50/4 LKH
