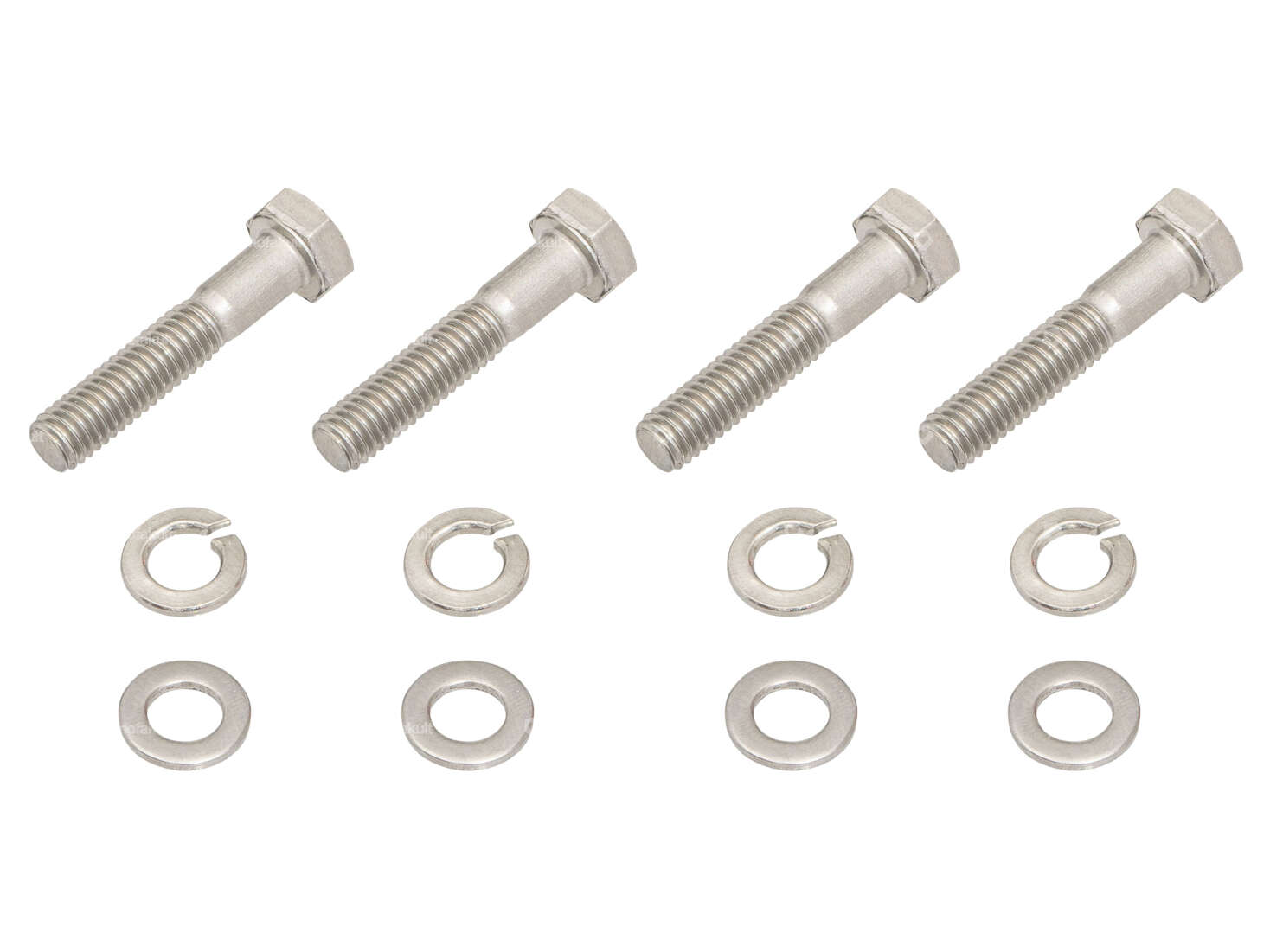

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

Cylinder head | Sachs 50/2

Number of fixing points: 4 pcs · Decompressor: Yes · Pony OEM number: A1069 · Pony OEM number: A1070 · Sachs OEM no.: 0213 104 006 · Sachs OEM no.: 0213 106 000

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Color: blue · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Cylinder head Sachs 50/3, 50/4

Ø outside: 128 mm

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 22 mm · Screw head: Hexagon · Total length: 34 mm · Shank: Yes · Width across flats SW: 10 mm · Number of components: 12 pcs · Ø shaft: 5.85 mm · Shank length: 8 mm · Strength class: 10.9 · Color: silver

Cylinder head wind cooled NOS | Sachs 50/2

Manufacturer: Sachs · Ø outside: 105 mm · Area of application: Original · Pony OEM number: A1064 · Alternative version of the Sachs OEM number: 0213 033 003 · Sachs OEM no.: 0213 121 105

swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Standard · Width: 95 mm · Height: 50 mm · Total length: 127 mm · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 98 mm · Hole pattern [mm]: 37 x 37 · Candle thread: long · Number of fixing points: 4 pcs · Ø screw holder: 19 mm · Decompressor: M10x1.5

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 5.2 mm · Hole spacing: 67 mm · Area of application: Standard · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Nominal diameter: 17 mm · Material: Aluminum · Area of application: Standard · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Ø fuel hose connection: 6.2 mm · Hole spacing inlet: 31 mm · Width: 86 mm · Height: 99 mm · Total length: 116 mm · Mixed oil connection: No · Mounting type: Stud bolts & nuts · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Camouflaged: No · Nozzle size: 76 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Place of use: Admission · Thickness: 5.5 mm · Hole spacing inlet: 30 mm

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Diameter: 4.9 mm · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Total length: 23 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Material: Steel · Area of application: Tuning · Surface: galvanized (yellow) · Ø outside: 52 mm · Color: yellow · Height: 9.7 mm · Camouflaged: No

Exhaust clamp 70 mm chrome wide version.

Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Ø mounting hole: 8.2 mm · Material: Steel · Surface: chrome-plated · Clamping diameter: 67 - 71 mm · Color: Chrome · Thickness: 2 mm · Width: 28 mm · Number of fixing points: 1 pcs

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Area of application: Tuning · Surface: coated · Number of springs: 9 pcs · Ø outside: 8.75 mm · Ø inside: 5.6 mm · Thickness: 1.4 mm

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 86 g

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Number of components: 5 pcs · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Hole pattern [mm]: 60 x 40 mm
