Clutch basket with 21 teeth, compatible with Puch Maxi mopeds equipped with a 1-speed E50 engine.
The clutch basket is designed for the commonly installed 106-tooth spur gear.
It features a pressed-in brass bushing. The slide bushing has four small holes for additional lubrication.

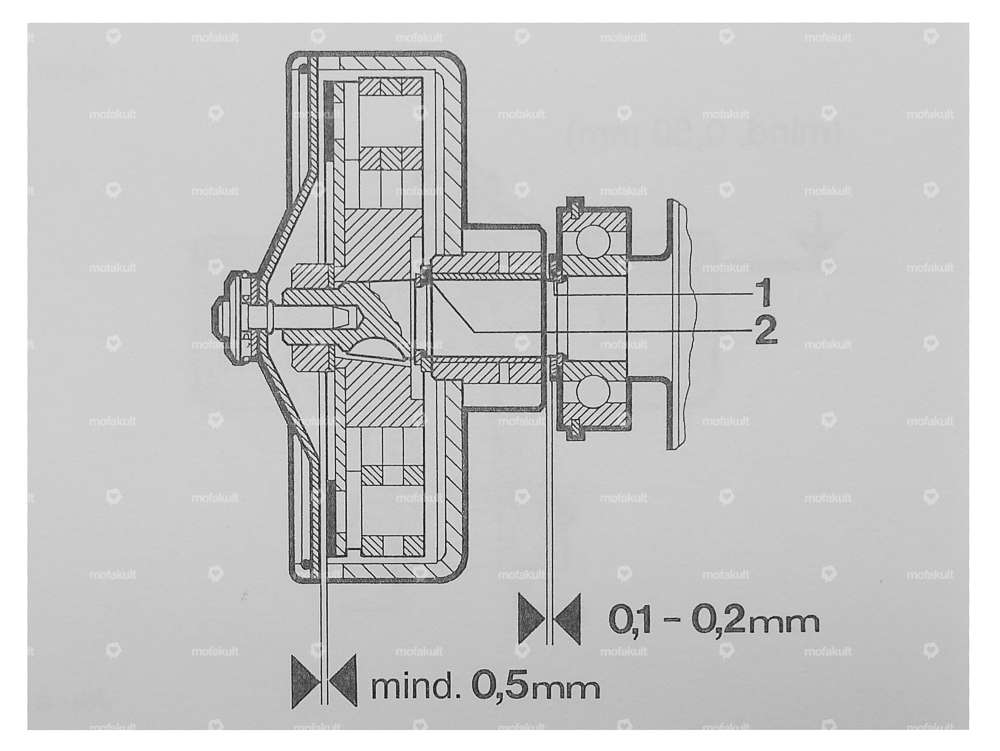

Note that the play in the clutch basket must be properly balanced. Figure 3 shows the corresponding measurement.
In the accessories section, you’ll find matching shims that are mounted in front of and behind the clutch basket.
Brand-name product from the manufacturer FAST ARROW.
| Manufacturer | FAST ARROW |
| Material | Steel |
| Area of application | Standard |
| Ø inside | 14.5 mm |
| Recording type | Interlocking |
| Toothing type | helical toothed |
| Number of teeth | 21 pcs |
| Height | 49.3 mm |
| Ø Receptacle | 30.5 mm |
| Ø outside | 99.5 mm |
| Puch | E50 |
