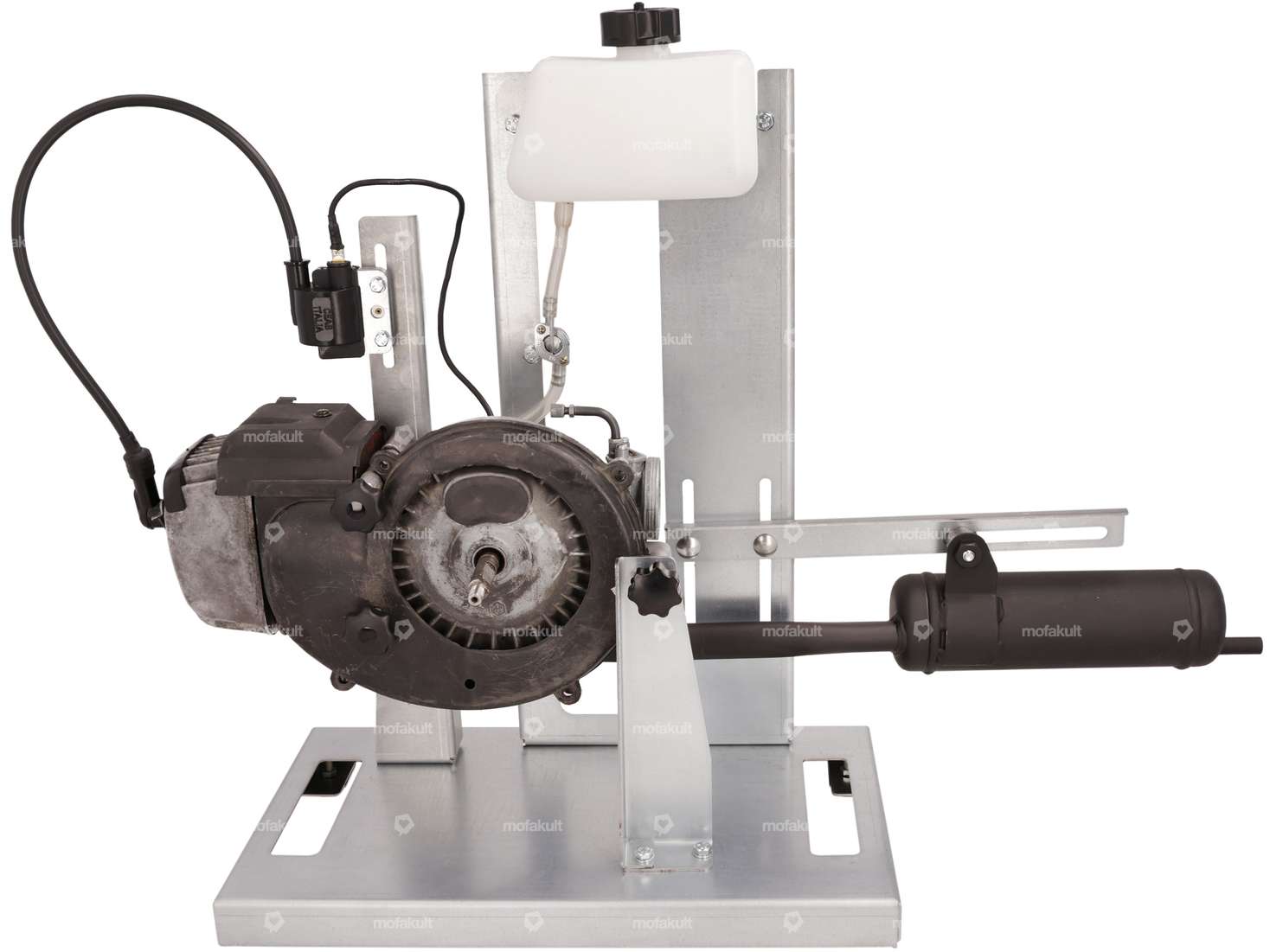

Primpression and adjustment stand for the engines of your Piaggio Ciao, Si, Bravo or Boxer mopeds / mopeds.

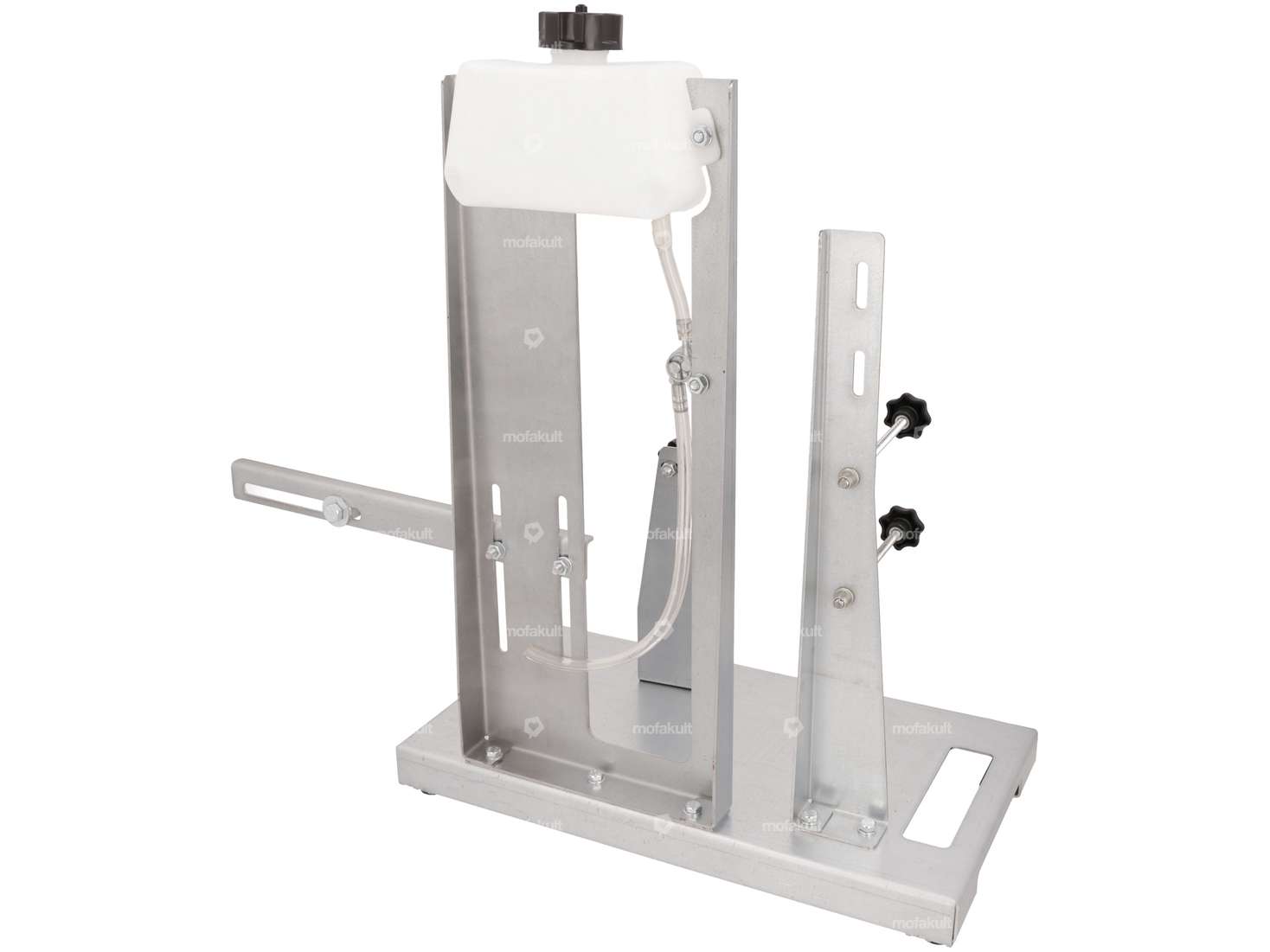

Made from 2 mm thick sheet steel, the engine support has been designed to allow quick and easy fixing of the engine. Tuning work on the carburetor or a functional check of the ignition are made considerably easier by the engine mount. In addition, all commercially available exhausts can be fitted, for example to measure the sound level.
The base plate is fitted with silent blocks to ensure safe and low-vibration operation. Fuel is supplied through a 250 ml tank, which is equipped with a fuel tap.
Dimensions assembled: 55 x 22 x 55 cm (L x W x H)
Base plate dimensions: 40 x 22 cm
Tank capacity: 2.5 dl
The engine mount is supplied with all the necessary screws.
You can find other essential tools such as an engine stand for assembly in the accessories section.
A quality product made in Germany.
Details
| Manufacturer | Made in Germany |
| Material | Steel, Plastic |
| Surface | galvanized (blue) |
| Total length | 550 mm |
| Width | 220 mm |
| Height | 550 mm |
| Material thickness | 2 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO blade gauge set 0.05 - 1.00 mm 13 pcs.
Measuring range [mm]: 0.05 - 1 mm · Number of components: 13 pcs · Manufacturer: GPO · Material: Metal · Surface: blank / oiled · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Total length: 105 mm · Width: 13 mm · Area of application: Measuring tool
EUR 14.60
GPO bearing puller set inside
Width across flats Screw: 14 mm · Span: 8 mm · Number of components: 11 pcs · Span: 25 mm · Manufacturer: GPO · Clamping depth: 10 mm · Clamping depth: 20 mm · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Total length: 140 mm
EUR 208.60
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Number of components: 2 pcs · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Total length: 100 mm · Area of application: (Dis)assembly tool
EUR 22.00
Moped fans like you also bought:

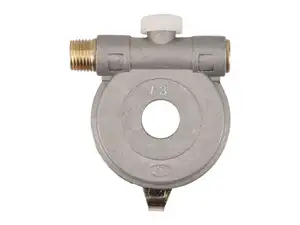

Speedometer drive 16" left with grease nipple holder
