Not so nice

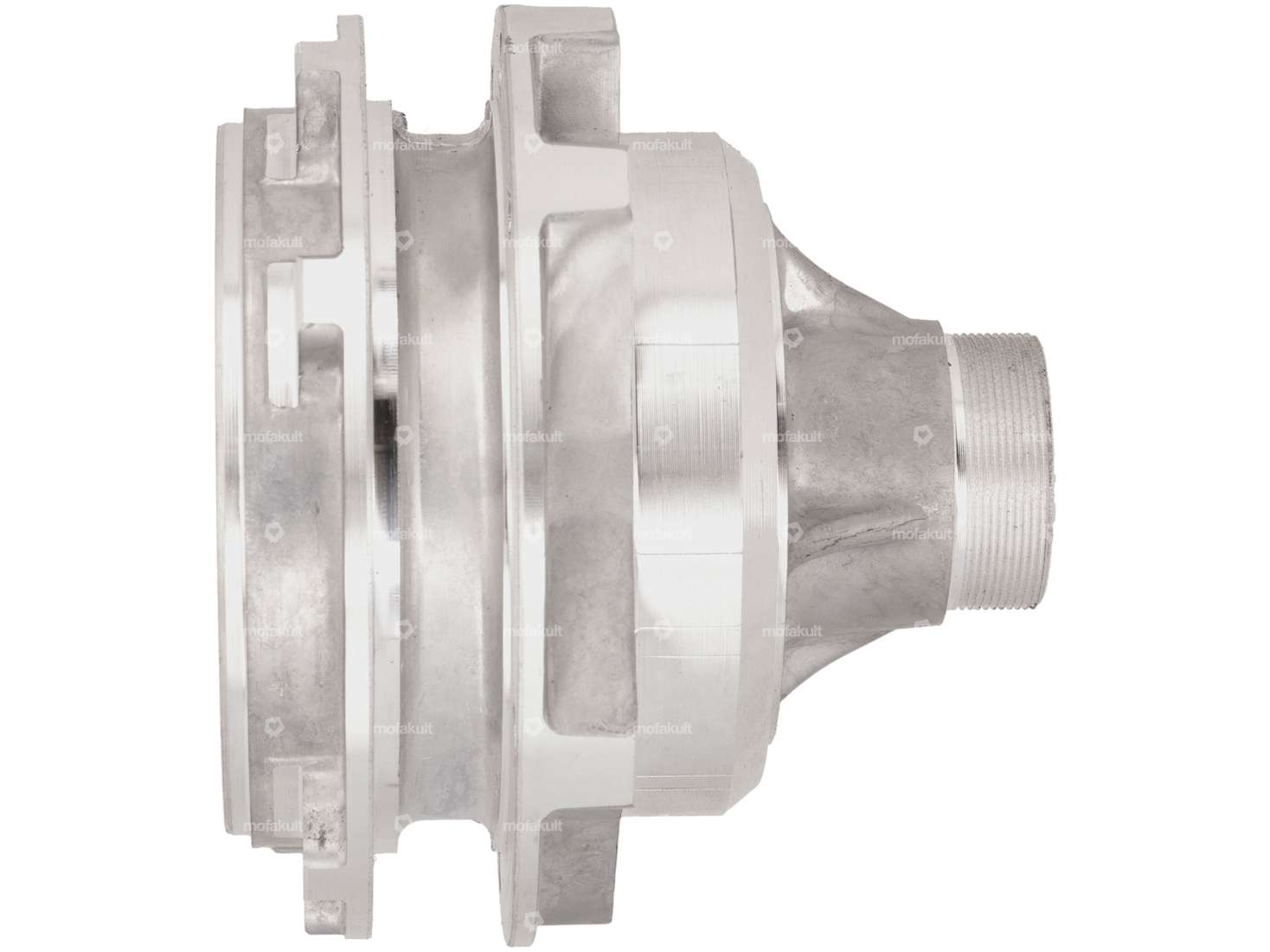

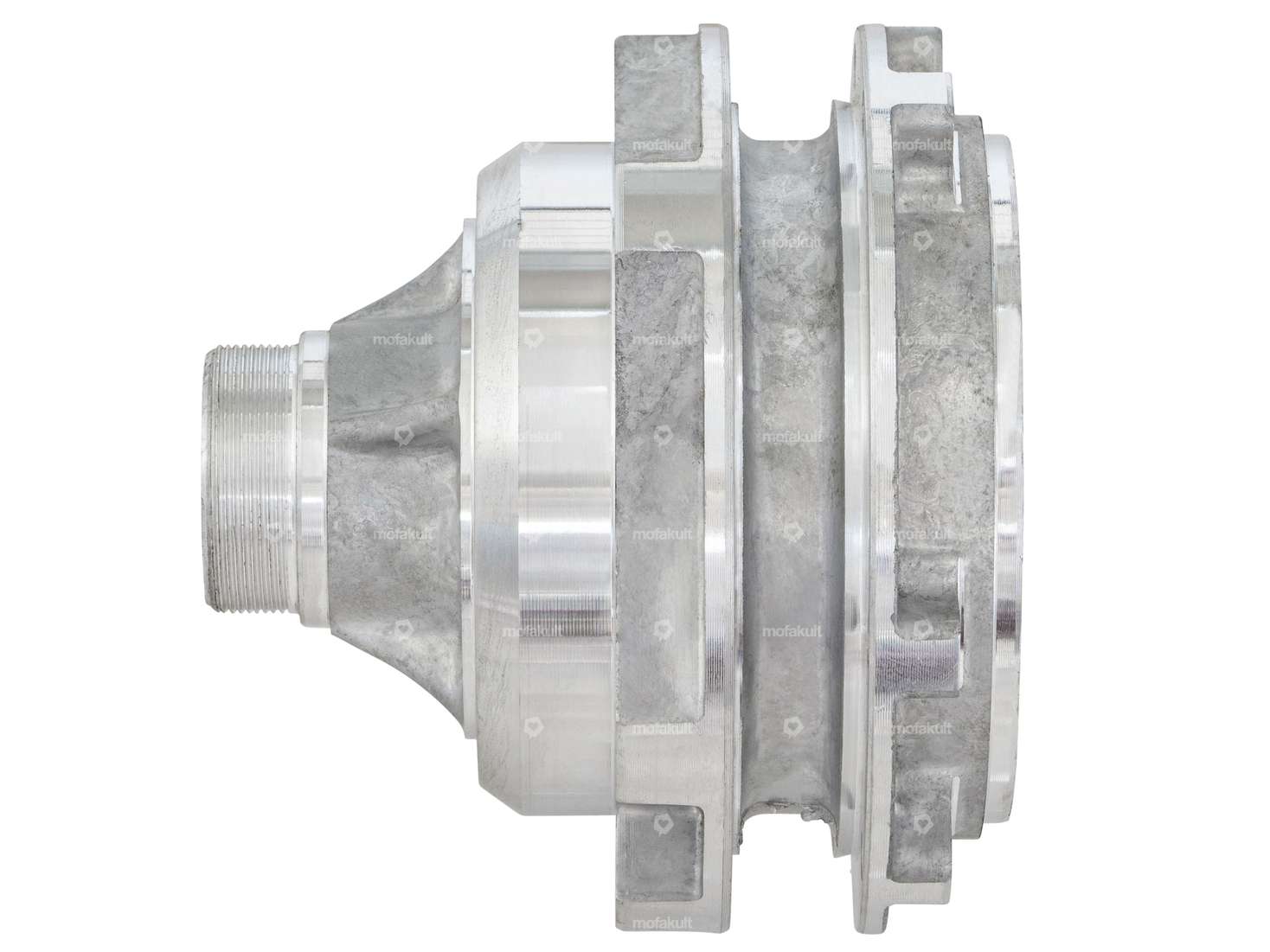

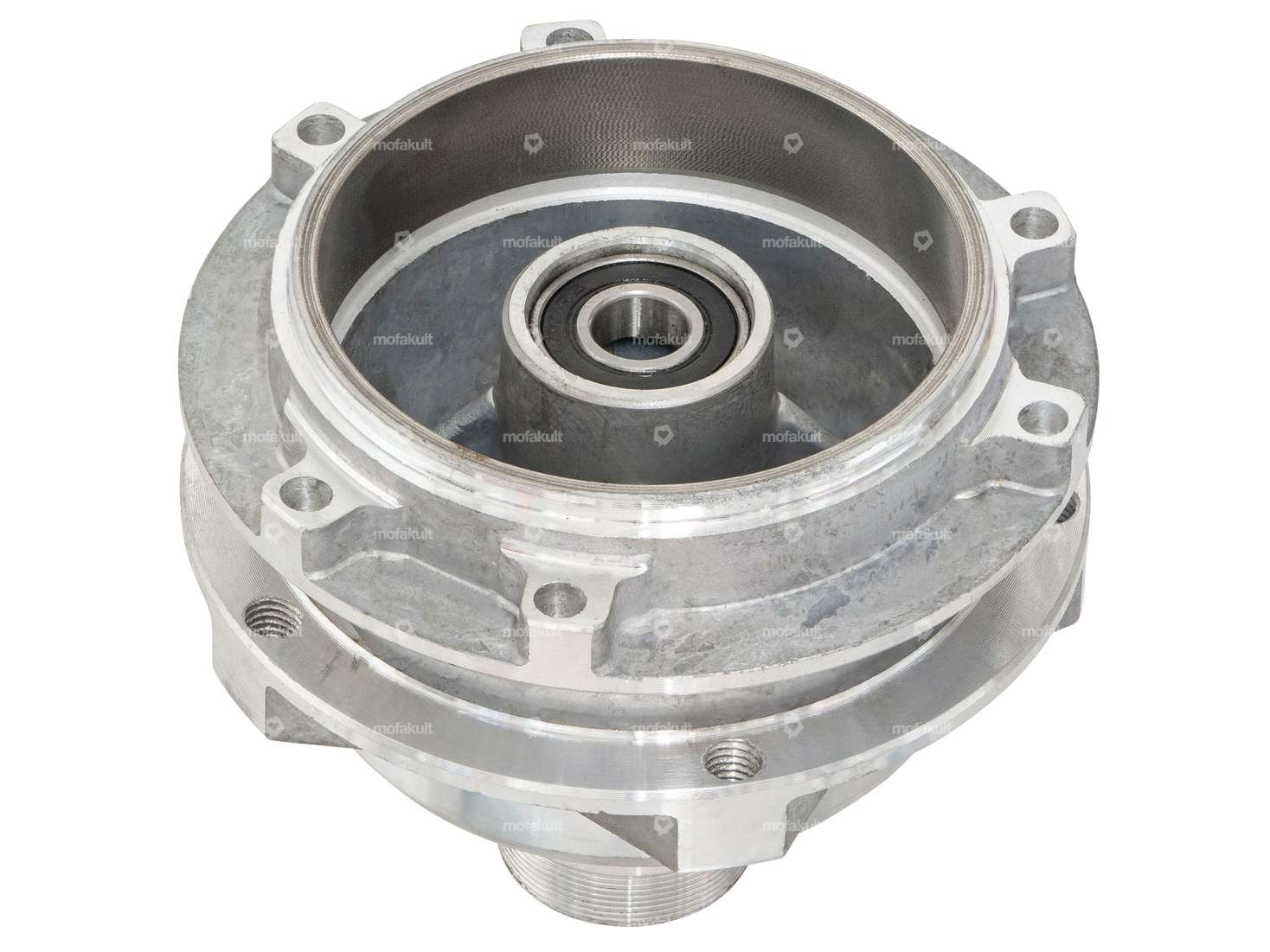

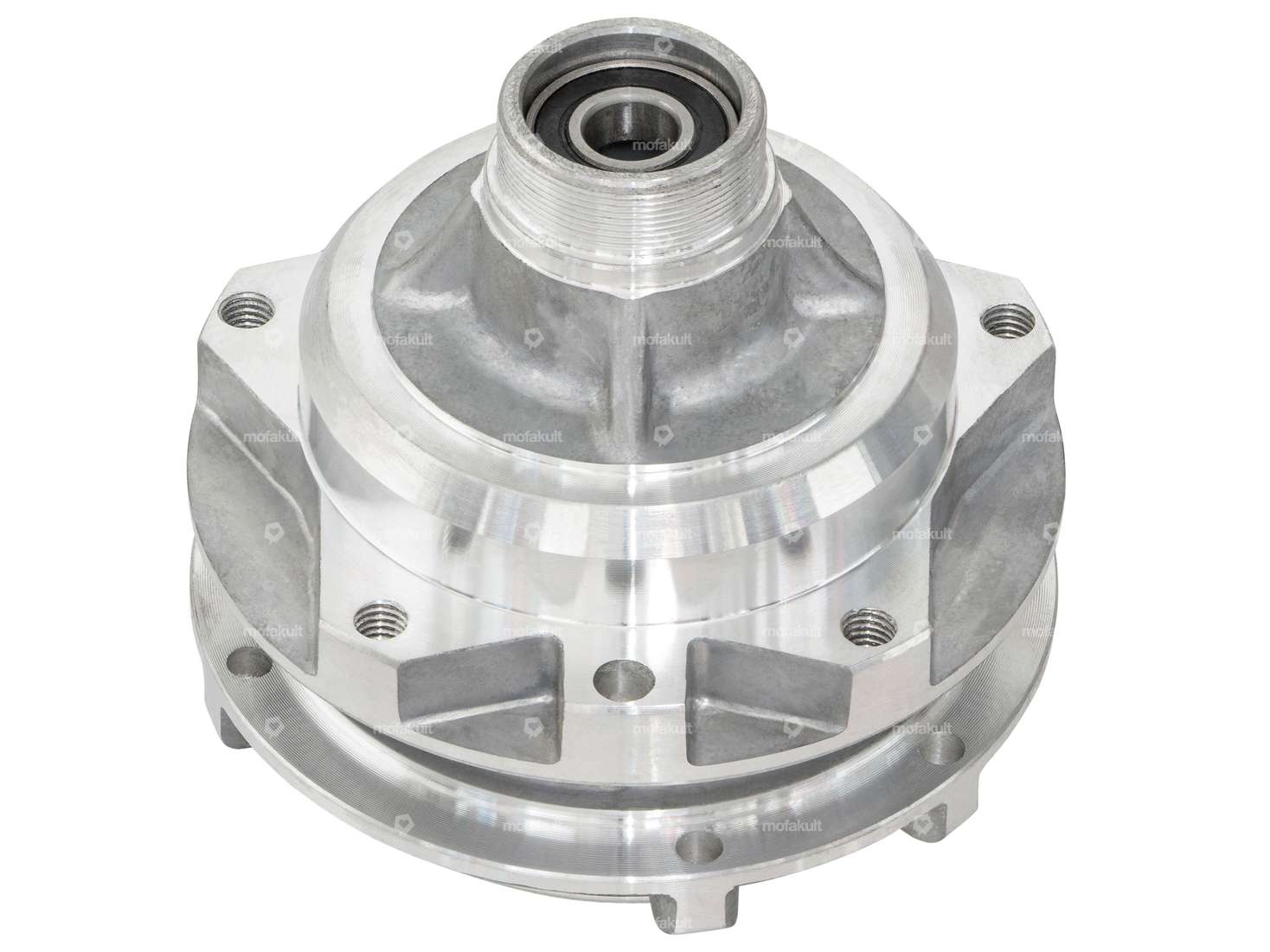

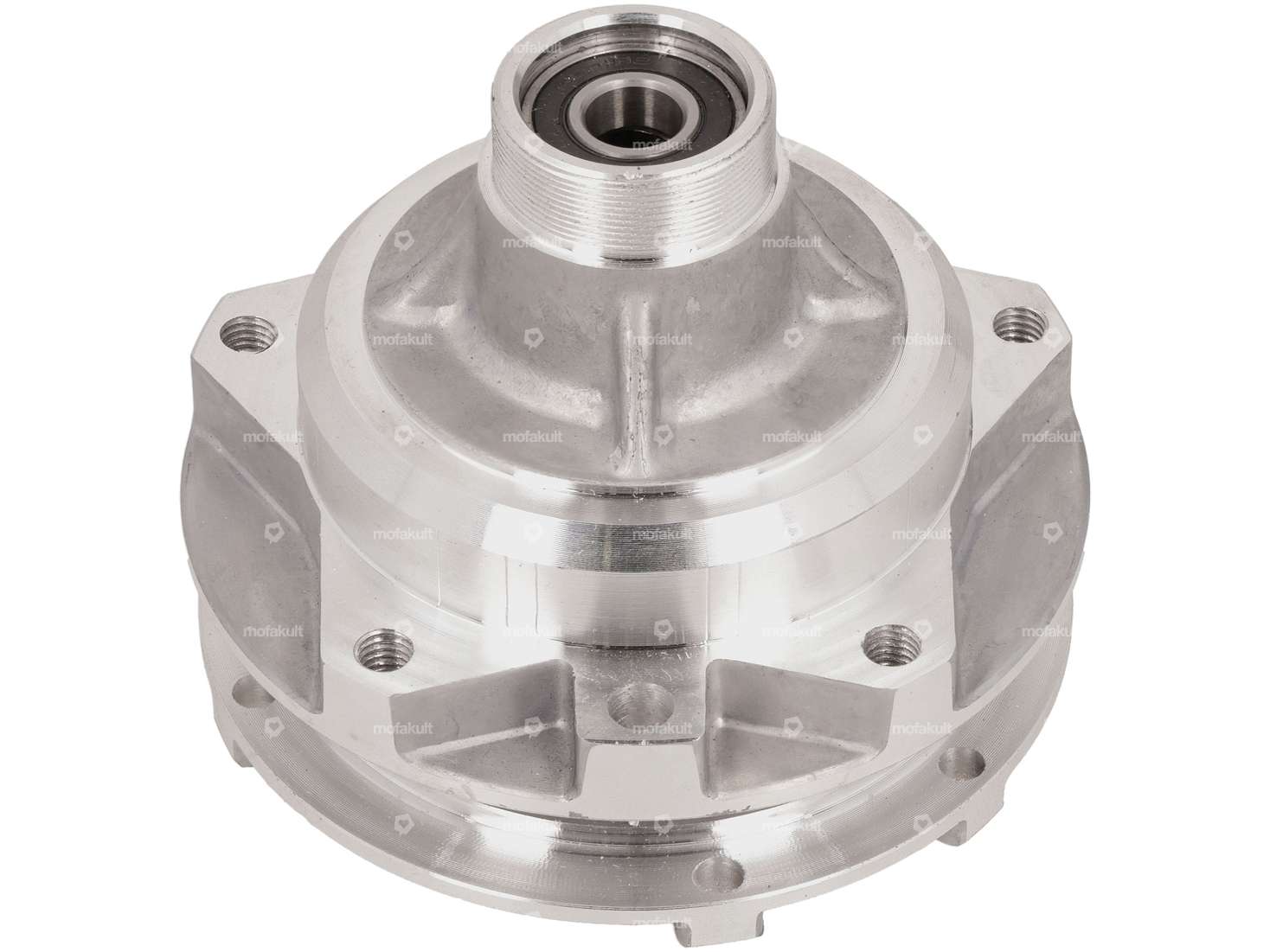

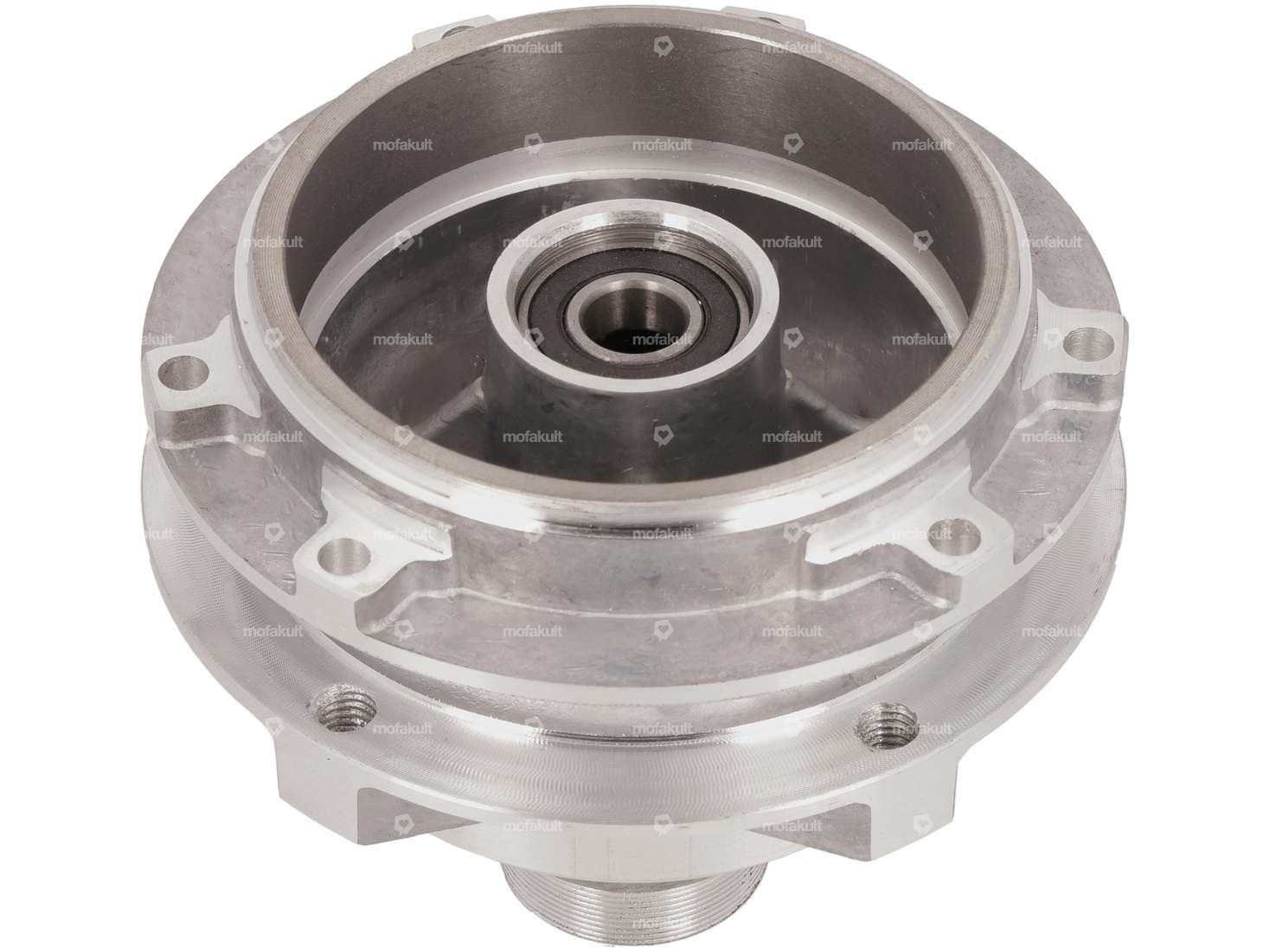

Rear wheel hub compatible with the cast wheel originally installed on Puch Maxi S / N, Puch Supermaxi LG1 / LG2, and Puch X30 NG-2AH mopeds.
Both wheel bearings are already pressed in, and the appropriate spacer sleeve is installed between the two bearings.
So-so! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather so-so, and we do not recommend it. If you still decide to purchase this item, we understand your choice, but we cannot offer any warranty or exchange.
The brake drum is poorly finished and uneven. To ensure proper function, the brake drum should be turned down accordingly. Be sure to observe your vehicle’s wear limit as specified in the original Puch workshop documentation.
You can find high-quality alternatives in the accessories section.
You can find alternative hubs and the corresponding axle in the accessories section.
| Ø inside | 27.9 mm |
| Ø outside | 114.7 mm |
| Ø axle | 12 mm |
| Material | Aluminum |
| Area of application | Tuning |
| Color | silver |
| Total length | 105 mm |
| Ø drum | 80 mm |
| Thread length | 12 mm |
| Number of fixing points | 12 pcs |
| Thread type | FG34.8 (1.37" 24G) |
| Ø mounting hole | 6.1 mm |
| Ø bolt circle | 105 mm |
| Puch |
