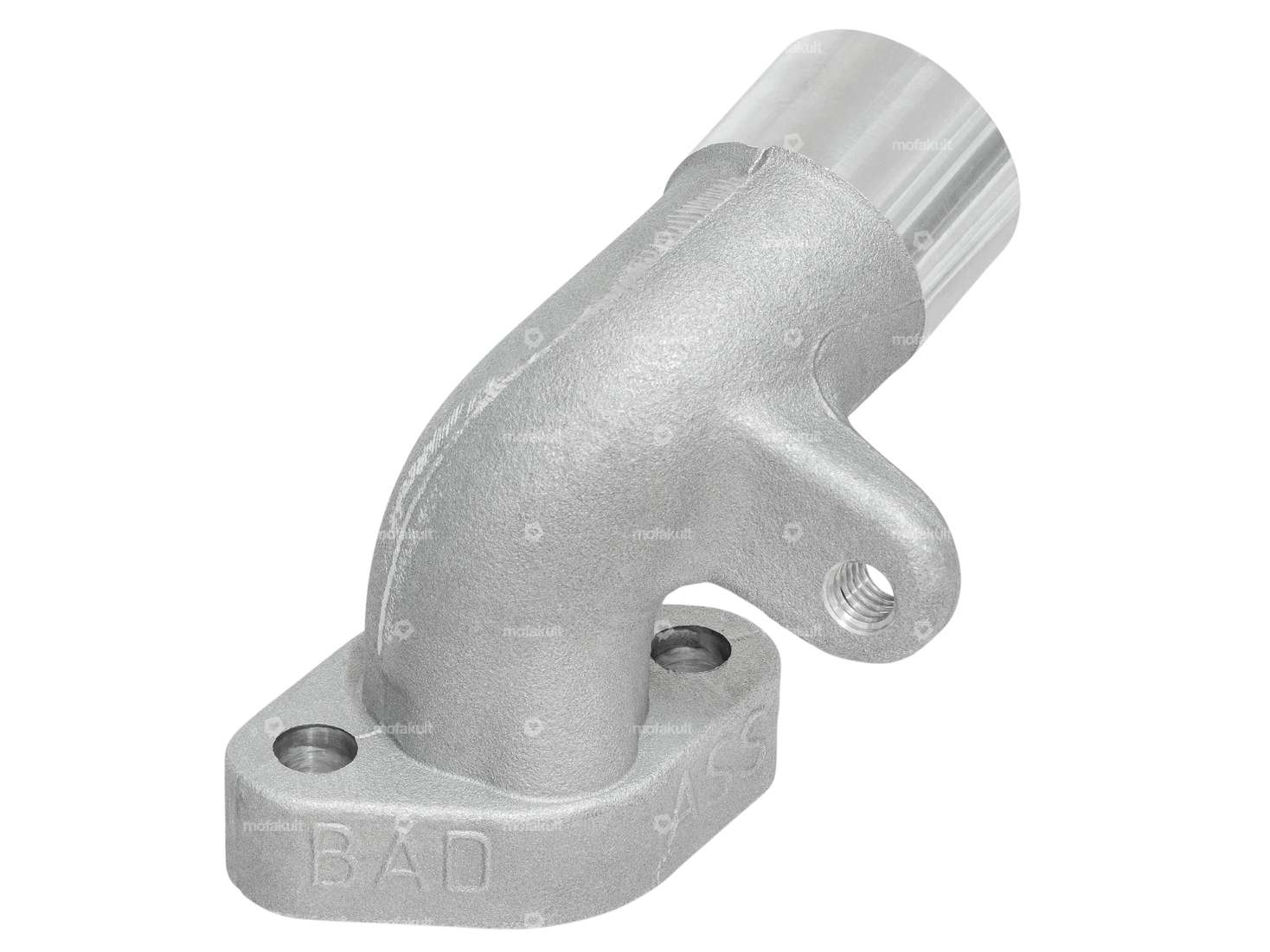

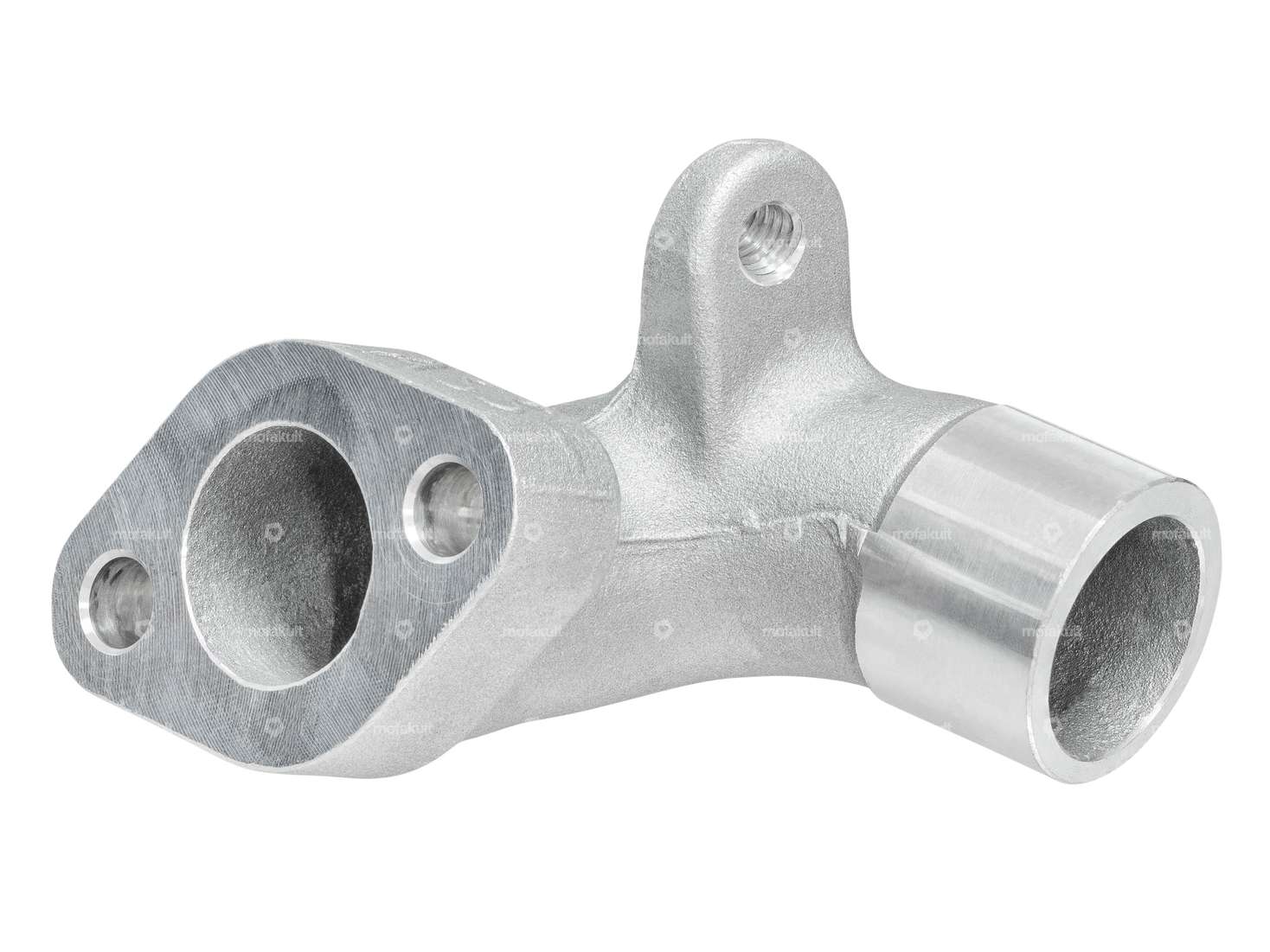

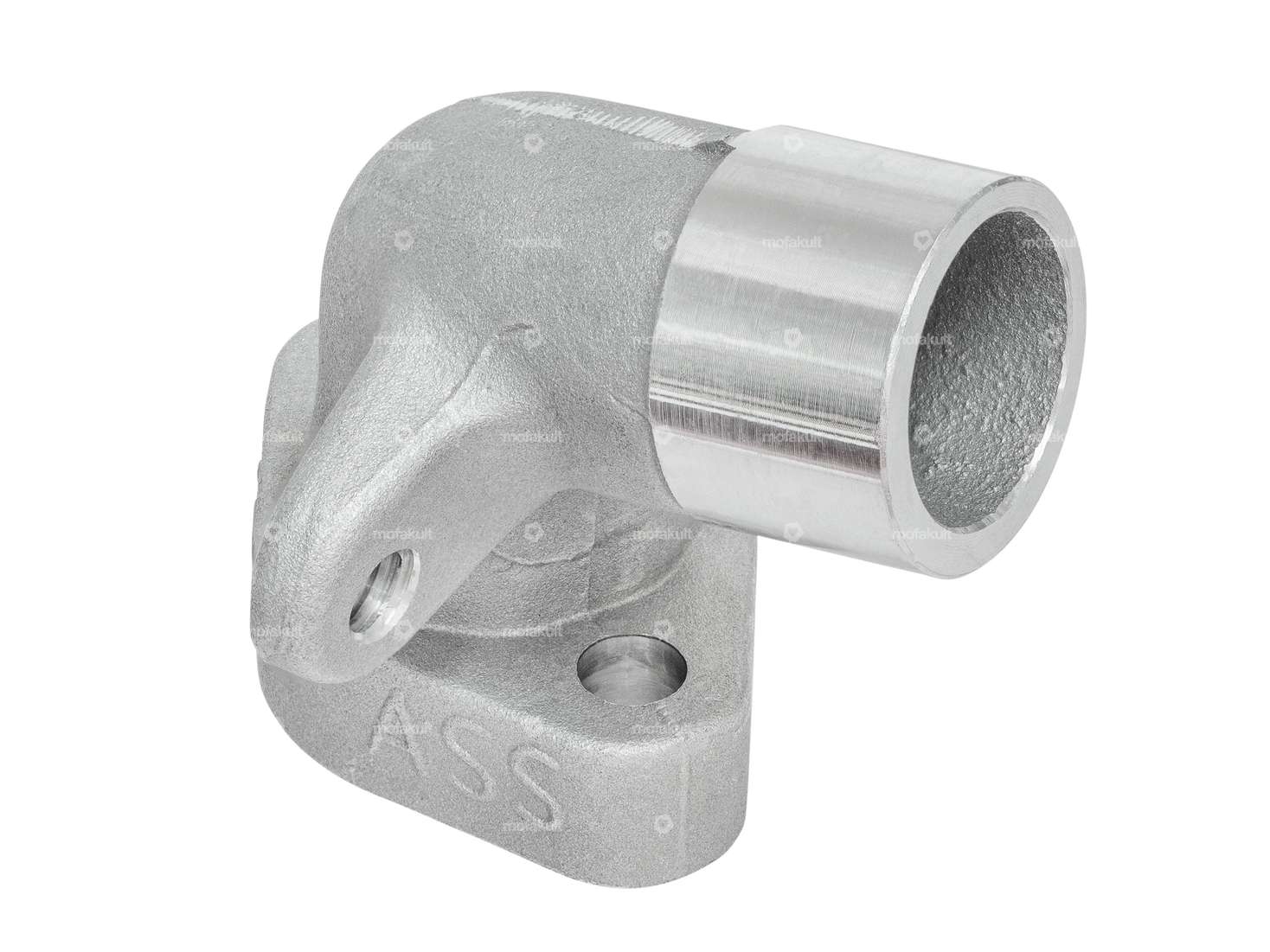

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the brand BADASS.
| Manufacturer | BAD ASS |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Aluminum |
| Total height | 56.5 mm |
| Thread type | M6x1 (standard thread) |
| Ø inside | 17 mm |
| Ø External connection | 23 mm |
| Hole spacing inlet | 32 mm |
| Mounting type | Screws |
| Height flange center hole | 45 mm |
| Total length | 54 mm |
| Number of fixing points | 3 pcs |
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Magura set screw M6x34 mm lock nut SW8
Surface: galvanized (blue) · Surface: nickel-plated · Slotted: No · Width across flats Screw: 8 mm · Manufacturer: Magura · Width across flats nut: 8 mm · Material: Brass · Material: Steel · Ø cable holder: 3.05 mm · Ø Receptacle: 7.05 mm · Thread type: M6x1 (standard thread) · Total length: 34 mm · Thread length: 24 mm
EUR 3.05
GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
Manufacturer: GPO · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Nominal diameter: 17.5 mm · Carburetor type: PHBG AS · Width: 63 mm · Height: 130 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 80 · Ø Internal connection: 24 mm · Total length: 71.5 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: No · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 55 · Mounting type: Bride · Mounting type: Plug connection clamped · Nozzle block: 262AU · Camouflaged: No · Size of secondary nozzle: 50 · Area of application: Tuning
EUR 97.90
17 mm Bing SRF carburetor (replica)
Nominal diameter: 17 mm · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRF · Area of application: Tuning · Width: 64 mm · Choke control: Hand choke · Height: 117 mm · Total length: 78 mm · Nozzle thread: M4x0.7 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Ø Internal connection: 23 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m
EUR 79.60
swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)
Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Nut type: Hexagon nut · Height: 6 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 8 mm
EUR 3.55
Bing "19 mm" SRF carburetor
Nominal diameter: 17 mm · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Area of application: Tuning · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 23 mm · Ø Output inside: 19 mm · Ø Air filter connection: 60.2 mm
EUR 104.10
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Total height: 80 mm · Area of application: Tuning · Mounting type: Screws · Hole spacing inlet: 32 mm · Thread type: M6x1 (standard thread) · Ø inside: 15 mm · Height flange center hole: 70 mm · Ø External connection: 20 mm · Total length: 70 mm · Number of fixing points: 2 pcs · Pony OEM number: A2176
EUR 73.40

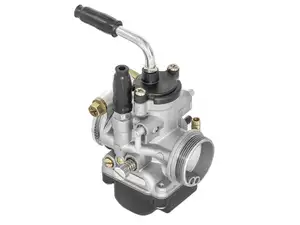

GPO 17.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
