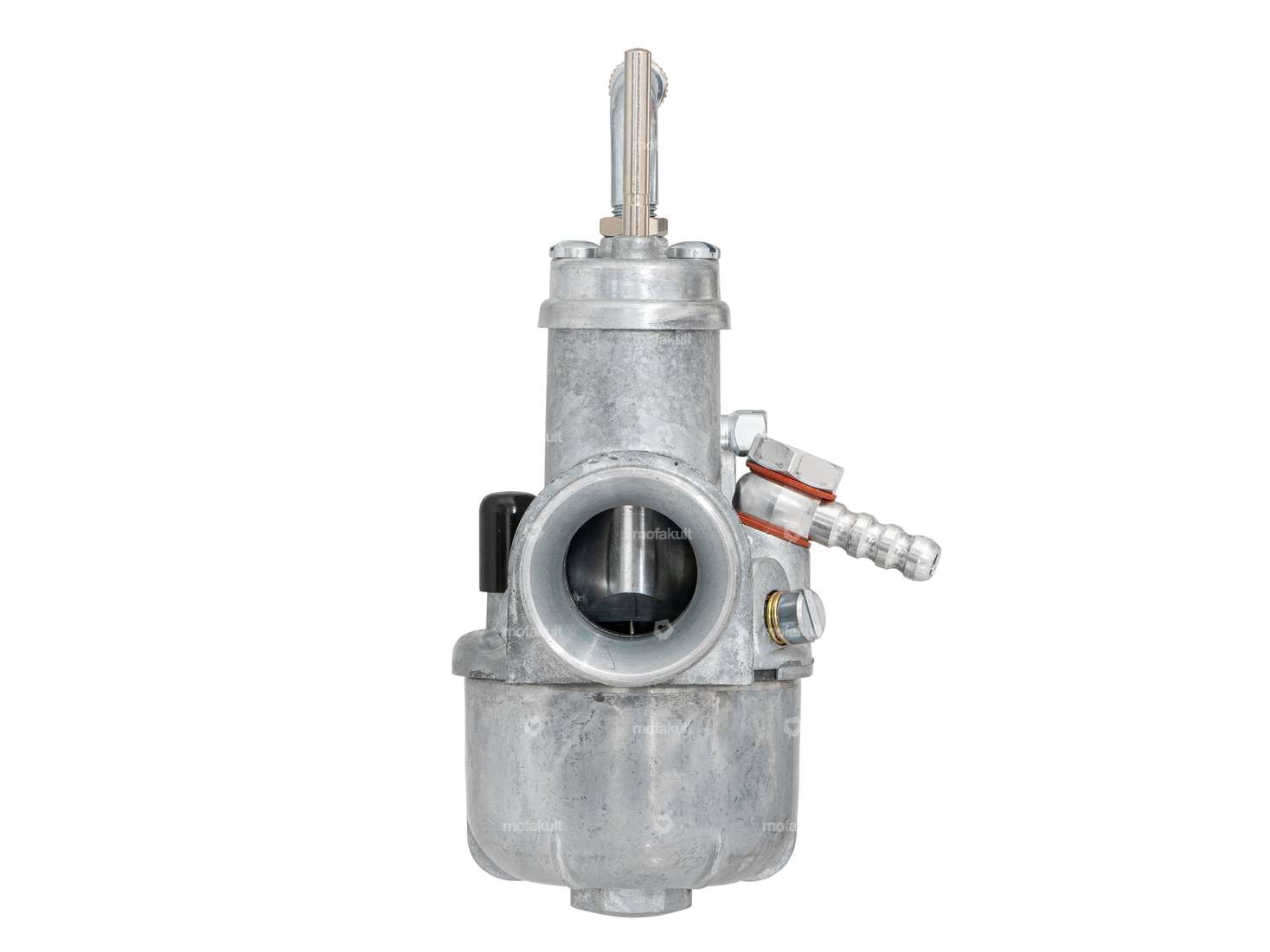

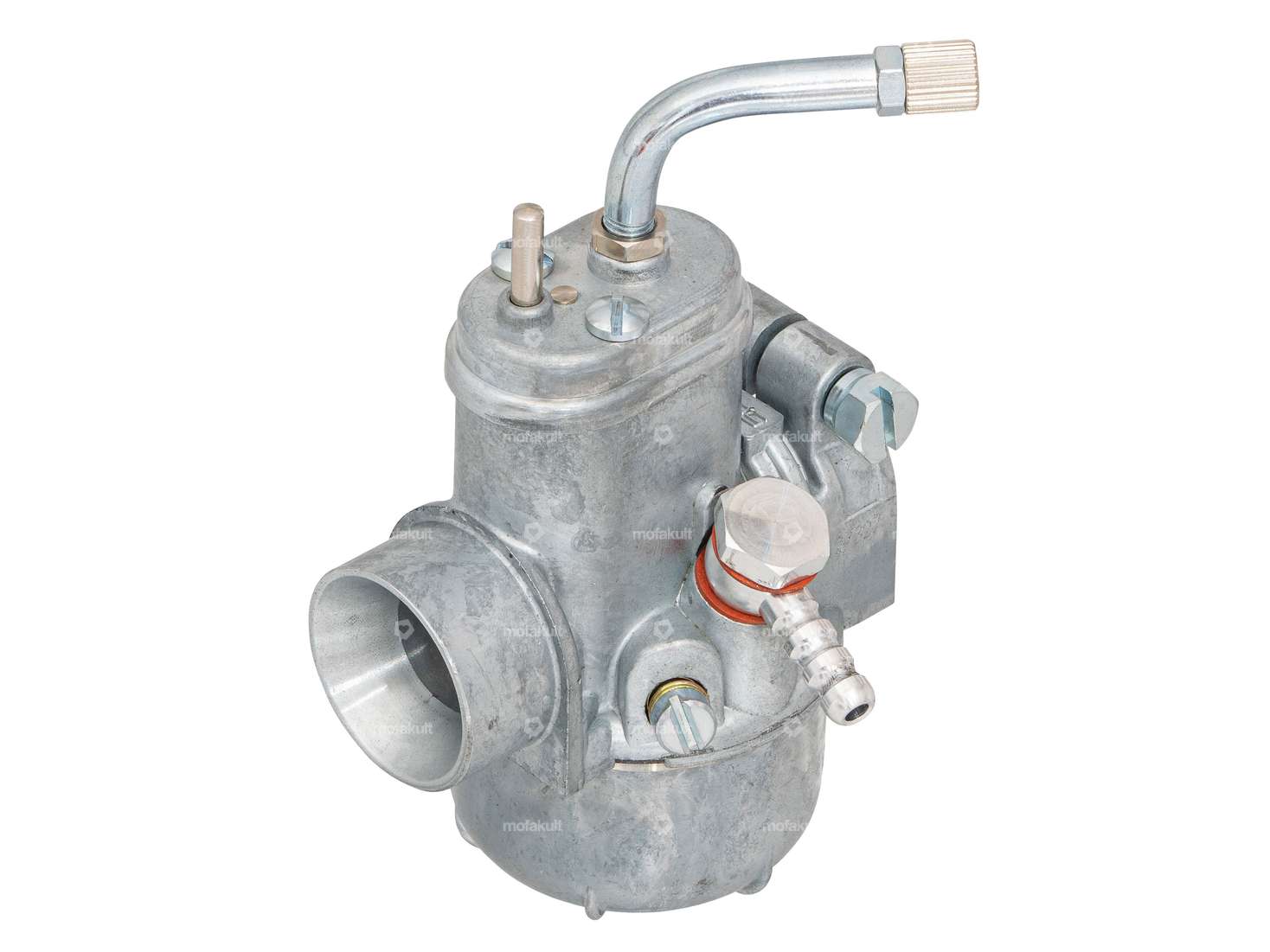

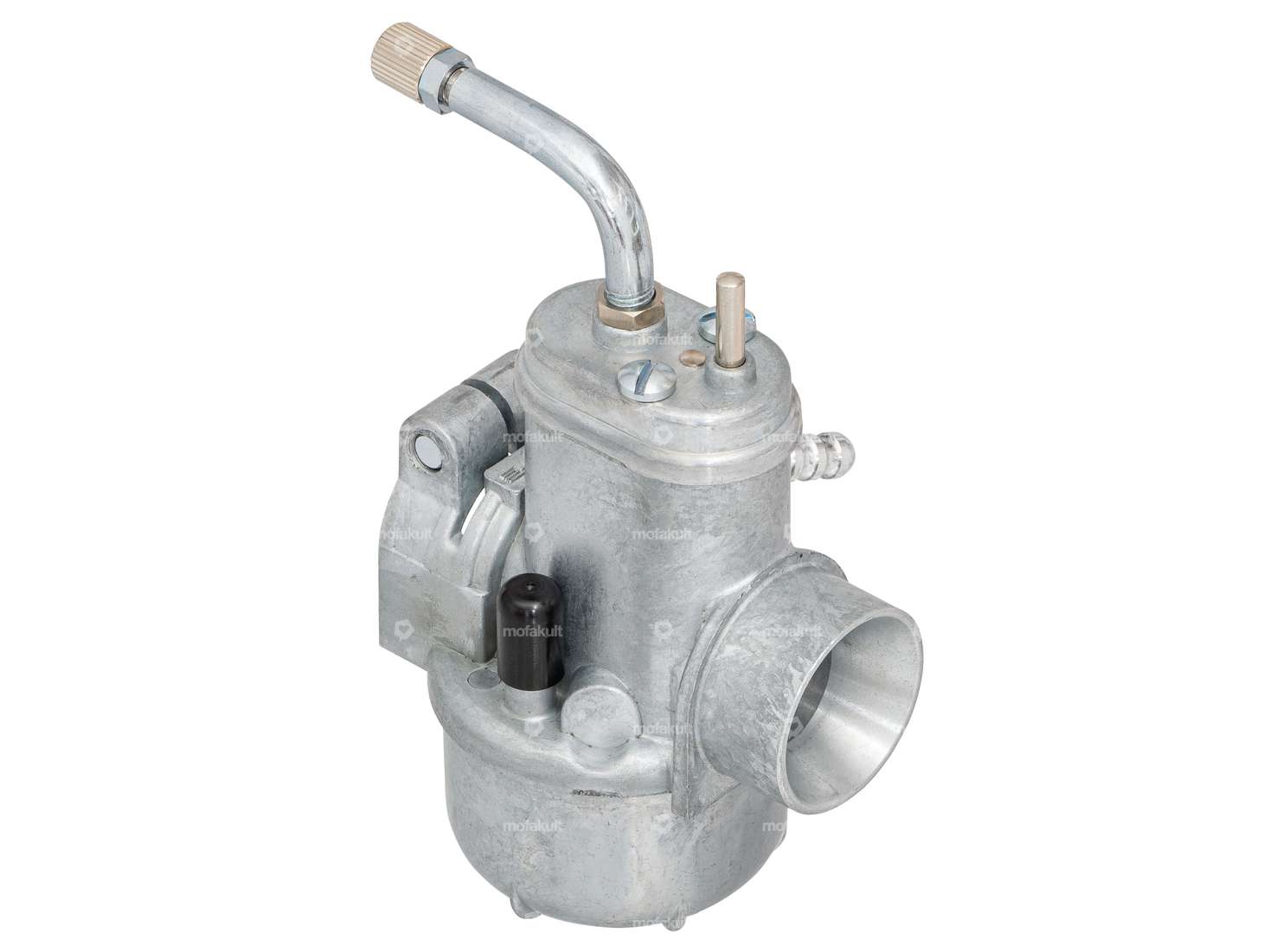

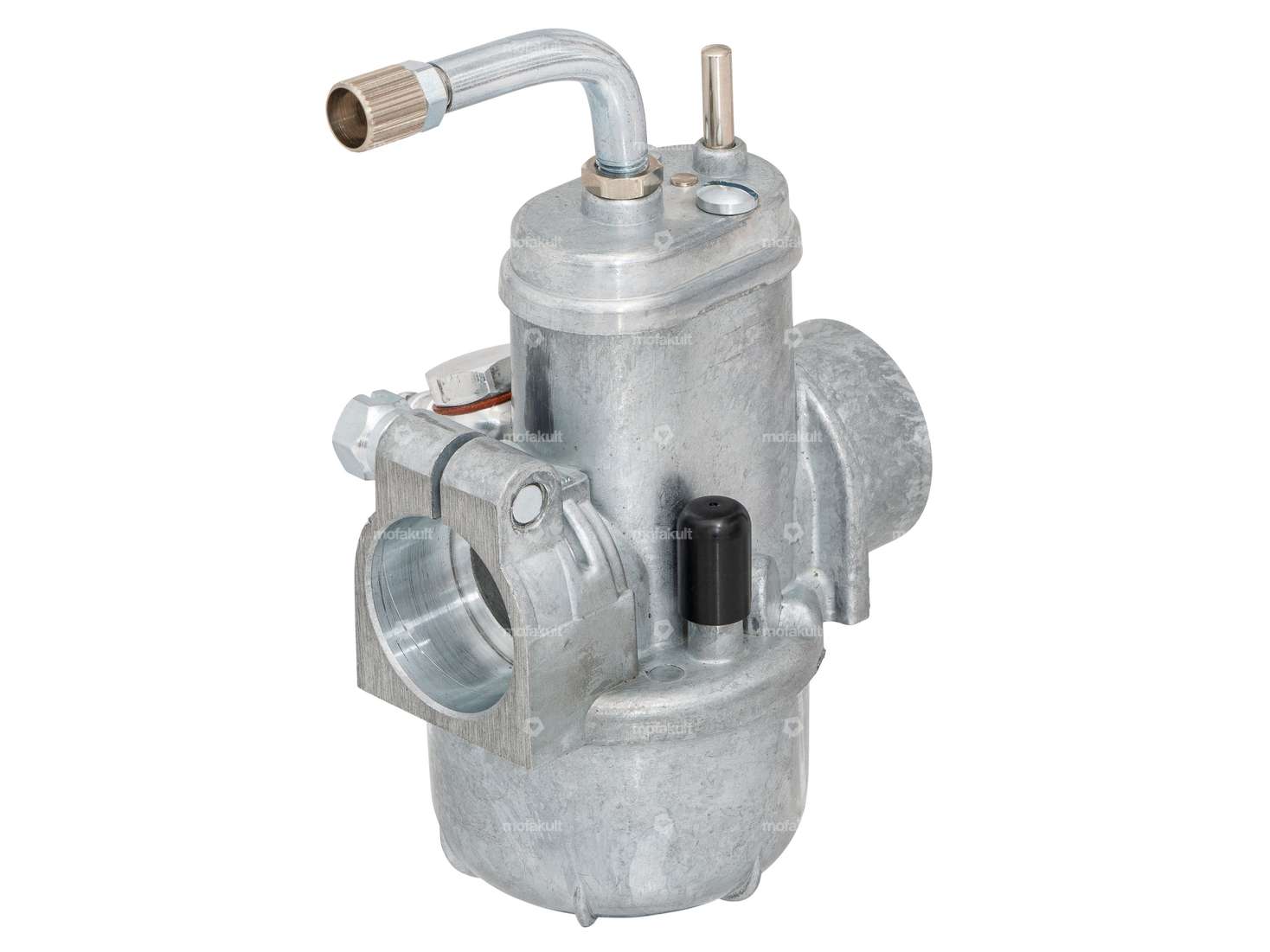

17 mm racing carburetor for Sachs 503 AAL, 2AL/2BL, ABL, AB, AC, ADV engines, as well as other mopeds / mopeds which are originally fitted with a Bing 17 & 18 carburetor and have the idle throttle screw on the right-hand side of the carburetor (in the direction of travel). The tuning carburetor is also used if you use a mushroom air filter on your 503 engine. On all ADV models, the connection dimensions also match the intake manifold and the air filter.
| Nominal diameter | 17 mm |
| Manufacturer | swiing® ingenious parts |
| Camouflaged | Yes |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning |
| Carburetor type | SRE |
| Mounting type | Plug connection clamped |
| Choke control | Hand choke |
| Total length | 64.8 mm |
| Ø fuel hose connection | 5 mm |
| Nozzle thread | M3.5x0.6 (standard thread) |
| Nozzle size | 74 |
| Ø Inside entrance | 17 mm |
| Ø Output inside | 17.1 mm |
| Height | 110 mm, 89 mm |
| Ø Air filter connection | 27.5 mm |
| Ø Internal connection | 23 mm |
| Width | 47 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Nozzle block | 2.2 |
| Clamping screw torque (max.) | 3 N/m |
| Universal |
| Sachs |
