For: Sachs

37078

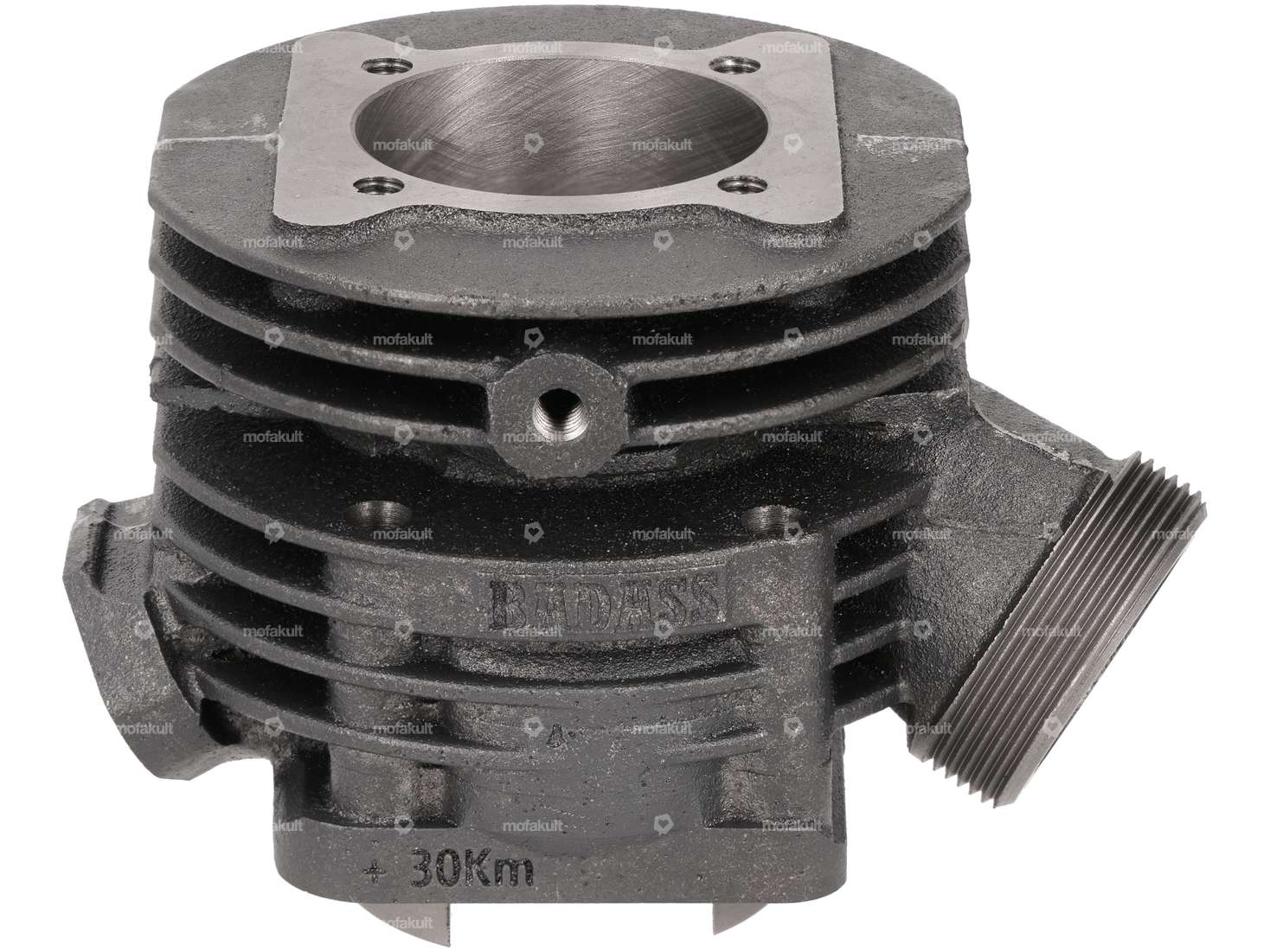

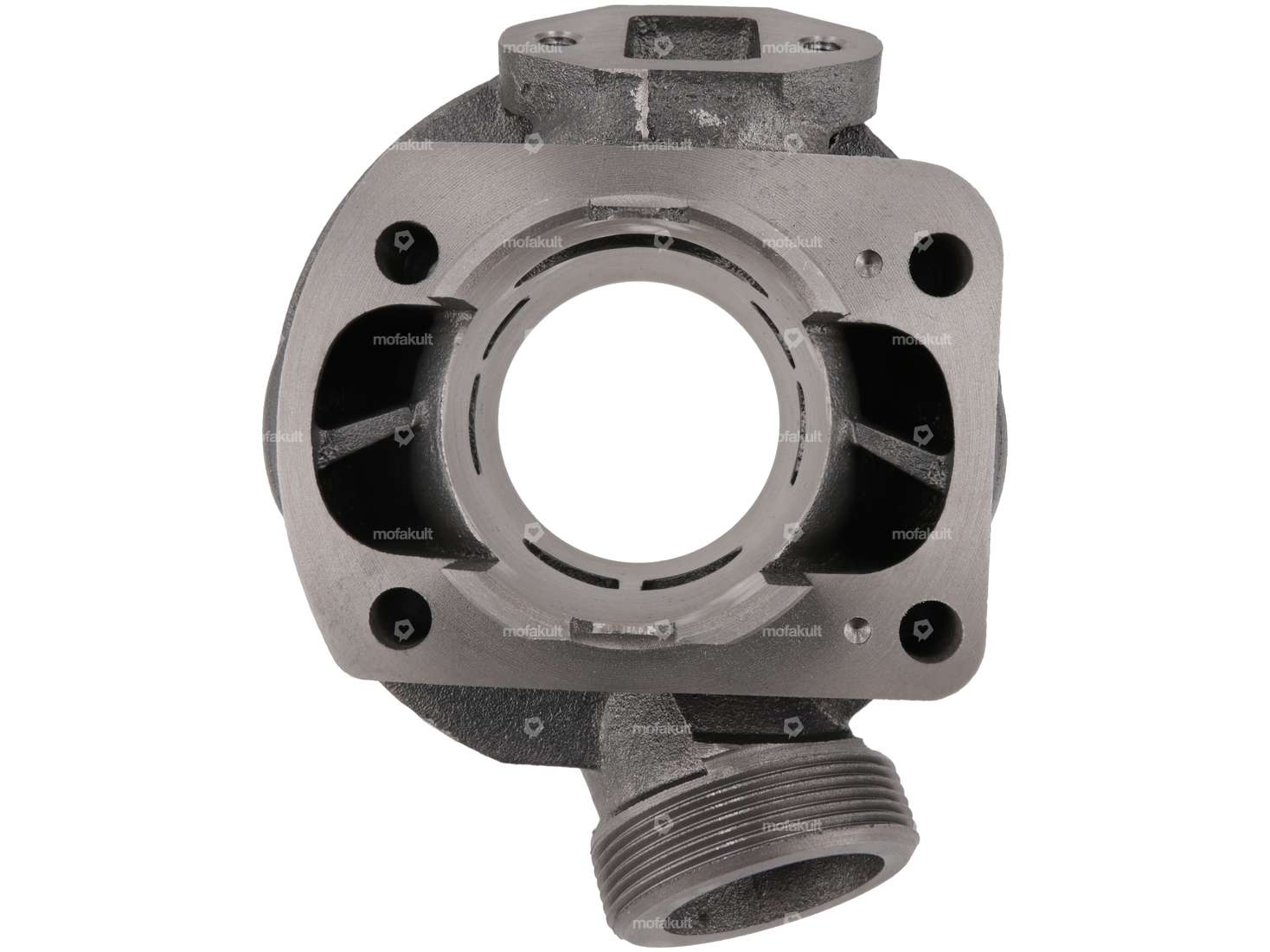

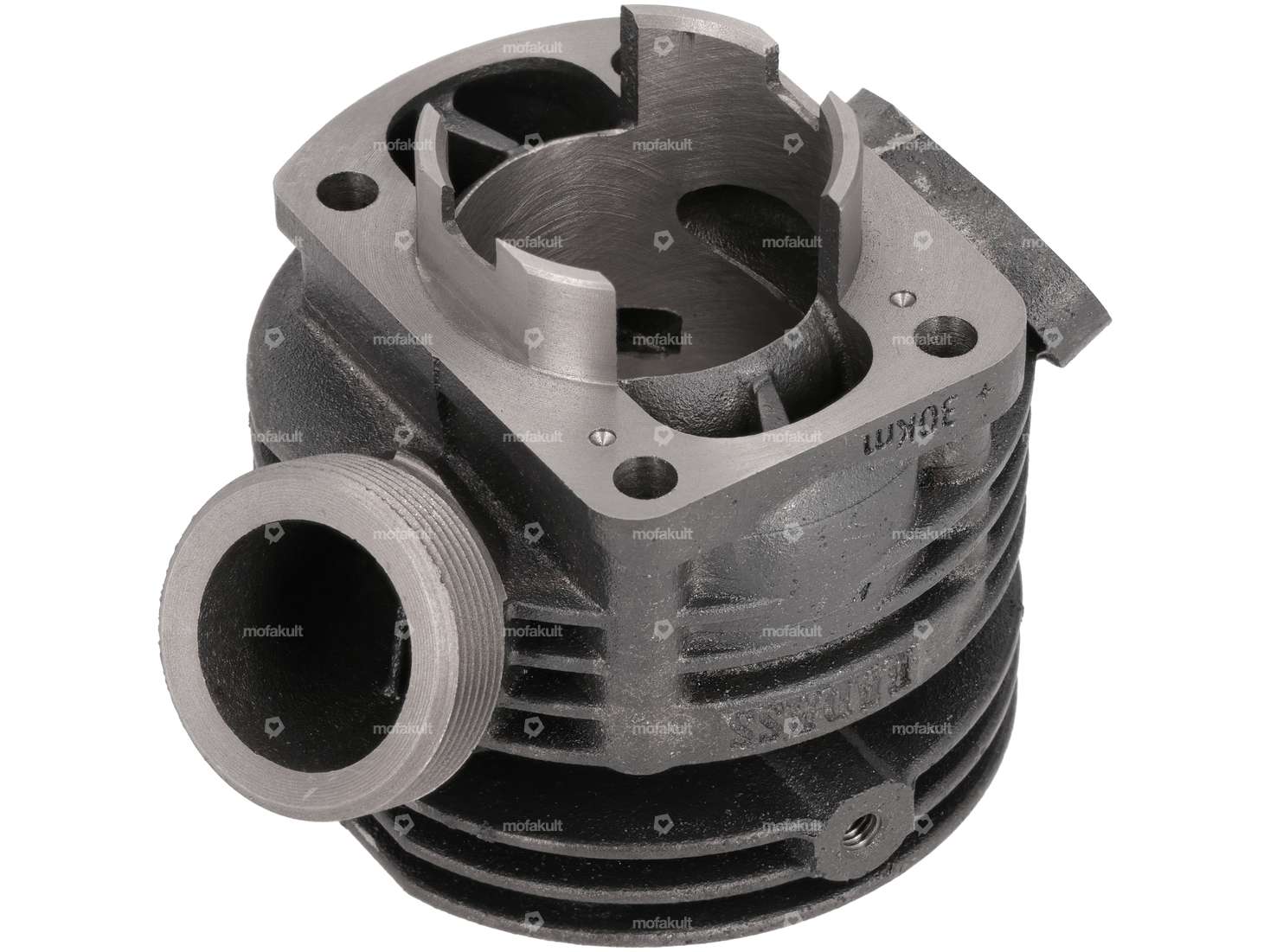

BAD ASS Diablo cylinder Ø 43 mm | Sachs 502, 50/2, 50/3, 50/4

EUR 294.10

Incl. 25.5% VAT.

Product description

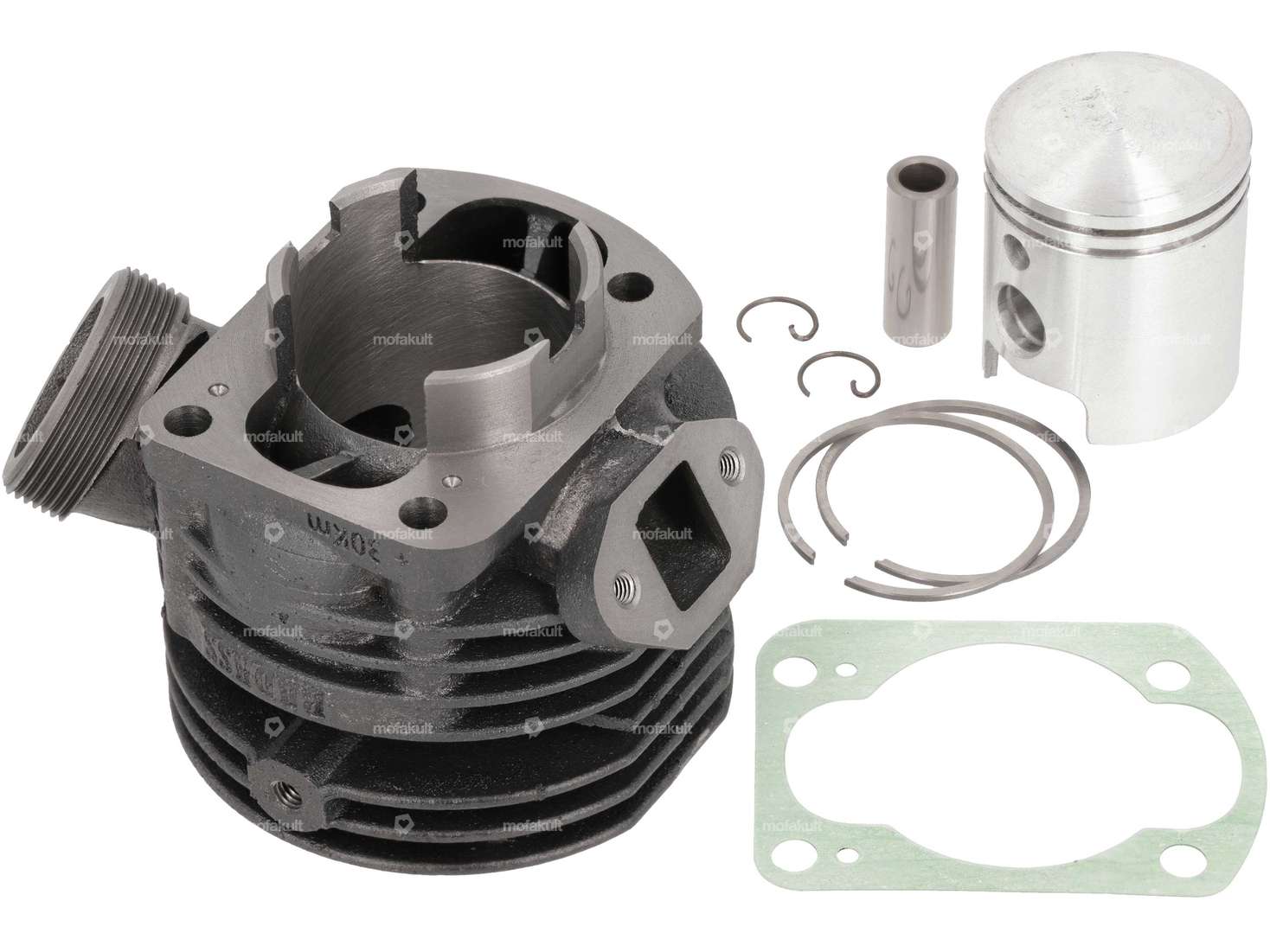

Blade-cooled 43 mm (61 cc) cylinder kit with 12 mm piston pin, suitable for your Sachs 50, 502, 50/2, 50/3, 50/4 moped / moped.

The timing of the cylinder was kept rather low, which is characterized by a very nice torque in the lower speed range.
The racing cylinder kit without sealing includes cylinder & piston kit without gaskets.

  • Grey cast iron tuning cylinder with & 43.0 mm bore
  • Slot-controlled
  • 17x15 mm intake, 31 mm stud spacing
  • Optimized overflow channels
  • 2-piece outlet
  • Improved control times
  • No spindling of the engine housing necessary (Ø cylinder neck 46.0 mm)
  • Exhaust thread: M40 x 1.5 mm
  • Hole pattern for stud bolts: 60 x 40 mm for CH engines
  • Pre-drilled hole pattern for stud bolts: 51 x 40 mm for DE engines
  • Cylinder head hole pattern: 37 x 37 mm
  • Incl. Ø 43 mm piston from the Italian manufacturer -GOL-

Note: 60 mm long M6 stud bolts must be used to install the cylinder.
Full installation instructions are included.

Corresponding accessories such as gaskets, cylinder head, exhaust system etc. can be found in the accessories section.

Made by the BADASS brand.

Nominal diameter43 mm
ManufacturerBAD ASS
MaterialGray cast iron
Area of applicationTuning
Displacement61 ccm
Crankshaft stroke42 mm
Ø cylinder neck46 mm
Ø Outlet outside40 mm
Ø outlet inside28 mm
Inlet window17 x 15 mm
Thread inletM5x0.8 (standard thread)
Hole spacing inlet31 mm
Ø piston pin (B)12 mm
Outlet typeUnion nut
Thread outletMF40x1.5 (fine pitch thread)
Number of fixing points4 pcs
Hole pattern [mm]60 x 40 / 51 x 40 / 37 x 37
CamouflagedNo
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL, AML

50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS), LKH (4.5 PS)

Accessories & related products

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines
undefined

For: Sachs

12001

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Place of use: Cylinder base · Material: Oiled paper · Thickness: 0.5 mm · Hole pattern [mm]: 40.5 x 51

EUR 4.30

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
undefined

For: Sachs

16088

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Diameter: 4.9 mm · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Total length: 23 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

EUR 2.20

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
undefined

For: Sachs

18008

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 22 mm · Screw head: Hexagon · Total length: 34 mm · Shank: Yes · Width across flats SW: 10 mm · Number of components: 12 pcs · Ø shaft: 5.85 mm · Shank length: 8 mm · Strength class: 10.9 · Color: silver

EUR 6.00

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4
undefined

For: Sachs

21002

swiing® ingenious reinforcement set clutch (+40%) | Sachs 503, 50/2 (502), 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Spring steel · Area of application: Tuning · Surface: coated · Number of springs: 9 pcs · Ø outside: 8.75 mm · Ø inside: 5.6 mm · Thickness: 1.4 mm

EUR 42.80

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

For: Sachs

21571

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

Place of use: Admission · Hole spacing inlet: 30 mm · Thickness: 2.6 mm

EUR 7.25

swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4
undefined

For: Sachs

27906

swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4

Place of use: Cylinder head · Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Standard · Ø cylinder: 41 mm · Ø inside: 41.7 mm · Thickness: 0.3 mm · Hole pattern [mm]: 37 x 37

EUR 6.00

swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4
undefined

For: Sachs

28607

swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Standard · Width: 95 mm · Height: 50 mm · Total length: 127 mm · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 98 mm · Hole pattern [mm]: 37 x 37 · Candle thread: long · Number of fixing points: 4 pcs · Ø screw holder: 19 mm · Decompressor: M10x1.5

EUR 84.00

Cylinder head 41 mm Tuning | Sachs 50/3, 50/4 LKH

For: Sachs

29270

Cylinder head 41 mm Tuning | Sachs 50/3, 50/4 LKH

Material: Aluminum · Ø cylinder: 41 mm · Surface: sandblasted · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Ø outside: 128 mm · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

EUR 118.80

Not in stock

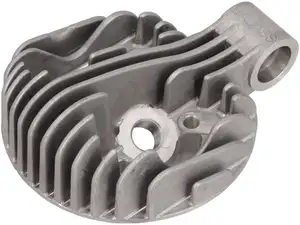

BAD ASS cylinder head L Ø 41-43 mm | Sachs 502, 50/2, 50/3, 50/4
