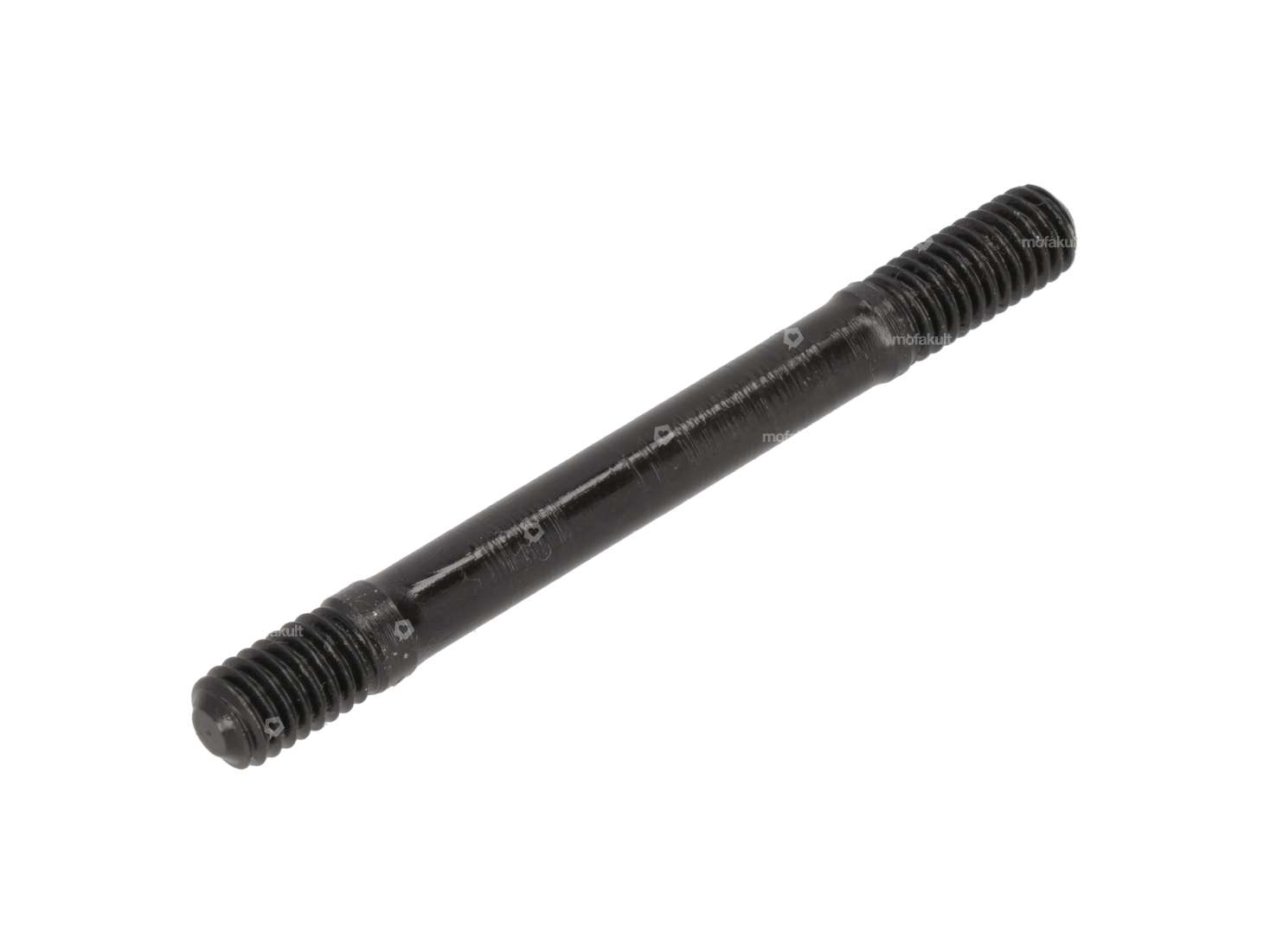

GPO stud bolt M6 x 62 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Area of application: Chemistry · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Flange nut M6 galvanized (8 strength)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Drive: External hexagon · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Height: 6 mm · Strength class: 8

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.4 mm · Thickness: 1.6 mm · Hardness [HV]: 140 HV · Nominal diameter (thread): 6 mm · Ø outside: 12 mm · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

Spring washer M6 (6.2x11.8x1.6) galvanized

Material: Spring steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.4 mm · Thickness: 1.8 mm · Nominal diameter (thread): 6 mm · Ø outside: 11.4 mm · Area of application: Standard

Nut M6 galvanized

Material: Steel · Thread type: M6x1 (standard thread) · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Height: 4.8 mm · Width across flats: 10 mm · Strength class: 8 · Area of application: Standard

Magura cable end sleeve 5 mm (1A quality)

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Ø inside: 5 mm · Ø outside: 5.5 mm · Total length: 12 mm · Ø Cable bushing: 2.5 mm · Color: silver · Area of application: Standard

GPO exhaust clamp 60 mm chrome

Nominal diameter: 60 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 18 mm · Clamping diameter: 57 - 60 mm · Thickness: 2.5 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.5 mm

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing type: Shoulder bearing · Stock number: E15 · Inner ring width: 8 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Width: 8 mm · Ø inside: 15 mm · Ø outside: 35 mm · Area of application: Standard · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

Squeeze ring 25/33/4 copper

Material: Copper · Material: Graphite / Graphite · Ø outside: 32.8 mm · Thickness: 4 mm · Ø inside: 25.6 mm

32 mm copper ring 30.6/37.8 flame tube | Sachs

Material: Copper · Ø inside: 30.6 mm · Ø outside: 37.8 mm

swiing® revival exhaust nut M40x1.5 galvanized (for 32 mm pipe) | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Union nut · Thread type: MF40x1.5 (fine pitch thread) · Ø inside: 33.5 mm · Ø outside: 46 mm · Height: 19 mm

BAD ASS Diablo cylinder Ø 45 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Aluminum · Material: Gray cast iron · Displacement: 67 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17.5 x 15.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 47 x 47 · Decompressor: No · Camouflaged: Yes · Area of application: Racing · Area of application: Tuning

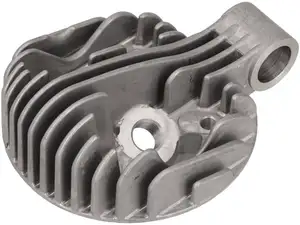

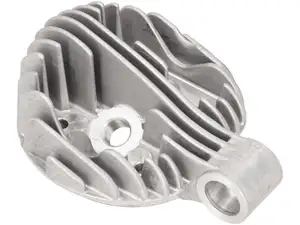

BAD ASS cylinder head XL Ø 45-47 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: BAD ASS · Material: Aluminum · Ø cylinder: 45 - 47 mm · Ø outside: 85.5 mm · Ø outside: 108 mm · Number of fixing points: 4 pcs · Ø screw holder: 19.3 mm · Hole pattern [mm]: 47 x 47 · Candle thread: short · Decompressor: M10x1.5 · Height: 61 mm · Area of application: Racing · Area of application: Tuning

BAD ASS Diablo cylinder kit Ø 45 mm incl. head | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Aluminum · Material: Gray cast iron · Displacement: 67 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 28 mm · Inlet window: 17.5 x 15.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 47 x 47 · Decompressor: No · Camouflaged: Yes · Area of application: Racing · Area of application: Tuning
