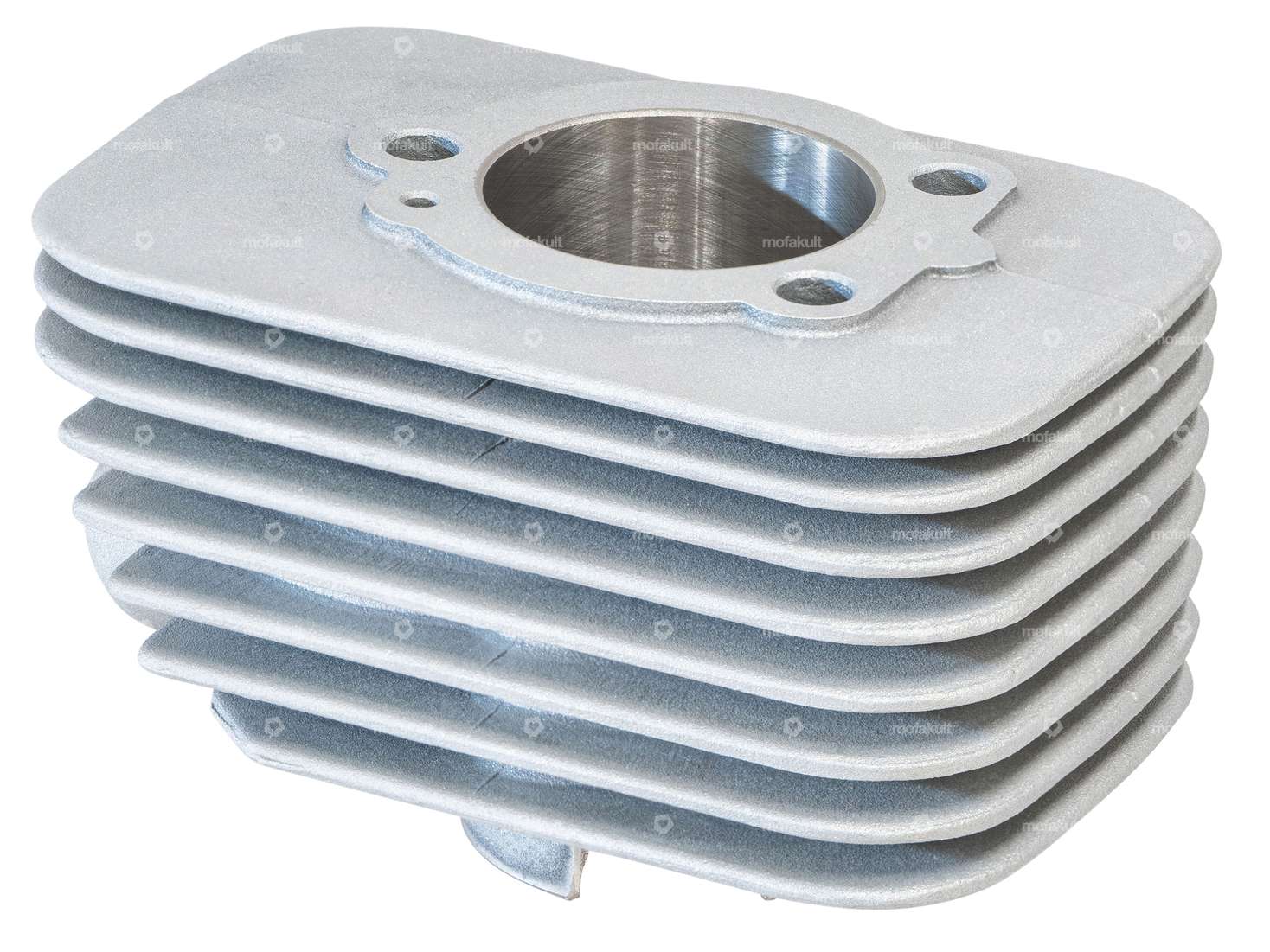

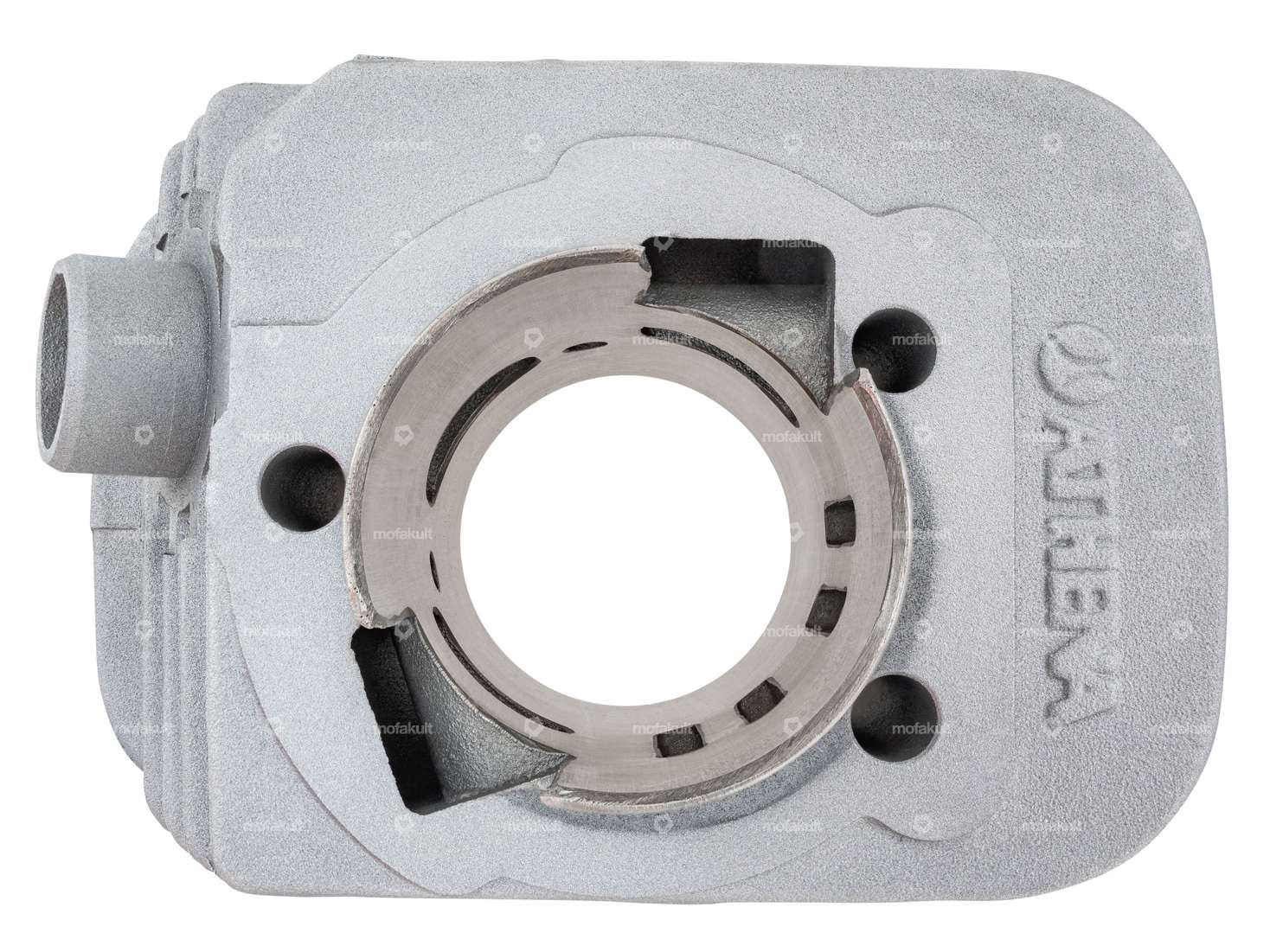

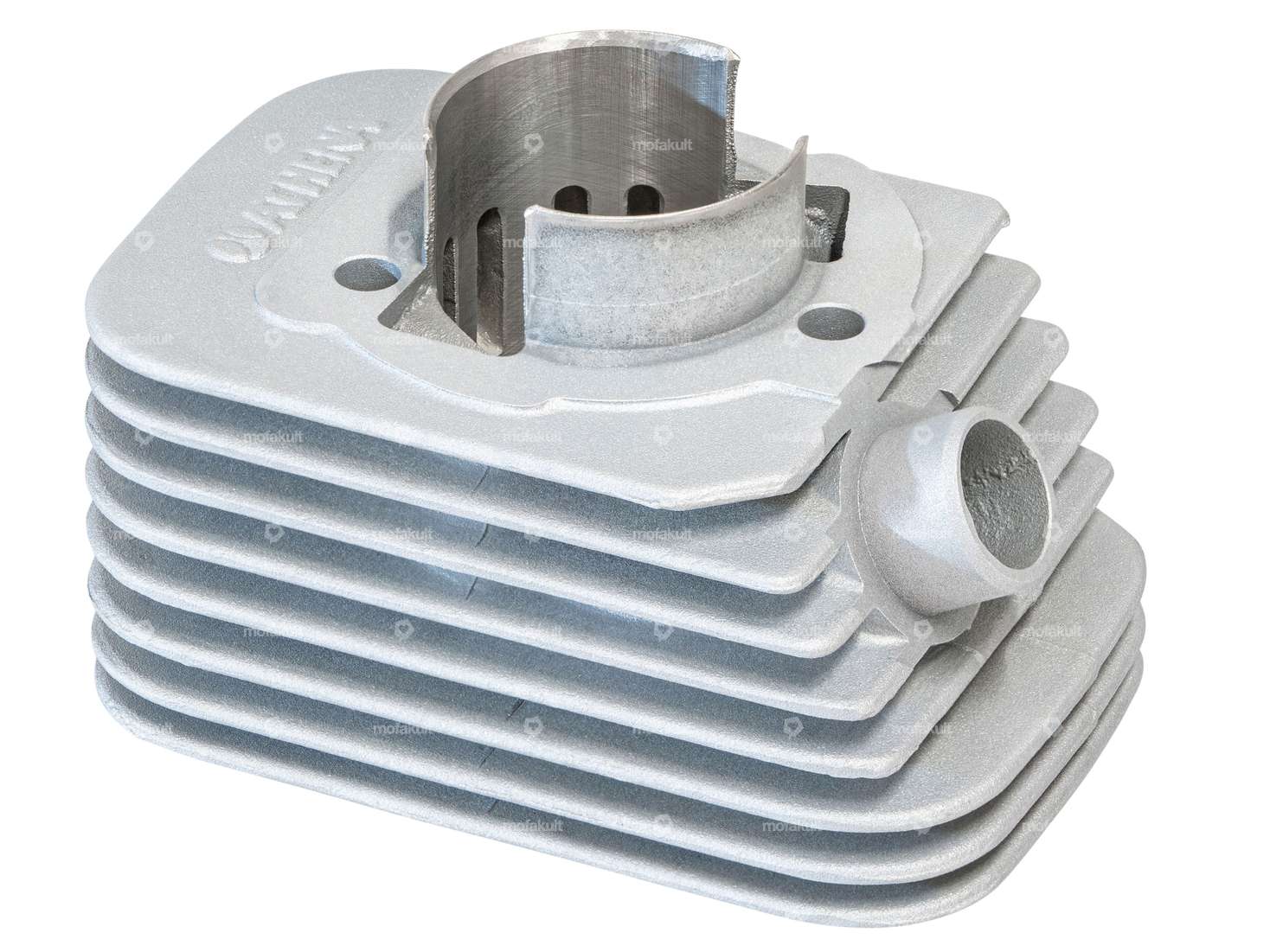

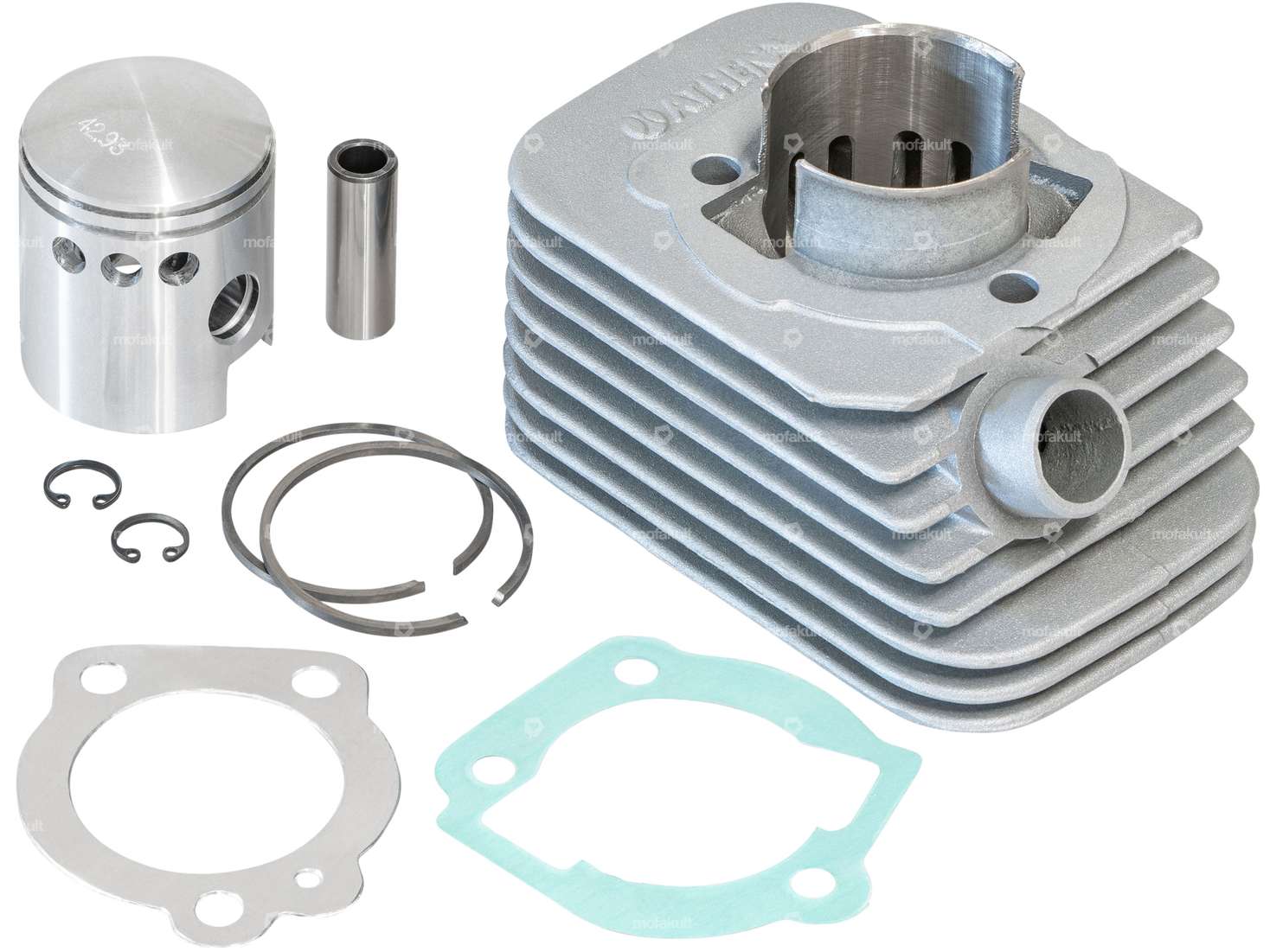

Athena 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Width across flats: 11 mm · Height: 5.5 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool

Stud bolt M7 x 120 (budget)

Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 25 mm

Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Height: 60 mm · Width: 87 mm · Candle thread: long · Total length: 122 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing

Athena gasket set 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 43 mm · Decompressor: Yes · Area of application: Tuning

Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo

Manufacturer: Malossi · Material: Aluminum · Ø cylinder: 41 - 43 mm · Total length: 134 mm · Width: 94 mm · Height: 52 mm · Candle thread: short · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Thread type: MF14x1.25 (fine pitch thread)

Meteor piston 43 mm Polini cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Meteor · Ø outside piston (A): 42.93 mm · Compression height (C): 26.6 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 89 g

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)

Diameter: 7.3 mm · Manufacturer: swiing® ingenious parts · Total length: 120 mm · Material: Steel · Surface: galvanized (blue) · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread)

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Ø Cable bushing: 1.6 mm · Material: Brass · Material: Steel · Surface: nickel-plated · Total length: 6 mm · Drive: Slot · Screw head: Lens head · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Number of components: 2 pcs · Thread length: 4 mm

Pedals square | Piaggio Ciao, SI, Bravo

Material: Plastic · Surface: ribbed · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Color: black · Height: 29 mm · Width across flats: 15 mm · Reflectors: Yes · Width: 51 mm · Total length: 118 mm

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Material: Steel · Number of components: 3 pcs · Area of application: Standard

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24. Bravo, SUPERbravo

Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Material: Aluminum · Choke control: Hand choke · Carburetor type: SHA (Piaggio) · Color: black · Total length: 46 mm · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Height: 96 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 66 · Area of application: Tuning · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Mounting type: Plug connection clamped · Mixed oil connection: No · Vacuum connection: No · Camouflaged: No

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Height: 60 mm · Width: 87 mm · Candle thread: long · Total length: 122 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Mazzucchelli · Weight: 705 g · Area of application: Racing · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Thread length: 16 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °

swiing® ingenious bearing conversion kit cast front wheel | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: SKF · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Total length: 53.5 mm · Width: 9 mm · Ø outside: 14.9 mm · Ø outside: 20 mm · Ø outside: 32 mm · Ø inside: 11.25 mm · Ø inside: 15 mm · Ball bearing closed: Yes
