43.00 mm piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio Ciao / Si / Bravo / Boxer and Grillo mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

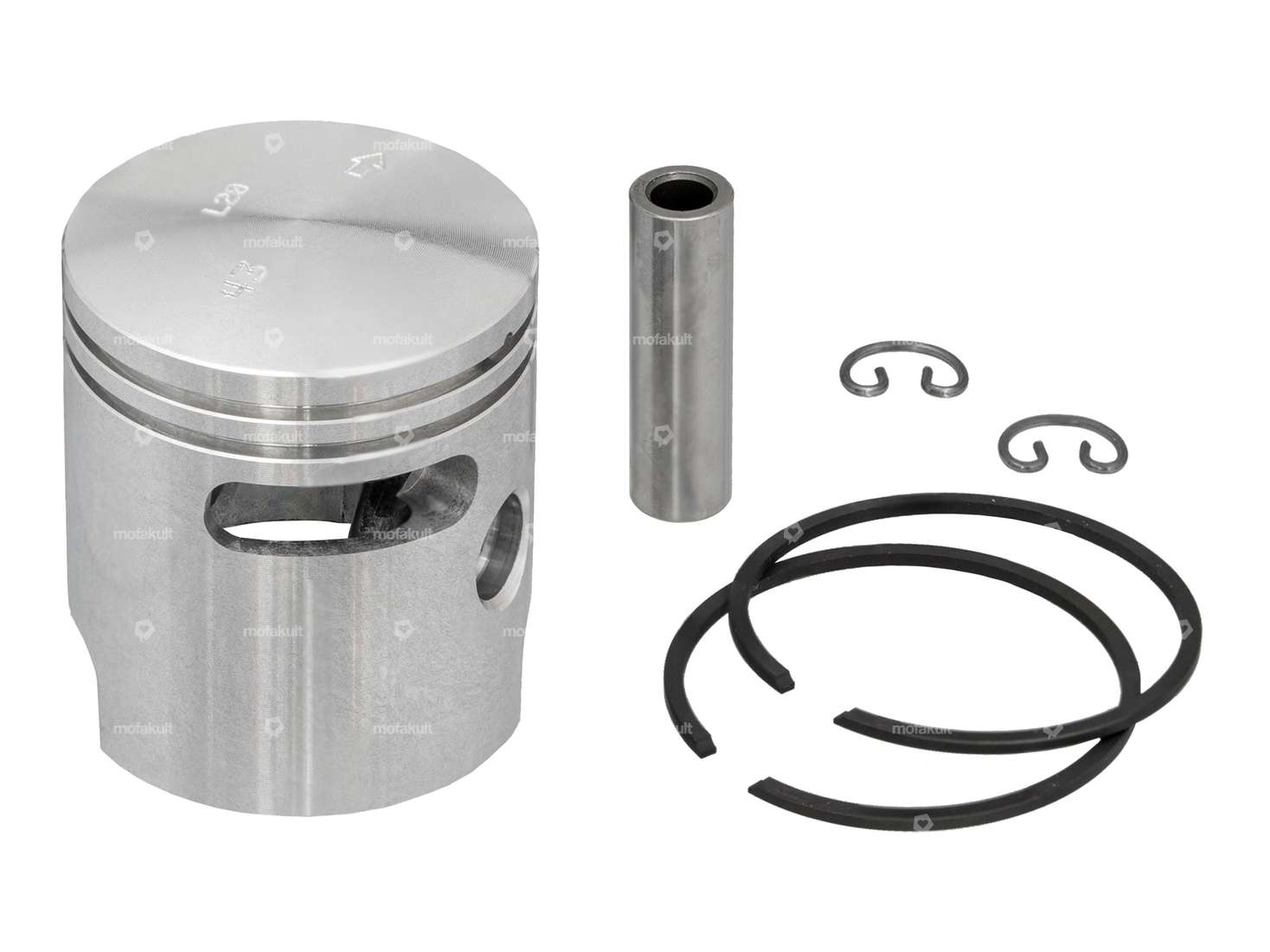

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 43 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 42.93 mm |
| Compression height (C) | 26.6 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 1.5 mm |
| Weight piston kit | 89 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
