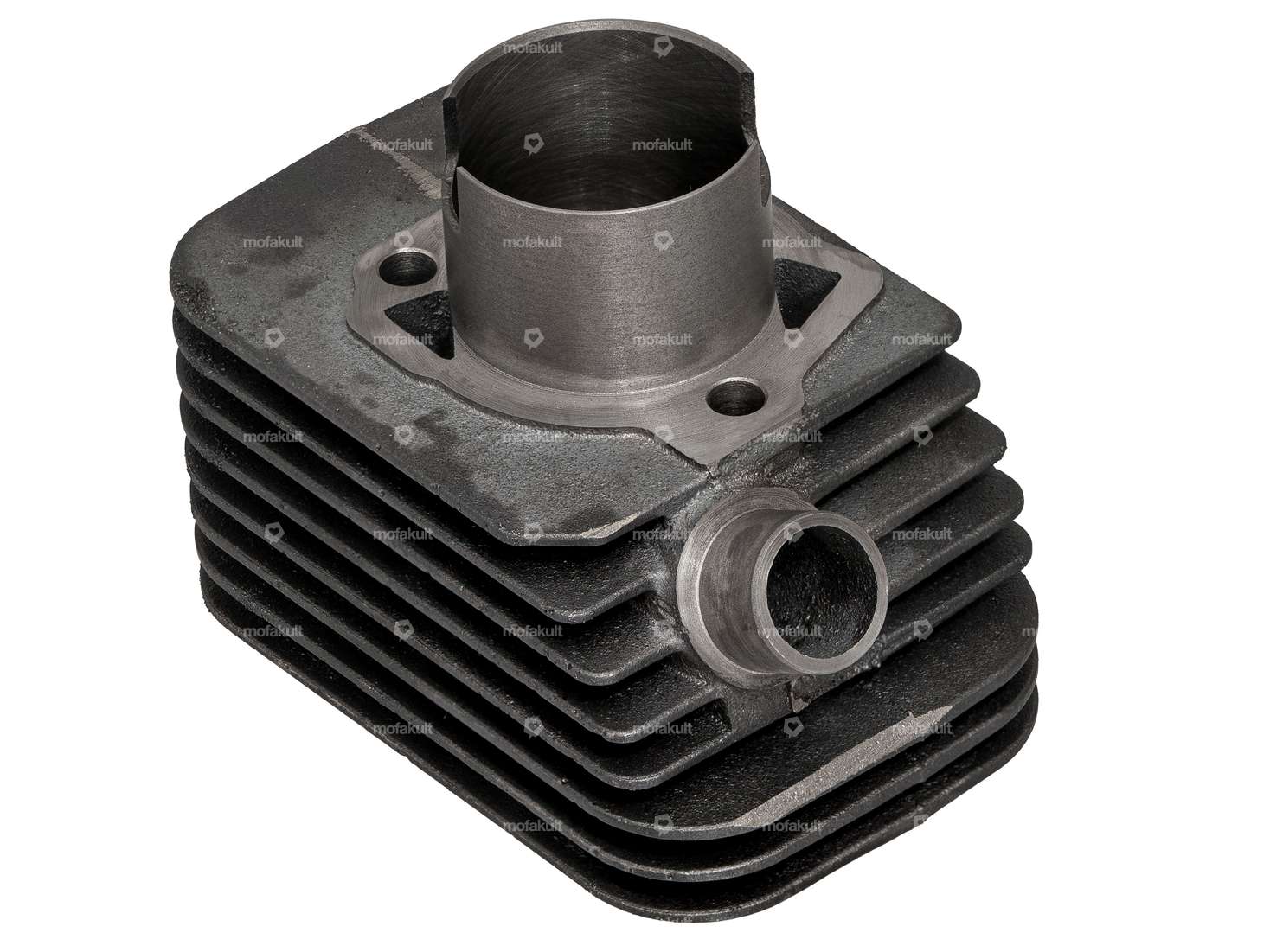

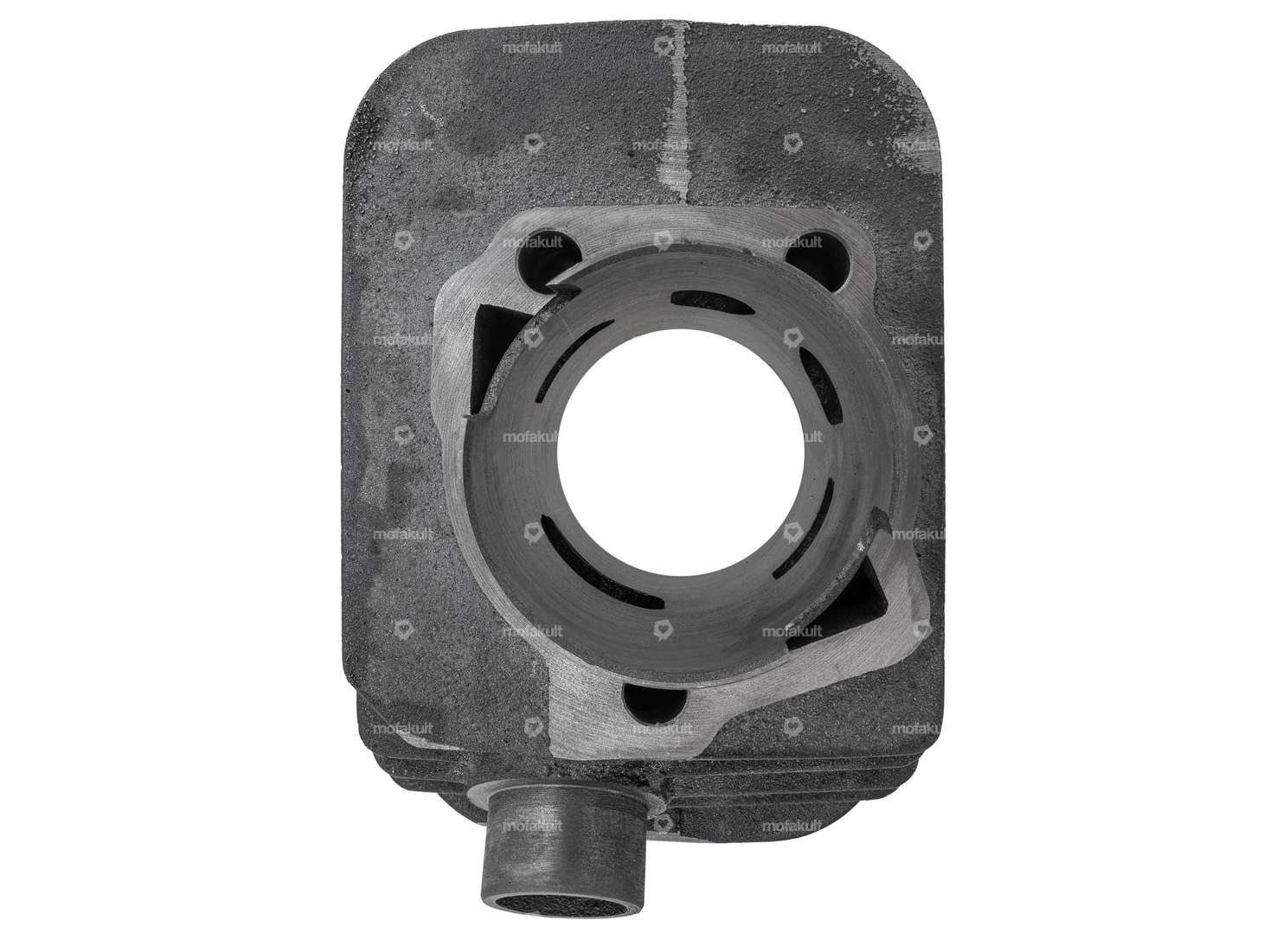

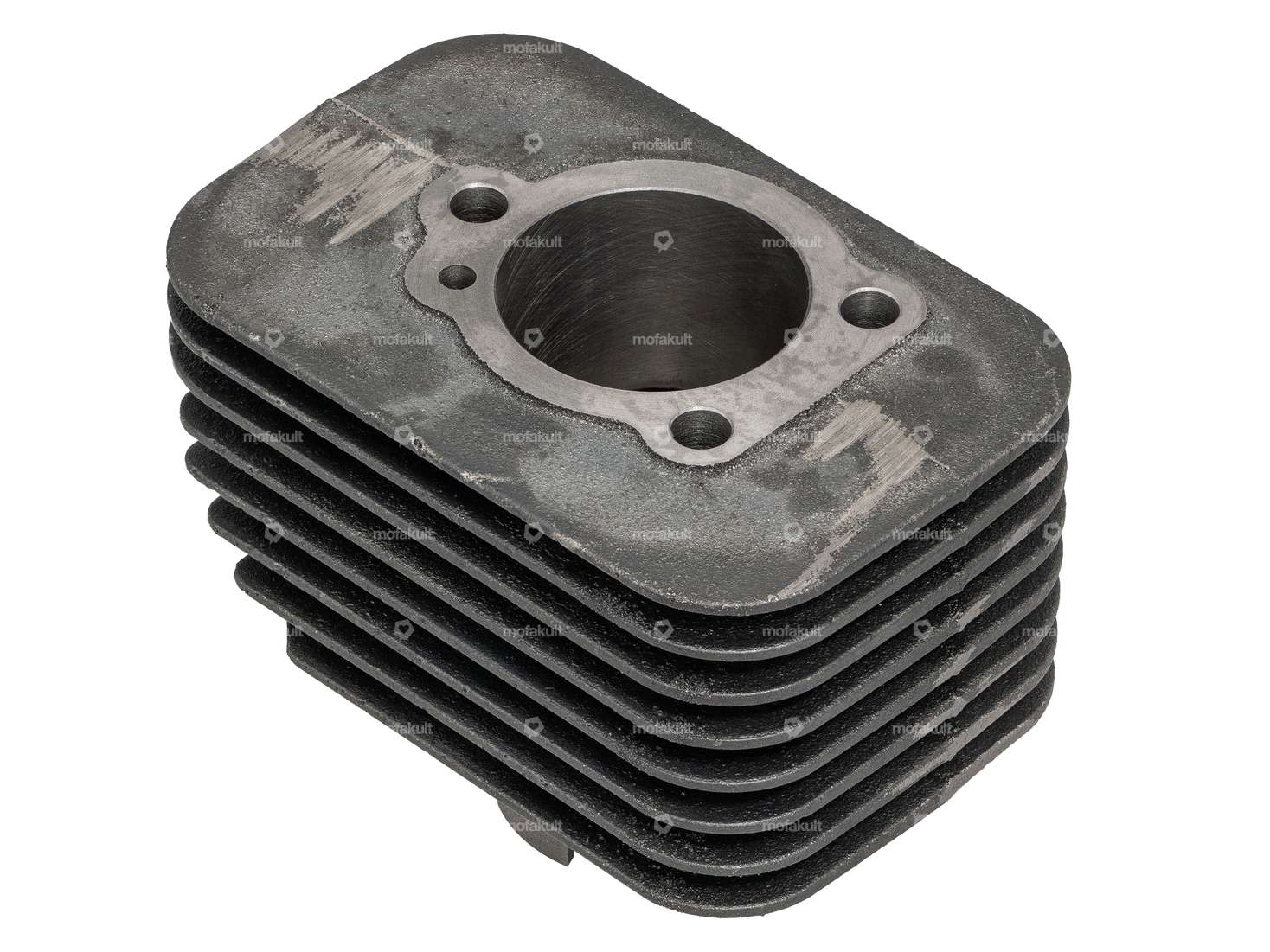

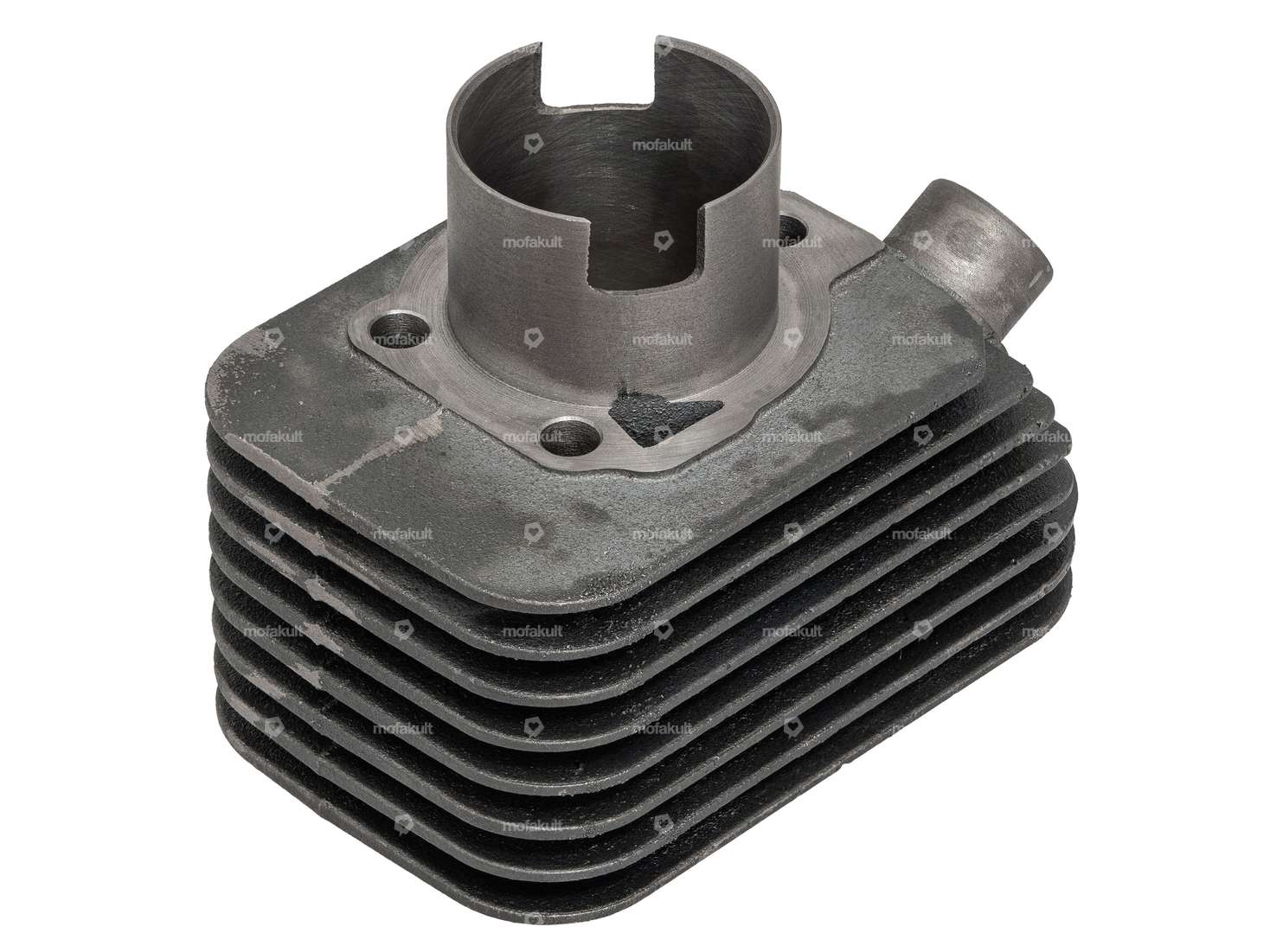

43.0 mm tuning cylinder for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
The cast cylinder is supplied empty without piston kit, cylinder head and gaskets.
You can find suitable parts in the accessories section.
Note: The cylinder works, but the sharp edges on the channels in the cylinder should be smoothed.
Favorable reproduction product from the Asian market.
| Nominal diameter | 43 mm |
| Manufacturer | Quenching |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 3 pcs |
| Outlet type | straight |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Total length: 120 mm · Height: 60 mm · Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Width: 78 mm · Candle thread: short · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning
EUR 32.10
Meteor piston 43 mm Polini cylinder (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: Meteor · Ø outside piston (A): 42.93 mm · Compression height (C): 26.6 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 87 g
EUR 77.50
Meteor piston 43 mm Polini cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: Meteor · Ø outside piston (A): 42.93 mm · Compression height (C): 26.6 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 89 g
EUR 77.50
GPO piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: GPO · Ø outside piston (A): 42.94 mm · Compression height (C): 26.5 mm · Curvature (D): 2.5 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 82 g
EUR 60.60
Moped fans also bought
GPO Leaf gauge set 0.05 - 1.00 13 pcs.
Material: Metal · Measuring range: 0.05 - 1 mm · Total length: 105 mm · Manufacturer: GPO · Surface: blank / oiled · Width: 13 mm · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Area of application: Measuring tool · Number of components: 13 pcs
EUR 14.80
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Mounting type: Union nut · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm
EUR 12.30
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24. Bravo, SUPERbravo
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Mounting type: Plug connection clamped · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Total length: 46 mm · Nozzle size: 66 · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Width: 60 mm · Ø Internal connection: 16 mm · Height: 96 mm · Mixed oil connection: No · Vacuum connection: No · Camouflaged: No · Area of application: Tuning
EUR 74.20
Cable set black | Piaggio Ciao, SI, Bravo, Boxer
Color: black · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm
EUR 24.70
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Total length: 120 mm · Height: 60 mm · Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Width: 78 mm · Candle thread: short · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning
EUR 32.10
Meteor piston 43 mm Polini cylinder (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: Meteor · Ø outside piston (A): 42.93 mm · Compression height (C): 26.6 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 87 g
EUR 77.50

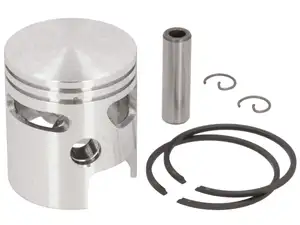

GPO piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
