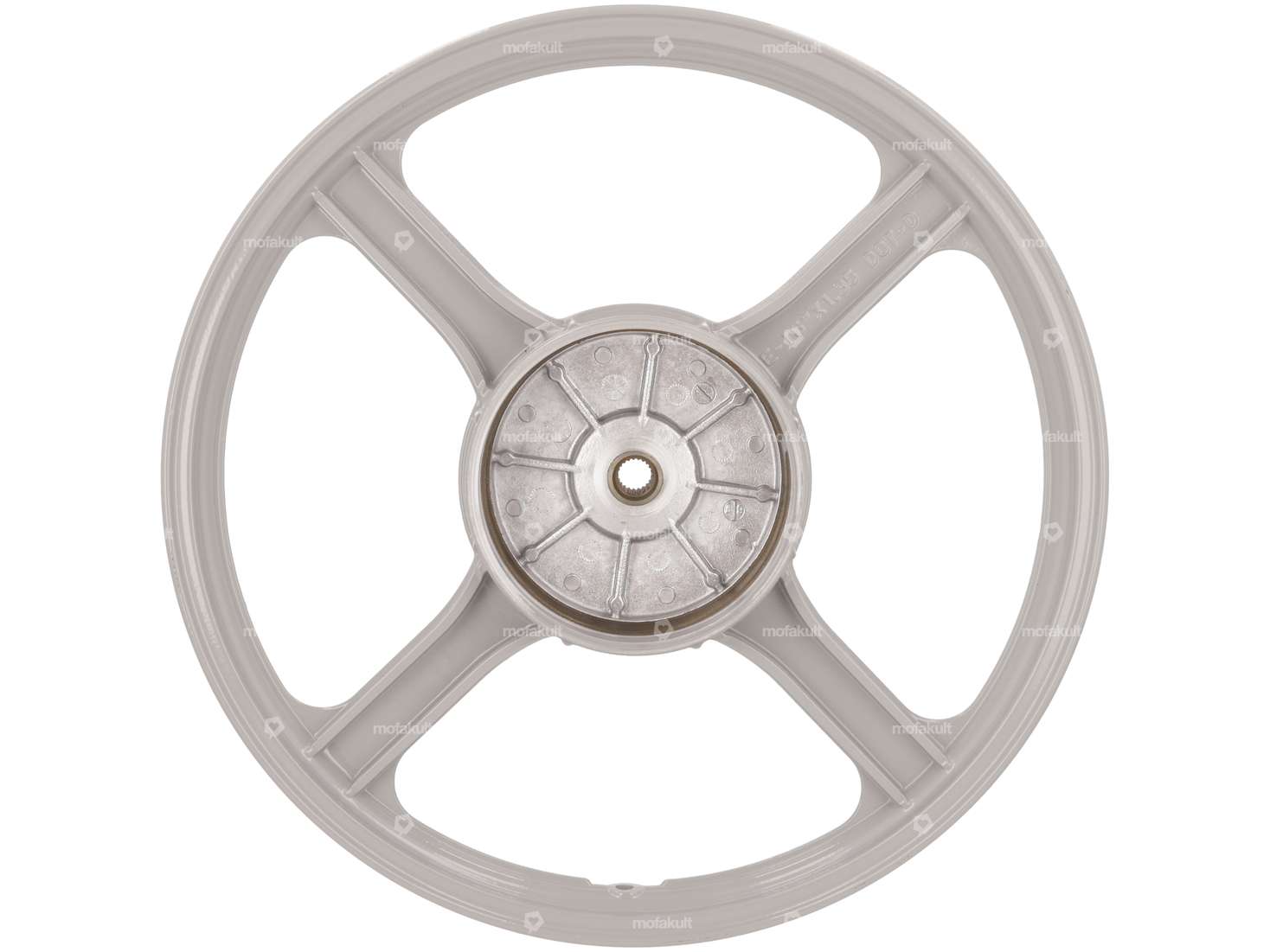

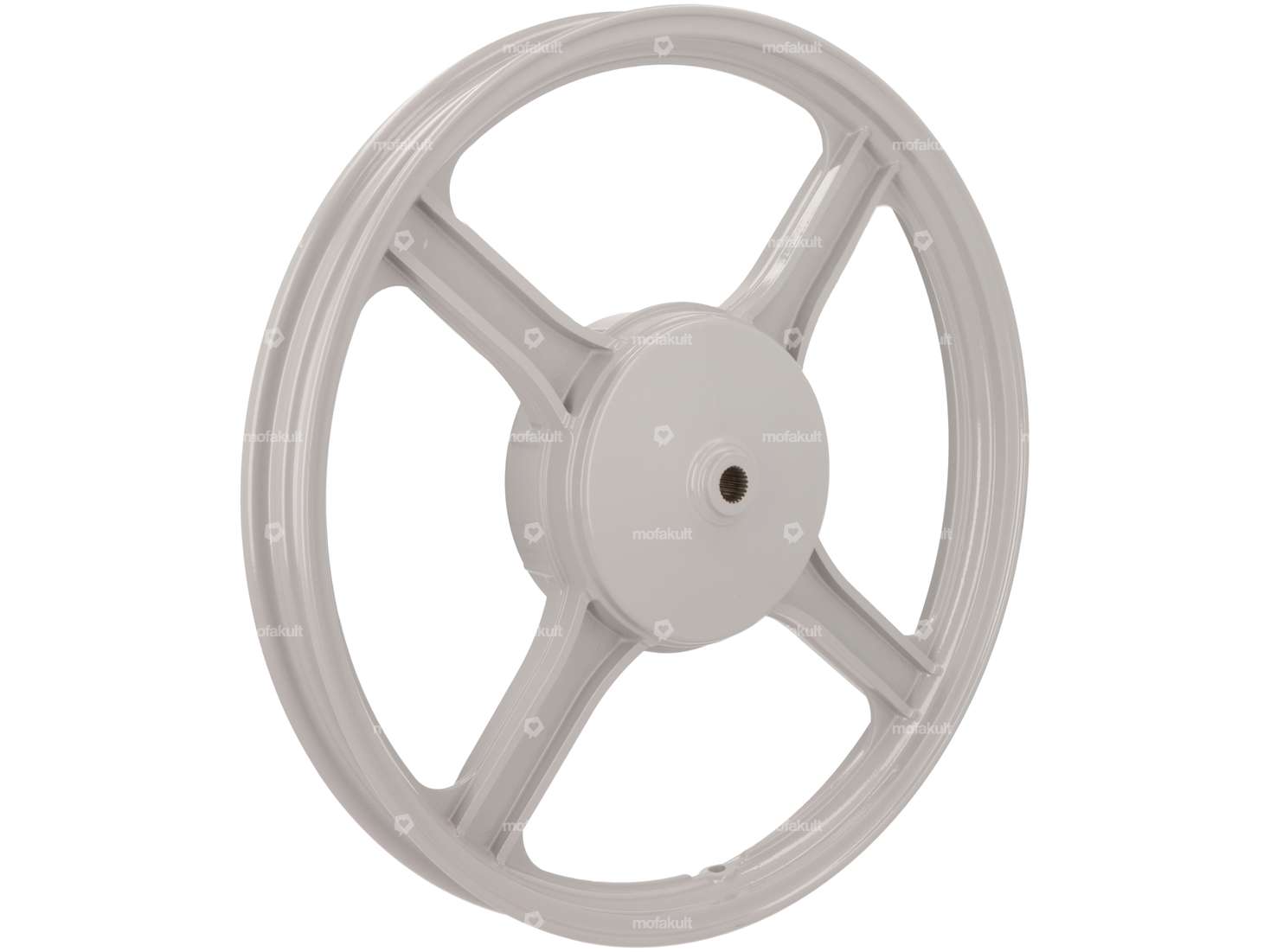

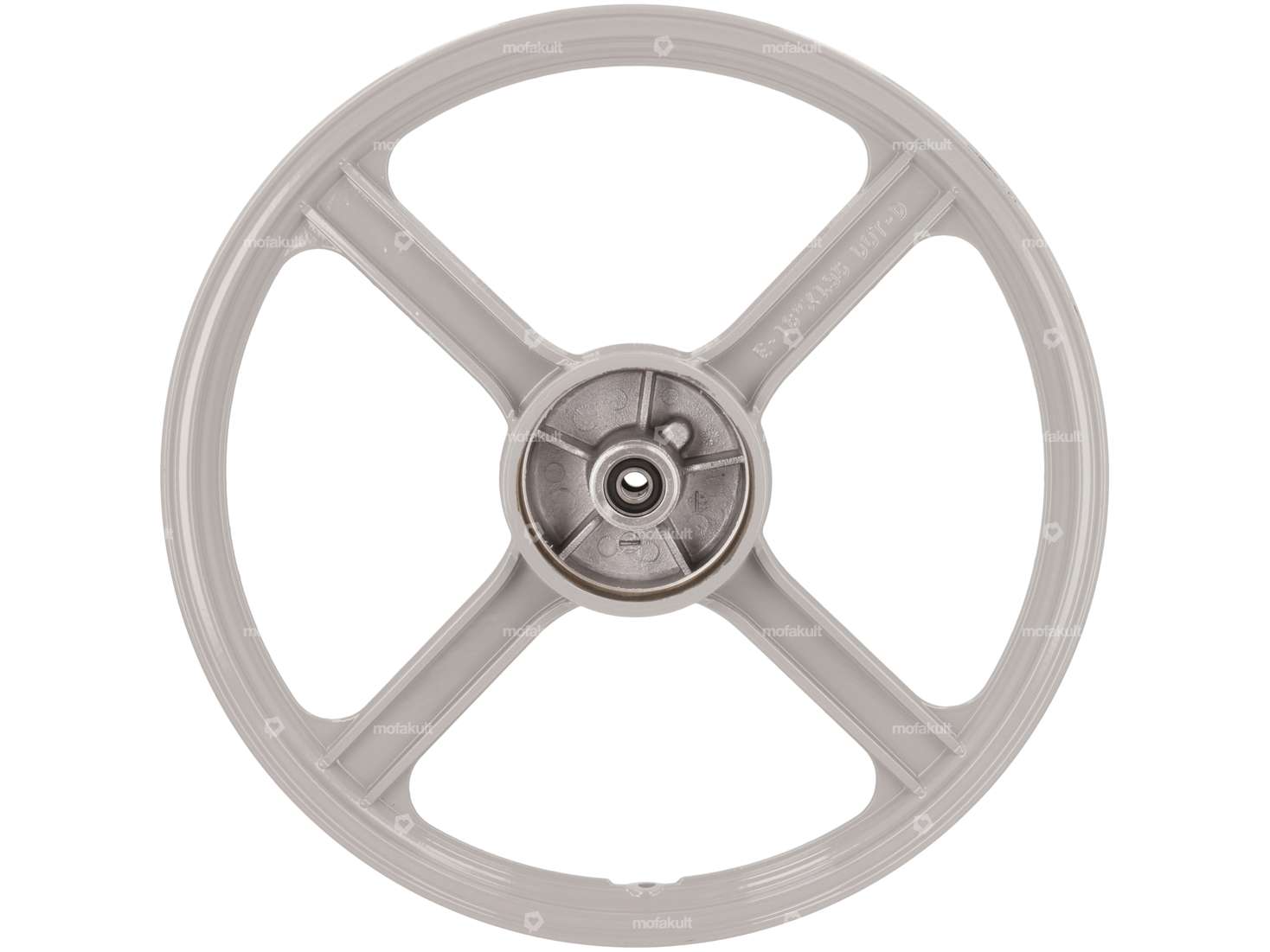

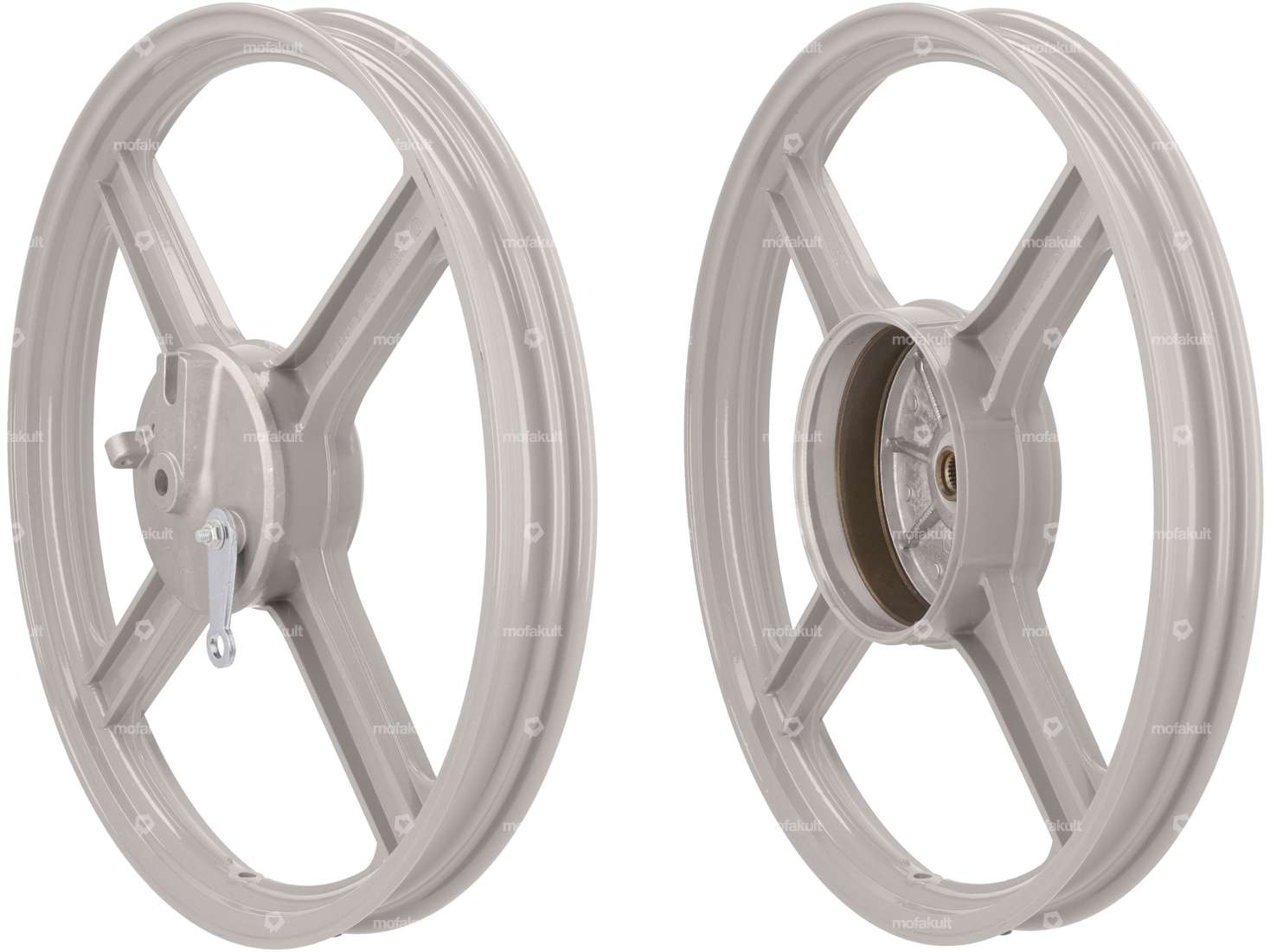

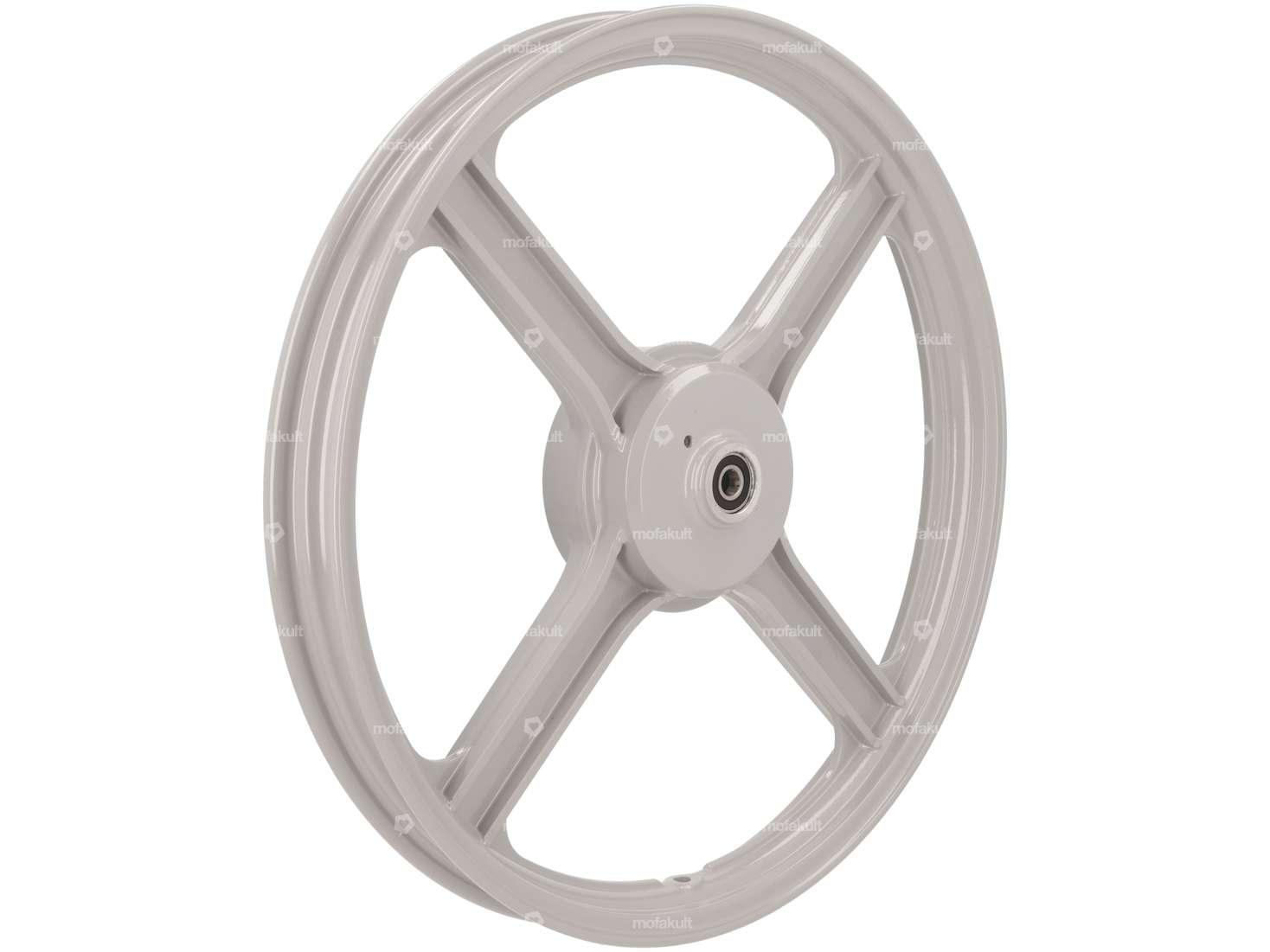

Silver-colored 4-spoke rims with a diameter of 16 inches for your Piaggio Bravo moped / moped.
This rim set is a replica which, in contrast to the original Piaggio rims, has a more angular design. Gearbox and brake pads can be taken over 1:1. The bearings on the front wheel rim are already pressed in.

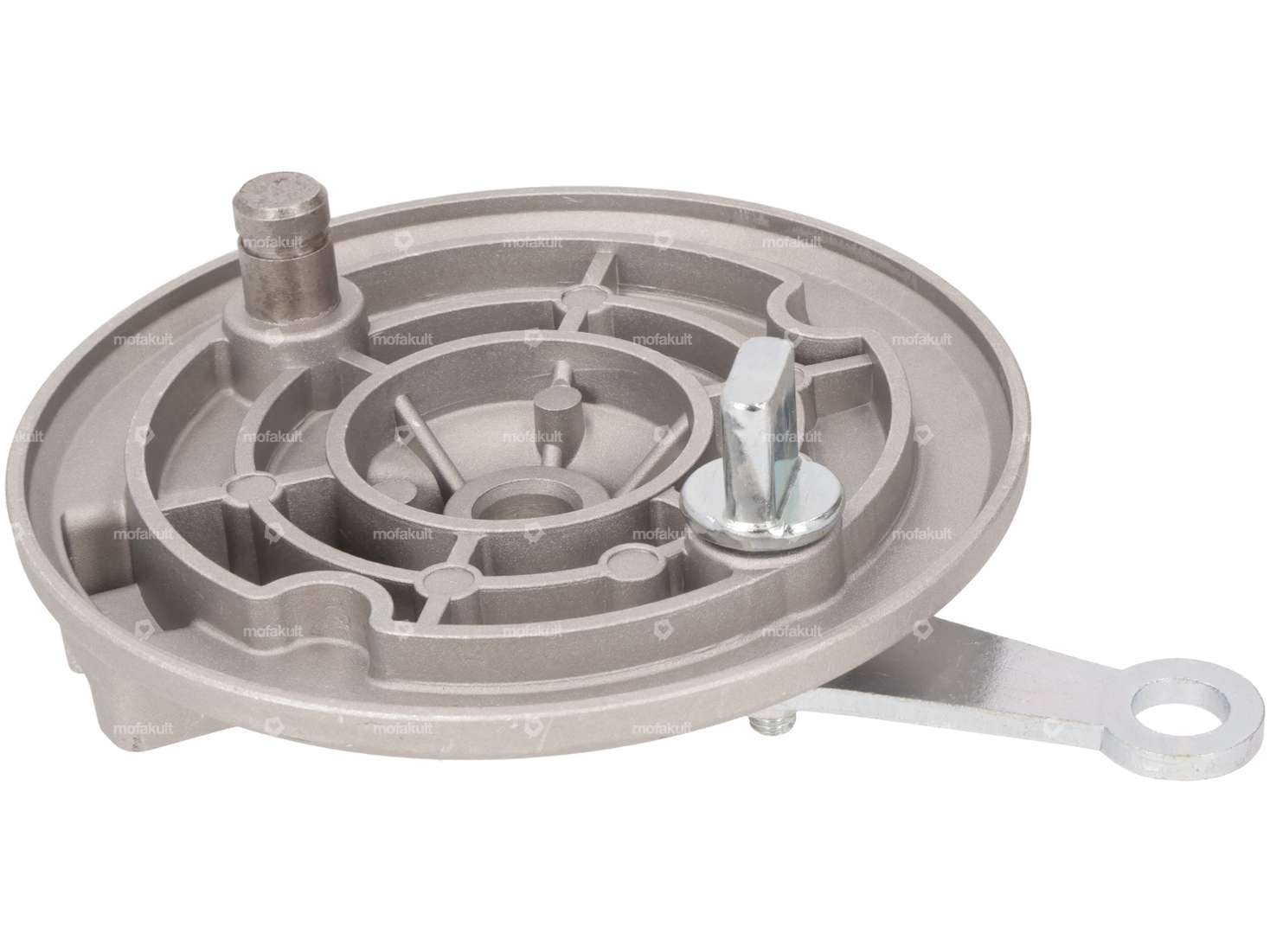

Note: The brake anchor plate included in the scope of delivery is only suitable for Piaggio Bravo models. To be able to use the wheel set on Piaggio, Ciao, SI, Grillo or Boxer mopeds, it must be taken from the original rims.
Matching tires, hoses and other wheel parts can be found in the accessories section.
| Material | Cast aluminum |
| Surface | powder-coated |
| Color | silver |
| Ø axle | 12 mm |
| Nominal diameter | 426 mm |
| Rim well depth | 9.9 mm |
| Overall width outside | 50.4 mm |
| Wheel size [inch] | 16 " |
| Ø Brake drum | 105 mm, 135 mm |
| Piaggio | Bravo / Super Bravo |
