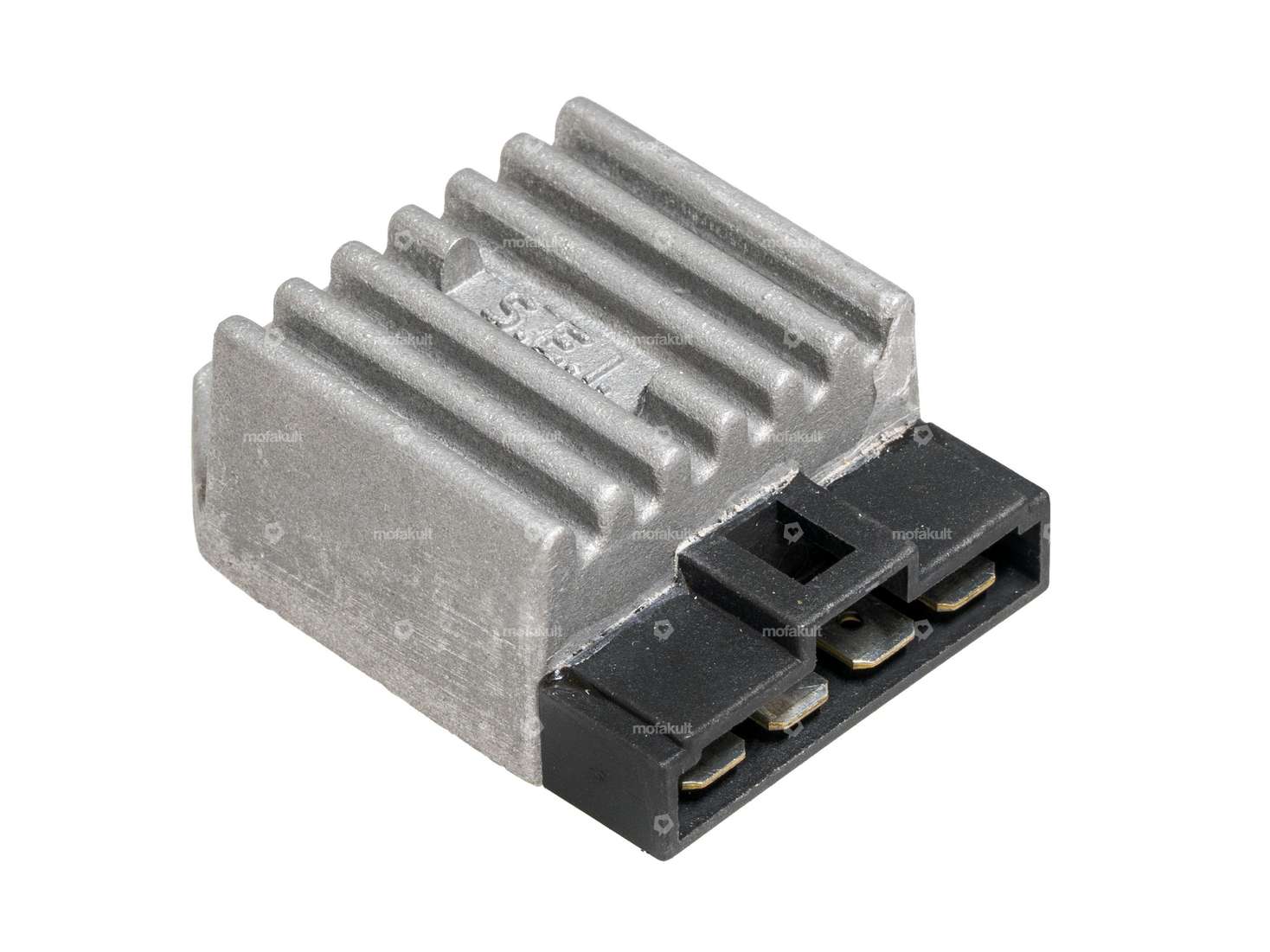

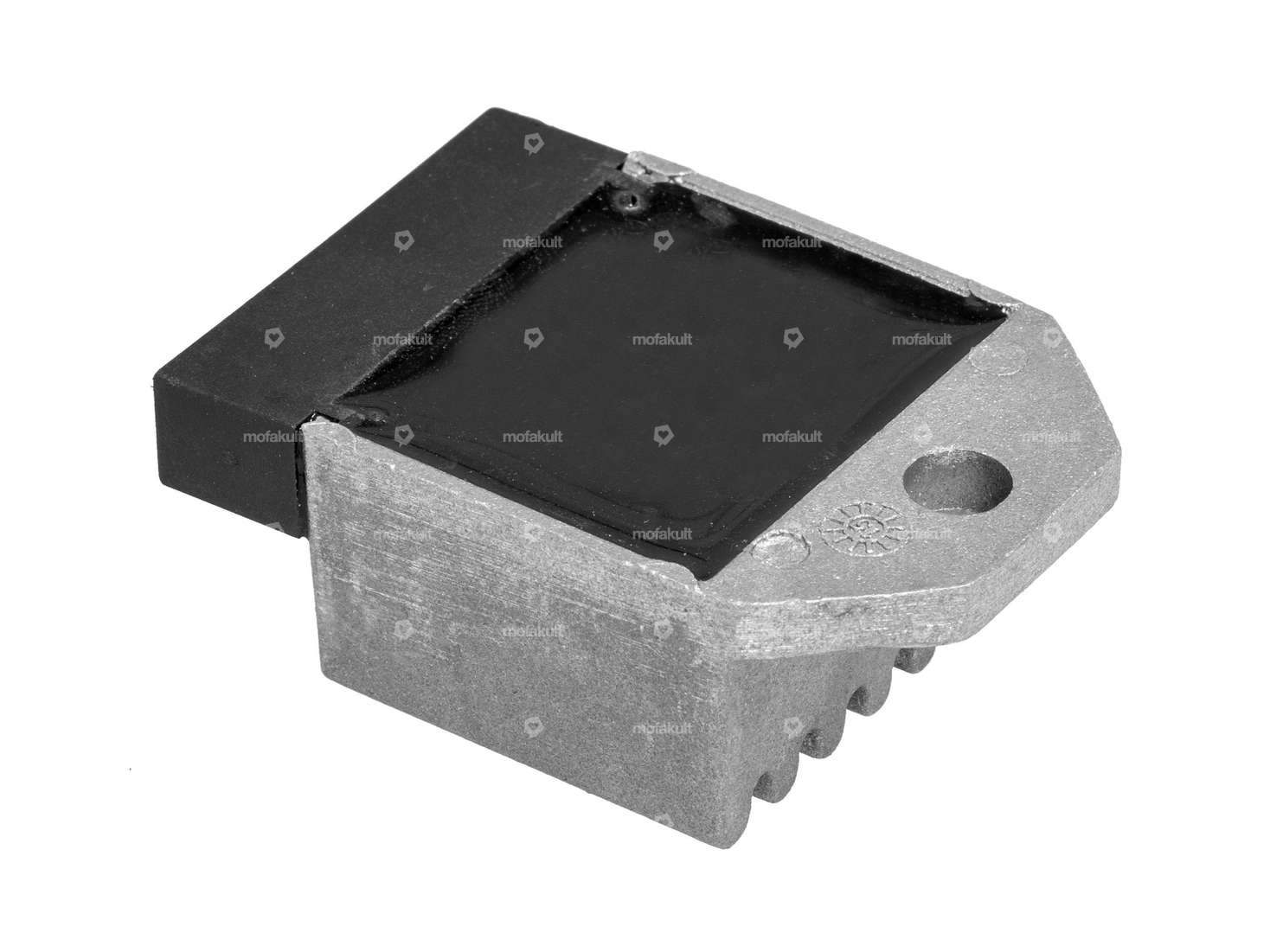

Voltage regulator and voltage converter 12V AC-DC (alternating current to direct current).
Connection sequence (from left to right):
1st pin: 12V AC from the motor (is limited to 12V)
2nd pin: ground (frame)
3rd pin: 12V AC from the motor (must be connected to the 1st pin).
4. pin 12V DC, maximum power output approx. 20 watts
Attention, all 4 poles must be connected to ensure proper functioning.
This rectifier can be used to charge a battery.
This regulator should only be installed for ignitions with 12 volts and at least 50 watts of power (HPI, MVT etc.).
Details
| Tension | 12 V |
| Performance | 20 W |
| Type of current | Alternating current (AC), Direct current (DC) |
| Mounting type | Screws |
| Ø mounting hole | 6.3 mm |
Suitable for the following models
| Universal | |
| Pony / Cilo (Beta 521 & 512) | Beta 521 (engine) |
| Tomos |
