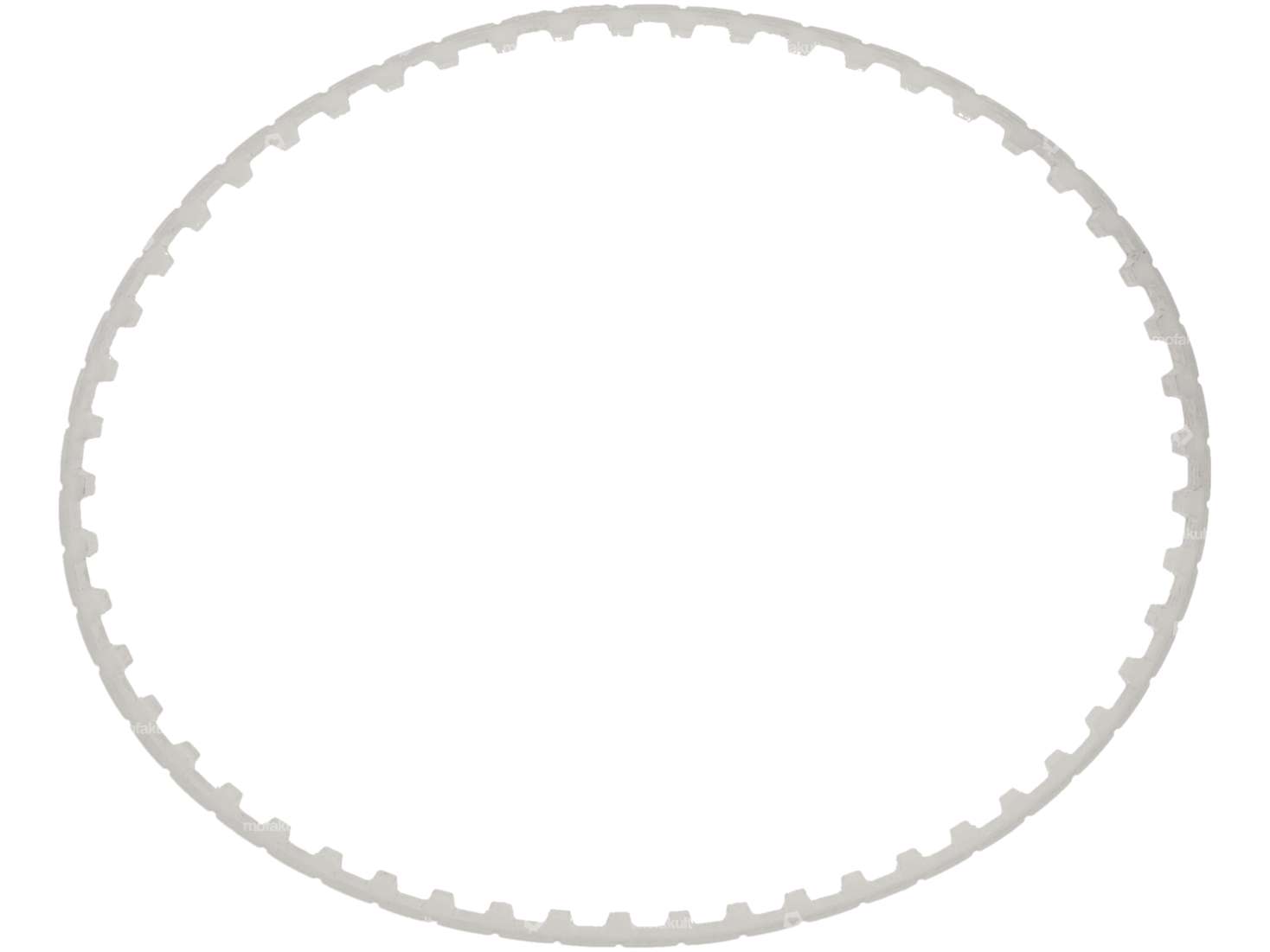

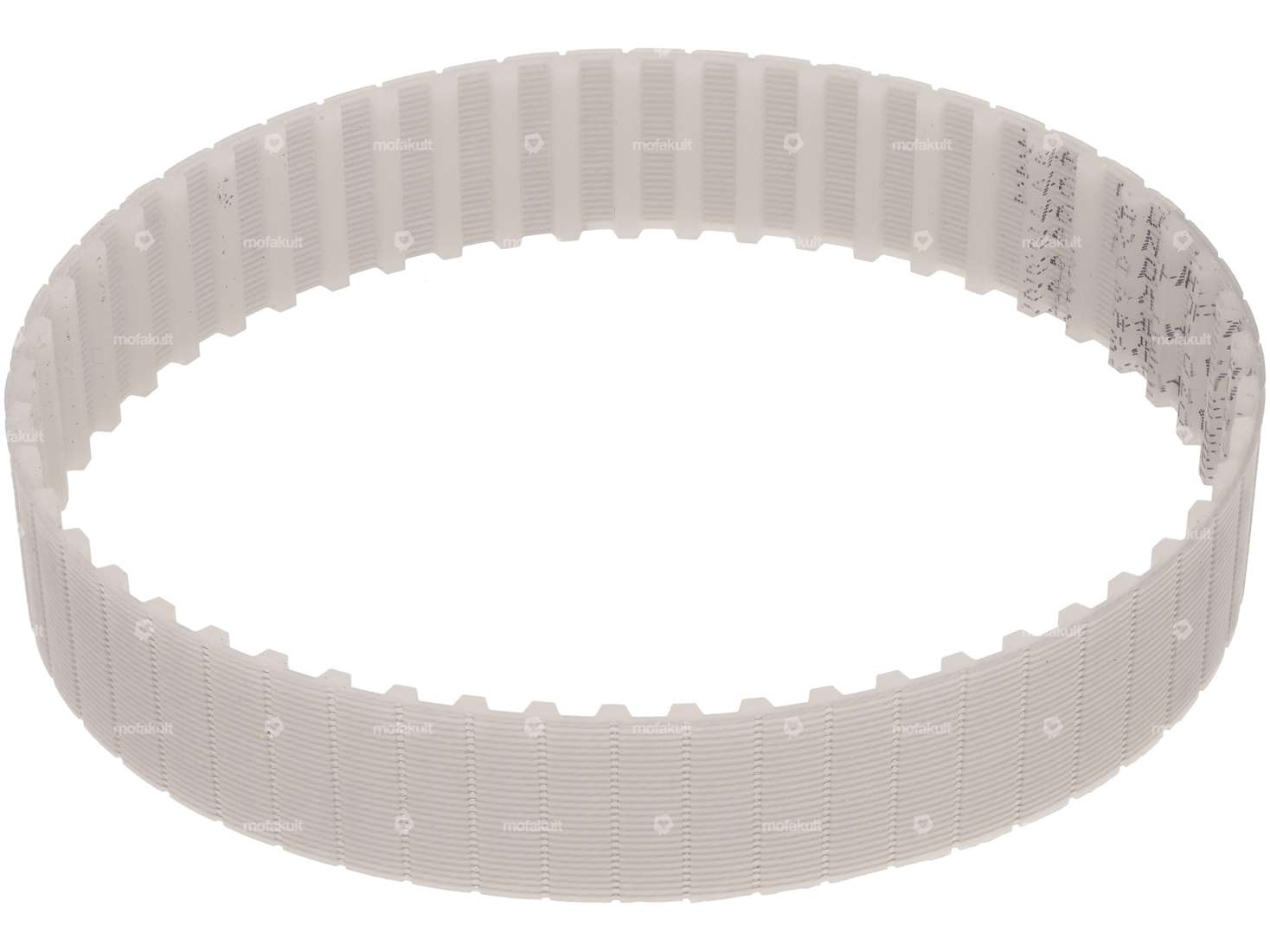

Toothed belt 53 teeth | ILO G50 Piano

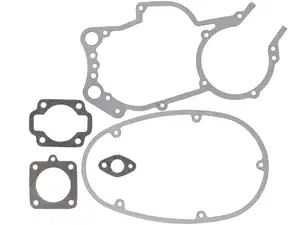

GPO gasket set | ILO Piano G50 / V50

Manufacturer: GPO · Number of components: 5 pcs · Area of application: Standard

Set of clutch plates (4 pcs.) | ILO

Ø outside: 75.6 mm · Thickness: 2.45 mm · Area of application: Standard

Rito crankshaft | ILO

Manufacturer: Rito · Cheek type: Full cheeks · Total length of crankpin on clutch side: 61.5 mm · Total length crankpin ignition side: 61.5 mm · Ø piston pin (B): 10 mm · Wide crank webs: 33.8 mm · Area of application: Standard

Timing belt transmission | ILO

Toothing type: straight toothed · Number of teeth: 44 pcs · Total length: 350 mm

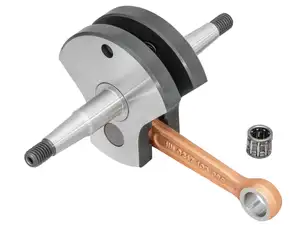

Crankshaft | ILO G50, V50

Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 62 mm · Total length crankpin ignition side: 62 mm · Ø crank webs: 80 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 14 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1.25 (fine pitch thread) · Dimension needle bearing: 10 / 14 x 12.7 mm (axe 10) · Wide crank webs: 34 mm · Area of application: Standard

GPO control bearing set M26x1 | Puch

Ø inside: 26.8 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Thread type: MF26x1 (fine pitch thread)

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

Connecting rod bushing reduction 10/14/12 bronze | Puch

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 14 mm · Total height: 12 mm · Material: special bearing bronze

GPO gasket housing cover cork | Sachs 50/2, 50/3, 50/4 (A3834)

Manufacturer: GPO · Material: Cork · Number of components: 1 pcs · Total length: 84.5 mm · Width: 45.5 mm · Thickness: 2.1 mm · Number of fixing points: 2 pcs · Pony OEM number: A3834 · Sachs OEM no.: 0650 001 000

GPO control bearing set | Sachs / Solex

Ø inside: 26.85 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Bearing type: Bearing ring · Ø mounting frame: 30.05 mm · Thread type: FG25.4 (1" 24G)

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Bottom bracket bushing | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Color: black · Bearing type: Plain bearing · Ø inside: 16 mm · Ø Bundle: 26 mm · Ø outside: 21 mm · Total length: 15 mm

swiing® revival screw-in condenser | Bosch / Ducati

Manufacturer: swiing® revival parts · Capacity: 0.16 µF · Thread type: M3x0.5 (standard thread) · Mounting type: Plug connection clamped · Height: 23 mm · Connection type: Thread for screwing · Ø outside: 18 mm · Total height: 32 mm · Area of application: Original · Area of application: Standard · BOSCH OEM number: 2 207 330 050

Clutch linings Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Aluminum · Area of application: Standard · Material addition: Composite materials · Number of jaws: 3 pcs · Thickness: 14 mm

ZADI steering lock 4 mm | Piaggio Ciao, SI, Bravo, Boxer & Vespa Largeframe, Smallframe

Material: Brass · Total length: 31 mm · Ø rotating part: 12 mm · Manufacturer: ZADI · Wide locking block: 4 mm · Piaggio OEM number: 120328
