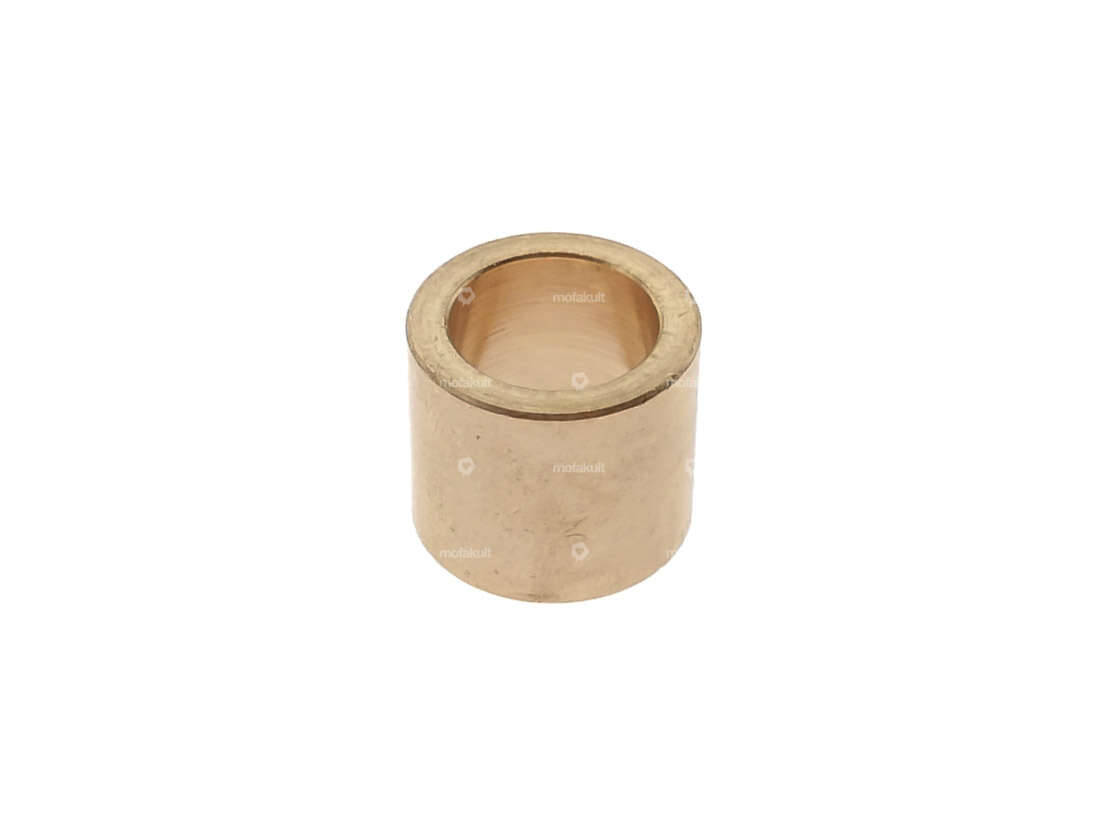

Connecting rod bushes for Puch crankshafts for conversion to 10 mm piston pin.

Outer diameter: 14 mm
Nominal inner diameter: 10 mm
Ø inner (raw): 9.9 mm
Length: 12 mm

Attention: To ensure a perfect fit of the piston pin, the bushing must be reamed to the correct size due to shrinkage after pressing in.
Suitable reamers can be found in the accessories section.

Details

Nominal diameter inside	10 mm
Material	special bearing bronze
Ø inside	10 mm
Ø outside	14 mm
Total height	12 mm

Suitable for the following models

Puch

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
