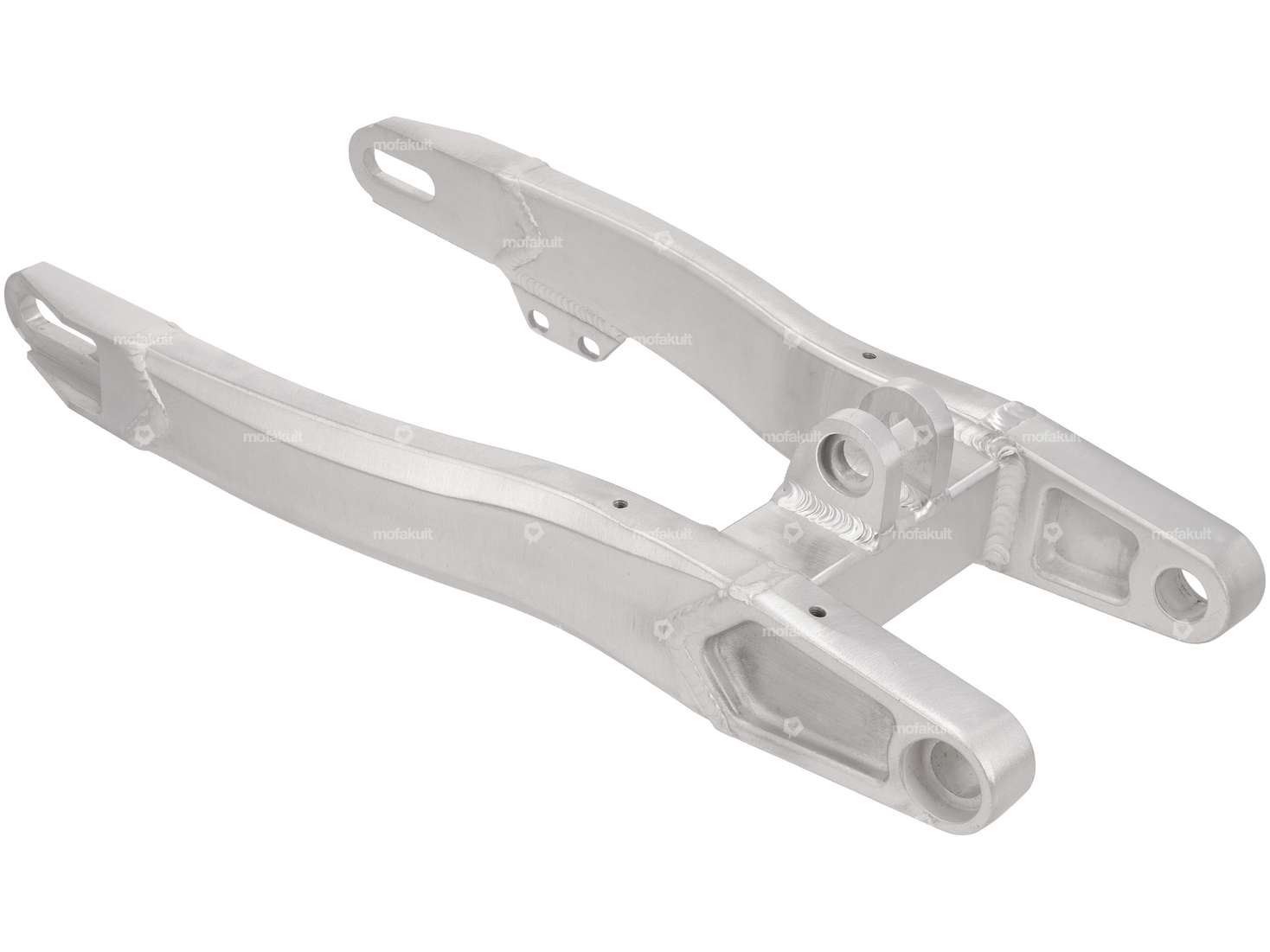

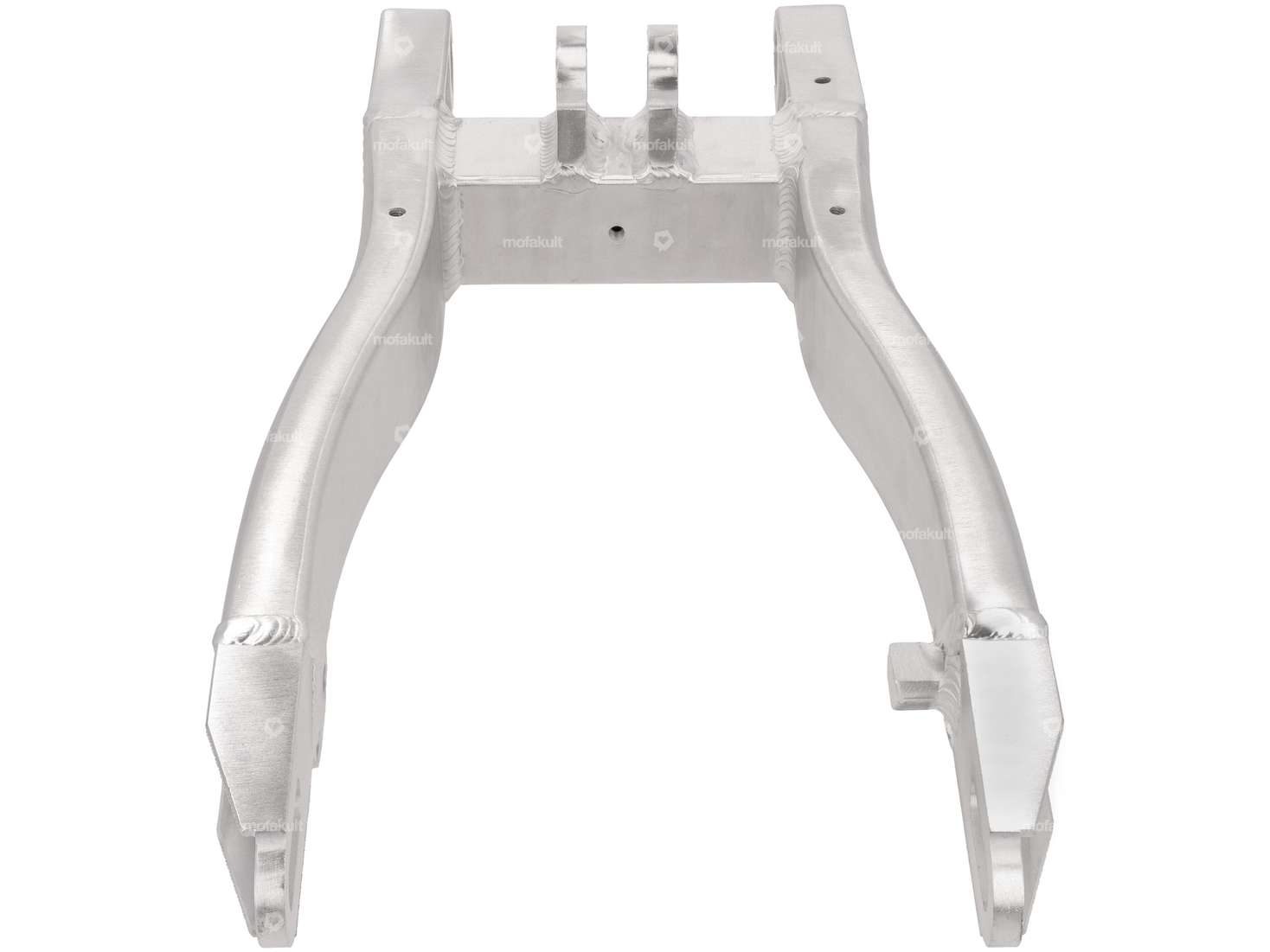

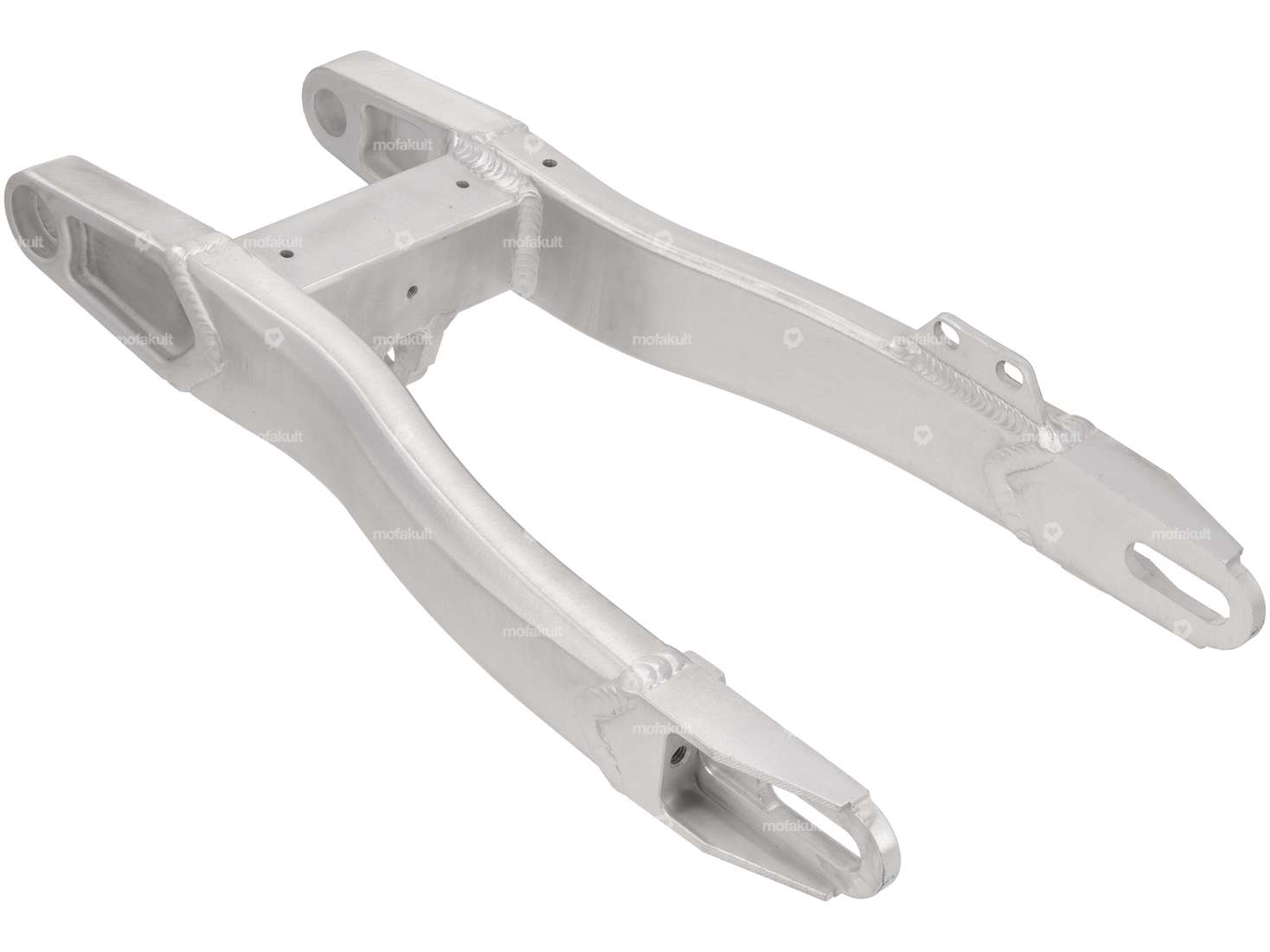

Aluminum rear wheel suspension for cross use with your moped, moped and small motorcycle.

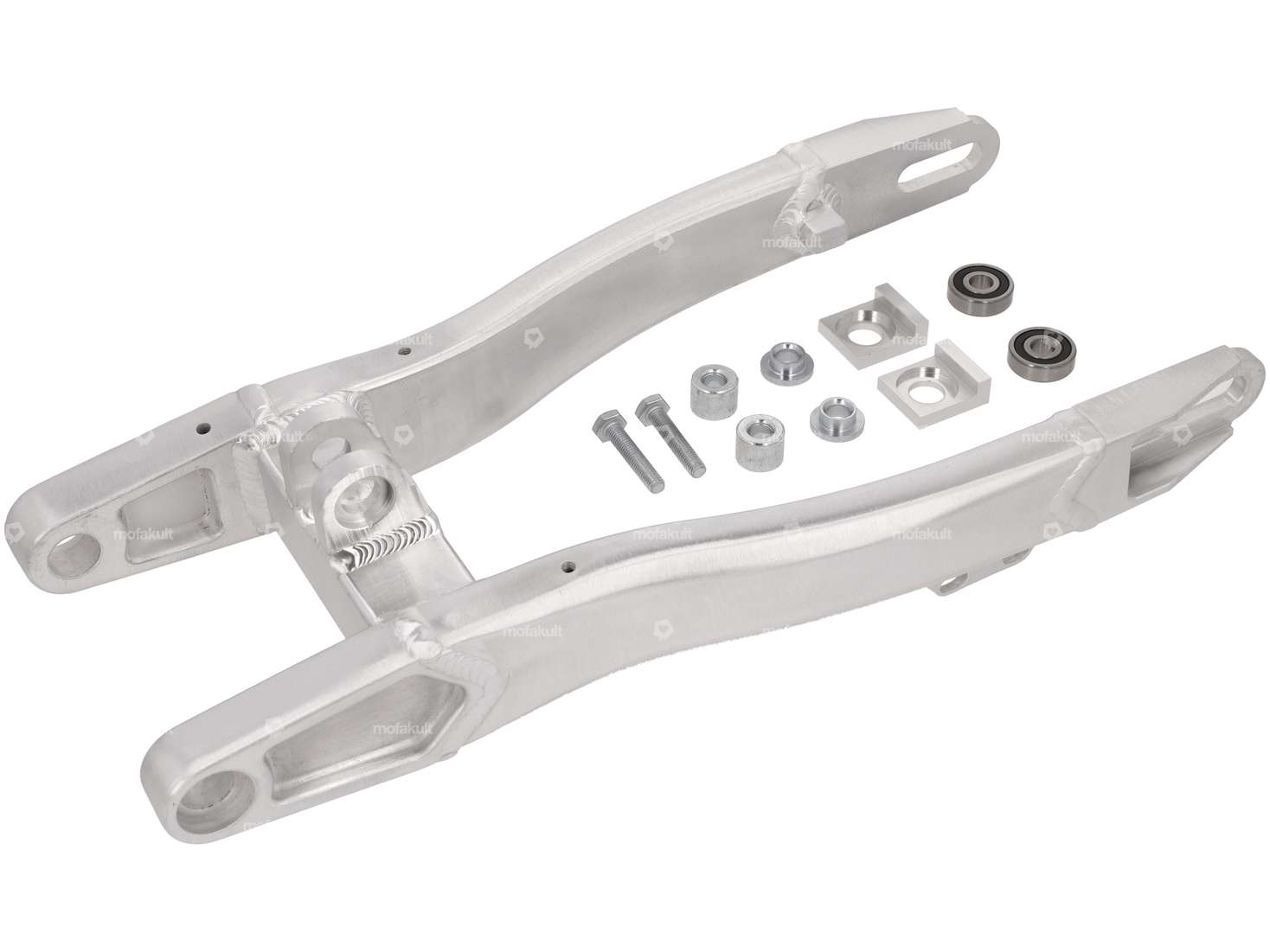

The swingarm is suitable for 17" rear wheels and is supplied with bearings and chain tensioners.
Extensive cross swingarm mass:
Swingarm axle: 10 mm
Wheel axle: 15 mm
Note: This is a product for racing, especially for motocross use. Various adjustments are required for assembly and subsequent use and we only recommend this cross swingarm for experienced mechanics.
Further attachments for moped cross use can be found in the accessories section.
| Weight | 1775 g |
| Material | Aluminum |
| Area of application | Cross |
| Total length | 480 mm |
| Width | 175 mm, 235 mm |
| Height | 116 mm |
| Wide intake | 122 mm, 180 mm |
| Universal | |
| Puch | |
| Sachs |
