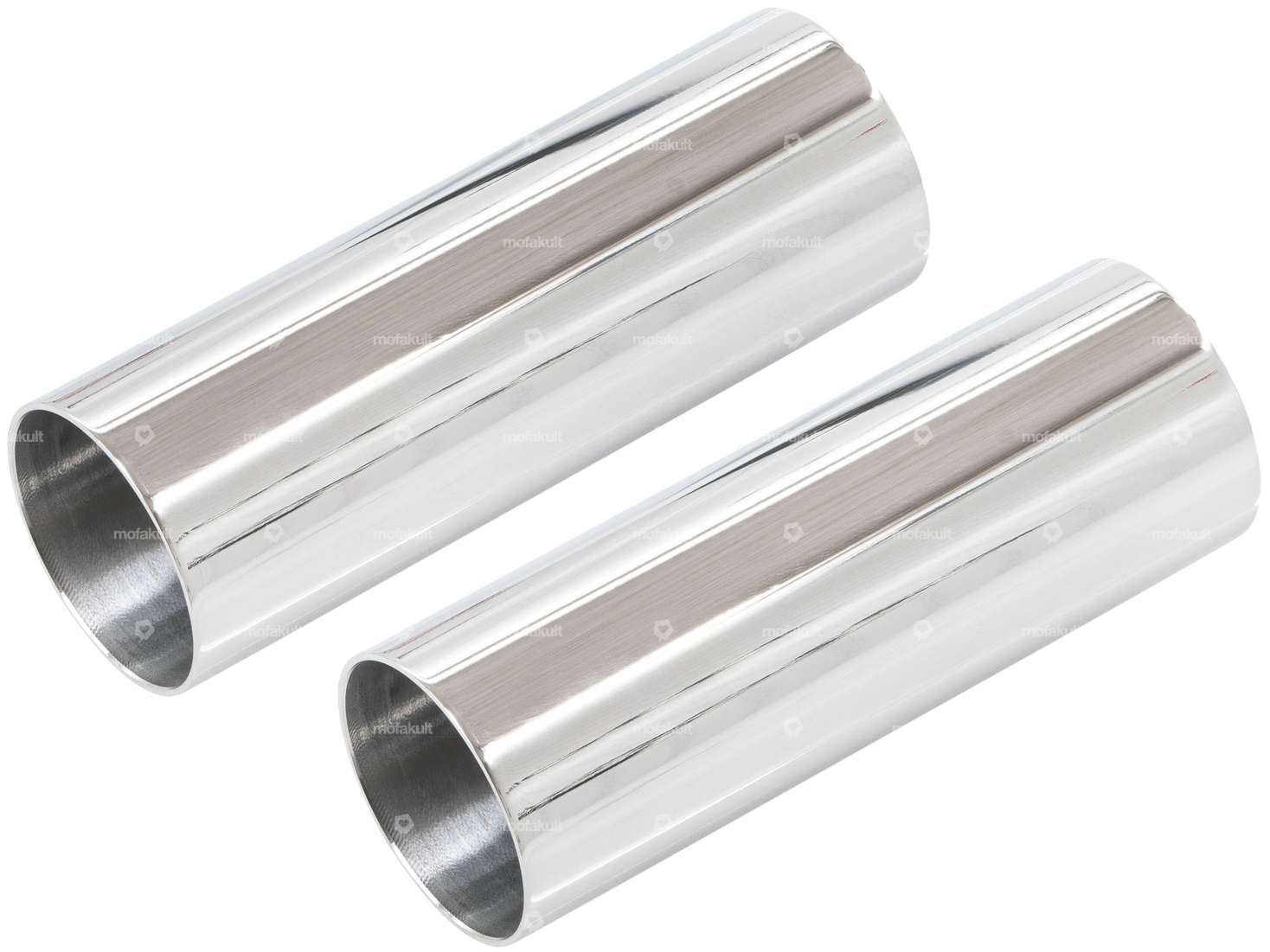

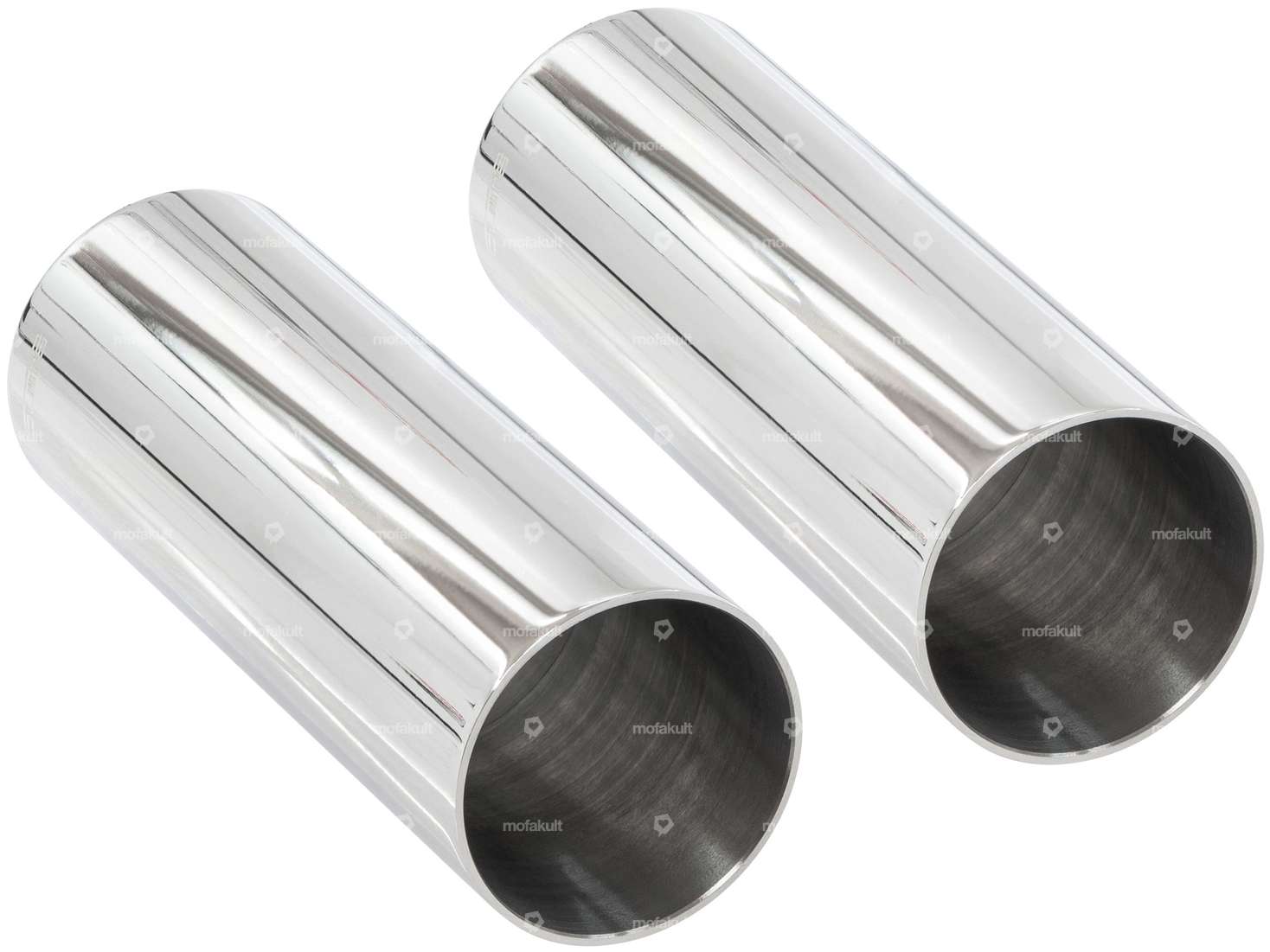

Highly polished stainless steel cover tubes for the legendary Hercules fork on various Hercules and DKW mopeds / mopeds as well as many models fitted with a Sachs engine.
The protective tube is fitted over the bars between the fork plate on the plastic mounts.
The support tubes can also be fitted instead of folding bellows.
| Ø outside | 35.5 mm |
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Ø inside | 33.2 mm |
| Total length | 100 mm |
| Mounting type | Plug connection |
| Color | Chrome |
| Sachs |
| DKW |
| Hercules |
Ratings
Accessories & related products
GPO steerer tube nut M26x1 closed fork plate chrome
Ø outside: 28.9 mm · Ø outside: 36.4 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 30 mm · Height: 13.8 mm · Thread depth: 12 mm · Area of application: Standard
EUR 12.20
GPO steerer tube nut M26x1 open stem chrome
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Drive: External hexagon · Height: 14 mm · Thread type: MF26x1 (fine pitch thread) · Thread depth: 11.5 mm · Ø inside: 22.1 mm · Ø outside: 36.5 mm · Width across flats: 30 mm
EUR 15.90
swiing® revival steerer tube nut M26x1 closed fork plate Inox
Ø outside: 36.6 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 30 mm · Height: 14 mm
EUR 23.40

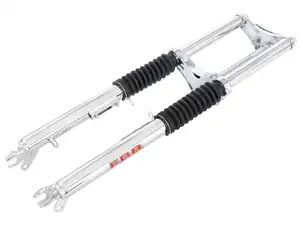

EBR fork reinforced chrome | Hercules
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Adjustable: No · Thread type: MF26x1 (fine pitch thread) · Spar end distance (center-center): 145 mm · Ø outer head tube: 26 mm · Total length: 635 mm · Ø head tube inside: 22.4 mm · Ø spars: 28 mm · Head tube length: 195 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 80 mm · Thread length: 58 mm · Color: Chrome
EUR 296.40

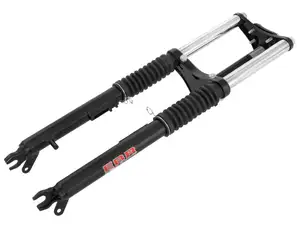

EBR fork reinforced black | Hercules
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Adjustable: No · Thread type: MF26x1 (fine pitch thread) · Spar end distance (center-center): 145 mm · Ø outer head tube: 26.1 mm · Total length: 650 mm · Ø head tube inside: 22.2 mm · Ø spars: 28 mm · Head tube length: 195 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 80 mm · Thread length: 60 mm · Color: Chrome · Color: black
EUR 296.40
Moped fans also bought
Karcoma fuel tap M12x1 vertical (with union nut) 2 connections
Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Reserve level: 50 mm
EUR 30.80
Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
Ø outside: 5 mm · Total length: 6 mm · Manufacturer: Magura · Number of components: 2 pcs · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø Cable bushing: 1.6 mm · Drive: Slot · Thread length: 4 mm · Screw head: Lens head
EUR 2.45
Union pedals plastic standard
Total length: 129 mm · Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Color: black · Thread type: FG14.3 (9/16" 20G) · Drive: Hexagon socket · Drive: Outer edge · Width across flats: 15 mm · Width: 77 mm · Height: 29 mm · Reflectors: Yes
EUR 15.90
EUR 12.20
GPO gasket set carburetor Bing SRE
Ø inside: 7.8 mm · Ø inside: 41 mm · Ø outside: 12.2 mm · Ø outside: 45 mm · Manufacturer: GPO · Camouflaged: No · Material: Sealing paper · Component group Carburetor: Sealing, revising · Thickness: 0.5 mm · Thickness: 0.9 mm · Thickness: 1.5 mm · Carburetor type: SRE
EUR 6.05
