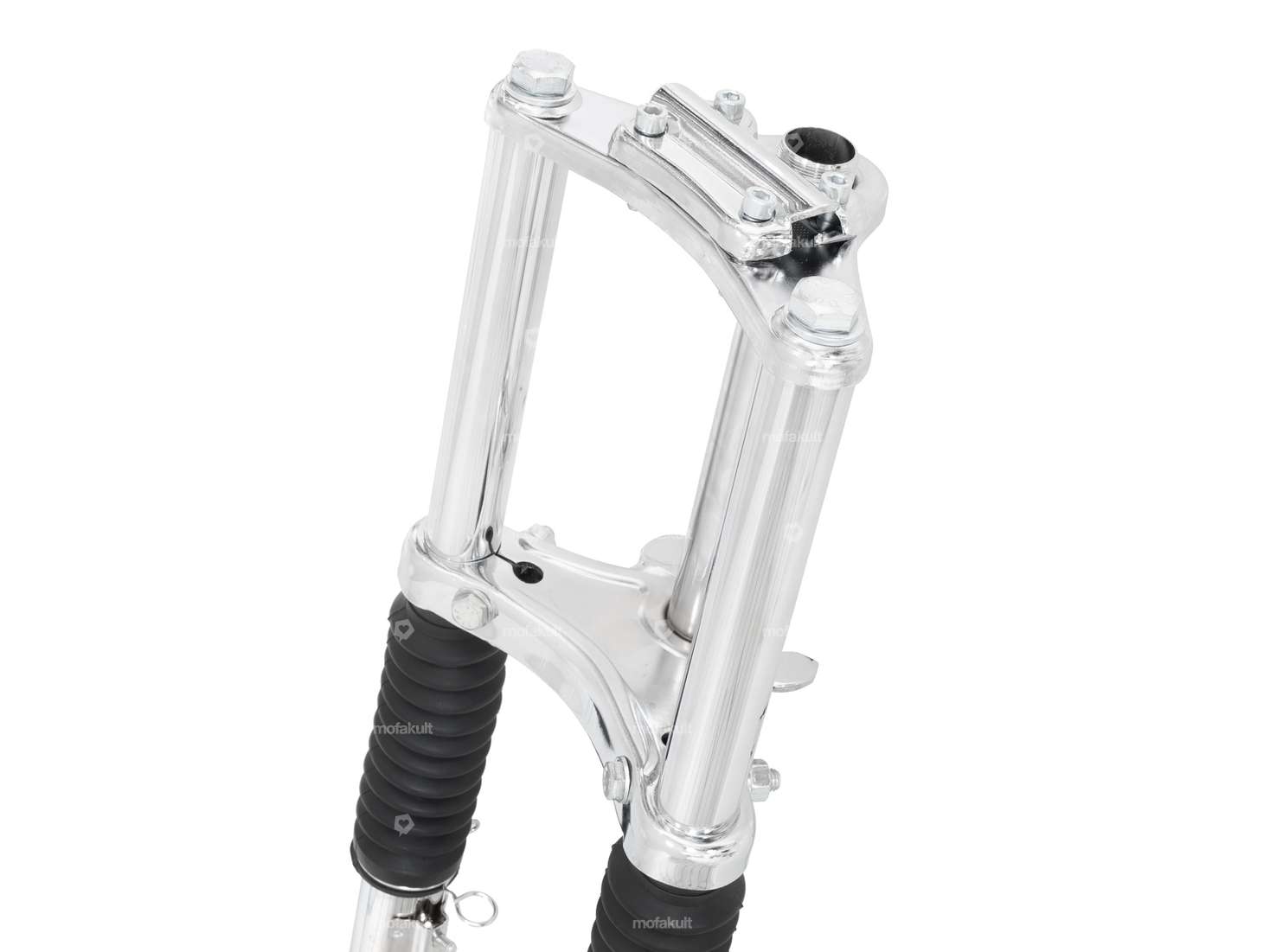

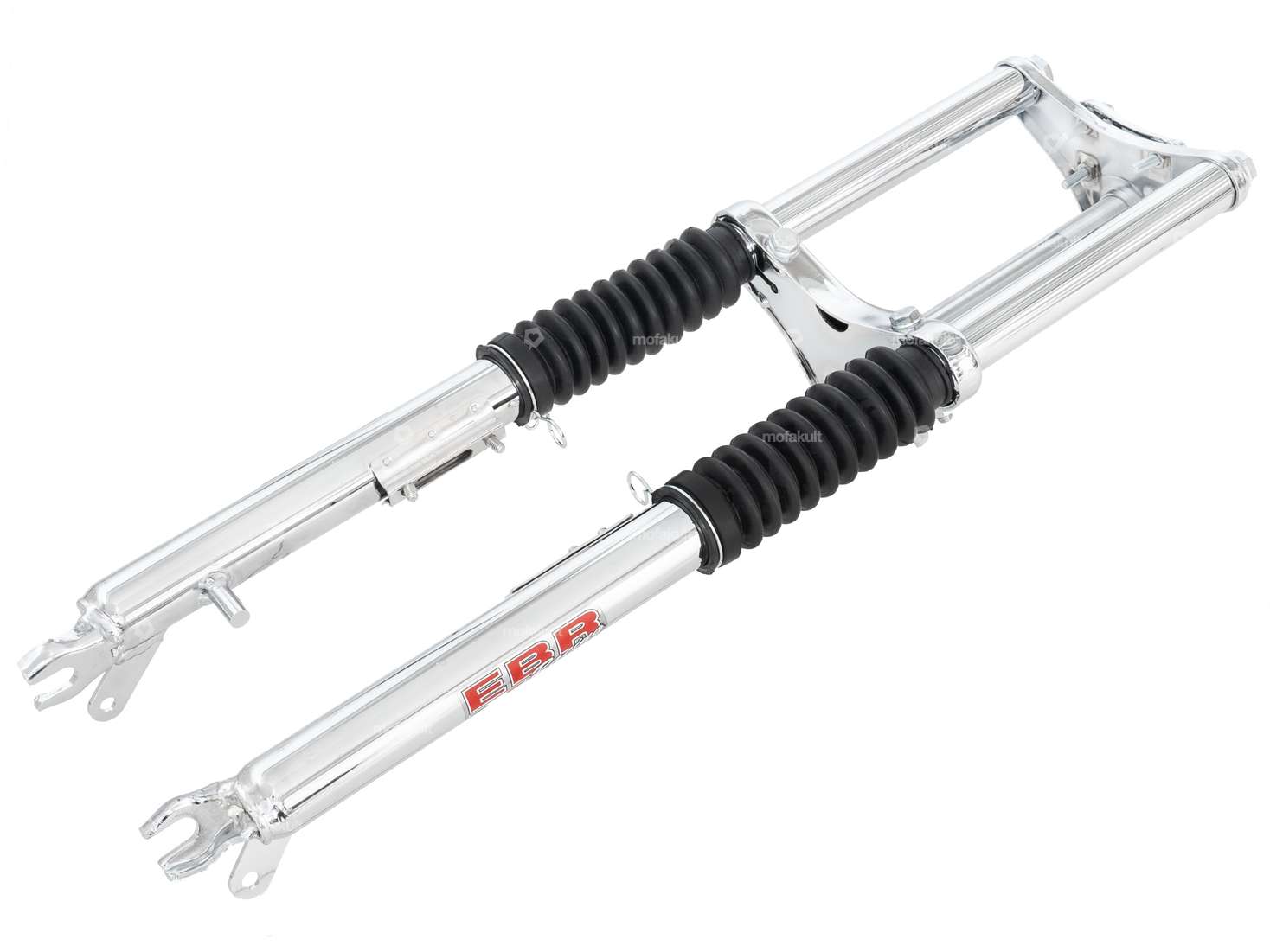

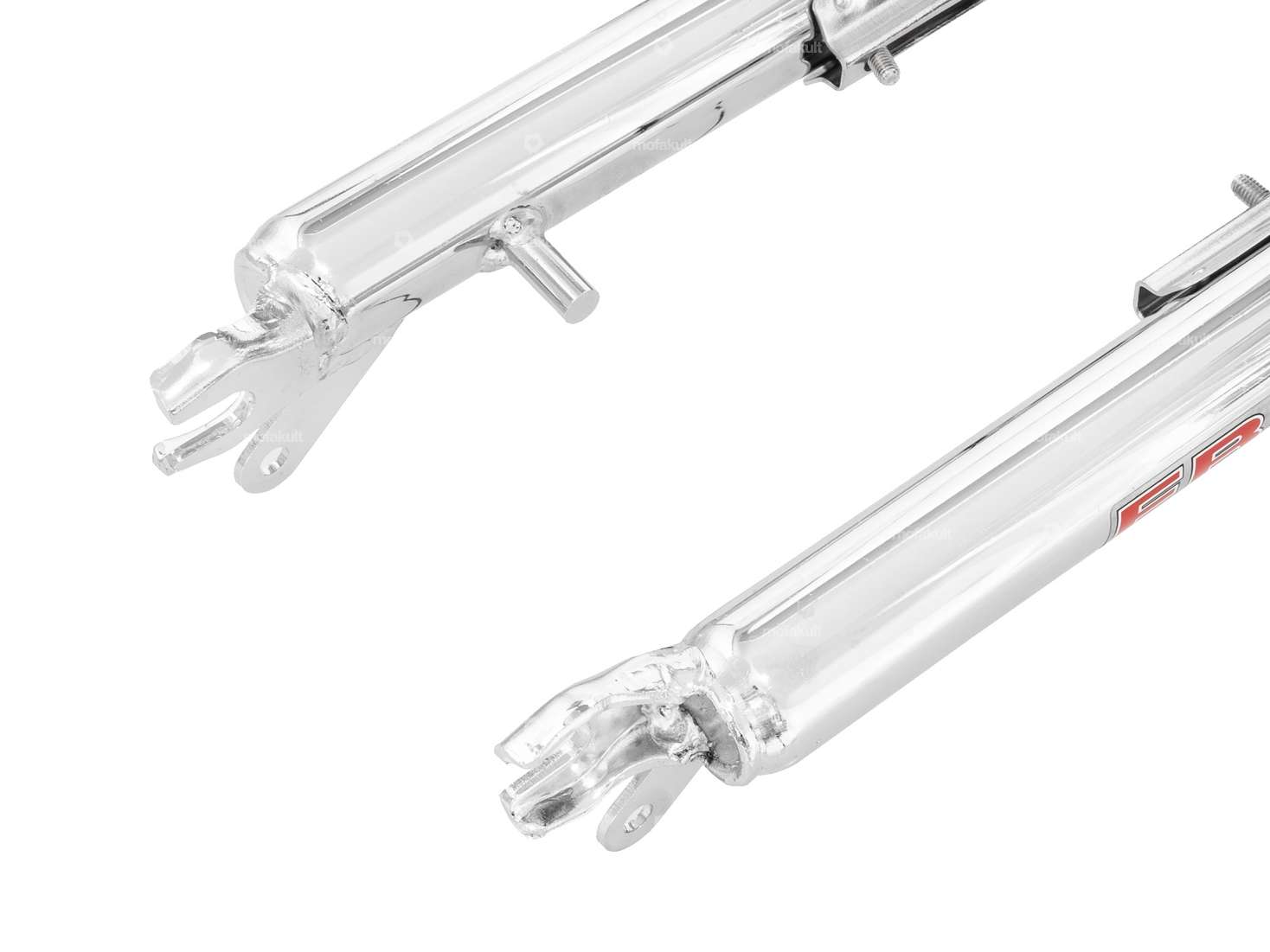

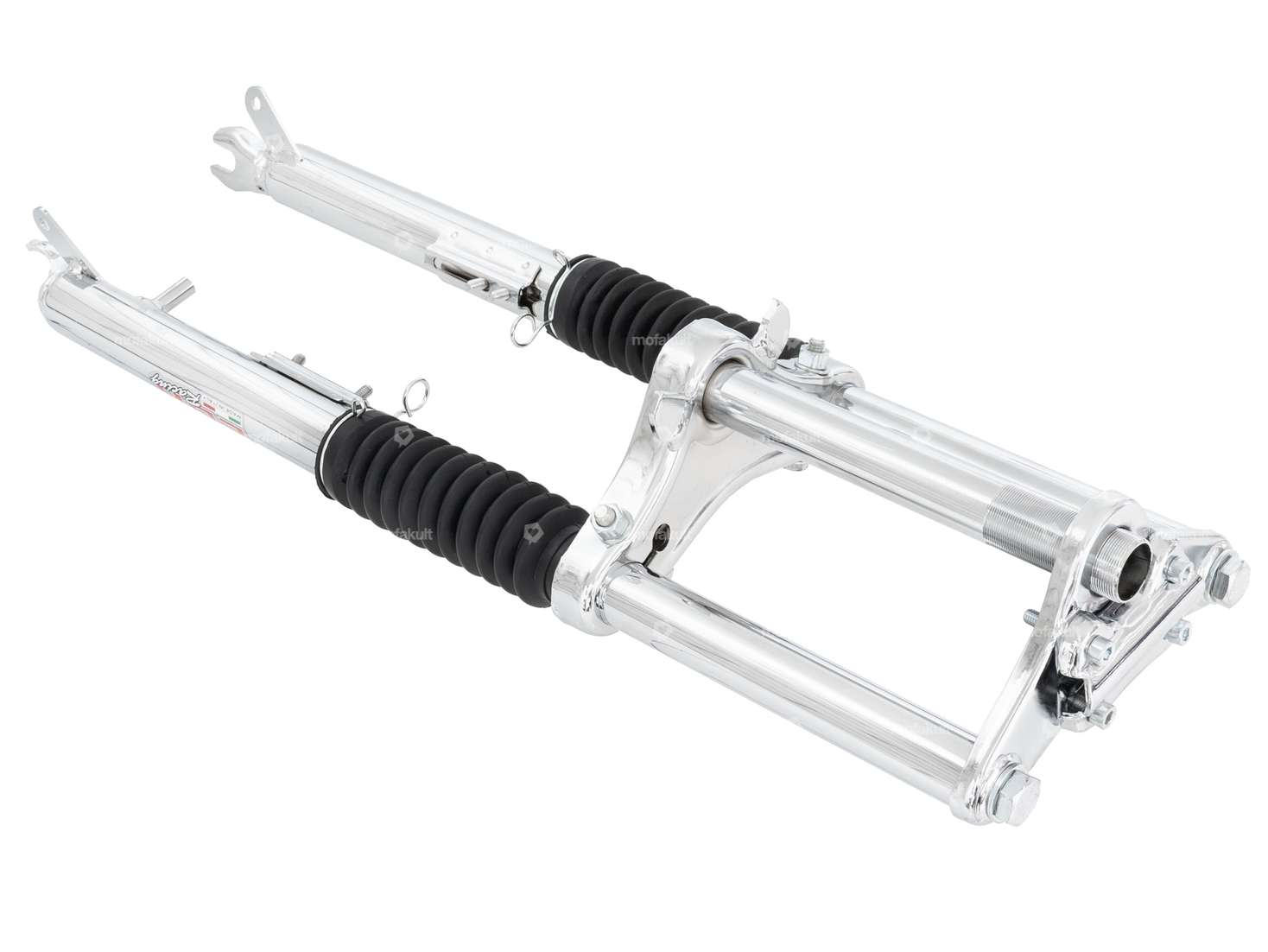

Chrome-plated EBR fork with reinforced bars suitable for various mopeds, mopeds and small motorcycles such as Hercules Prima, DKW, KTM, etc.
Check the dimensions beforehand to make sure that this fork fits your vehicle.
With clamp for attaching the handlebars to the fork plate.
The bolt for attaching the brake anchor plate is located on the right-hand side, 8 cm above the center of the wheel axle. The bolt has a length of 2.5 cm.
There are two M6 threaded bolts per fork leg to attach the mudguard. The distance between these bolts is adjustable and can be varied from 15 to 50 mm.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 19.5 cm
Length from center of wheel axle to lower edge of lower fork crown: 40 cm
Total length: 64 cm
Thread: M26x1
Thread length on head tube: 6 cm
Matching headset kits can be found in the accessories section.
Branded product of the Italian manufacturer EBR.
| Thread type | MF26x1 (fine pitch thread) |
| Manufacturer | EWC |
| Thread length | 58 mm |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Ø spars | 28 mm |
| Spar end distance (center-center) | 145 mm |
| Ø outer head tube | 26 mm |
| Ø head tube inside | 22.4 mm |
| Head tube length | 195 mm |
| Total length | 635 mm |
| Fork bridge - center wheel axle | 410 mm |
| Distance brake cam to wheel axle center-center | 80 mm |
| Sachs |
| DKW |
| Hercules |
