High-quality revision kit for the Bing SRF and 17 mm Bing SRE tuning carburetor with Ø23 mm connection dimension to the intake manifold. The revision kit is suitable for Puch Maxi, Puch X30 Sport NS/NL and Puch X30 Sport NG-2AH, Sachs 503 and other mopeds & mopeds which are originally equipped with a 17 mm SRF or have been retrofitted with a 17 mm SRF tuning carburetor.

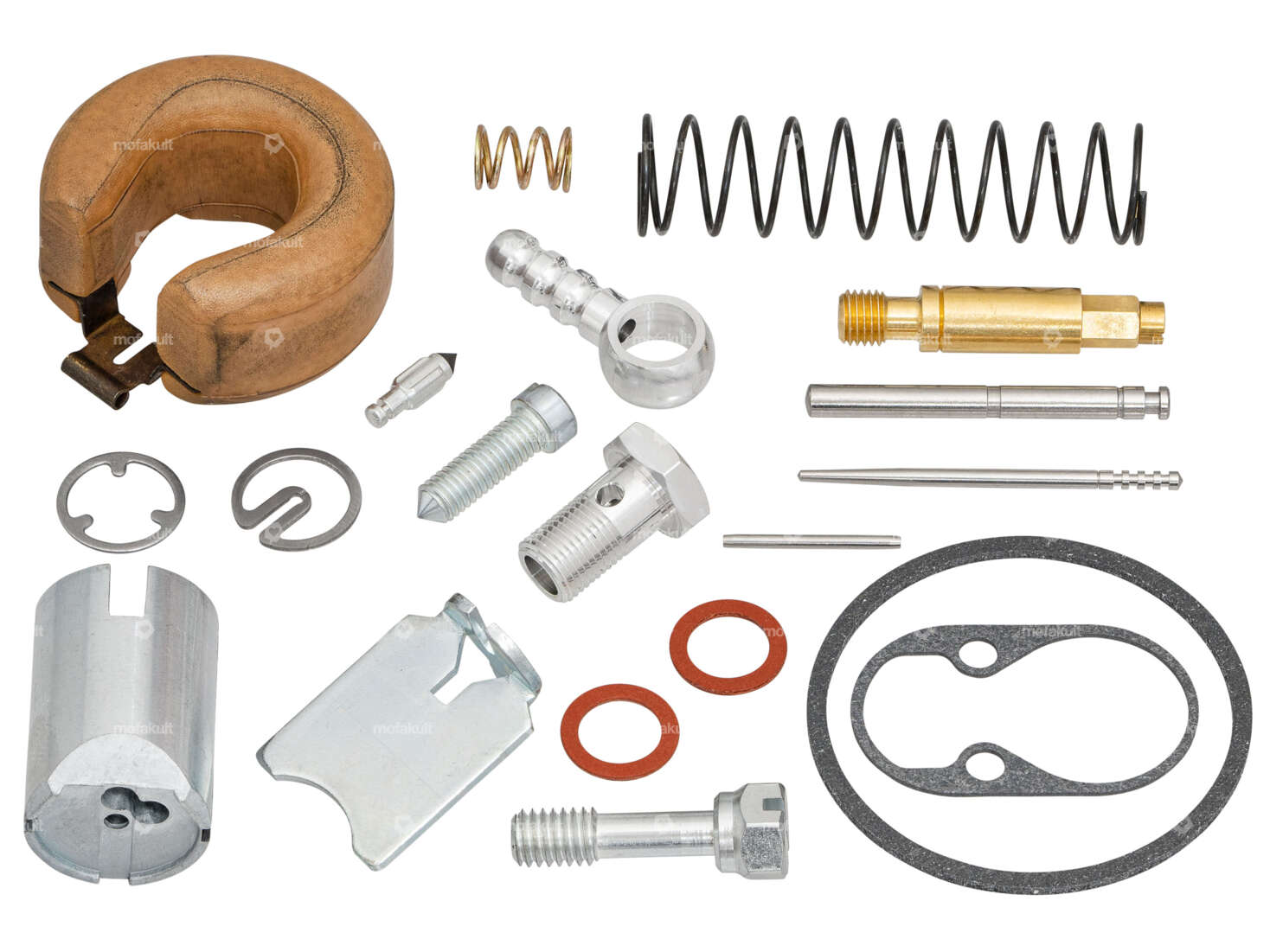

The following parts are included in the revision set:
- Float
- Float chamber sealing ring (sealing paper)
- Float needle
- Float axle
- Stand throttle screw & spring
- Start slide & choke pin (SRF)
- Float needle 39.5 mm (1 groove)
- Needle clip & spacer
- Gas slide (Ø 18.5 mm) & spring
- Carburetor cover gasket (SRF)
- Clamping screw M6 x 20 mm
- Senstock 2.20 (SRF) & gasket no. 74
- Swivel connection with screw and sealing rings
Attention: This revision set is only suitable for the Bing SRF & swiing SRF tuning carburetor with 17 mm (Ø 23 mm connection), which has the äusliche optics of the SRE and the slide tower of the SRF carburetor.
Nostalgic product for the highest demands of the swiing® quality brand.
| Manufacturer | swiing® revival parts |
| Material | Steel, Plastic, Brass, Sealing carton, Sealing paper, Aluminum, Spring steel |
| Component group Carburetor | Sealing, revising |
| Color | silver, black, brown |
| Surface | raw, blank |
| Carburetor type | SRF |
| Ø Passage | 17 mm |
| Universal |
| Puch |
| Sachs |
| Zündapp Belmondo |
