Special tool for clamping cylinders for mopeds, mopeds or small motorcycles on the lathe.
This boring tool is suitable for cylinders of Puch E50, Velux, NG-2AH, Sachs 503, 50/2 (DE) and 502 (CH) engines. A list of models can be found further down in the description.

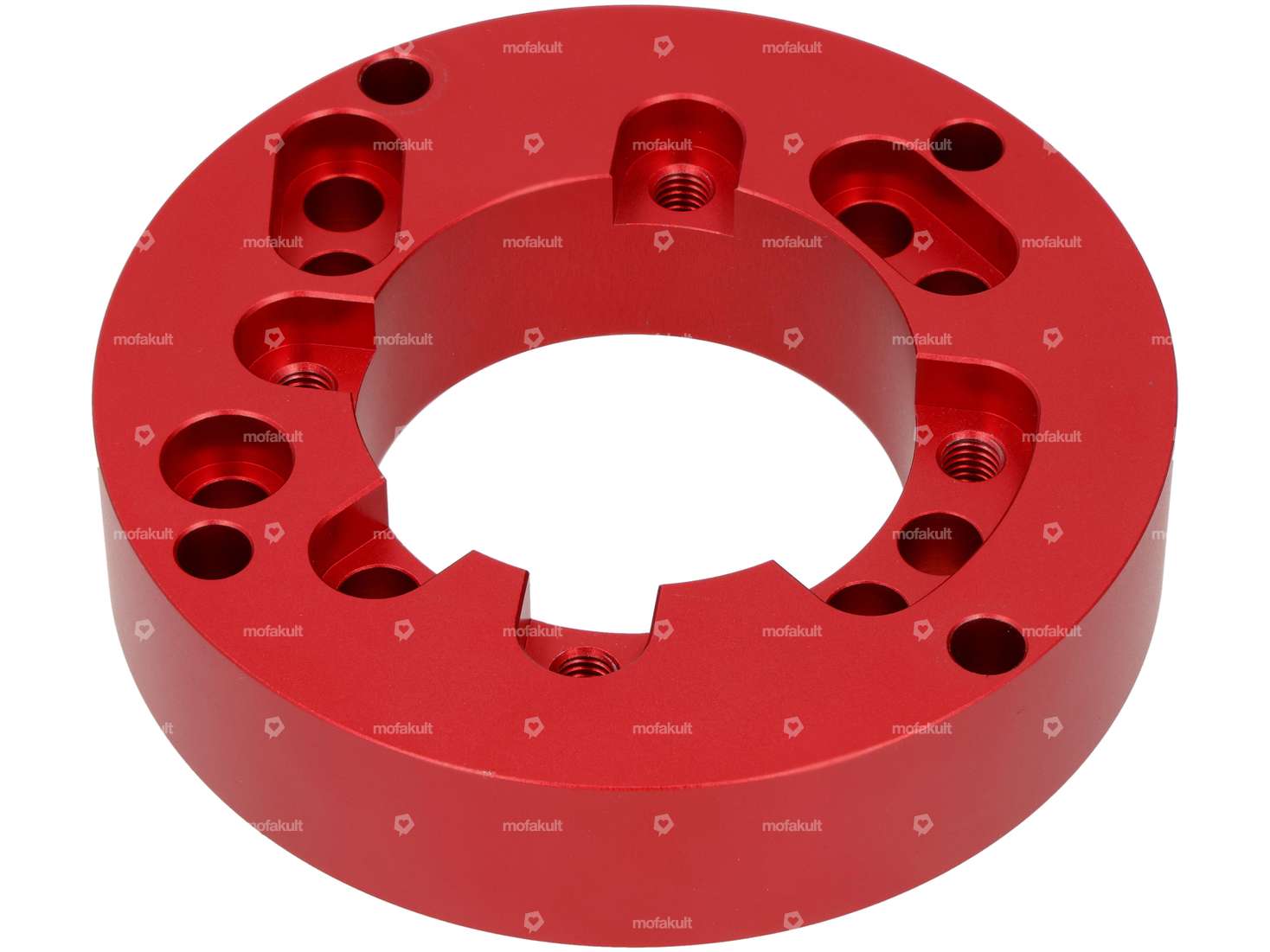

The base plate is mounted on the base using the screws supplied. The cylinder fixed in this way can then be easily unscrewed as required.

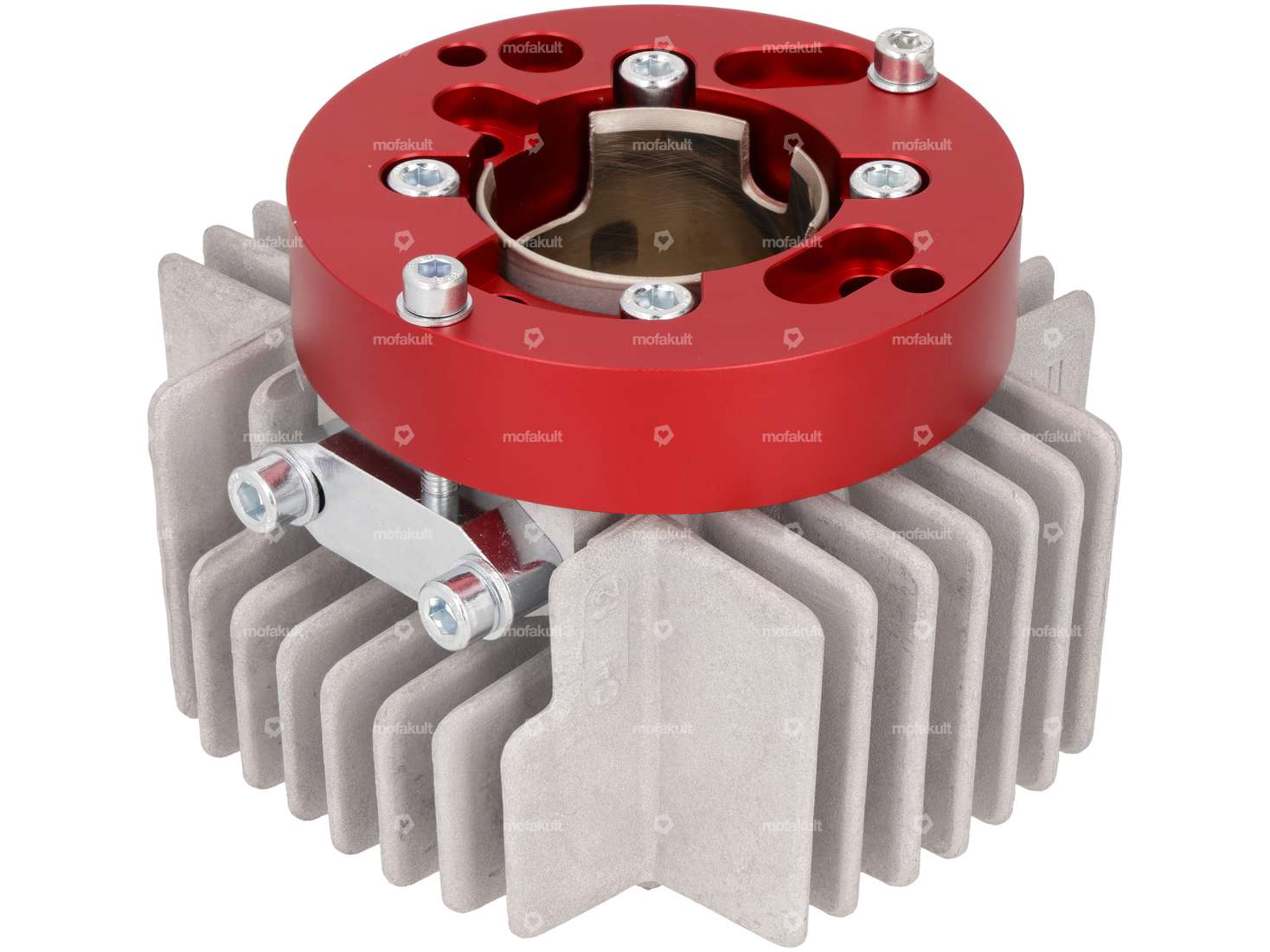

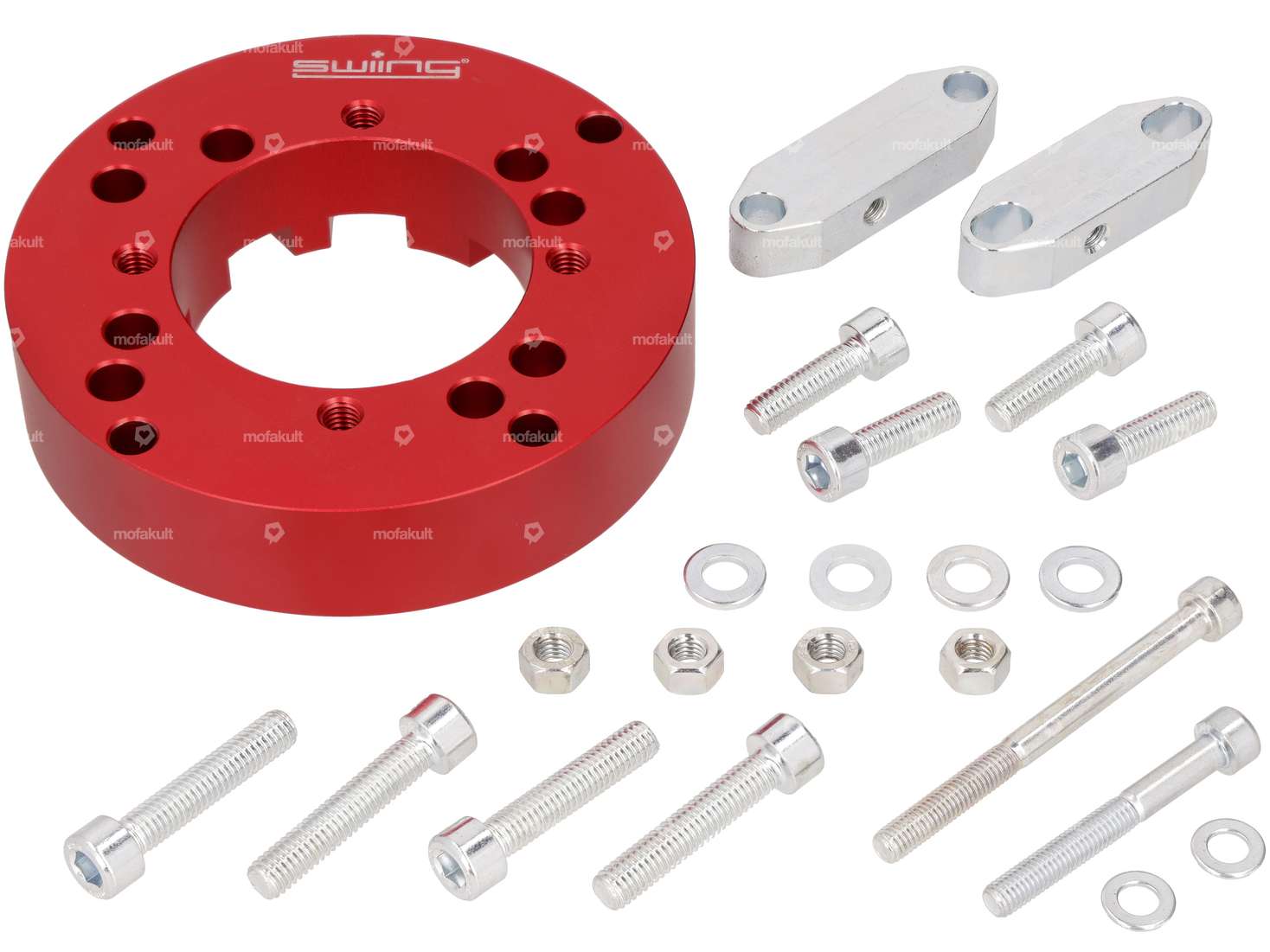

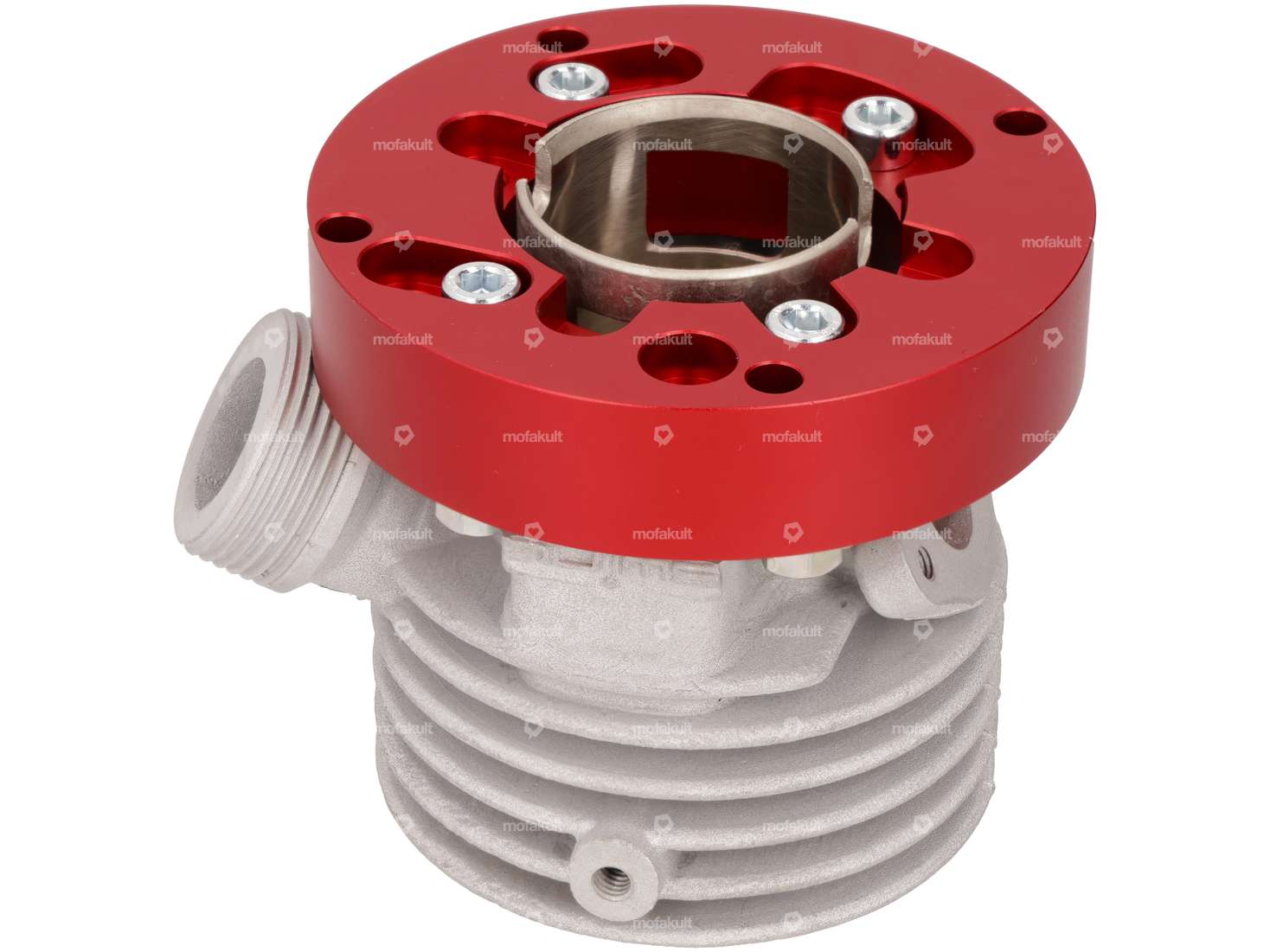

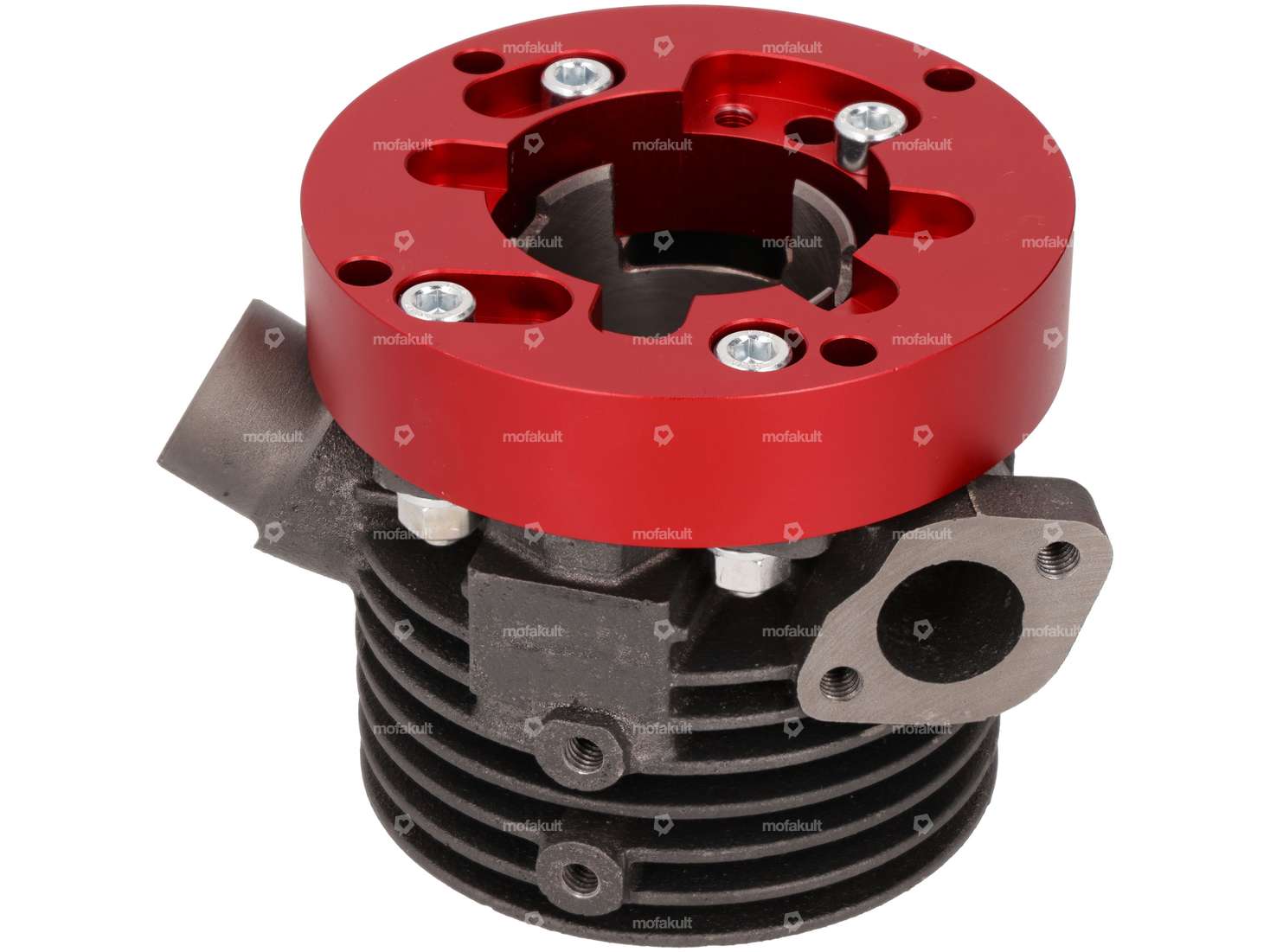

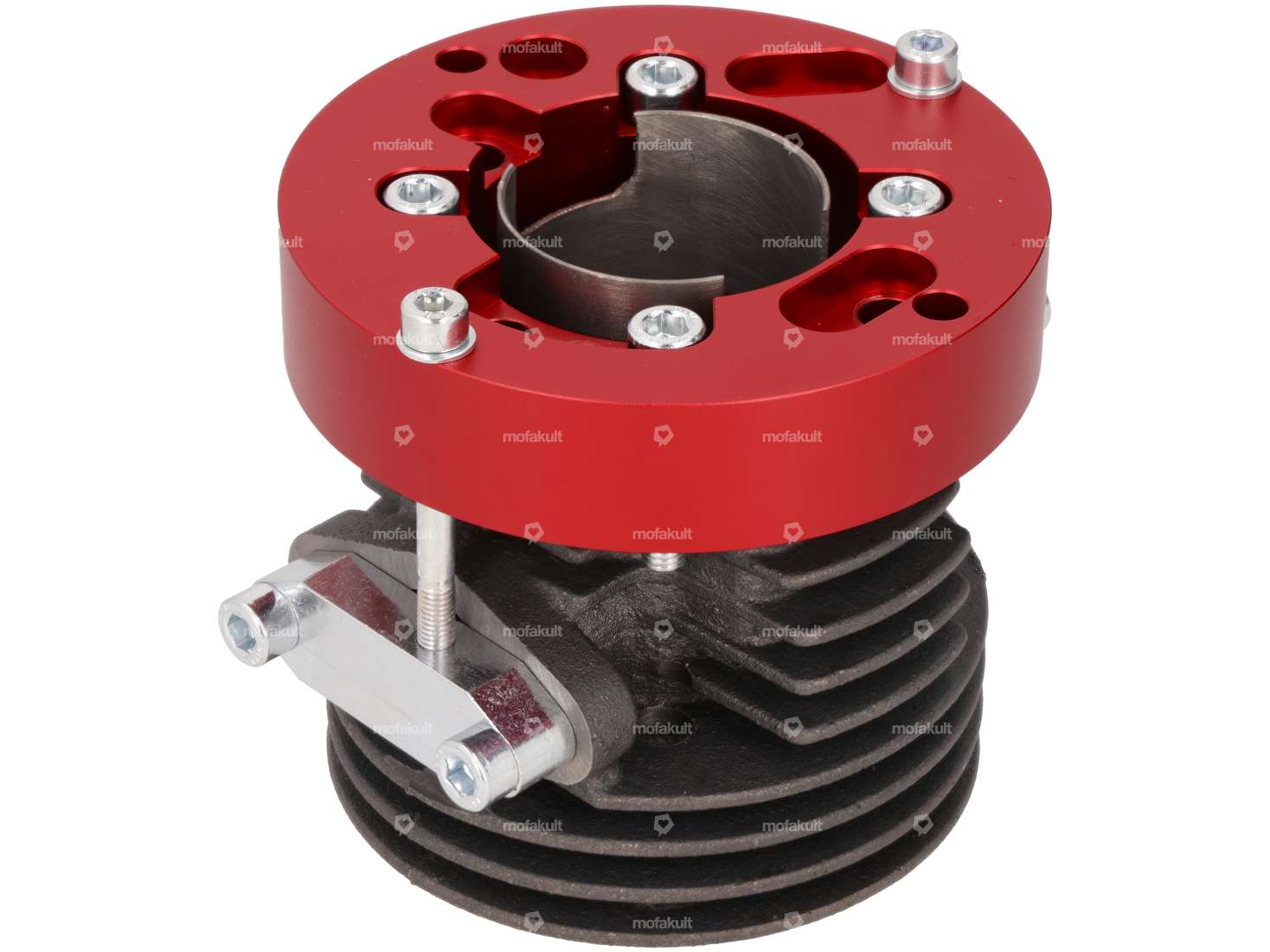

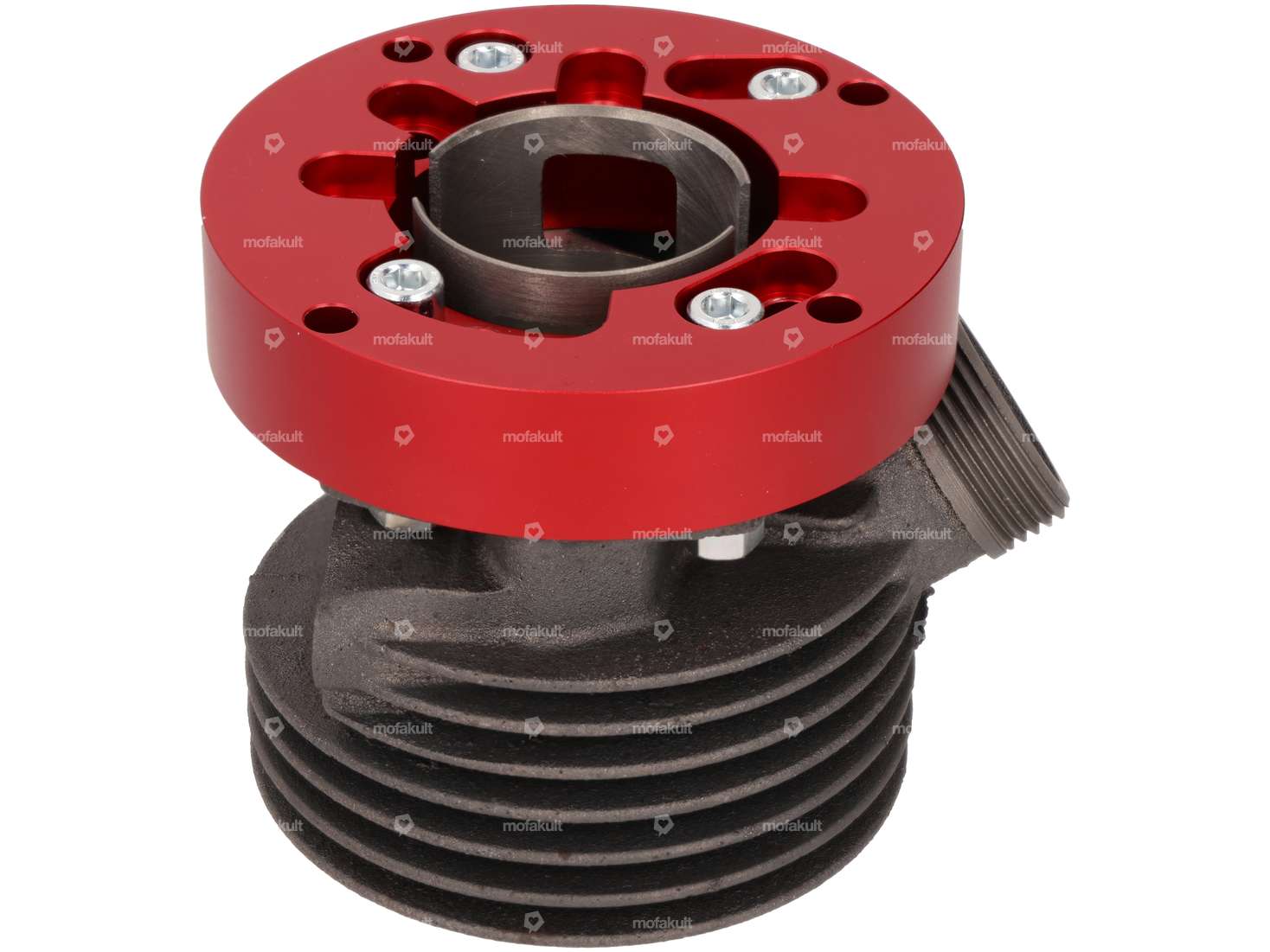

The scope of delivery corresponds to the first picture. The other photos are for illustrative purposes.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum, Steel |
| Surface | anodized, galvanized (blue) |
| Ø inside | 51.6 mm |
| Ø outside | 99 mm |
| Height | 22 mm |
| Number of components | 23 pcs |
Suitable for the following models
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL |
