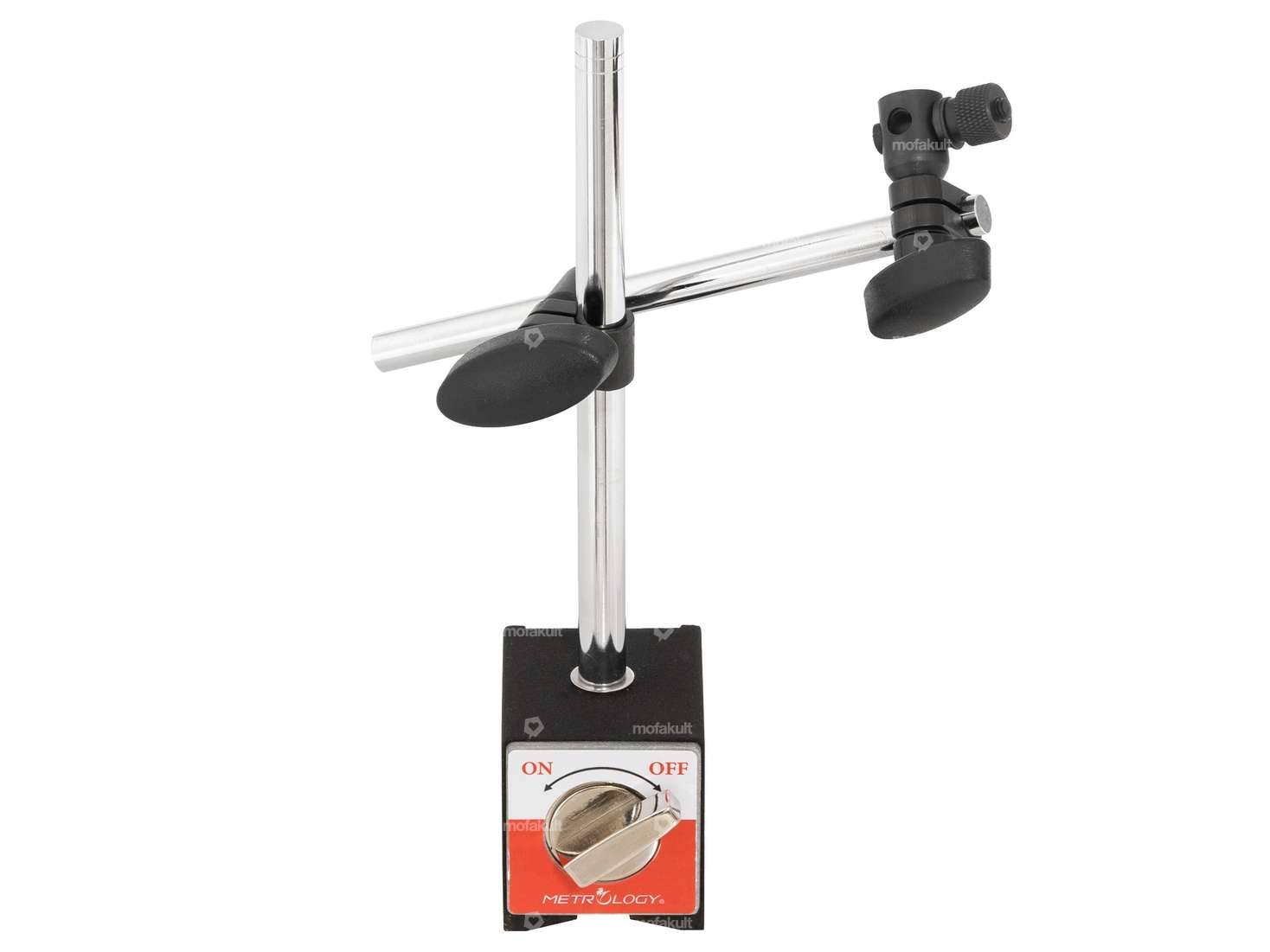

Magnetic base holder or measuring stand with prism base. Top quality at a low price!
The magnet can be switched on and off using the switch.

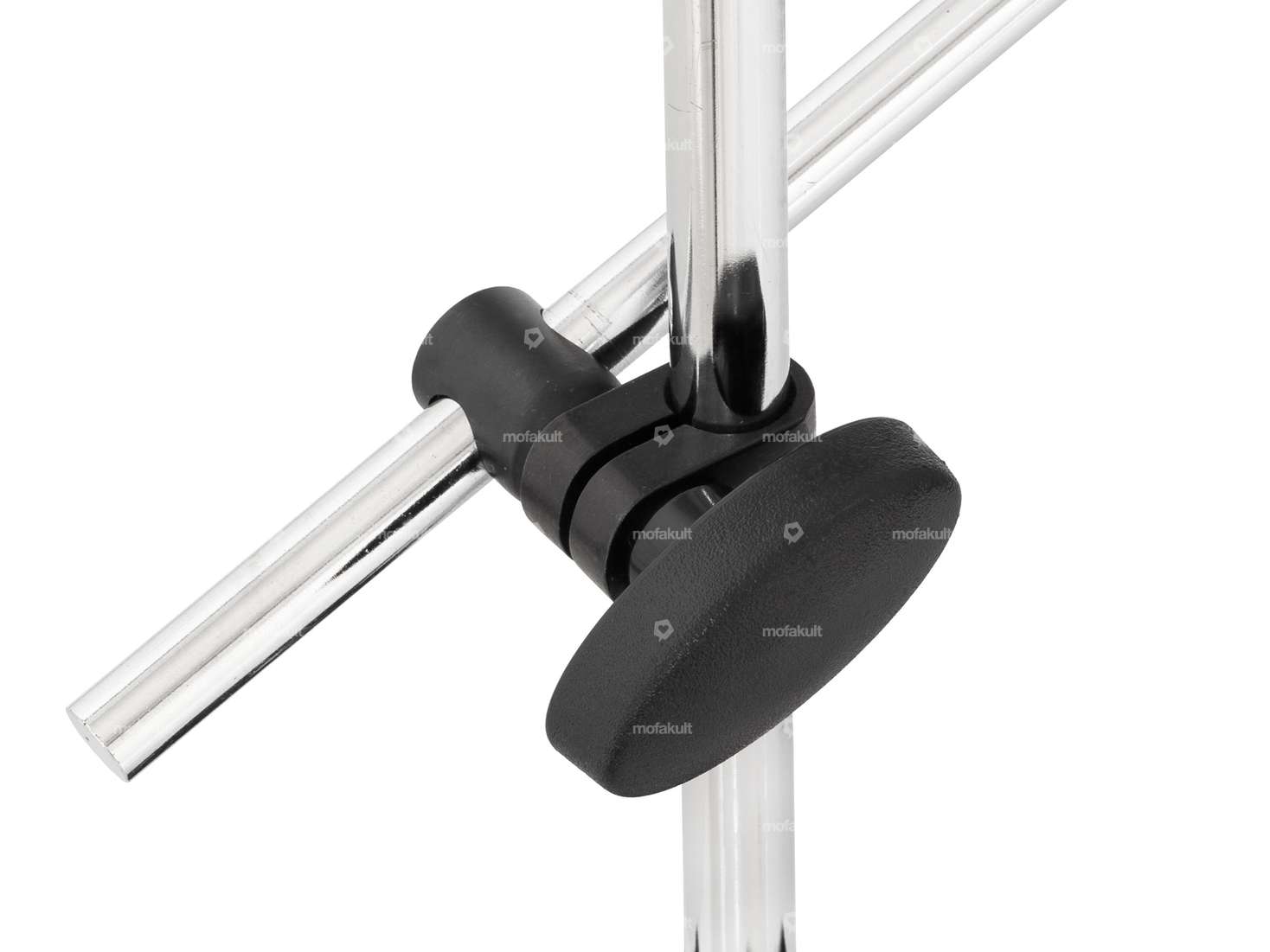

The three axes are freely adjustable.
The position of the holder can be centered without play.
Technical features:
Base height: 65 - 230 mm
Measuring column: Ø 12mm x 176 mm
Cross arm: Ø 10mm x 165 mm
Magnetic base dimensions: 63 x 55 x 50 mm

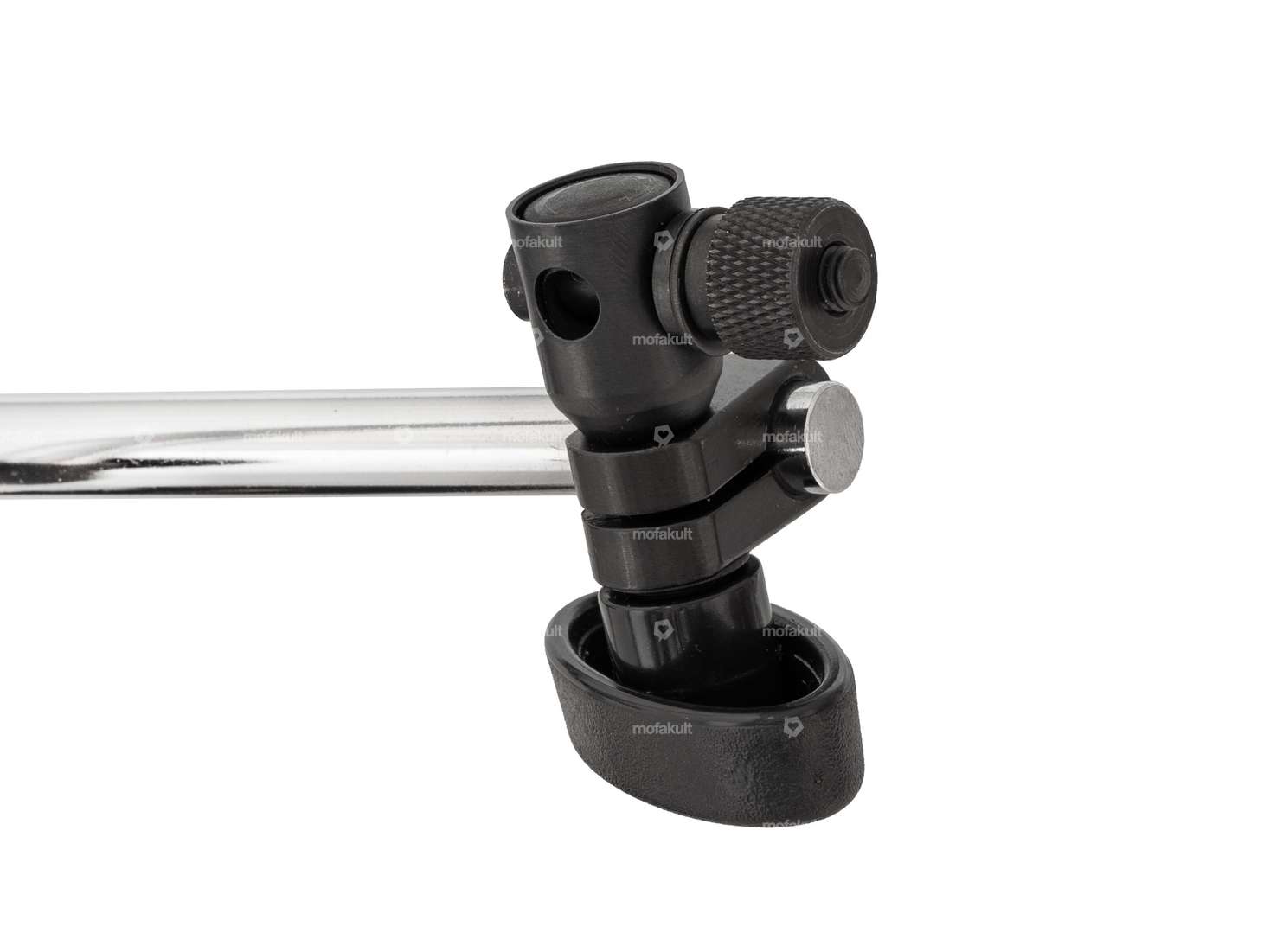

Mounting for dial gauge: Ø 6.5 & 8.0 mm
Carrying capacity: 6 kg
Suitable for Art. 18961.
| Ø Clamping shaft | 6.5 mm, 8 mm |
| Area of application | Measuring tool |
