For: Puch

28479

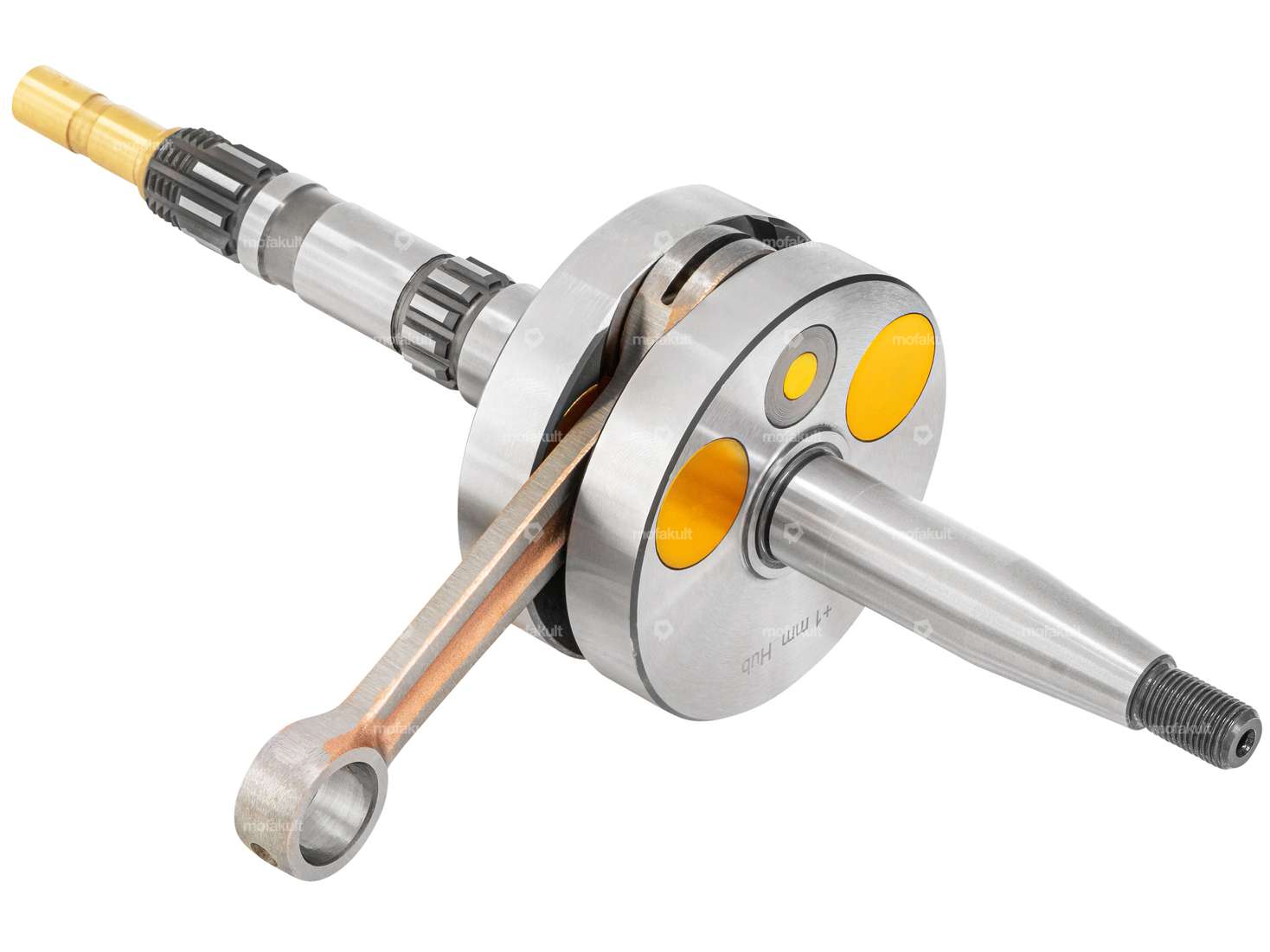

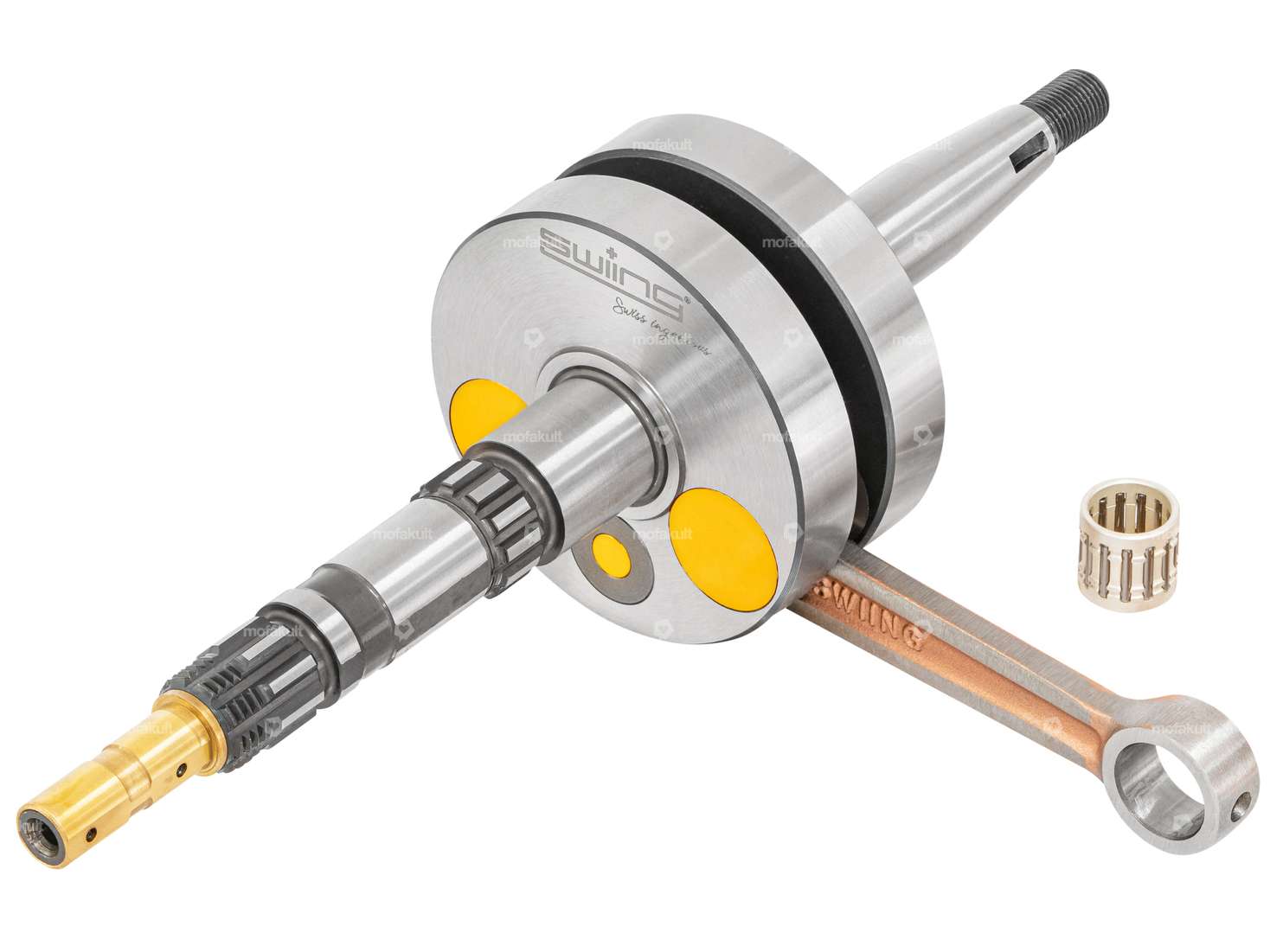

swiing® ingenious crankshaft "High End" (+1 mm stroke) 10.2 mm journal | Puch ZA50

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 264.50

Incl. 25.5% VAT.

Description

High-end racing crankshaft suitable for Puch Maxi S, Supermaxi LG2 and Puch X30 NG-2AH mopeds, which have a ZA50 engine installed.

Manufacturerswiing® ingenious parts
Cheek typeFull cheeks
Crankshaft stroke44 mm
Area of applicationRacing, High End
Connecting rod length center-center90 mm
Total length of crankpin on clutch side117.8 mm
Weight1064 g
Total length crankpin ignition side79.5 mm
Ø crank webs69.9 mm
Ø piston pin (B)12 mm
Ø Connecting rod eye15 mm
Ø Bearing seat (clutch side)20 mm
Ø Bearing seat (ignition side)17 mm
Thread typeMF10x1 (fine pitch thread)
Dimension needle bearing12 / 15 x 14.2 mm (axe 12)
Wide crank webs34 mm
Ø 1st step (on the coupling side)20 mm
Ø 2nd shoulder (on the clutch side)16.4 mm
Ø 3rd step (on the clutch side)10.2 mm
Puch OEM number321.3.10.615.0
Puch

ZA50 (air-cooled)

ZA50 (fan-cooled)
