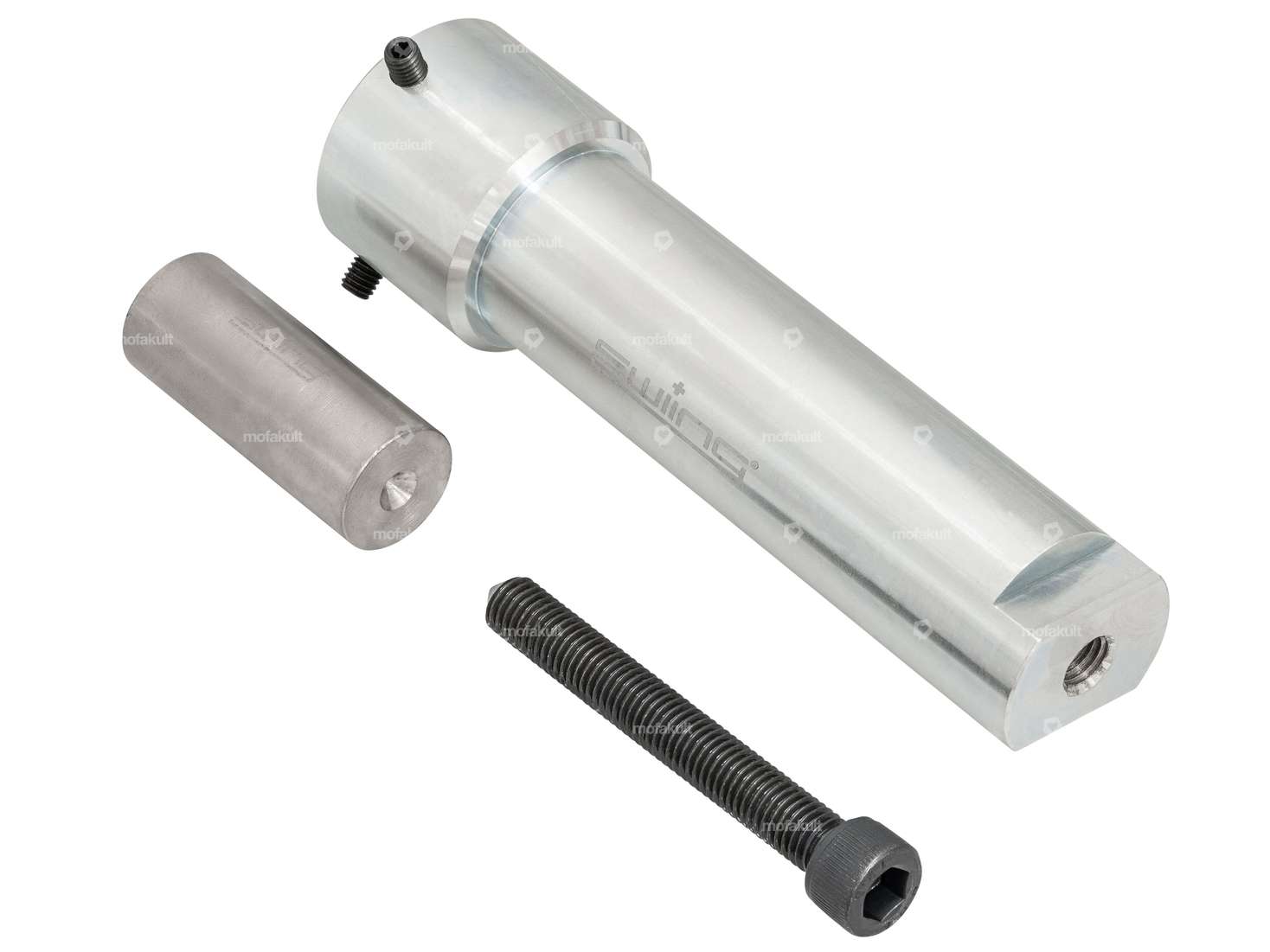

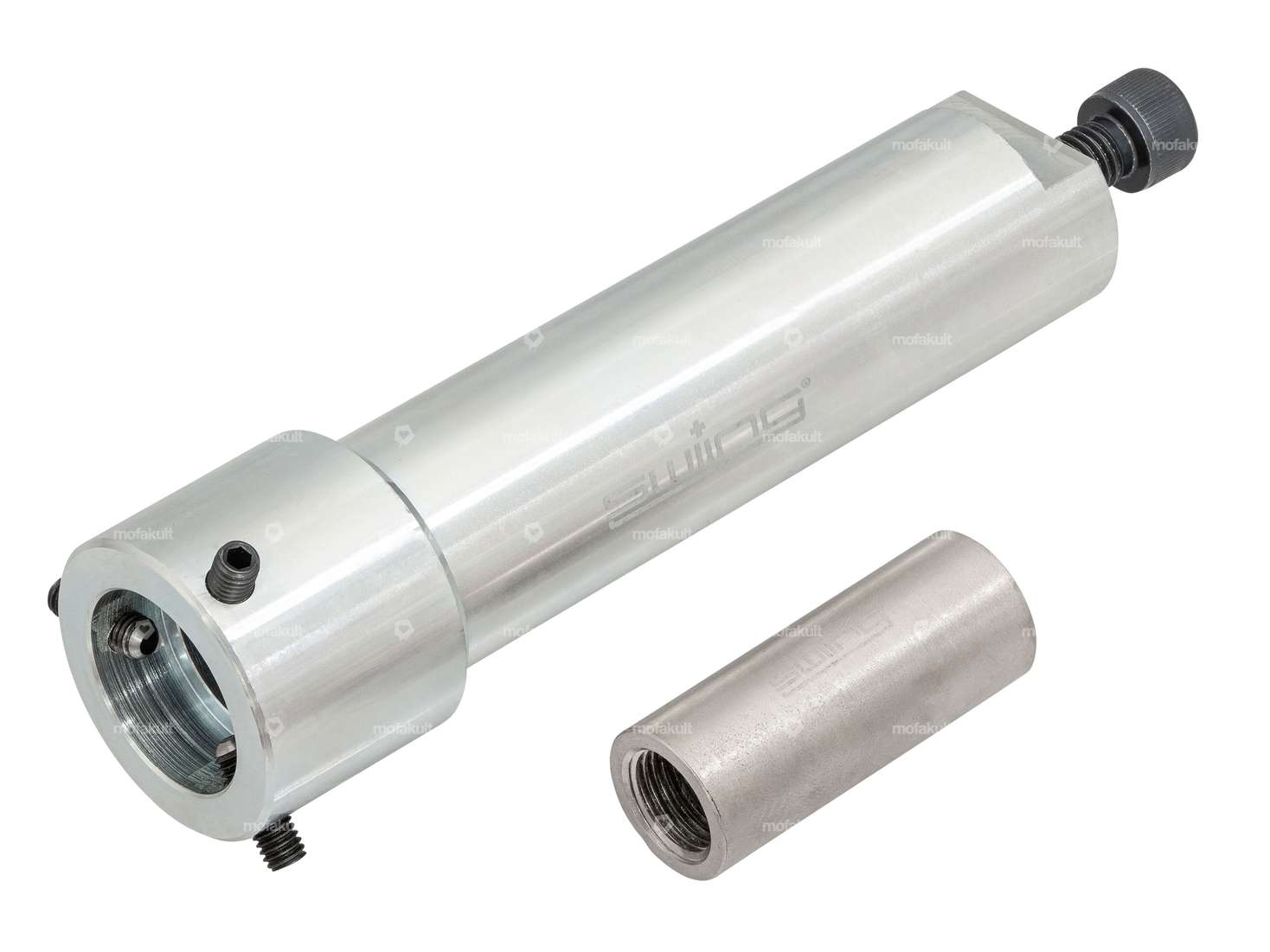

Bearing puller for E20 shoulder ball bearings.
These shoulder bearings were installed on Puch X30 NG-2AH, X30 N-2AH, Puch Maxi S-2A and Puch Supermaxi LG2 mopeds with ZA50 engines, among others.
The inner ring is fixed in place with the three grub screws and pulled off the crankshaft using the top screw.
Ø inner (bearing): 29 mm
Ø inner (bore): 23 mm
Ø outer (bearing): 29 mm
Ø outer (bore): 43 mm
Ø outer (protective sleeve): 21.8 mm
Depth of bearing mount: 12 mm
Total length: 200 mm
Length of protective sleeve: 54.7 mm
To protect the crankshaft, the enclosed threaded bush is screwed onto the crankshaft.
Exceptional product for the highest demands of the quality brand swiing®.
| Width across flats (trigger) | 22 mm |
| Width across flats Screw | 8 mm |
| Manufacturer | swiing® ingenious parts |
| Clamping depth | 12 mm |
| Peel-off tray | E20 |
| Area of application | (Dis)assembly tool |
| Material | Steel |
| Thread type | M10x1.5 (standard thread) |
| Number of components | 2 pcs |
| Surface | galvanized (blue) |
| Universal | |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
