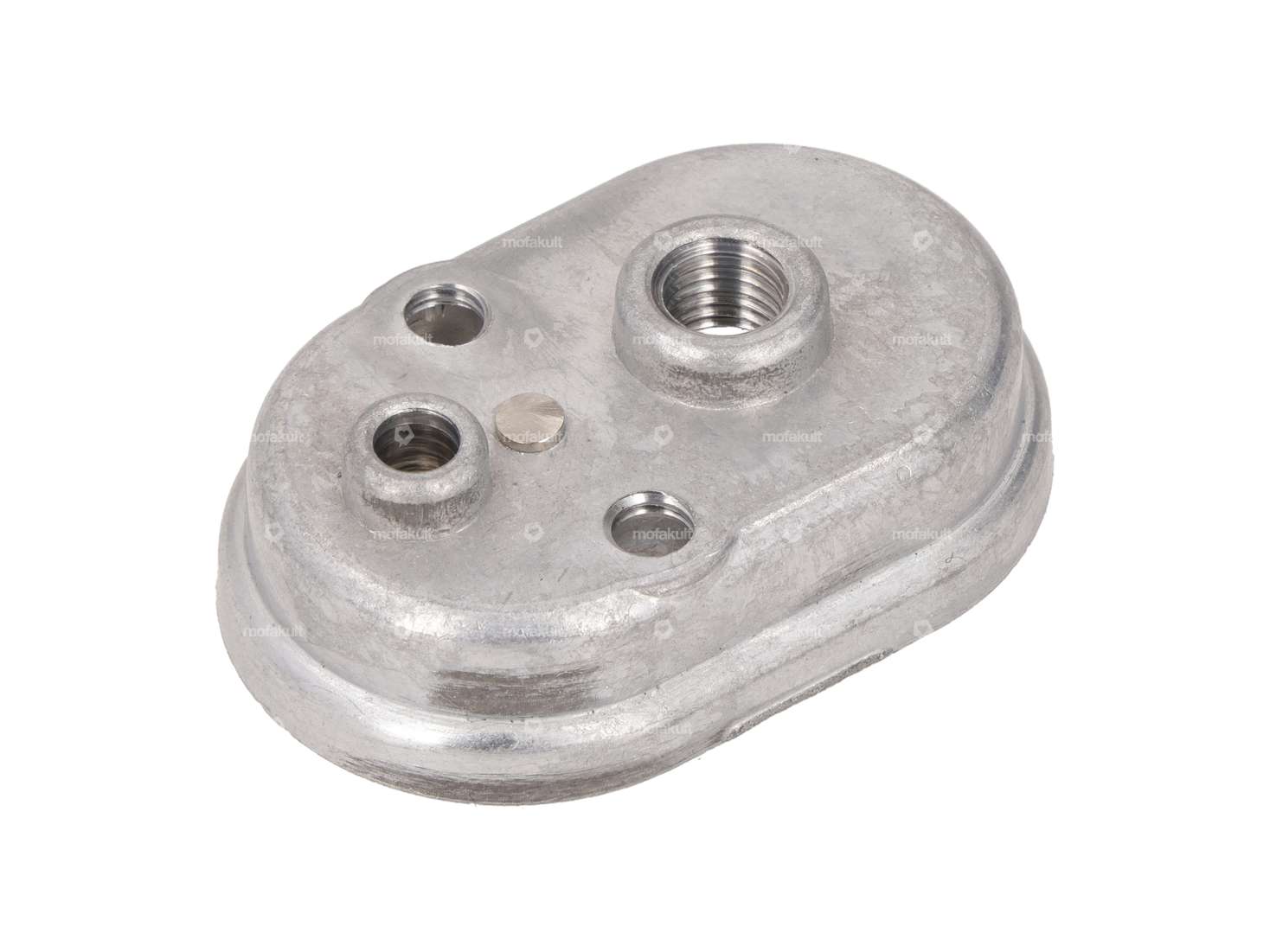

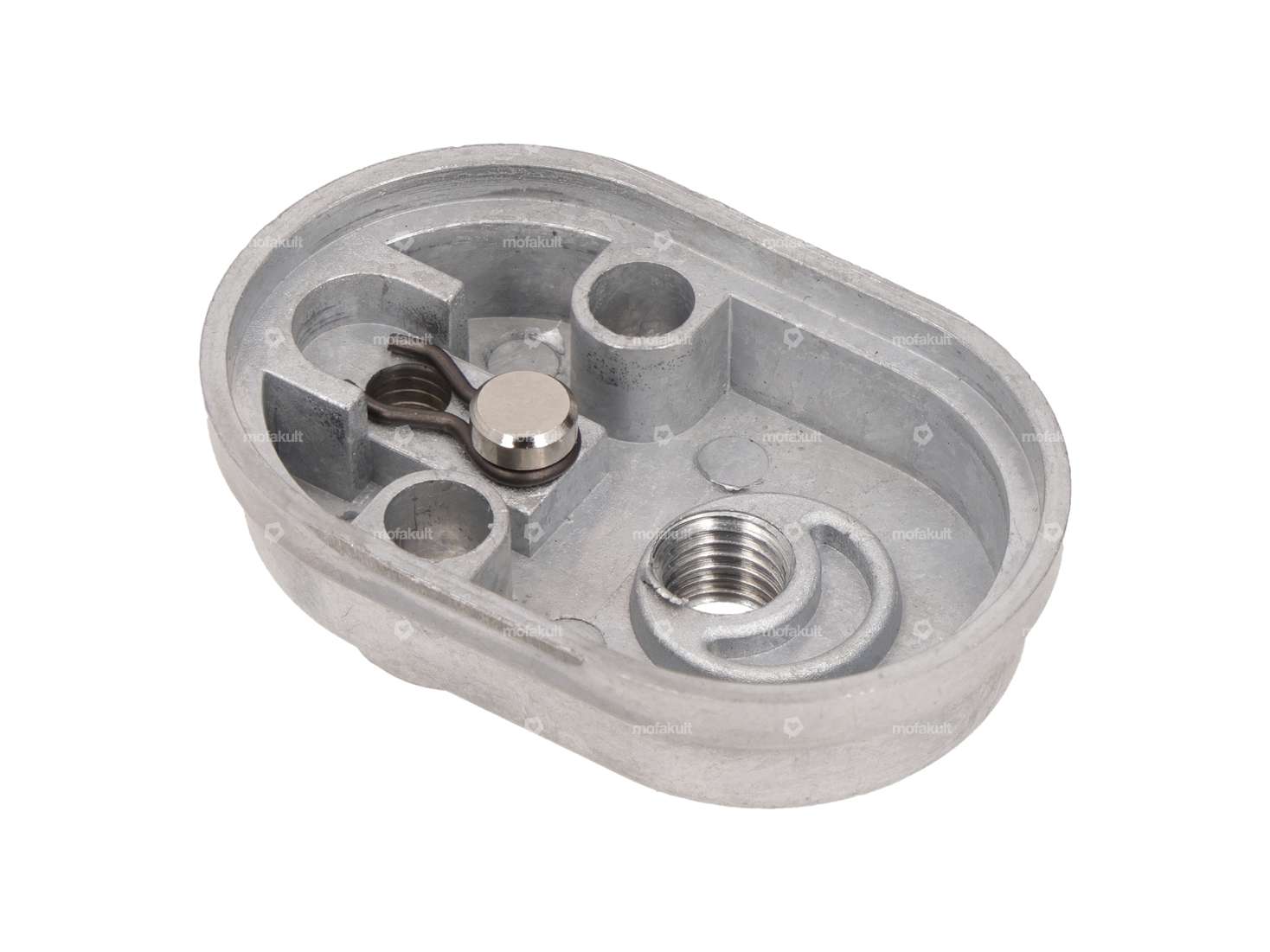

swiing® ingenious carburetor cover Bing SRF

swiing® revival screw M4x14 cover Bing

Manufacturer: swiing® revival parts · Thread type: M4x0.7 (standard thread) · Total length: 14 mm · Drive: Slot · Shank: Yes · Pony OEM number: A4591 · Sachs OEM no.: 0962 064 000

BING nozzle needle Bing SRF (two grooves)

Manufacturer: BING · Component group Carburetor: Spraying · Carburetor type: SRF · Ø outside: 2 mm · Total length: 39.5 mm · Number of grooves (needle designation): 2 pcs · Number of notches (needle clip): 4 pcs

BING Gas valve Bing SRF No. 2

Nipple shape: Cylinder · Manufacturer: BING · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: SRF · Ø outside: 18.5 mm · Slider type: 2 · Height: 26.5 mm

BING Carburetor cover Bing SRF

Manufacturer: BING · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: SRF · Total length: 37.5 mm · Width: 25 mm

BING seal Bing SRF cover

Manufacturer: BING · Material: Sealing paper · Component group Carburetor: Sealing, revising · Carburetor type: SRF · Total length: 35 mm · Width: 22 mm

BING Start slide Bing SRF carburetor

Manufacturer: BING · Material: Steel · Component group Carburetor: Choke control · Surface: galvanized (yellow) · Choke control: Hand choke · Carburetor type: SRF · Width: 19 mm · Height: 25 mm

BING pin for start slide Bing SRF carburetor

Manufacturer: BING · Ø outside: 3.5 mm · Total length: 38 mm

BING nozzle needle Bing SRF (one groove)

Manufacturer: BING · Component group Carburetor: Spraying · Carburetor type: SRF · Ø outside: 2 mm · Total length: 39.5 mm · Number of grooves (needle designation): 1 pcs · Number of notches (needle clip): 4 pcs

swiing® ingenious 17 mm SRF carburetor tuning camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Nominal diameter: 17 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Choke control: Hand choke · Total length: 65 mm · Width: 47 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 5 mm · Height: 89 mm · Height: 109 mm · Ø Inside entrance: 17 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø Internal connection: 23 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Camouflaged: Yes · Nozzle size: 74 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® ingenious 17 mm SRF carburetor tuning camouflaged | Sachs 503, Puch Velux

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Nominal diameter: 17 mm · Choke control: Hand choke · Carburetor type: SRF · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 5 mm · Nozzle size: 74 · Ø Inside entrance: 17 mm · Ø Output inside: 17.1 mm · Total length: 61.5 mm · Ø Air filter connection: 23 mm · Ø Internal connection: 23 mm · Width: 47 mm · Mixed oil connection: No · Height: 89 mm · Height: 112 mm · Vacuum connection: No · Mounting type: Plug connection clamped · Nozzle block: 2.2 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Area of application: Tuning

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Nut M12x1 x 10 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Width across flats SW: 19 mm · Thread depth: 10 mm · Thread type: MF26x1 (fine pitch thread) · Height: 10 mm · Strength class: 8 · Area of application: Standard

GPO 70° carburetor pipe bend M6x0.75

Manufacturer: GPO · Width across flats nut: 8 mm · Material: Brass · Component group Carburetor: Adjusting screws, float, etc. · Ø outside: 6 mm · Thread type: MF6x0.75 (fine pitch thread) · Total length: 35 mm · Total length: 41.5 mm · Internal thread: M5x0.8 (standard thread) · Height: 36 mm · Height: 37 mm · Angle: 70 °

swiing® revival 80° carburetor pipe bend M6x0.75

Manufacturer: BING · Manufacturer: swiing® revival parts · Component group Carburetor: Adjusting screws, float, etc. · Material: Brass · Thread type: MF6x0.75 (fine pitch thread) · Surface: nickel-plated · Total length: 41.5 mm · Total length: 50 mm · Height: 35 mm · Internal thread: MF5x0.75 (fine pitch thread) · Ø outside: 6 mm · Angle: 80 ° · Width across flats nut: 7 mm · Width across flats nut: 8 mm

BING seal Bing SRF cover

Manufacturer: BING · Material: Sealing paper · Component group Carburetor: Sealing, revising · Carburetor type: SRF · Total length: 35 mm · Width: 22 mm

Domino cable holder Ø 9 x 13 mm

Manufacturer: Domino · Material: Aluminum · Ø outside: 7.9 mm · Total length: 13 mm · Ø Bundle: 9 mm

GPO wheel clamp 12 mm cranked solid (per piece) black

Manufacturer: GPO · Material: Steel · Surface: burnished · Color: black · Ø outside: 23.5 mm · Thread type: M6x1 (standard thread) · Ø inside: 13.15 mm · Thread length: 36 mm · Total length: 76 mm · Cranking (offset): 6 mm

swiing® revival 90° carburetor pipe bend M6x0.75

Manufacturer: swiing® revival parts · Component group Carburetor: Adjusting screws, float, etc. · Material: Brass · Thread type: MF6x0.75 (fine pitch thread) · Surface: nickel-plated · Total length: 40 mm · Total length: 49 mm · Height: 32 mm · Internal thread: MF5x0.75 (fine pitch thread) · Ø outside: 6 mm · Angle: 90 ° · Width across flats nut: 7 mm · Width across flats nut: 8 mm

swiing® revival stud bolt cylinder base M6x26 - 10.9 strength | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.8 mm · Thread length: 9 mm · Thread length: 13 mm · Total length: 26 mm · Strength class: 10.9
