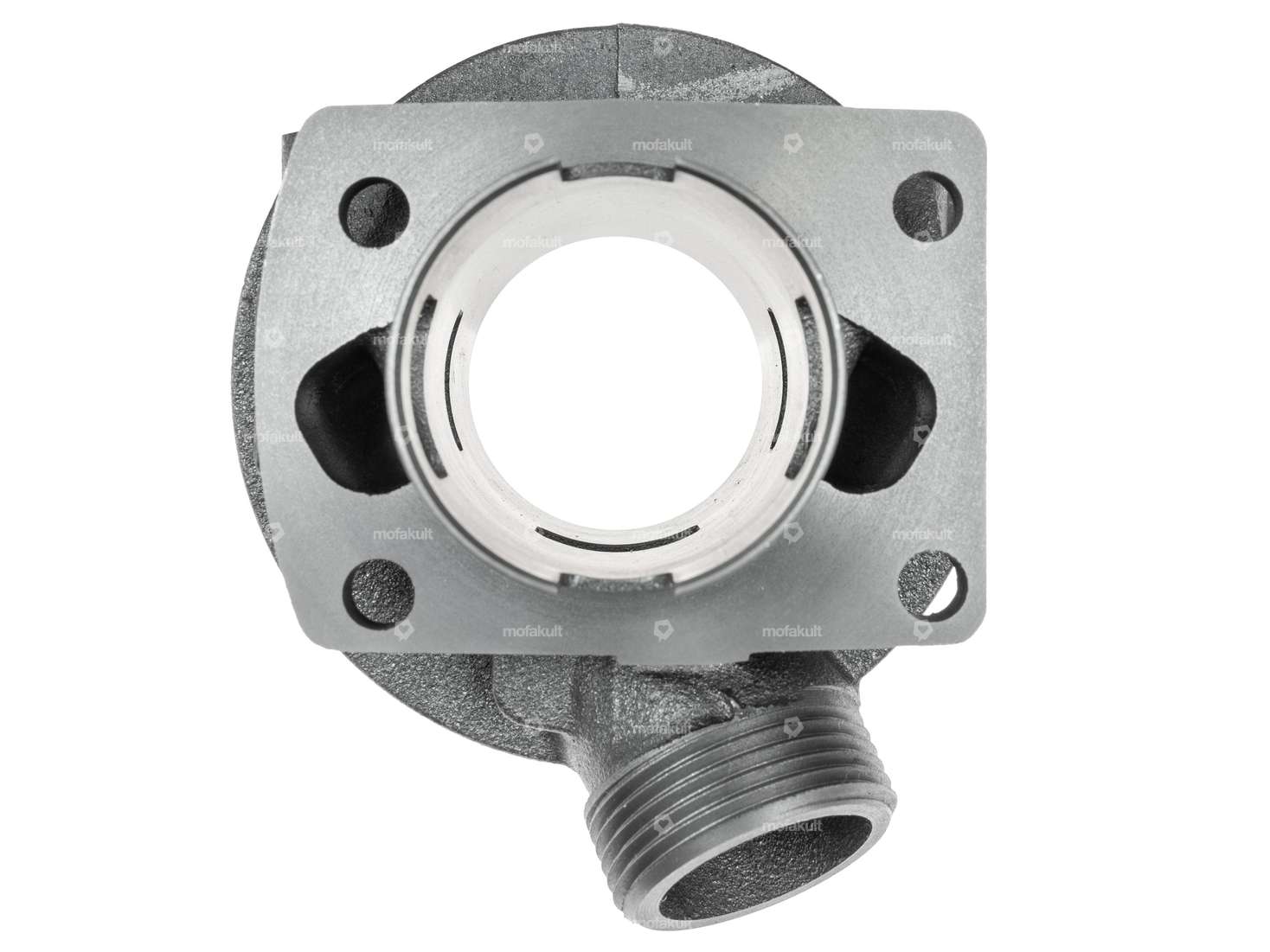

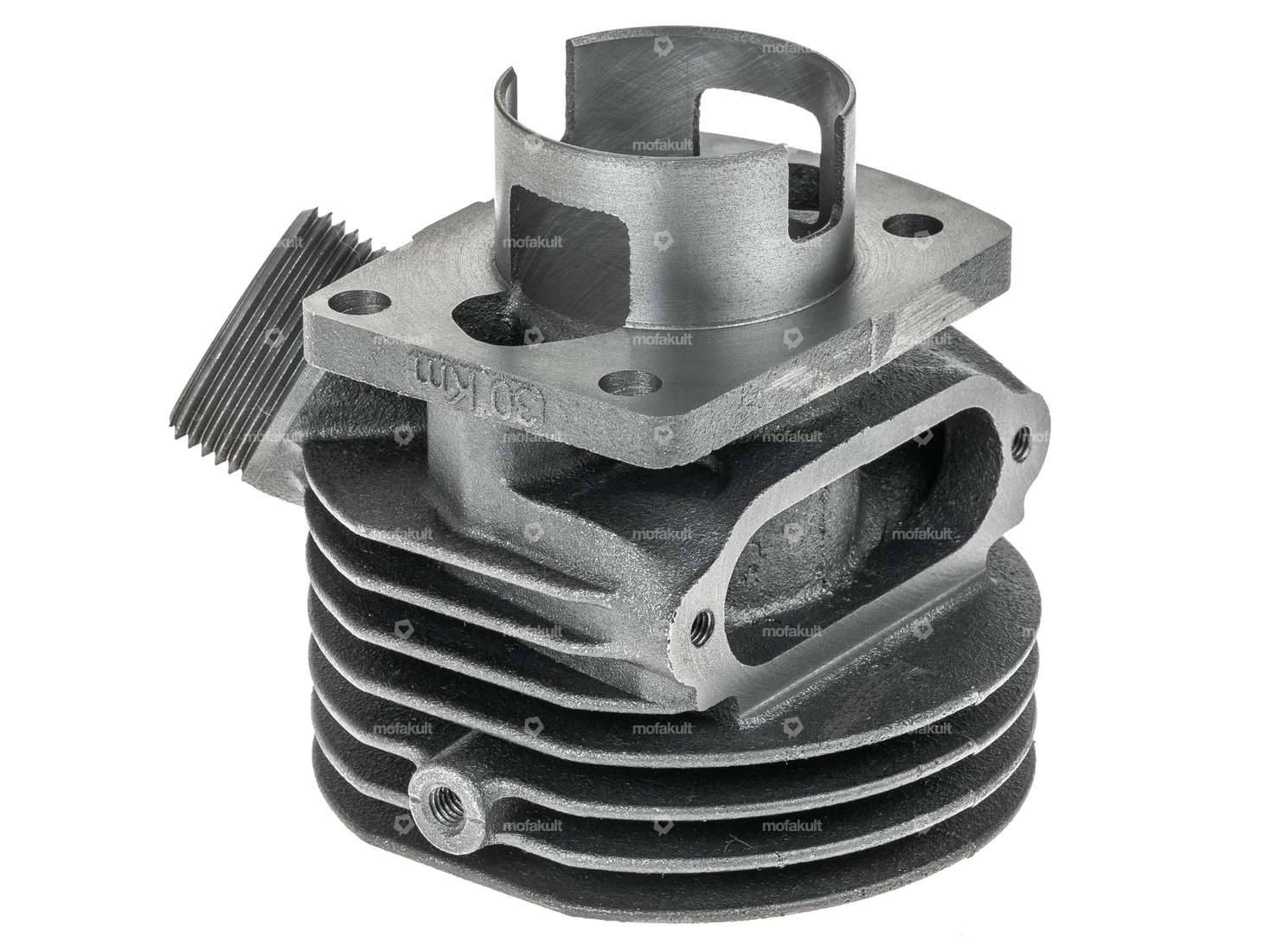

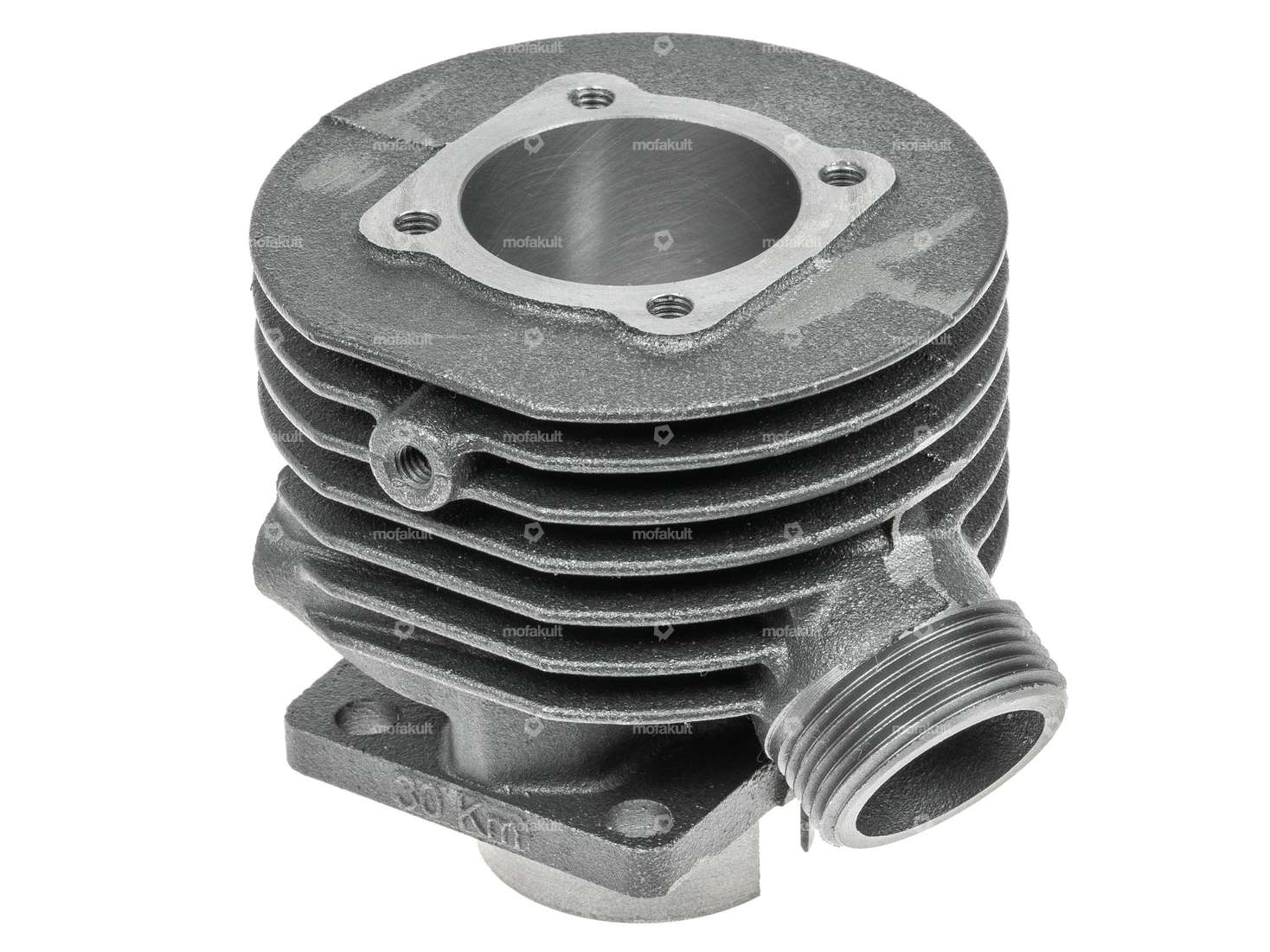

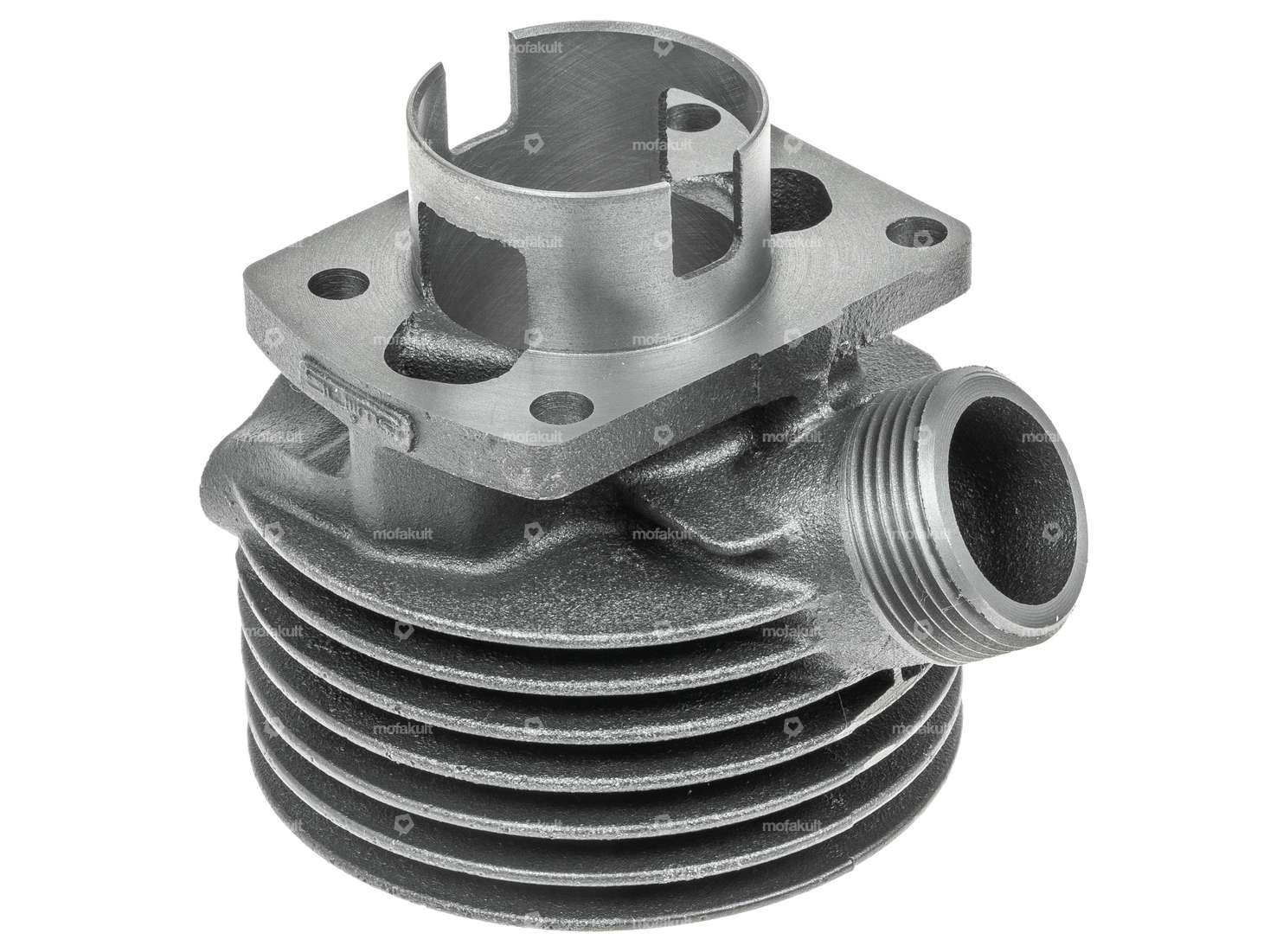

swiing® ingenious 41 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

rating iconrating iconrating iconrating iconrating icon
No reviews

Please select a variant

EUR 197.20

Incl. 25.5% VAT.

Description

41 mm tuning cylinder kit with diaphragm intake suitable for Swiss Sachs 50/2 (502) mopeds / mopeds.
With a larger displacement and optimized timing, this tuning kit turns your oldie into a powerhouse. In addition, this racing cylinder is visually indistinguishable from the original cylinder when fitted.

The cylinder kit is characterized by the following attributes:

  • Cast iron cylinder with 41 mm bore
  • Membrane control
  • Optimized overflow channels
  • improved control times
  • pore-clean surface

Exhaust thread: M35 x 2 mm

The scope of delivery includes cylinder, piston kit, gasket set and intake studs

Please note that this cylinder does not fit under the fan shroud of a slotted Sachs of the same type.

Matching add-on parts, as well as the more compact 38 mm tuning cylinder, can be found in the accessories section.

Please select in the selection field whether you would like the cylinder kit with or without gasket set.

Exceptional product for the highest demands of the quality brand swiing®.

swiing® ingenious 41 mm cylinder diaphragm | Sachs 50/2 (CH)

swiing® ingenious 41 mm cylinder diaphragm | Sachs 50/2 (CH)

27102

Hole pattern [mm]: 60 x 40 / 37 x 37 · Inlet window: 57.5 x 19 · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 68 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

For: Sachs

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

26879

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight piston kit: 86 g

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

16088

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102

Quantity: 2

Nominal diameter41 mm
Manufacturerswiing® ingenious parts, GPO
MaterialGray cast iron
Area of applicationTuning
Surfacesandblasted
Displacement55 ccm
Crankshaft stroke42 mm
Ø cylinder neck44 mm
Ø Outlet outside35 mm
Ø outlet inside26 mm
Ø Inlet inside19 mm
Number of fixing points4 pcs
Inlet window57.5 x 19
Thread inletM5x0.8 (standard thread)
Hole spacing inlet68 mm
Ø piston pin (B)12 mm
Outlet typeUnion nut
Thread outletM35x2 (standard thread)
Hole pattern [mm]60 x 40 / 37 x 37
CamouflagedYes
Sachs

502 (Saxonette) - AML

50/2 - ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

Accessories & related products

Cylinder head | Sachs 50/2

For: Sachs

11273

Cylinder head | Sachs 50/2

Decompressor: Yes · Number of fixing points: 4 pcs · Pony OEM number: A1069 · Pony OEM number: A1070 · Sachs OEM no.: 0213 104 006 · Sachs OEM no.: 0213 106 000

EUR 56.10

Diaphragm insert Sachs 50/2

For: Sachs

11694

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.2 mm · Area of application: Standard · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

EUR 34.60

Carburetor 17 mm Bing SSB 1/17/69 reproduction

For: Sachs

12019

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Nominal diameter: 17 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Ø fuel hose connection: 6.2 mm · Total length: 116 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Width: 86 mm · Height: 99 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Camouflaged: No · Nozzle size: 76 · Area of application: Standard · Area of application: Tuning · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

EUR 95.50

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

EUR 23.80

EUR 23.80/l

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

16088

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Diameter: 4.9 mm · Surface: galvanized (blue) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

EUR 2.15

Inox
swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

For: Sachs

18009

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Ø shaft: 5.85 mm · Drive: External hexagon · Screw head: Hexagon · Total length: 34 mm · Thread length: 22 mm · Shank: Yes · Shank length: 8 mm · Number of components: 12 pcs · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Area of application: Standard

EUR 8.85

GPO lifting plate 1 - 4 mm | Sachs 50/2, 502
undefined
angle-right

For: Sachs

20671

GPO lifting plate 1 - 4 mm | Sachs 50/2, 502

Manufacturer: GPO · Place of use: Cylinder base · Material: Aluminum · Thickness: 1 mm · Thickness: 1.5 mm · Thickness: 2 mm · Thickness: 2.5 mm · Thickness: 3 mm · Thickness: 4 mm

EUR 17.80

GPO adjusting nozzle Bing SSB Sachs (1A quality)
undefined

For: Sachs

22405

GPO adjusting nozzle Bing SSB Sachs (1A quality)

Manufacturer: GPO · Total length: 58 mm · Material: Brass · Component group Carburetor: Spraying · Surface: blank · Quantity: 1 pcs · Carburetor type: SSB · Drive: External hexagon · Nozzle type: Main nozzle · Width across flats: 11 mm · Nozzle thread: MF7x0.75 (fine pitch thread)

EUR 35.80

Hot Hot
swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4
undefined

For: Sachs

23820

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Ø inside: 17 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Number of flaps: 2 pcs · Width: 80 mm · Thickness: 6.9 mm · Mounting type: Screws · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Total length: 29 mm · Number of fixing points: 4 pcs · Area of application: Tuning

EUR 59.70

swiing® revival gasket set cylinder with head gasket diaphragm version | Sachs 50/2

For: Sachs

24550

swiing® revival gasket set cylinder with head gasket diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Number of components: 6 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm · Area of application: Standard

EUR 23.30

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4
undefined

For: Sachs

26879

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 86 g

EUR 47.70

Not in stock

Set
swiing® ingenious 41 mm tuning set diaphragm | Sachs 50/2 (CH)
undefined
angle-right

For: Sachs

27105

swiing® ingenious 41 mm tuning set diaphragm | Sachs 50/2 (CH)

Nominal diameter: 41 mm · Manufacturer: GPO · Manufacturer: NGK · Manufacturer: swiing® ingenious parts · Manufacturer: swiing® revival parts · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

EUR 777.20

Not in stock

swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4
undefined

For: Sachs

27906

swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Standard · Ø cylinder: 41 mm · Thickness: 0.3 mm · Place of use: Cylinder head · Ø inside: 41.7 mm · Hole pattern [mm]: 37 x 37

EUR 5.85

Explore categories from Cylinder

S-10-60-030_Zylinder_Rennsatz
Cylinder & racing set
S-10-60-040_Zylinderkopf
Cylinder head
S-10-60-020_Kolben
Piston
S-10-60-010_Dichtungen
Seals
S-10-60-050_Zubehoer_Dekompressor
Decompressor & tools & accessories

Moped fans also bought

Diaphragm insert Sachs 50/2

For: Sachs

11694

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.2 mm · Area of application: Standard · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

EUR 34.60

NSK E15 shoulder ball bearing 15/35/8 (A1149)
undefined

For: Sachs

11989

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing cage: Brass cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Stock number: E15 · Bearing type: Shoulder bearing · Ø outside: 35 mm · Ø inside: 15 mm · Width: 8 mm · Ball bearing closed: No · Area of application: Standard · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

EUR 29.80

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844
undefined

For: Sachs

15052

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø inside: 12.8 mm · Thickness: 2.4 mm · Ø outside: 19 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

EUR 7.05

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

16088

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Diameter: 4.9 mm · Surface: galvanized (blue) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

EUR 2.15

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4
undefined

For: Sachs

26879

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 86 g

EUR 47.70

Not in stock

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

For: Sachs

27095

swiing® revival gasket set cylinder diaphragm version | Sachs 50/2

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Area of application: Standard · Ø cylinder: 38 mm · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Number of components: 5 pcs · Hole pattern [mm]: 60 x 40 mm

EUR 15.90

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

For: Sachs

28363

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Material: Steel · Width: 8 mm · Ø inside: 15 mm · Ø outside: 35 mm · Area of application: High End · Area of application: Standard · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

EUR 59.70

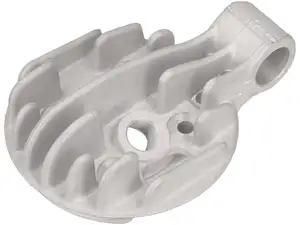

swiing® ingenious 41 mm cylinder head tuning | Sachs 50/2, 50/3, 50/4
