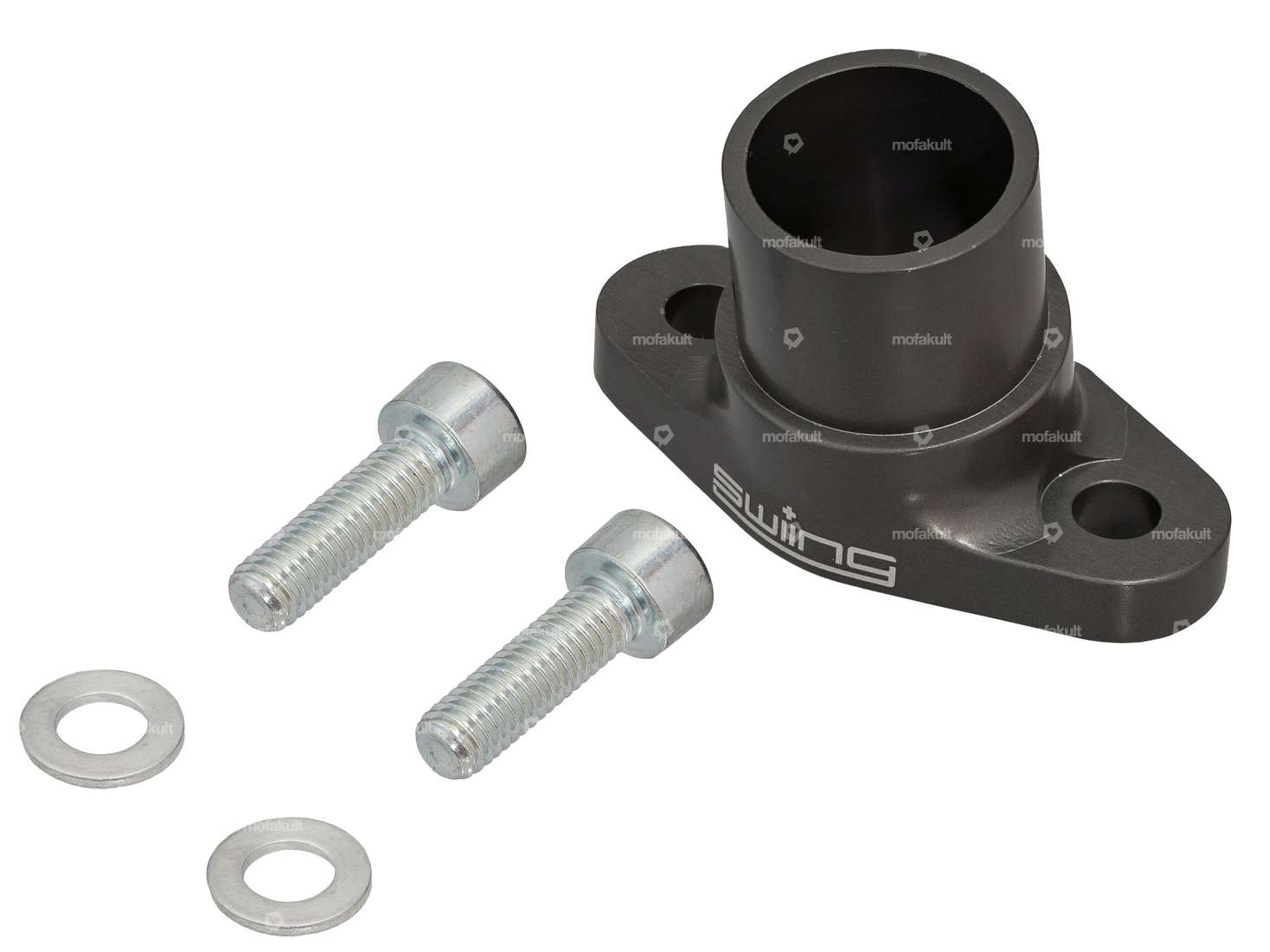

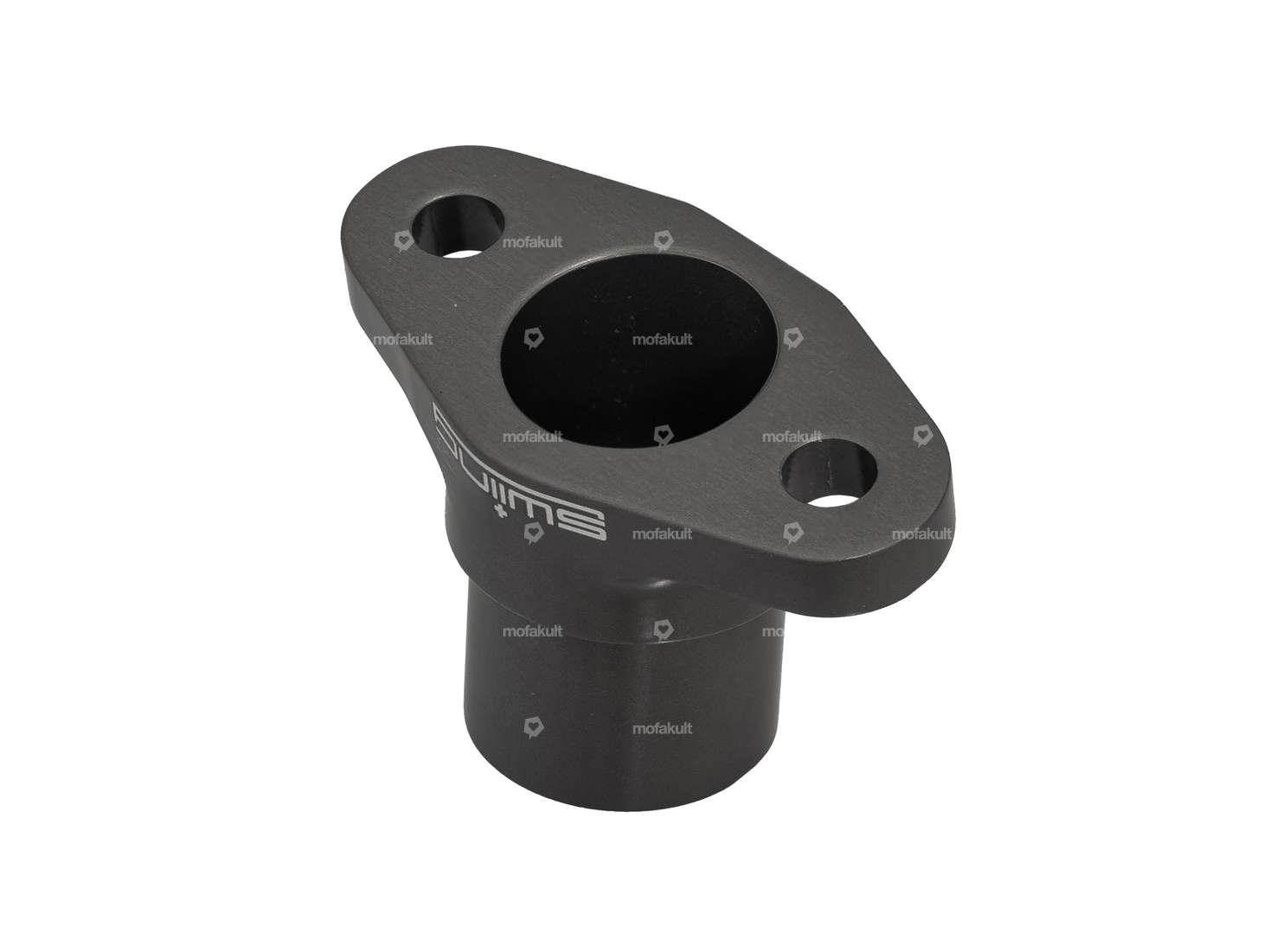

16 mm tuning intake manifold, silver anodized, suitable for the slotted 38 mm / 41 mm swiing aluminium cylinders for Sachs 502, 50/2, 50/3 and 50/4 mopeds, mopeds and small motorcycles.
The CNC-milled aluminium intake flange, in conjunction with a Dell'Orto SHA carburettor, provides a decent increase in performance.
Depending on the frame type, a 90° pipe bend should be used on the SHA carburetor for the throttle cable so that the racing carburetor can be mounted cleanly and straight.
Ø inside: 16 mm
Ø carburetor connection: 19 mm
Ø mounting hole: 5.5 mm
Hole spacing: 31 mm
The mounting screws are included in the scope of delivery.
Matching attachments such as gaskets, carburettors, pipe bends etc. can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Color | graphite colors |
| Area of application | Tuning |
| Ø inside | 16 mm |
| Ø External connection | 19 mm |
| Mounting type | Screws |
| Number of fixing points | 2 pcs |
| Hole spacing inlet | 31 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL |
Ratings
Accessories & related products
Dell'Orto 16/16 SHA carburetor hand choke
Nominal diameter: 16 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Width: 72 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Internal connection: 19 mm · Ø Output inside: 16 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Total length: 82 mm · Mixed oil connection: No · Vacuum connection: No · Height: 111 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 82 · Area of application: Tuning
EUR 83.60
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
EUR 25.00
Dell'Orto 15/15 SHA carburetor hand choke (with air filter)
Nominal diameter: 15 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 18 mm · Ø Output inside: 15 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 59 mm · Total length: 82 mm · Mixed oil connection: No · Vacuum connection: No · Height: 100 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 68 · Area of application: Racing · Area of application: Tuning
EUR 83.60
Not in stock
Dell'Orto 90° carburetor pipe bend set M6x0.75
Manufacturer: Dell'Orto · Width across flats nut: 7 mm · Material: Brass · Component group Carburetor: Adjusting screws, float, etc. · Surface: nickel-plated · Ø outside: 6 mm · Internal thread: MF5x0.75 (fine pitch thread) · Angle: 90 ° · Thread type: MF6x0.75 (fine pitch thread) · Total length: 43 mm · Total length: 52 mm · Height: 27 mm
EUR 14.20
swiing® ingenious 38 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)
Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Camouflaged: No · Area of application: Racing
EUR 263.00
Hot
swiing® ingenious 41 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)
Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 45 mm · Ø outlet inside: 20.5 mm · Ø Inlet inside: 15.3 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Camouflaged: No · Area of application: Racing
EUR 263.00
Not in stock
Set
Hot
swiing® ingenious 38 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)
Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Camouflaged: No · Area of application: Racing
EUR 263.00
Set
Hot
swiing® ingenious 41 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)
Nominal diameter: 41 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Camouflaged: No · Area of application: Racing
EUR 263.00
Not in stock
Explore categories from Carburetor & intake system
Moped fans also bought
ESJOT sprocket 37 teeth 4-hole coaster black
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø mounting hole: 6.4 mm · Ø inside: 94 mm · Manufacturer: ESJOT · Material: Steel · Surface: powder-coated · Color: black · Number of teeth: 37 pcs · Ø bolt circle: 105.5 mm · Thickness: 4.1 mm · Hole spacing: 74 mm · Number of fixing points: 4 pcs
EUR 63.30
Dell'Orto 16/16 SHA carburetor hand choke
Nominal diameter: 16 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Width: 72 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Internal connection: 19 mm · Ø Output inside: 16 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Total length: 82 mm · Mixed oil connection: No · Vacuum connection: No · Height: 111 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 82 · Area of application: Tuning
EUR 83.60
Dell'Orto 15/15 SHA carburetor hand choke (with air filter)
Nominal diameter: 15 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 18 mm · Ø Output inside: 15 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 59 mm · Total length: 82 mm · Mixed oil connection: No · Vacuum connection: No · Height: 100 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 68 · Area of application: Racing · Area of application: Tuning
EUR 83.60
Not in stock
Dell'Orto 90° carburetor pipe bend set M6x0.75
Manufacturer: Dell'Orto · Width across flats nut: 7 mm · Material: Brass · Component group Carburetor: Adjusting screws, float, etc. · Surface: nickel-plated · Ø outside: 6 mm · Internal thread: MF5x0.75 (fine pitch thread) · Angle: 90 ° · Thread type: MF6x0.75 (fine pitch thread) · Total length: 43 mm · Total length: 52 mm · Height: 27 mm
EUR 14.20

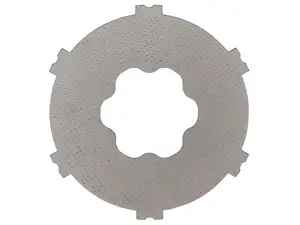

Reinforced intermediate plate clutch | Sachs 503, 50/2 (502), 50/3, 50/4
