Intake manifolds and air filters for Sachs mopeds, scooters, and small motorcycles with 50/2 (502), 50/3, or 50/4 engines.
The very short intake path, combined with the 15 mm Bing carburetor, results in a significant increase in performance. If the air intake volume is still too high, you can use part 17273 as an insert.
Installation Note! – Since space is very tight between the cylinder, engine block, and frame, the following must be observed during installation:
- The stud bolts on the cylinder must be removed. The M5x12 screws to be used are included.
- The “swiing®” lettering on the intake manifold must face upward, as the manifold’s flange is slightly angled.
- The milled surface of the air filter housing must face downward.
- The intake manifold, carburetor, and air filter must be pre-assembled. Only then can the entire assembly be installed.

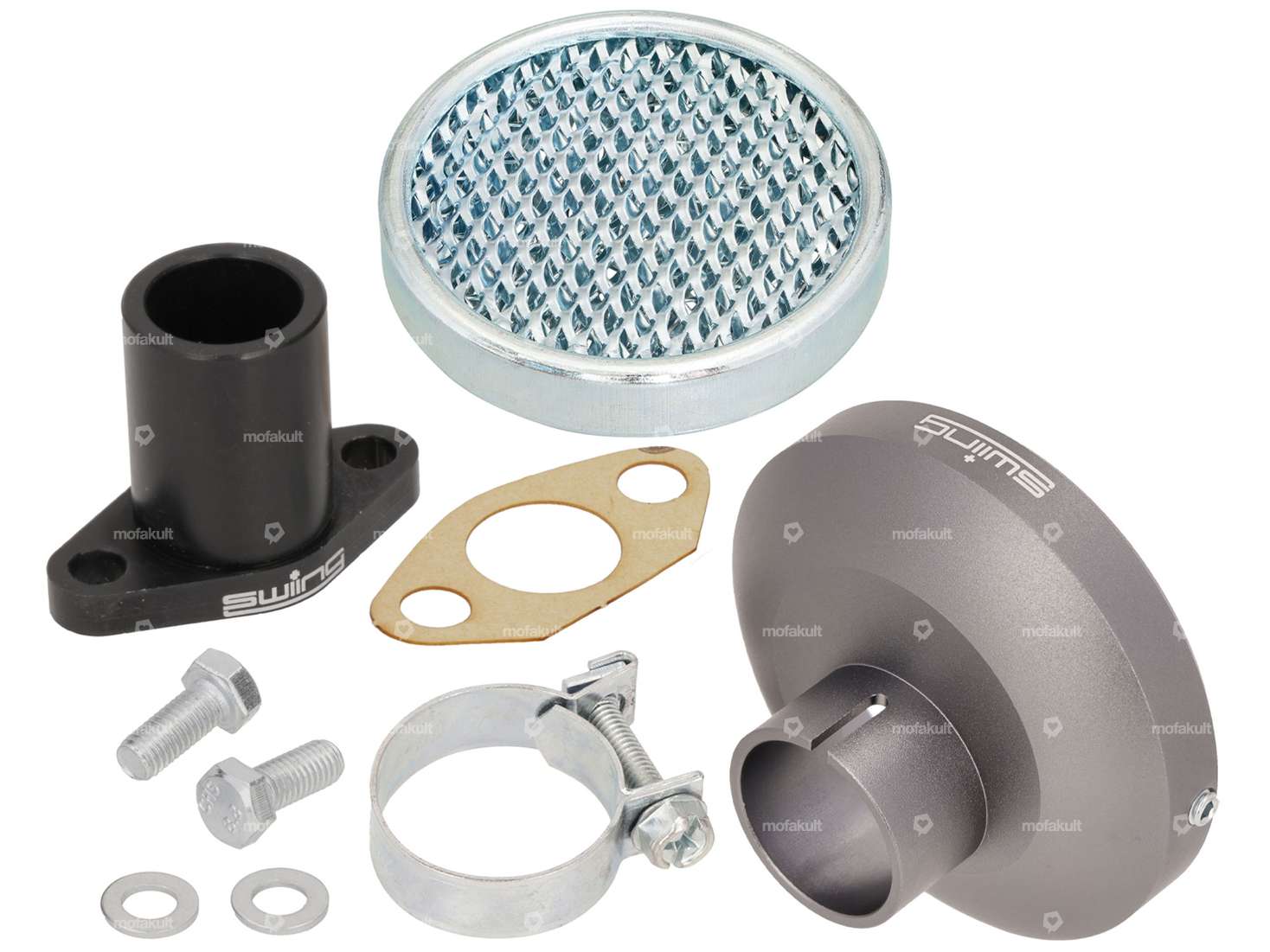

Scope of delivery as shown in Figure 1.

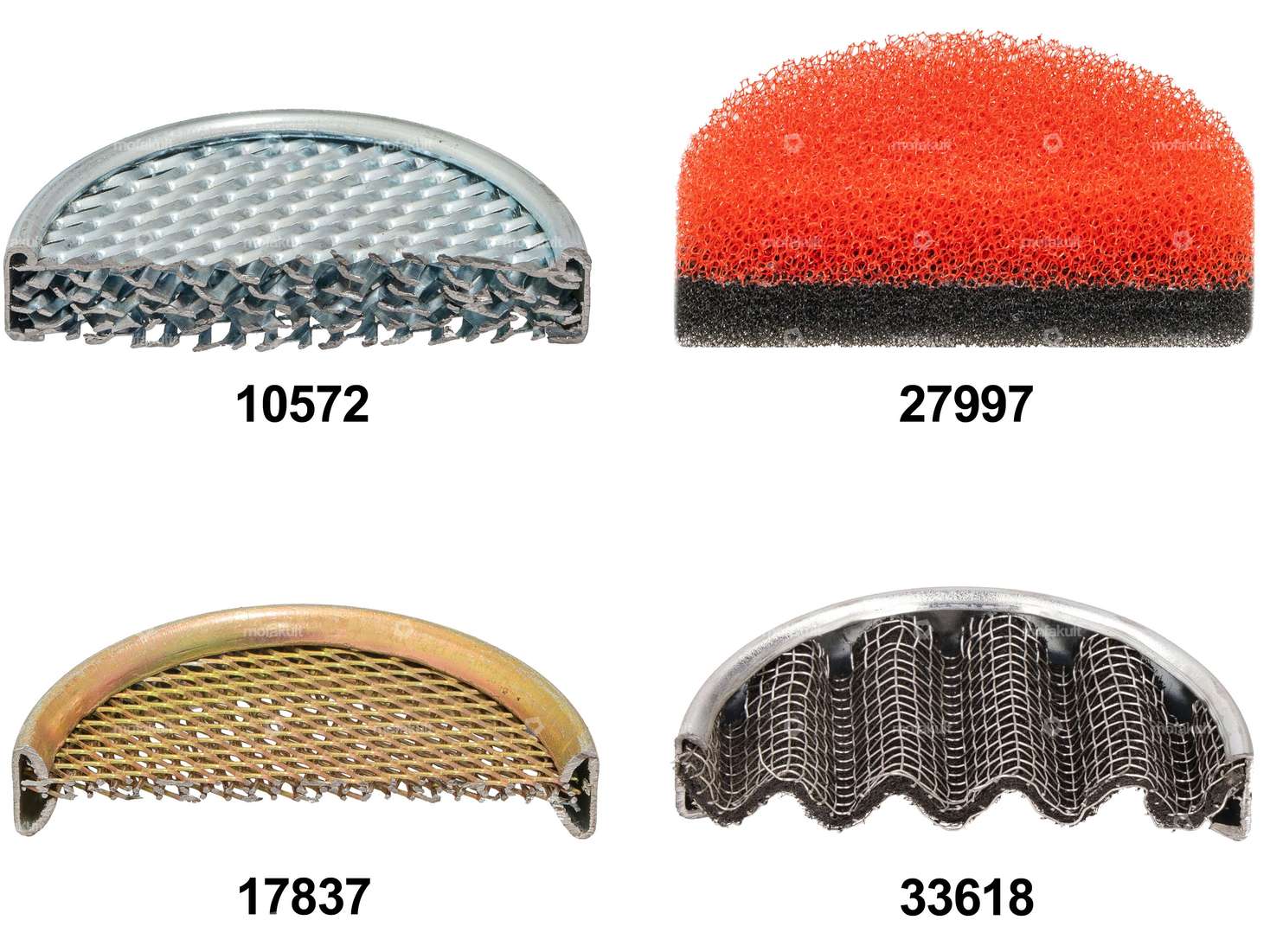

Note: If you choose the 50 mm “Double Layer” filter element, you must also order housing 28548.
A sophisticated product meeting the highest standards from the swiing® quality brand.
Manufacturer: swiing® ingenious parts · Camouflaged: No · Color: gray · Material: Aluminum · Filter type: Grille · Total length: 29 mm · Length of filter section: 9.5 mm · Ø Internal connection: 20 mm · Ø outside: 56 mm · Mounting type: Screws, Bride · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Color: graphite colors
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
